16 Ton Tractor 3 Point Log Splitter (3PT16H)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
16 Ton Tractor 3 Point Log Splitter (3PT16H)
Tractor Hydraulic Powered • Category 1 Hitch • Built for Small Tractor Owners
The 3PT16H 16 Ton Tractor 3 Point Log Splitter is a practical, heavy-duty attachment built for small tractor owners who want a dependable way to split firewood using their tractor’s hydraulic system. Designed for Category 1 3-point hitches, this splitter hooks up to your tractor’s auxiliary hydraulic outputs and is ready to work once properly equipped.
Built with a reinforced tubular beam design, 3.5" x 18" cylinder, and auto-return detent valve, the 3PT16H is made to handle a wide range of homeowner and farm firewood needs. It offers approximately 16 tons of splitting force, depending on your tractor’s hydraulic output, and is recommended for tractors with a minimum flow rate of 5 GPM.
For added flexibility, this splitter can also be customized with a PTO self-contained hydraulic kit, 4-way wedge, log cradles, multiple color choices, or even a horizontal / vertical beam configuration.
Key Features & Benefits
-
16 Tons of Approximate Splitting Force
Built to provide dependable firewood splitting performance for homeowners and small acreage users. -
Designed for Small Tractors
Great fit for tractor owners who want to use existing hydraulic power for wood splitting. -
Category 1 3-Point Hitch Setup
Standard pins used are Category 1 for common compact and utility tractor compatibility. -
Runs Off Tractor Hydraulics
Connect to the auxiliary outputs of your tractor and split wood without a separate engine. -
Recommended 5 GPM or Higher Flow Rate
Best performance is achieved with properly equipped tractors offering at least 5 GPM hydraulic flow. -
Heavy-Duty Tubular Beam Construction
Built with a 2" wide x 5" tall tubular beam and 5" reinforced top plate for durability. -
3.5" x 18" Cylinder
Strong hydraulic cylinder designed for consistent splitting force. -
Auto Return Detent Valve
Helps improve productivity and ease of use during repetitive splitting. -
Adjustable Working Height
Use your tractor’s 3-point hitch to position the splitter at a comfortable working height. -
Customizable Setup
Choose from optional PTO kit, 4-way wedge, log cradles, and horizontal / vertical operation.
Optional Upgrades
-
Color Choice

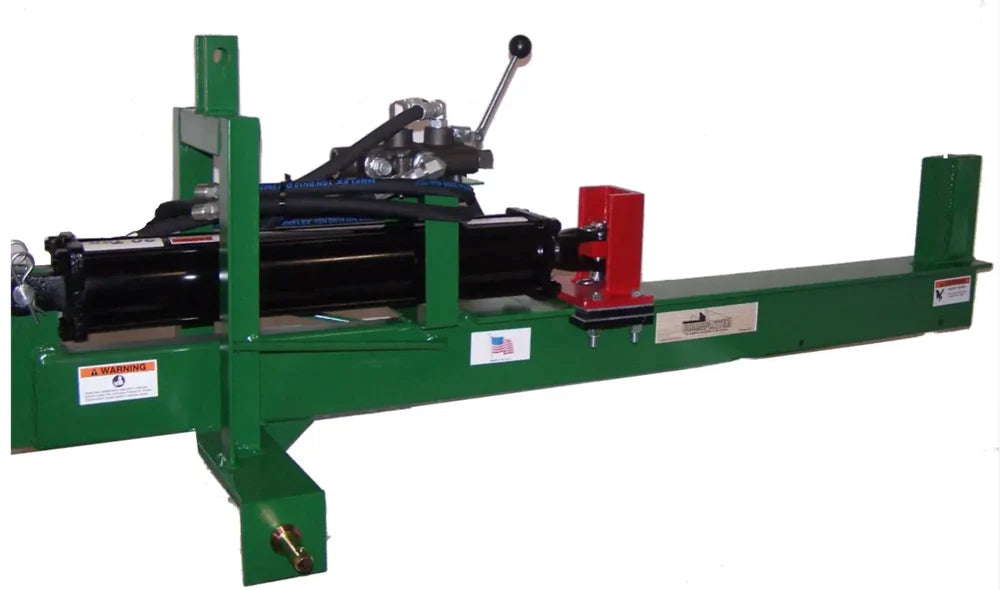

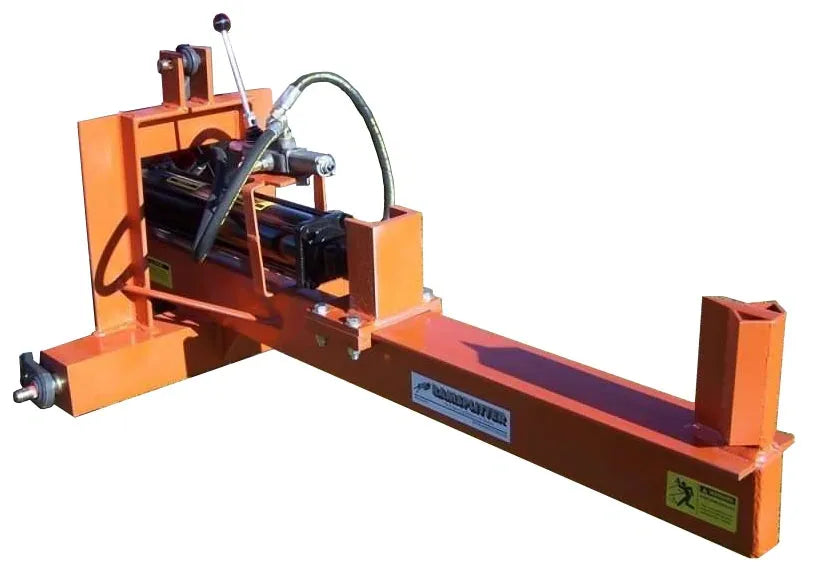

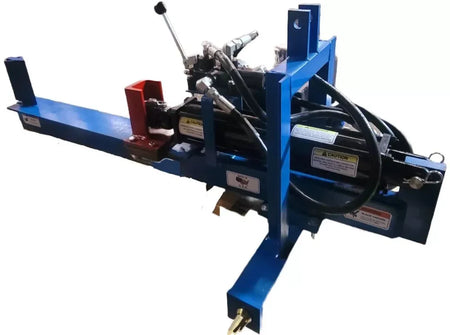

Available in Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost. -
PTO Kit
Self-contained hydraulic system powered by your tractor’s PTO. Includes tank and 11.9 GPM PTO pump designed for 540 RPM PTO operation. -
4-Way Wedge
Slips over the standard wedge to split logs into 4 pieces in one pass.
Note: reduces opening size by 2 inches. -
Log Cradles
Helps hold logs in place during splitting so you do not have to support them by hand. -

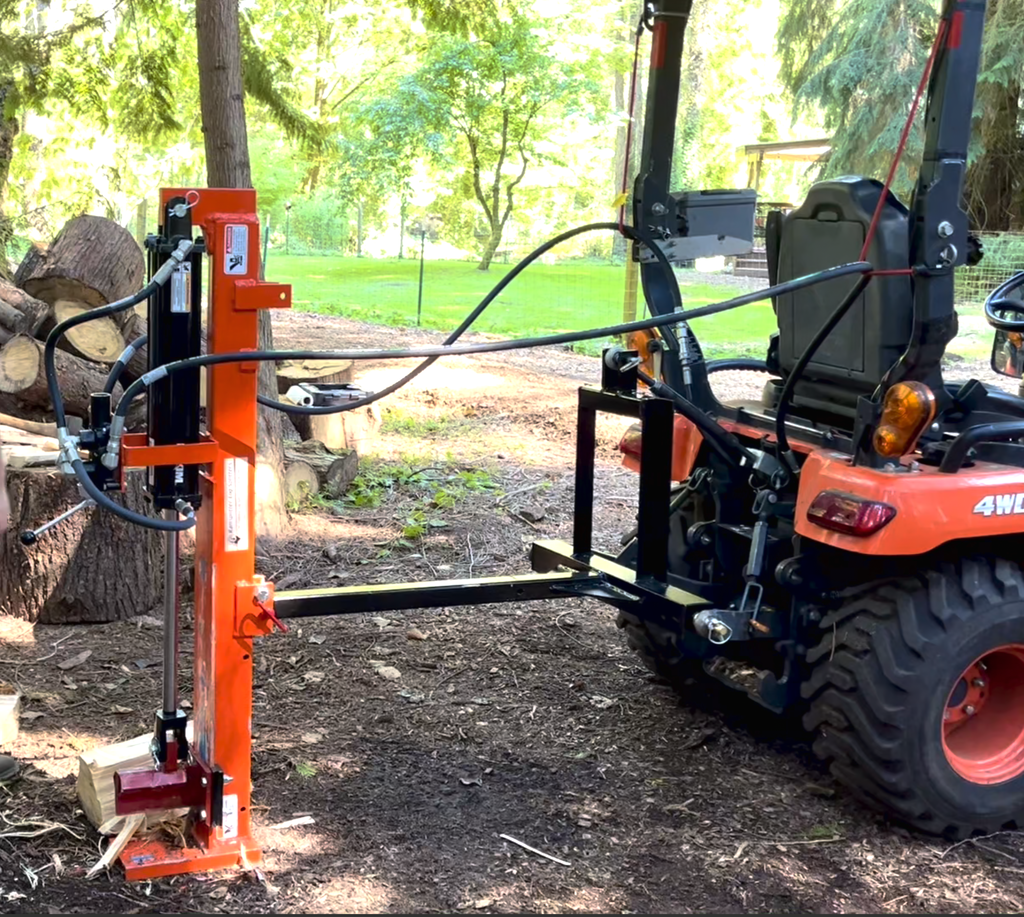

Horizontal / Vertical Version (3PT16HV)
Optional beam design flips up and locks into vertical position, making it easier to split heavier rounds without lifting them onto the beam.
Why Choose the 3PT16H?
If you already own a small tractor and want an affordable, durable splitter that uses the hydraulic power you already have, the 3PT16H is a smart option. It gives you a solid blend of tractor-powered convenience, customization options, and heavy-duty construction for home, farm, and acreage firewood work.
Quick Specs
| Specification | Details |
|---|---|
| Model | 3PT16H |
| Beam Structure | Tubular Design, 2" Wide x 5" Tall, 5" Reinforced Top Plate |
| Splitting Wedge | 6" High |
| Operating Position | Horizontal (Horizontal / Vertical Optional) |
| Splitting Force | 16 Ton (Approx. depending on tractor) |
| Cylinder | 3.5" x 18" |
| Cycle Time | Approx. 8–15 Seconds (depends on tractor) |
| Log Opening | 19 in. |
| Working Height | Adjustable with 3-Point Hitch |
| Safety Control Valve | Detent, Auto Return |
| Top Link / Pins / Hoses / Quick Disconnects | Not Included |
| Shipping Weight | 250 lbs. |
Important Notes
- Top link, hoses, pins, and quick disconnects are not included
- All hoses and connections are included only with PTO kits
- Tractor hydraulic performance will affect actual tonnage and cycle time
PTO KIT Q & A:
Q: Does the PTO kit include the reservoir?
A: Yes.
Q: Does the PTO kit include the 11.9 GPM, 540 RPM pump?
A: Yes.
Q: Is the torque restraint included?
A: Yes.
Q: Are hoses and all necessary fittings included?
A: Yes.
Q: Are the Category I hitch pins included?
A: Yes.
Q: Is hydraulic fluid included? If not, what type and quantity are required?
A: Hydraulic fluid is not included. We recommend using Automatic Transmission Fluid. Please refer to the product manual or manufacturer specifications for the required quantity.
Q: What is the approximate assembled weight with the PTO kit, cradles, and four-way wedge?
A: The approximate assembled weight is 300 lbs with oil.
Q: Will it arrive assembled enough to connect directly to my three-point hitch from the delivery pallet?
A: Yes, but you will need to connect the hoses from the PTO pump to the valve assembly.
NOTE: Most products require at least some assembly.
Shipping Disclaimer
Due to rising fuel costs, limited freight capacity, and delivery restrictions in certain areas, some shipments may be subject to an additional remote area, out-of-area or limited-access delivery fee. If additional shipping charges are required to complete your order, we will contact you after the order is placed and provide available options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)
CALIFORNIA PROPOSITION 65 WARNING
Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.
Works perfect on my Kubota BX25d. Plenty of power @3100 rpm’s.
Hi there!
Thank you for leaving a review for our 16 Ton Tractor 3 Point Log Splitter. We're glad to hear that it works perfectly on your Kubota. Don't hesitate to reach out if you have any further questions or concerns.
Happy splitting!
Thanks, WSD

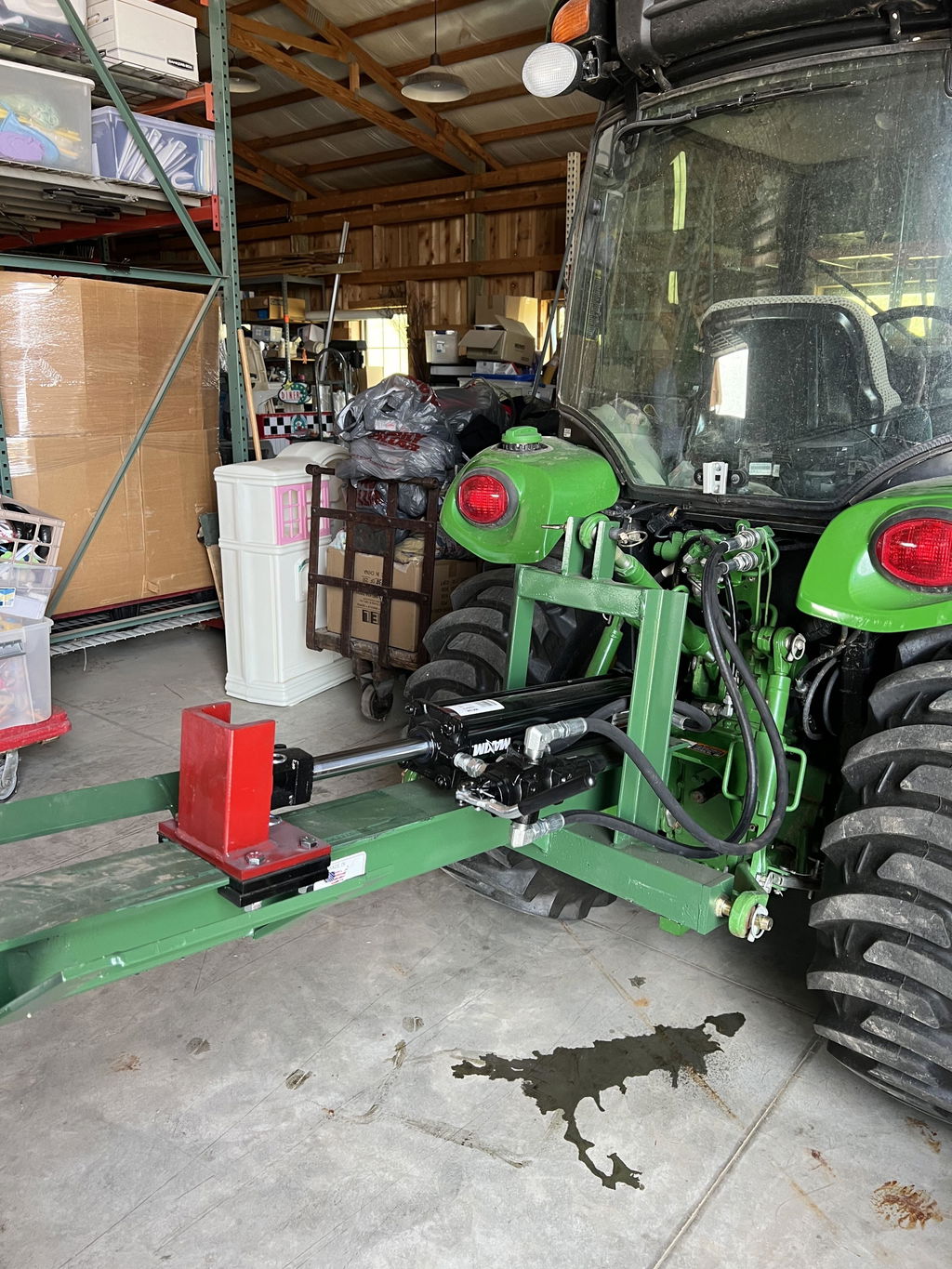

I have been able to get the unit to work briefly as the 3039 JD tractor is plumbed partially correct, however, the two connections at the rear of the tractor are "active" only when a thumb button on the "joystick" is depressed. This hydraulic connection is electronically activated by that thumb button and must be held in order to send hydraulic fluid to the log splitter. John Deere is working on a "work around" in order to have those rear connections "live" full time.
That said, I was very disappointed when I received the unit as it was painted an Oliver (obsolete tractor brand) forest green and not John Deere green. Not a "show stopper" but this should be addressed with the manufacturer. Looking forward to using it in the future!
Works great! The only issue I have is the product description didn’t say that the hydraulic hoses are built for a rear plugin and I have a mid-tractor plugin. Otherwise it works great.
Hi there, thank you for your feedback! We are glad to hear that the 16 Ton Tractor 3 Point Log Splitter is working great for you. We apologize for any inconvenience caused by the hydraulic hoses not being suitable for a mid-tractor plugin. Hoses do only come standard to the rear block. Anthing longer will have to be modified. We will make sure to update the product description to include this information. Thank you for bringing this to our attention and we hope you continue to enjoy using the log splitter. Have a great day!
Thanks, WSD
So far I have split oak, birch and tamarack. Nothing has slowed it down.
Works as advertised. Splits wood with out busting my balls.
This splitter is outstanding. Easy one person operation. Took a little time hooking up to tractor for the first time, but subsequent installs and removals quite easy. Could use some work on the side cradle design as split wood just falls to the ground most times. Overall, well worth it.
So far very good. Hasn't stoped anything I've thrown at it yet. Nice unit.
Very pleased with my 16 ton 3 point wood splitter. Would recommend Woodsplitter Direct to anyone.
Is this unit quick hitch compatable?
Hello,
No it is not. It is a standard Cat 1 Hitch. You would have to make your own modifications if you want to use the quick hitch.
Thanks, WSD
Where does the optional pto kit mount? To the splitter or to the tractor? Specifically on the Boss Industrial 22 ton. A picture would be great to get an idea.
The PTO pump mounts to your PTO shaft the tractor. Unfortunately Boss does not offer a PTO kit. They only offer the units that run off your tractors hydraulics.
Thanks, WSD
If the performance is too slow for my liking, can the PTO kit be purchased separately?
Yes it can be but you will have to make some modifications to assemble the tank etc. Its better to check your flow rate etc before purchasing to see if you will need a PTO kit or not.
The pictures of the horizontal unit looks as if the the block travels and the wedge is stationary. If the vertical option is selected, is the block at the bottom at the ground or the wedge?
Hi Scott,
On a horizontal / vertical log splitter the wedge has to be on the cylinder side pushing toward the foot plate because in the vertical position it will have to push down so the log can stand on a flat surface (foot plate). When splitting horizontal it really doesn't matter what side the wedge is on as the log lies flat on the beam. Most only horizontal log splitters have the wedge on the end of the beam.
Thanks, WSD
Is the recommended flow rate for the total flow?
Hello,
For the 16 ton, we would recommend at least 5GPM to the log splitter.
I am wondering if the 3pt16h is made in America.
Hello, Yes that unit is USA made.
Will the (3pt16h) wood splitter work With my kubota bx25d tractor?
You will need rear hook ups and at least 5GPM for a 16 ton unit.
 |
 |
