Banjo 2" Transfer Pump with Honda GX160 Electric Start (200PH-5-160E.BAN)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
190 GPM • 2" NPT Ports • Honda GX160 163cc Engine • Electric Start • Self-Priming Polypropylene Pump

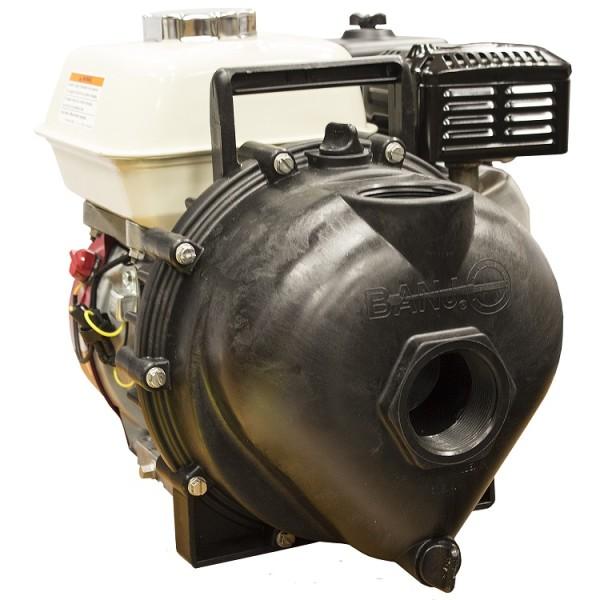

Move large volumes of water and compatible liquids quickly with the Banjo 200PH-5-160E 2" Transfer Pump. Powered by the dependable Honda GX160 163cc engine, this high-capacity pump delivers up to 190 gallons per minute and adds the convenience of electric starting for easier operation in demanding farm, irrigation, transfer, and dewatering applications.
The pump features a corrosion-resistant polypropylene body, 5-vane polypropylene impeller, EPDM mechanical seal, and a self-priming V-shaped housing designed for fast priming. Both the suction and discharge connections are 2" NPT, making it well suited for high-volume 2-inch hose and piping systems.
Key Features & Benefits
-
Up to 190 GPM Flow
High-volume transfer performance helps move large quantities of liquid efficiently. -
Honda GX160 Engine
Powered by a reliable 163cc Honda GX160 engine for dependable commercial-duty performance. -
Electric Start
Convenient electric starting makes operation easier compared with recoil-only configurations. -
2" Suction & Discharge Ports
Uses 2-inch NPT connections on both the inlet and outlet. -
Self-Priming Design
The V-shaped pump body is designed for quick priming and convenient field operation. -
Corrosion-Resistant Polypropylene Construction
High-strength polypropylene construction is well suited for water and other compatible liquid-transfer applications. -
5-Vane Polypropylene Impeller
High-performance impeller design supports strong flow while maintaining corrosion resistance. -
EPDM Mechanical Seal
Provides durable sealing performance in compatible applications. -
Portable Design
Published dry weight is 58 lbs., providing high transfer capacity without the bulk of a permanently mounted pump system.

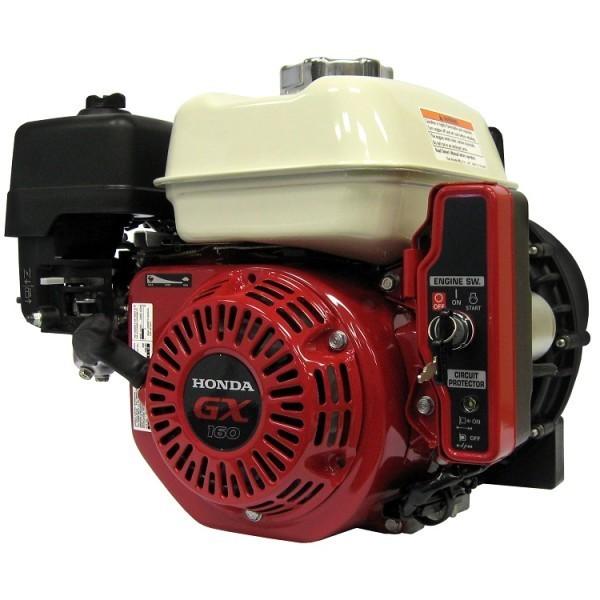

Honda GX160 Electric-Start Power
The 200PH-5-160E is powered by the proven Honda GX160 163cc engine and uses an electric-start system. This makes it a strong choice for operators who want the reliability of Honda power with easier starting for repeated or frequent use.
The gasoline-powered design also allows the pump to operate in remote locations where electrical utility power may not be available.
High-Capacity 2" Transfer Performance
With a published maximum discharge capacity of 190 GPM, the 200PH-5-160E is designed for applications where moving a substantial volume of liquid quickly is important.
Both connections use standard 2" NPT ports, making the pump suitable for compatible suction hoses, discharge hoses, fittings, and piping systems.

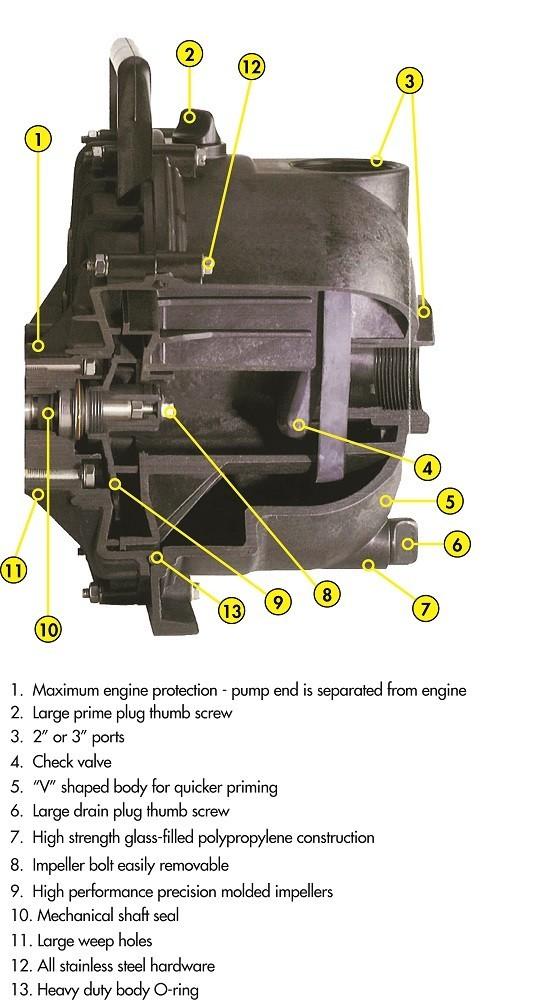

Self-Priming V-Shaped Pump Body
The pump features a self-priming V-shaped body designed to help simplify startup and reduce priming time. Its lightweight polypropylene construction also provides resistance to corrosion in compatible applications.
Always fill and prime the pump according to the manufacturer's instructions before operation. Never operate a centrifugal pump dry.
Ideal Applications
The Banjo 200PH-5-160E is well suited for:
- Agricultural water transfer
- Farm and ranch applications
- Irrigation
- Tank-to-tank transfer
- Dewatering
- Lawn and landscape irrigation
- Mobile pumping applications
- General-purpose liquid transfer
- Compatible chemical-transfer applications
For chemicals or liquids other than water, verify compatibility with polypropylene, EPDM, and all other wetted components before use.
Quick Specifications
| Specification | Details |
|---|---|
| Brand | Banjo |
| Model / MPN | 200PH-5-160E |
| SKU | 200PH-5-160E.BAN |
| Product Type | Transfer Pump |
| Maximum Discharge Capacity | 190 GPM |
| Suction Port | 2" NPT |
| Discharge Port | 2" NPT |
| Engine Brand | Honda |
| Engine Model | GX160 |
| Engine Displacement | 163cc |
| Start Type | Electric |
| Pump Construction | Polypropylene |
| Impeller | 5-Vane Polypropylene |
| Mechanical Seal | EPDM |
| Self-Priming | Yes |
| Dry Weight | 58 lbs. |
These specifications are currently published for the 200PH-5-160E.BAN.
Replaces Banjo 205PH-5-160E
The 200PH-5-160E is the current replacement for the previous Banjo 205PH-5-160E. The older GNE product page is explicitly labeled “R/B 200PH-5-160E.BAN”, and its published specifications match the new model's 190 GPM capacity, Honda GX160 engine, electric start, 2" NPT ports, polypropylene impeller, EPDM seal, and 58-lb. dry weight.
This makes the new model appropriate for customers searching for either:
- Banjo 200PH-5-160E
- Banjo 205PH-5-160E
Package Contents
- 1 × Banjo 200PH-5-160E transfer pump
- Honda GX160 engine installed
Need a hose hose kit? See our optional 2" Hose Kit w/ Quick Connect Couplers (BRHK2). Kit is discounted when you purchase the pump at the same time.
NOTE: Most products require at least some assembly.
