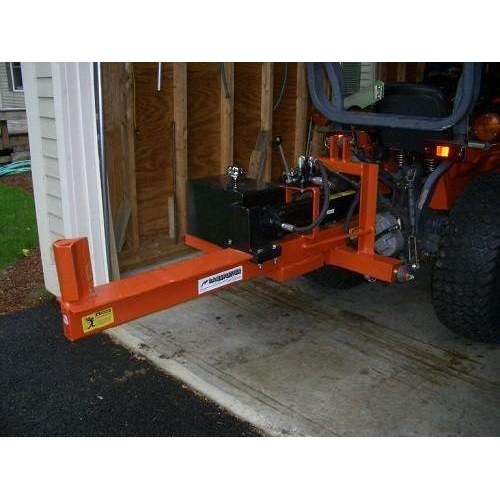

20 Ton Horizontal Tractor 3-Point Log Splitter (3PT20H)
Tractor Hydraulic Powered • Horizontal Splitting • Made in the USA
The Ram Splitter 3PT20H is a popular choice for tractor owners who want to use their tractor’s existing hydraulic system to power a dependable firewood splitter. Just connect to your tractor’s auxiliary hydraulic outputs and start splitting. It is a simple, cost-effective solution for homeowners, acreage owners, and farm users who want solid splitting performance without a separate engine-powered unit.
Built with a heavy-duty tubular beam, 4" x 24" cylinder, and 8" splitting wedge, the 3PT20H delivers up to 20 tons of splitting force, depending on your tractor’s hydraulic output. Its horizontal design keeps operation straightforward and efficient, while the 3-point hitch setup allows you to adjust working height to a comfortable level.
This American-made splitter is also highly customizable, with available options including a PTO kit, 4-way wedge, log cradles, larger opening cylinder, and your choice of color.
Key Features & Benefits
-
20 Tons of Splitting Force
Designed to deliver strong tractor-powered splitting performance for home and farm firewood use. -
Runs Off Existing Tractor Hydraulics
Connect to your tractor’s auxiliary outputs and split without maintaining a separate gas engine. -
Horizontal Splitting Design
Stable and efficient layout for routine firewood production. -
Heavy-Duty Tubular Beam Construction
Built with a 2" wide x 5" tall beam and 6" reinforced top plate for strength and durability. -
4" x 24" Hydraulic Cylinder
Provides dependable force and steady splitting action. -
8-Inch Splitting Wedge
Strong wedge designed for reliable performance across a wide range of wood types. -
Auto Return Detent Valve
Helps improve efficiency and ease of use during repetitive splitting. -
Adjustable Working Height
Set working height using your tractor’s 3-point hitch. -
Customizable Setup
Choose the options that best fit your tractor, wood type, and workflow. -
Made in the USA
Built for durability, dependable service, and long-term value.
Recommended Hydraulic Requirements
- Recommended minimum flow rate: 7.5 GPM or higher
- Actual cycle time and tonnage depend on your tractor’s PSI and GPM
- If your tractor is not properly equipped, an optional self-contained PTO kit is available
Optional Upgrades
-
Color Choice
Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost. -
PTO Kit
Self-contained hydraulic setup with tank and 21 GPM PTO pump designed for 540 RPM PTO operation.
25 HP minimum tractor required. -
4-Way Wedge
Slips over the standard wedge to split logs into 4 pieces in one pass.
Reduces opening size by 3 inches. -
Log Cradles
Optional welded cradles help hold logs in place and reduce the need to support wood by hand. -
Larger Opening / Cylinder Options
Standard unit uses a 4" x 24" cylinder with a 25" opening.
Optional 4" x 30" or 4" x 36" cylinder upgrades are available for larger opening sizes. -
Horizontal / Vertical Version Available
Also offered in a horizontal / vertical configuration as the 3PT20HV.
Why Choose the 3PT20H?
If you already have a tractor with the hydraulic capacity to run a splitter, the Ram Splitter 3PT20H is a smart way to get dependable 20 ton splitting performance without the extra maintenance of a standalone gas-powered unit. It is durable, customizable, USA-made, and designed to make tractor-powered firewood processing simple and effective.
Quick Specs
| Specification | Details |
|---|---|
| Model | 3PT20H |
| Beam Structure | Tubular Design, 2" Wide x 5" Tall, 6" Reinforced Top Plate |
| Splitting Wedge | 8" High |
| Operating Position | Horizontal |
| Splitting Force | 20 Ton (Approx. depending on tractor PSI) |
| Cylinder | 4" x 24" (Optional 30" or 36") |
| Cycle Time | Approx. 10–15 Seconds (depends on tractor GPM) |
| Log Opening | 25 in. |
| Working Height | Adjustable with 3-Point Hitch |
| Safety Control Valve | Detent, Auto Return |
| Operating Weight | 400 lbs. |
| Made in USA | Yes |
| Color Options | Black, Orange, Green, Blue |
| Log Cradles | Optional |
| PTO Driven | Optional |
| 4-Way Wedge | Optional |
| Shipping | Freight – Limited Time Free Shipping |
Important Notes
- Standard pins are Category 1, but can be changed to Category 2 or 3
- Hose ends / connectors are not included
- Top link pins and tractor-related hardware are not included
- All hoses and connections are included with PTO kits
- Some assembly is required
Shipping Note
This item ships by freight truck. You will be responsible for unloading the crate unless liftgate delivery is selected.
PTO KIT Q & A:
Q: Does the PTO kit include the reservoir?
A: Yes.
Q: Does the PTO kit include the 21 GPM, 540 RPM pump?
A: Yes.
Q: Is the torque restraint included?
A: Yes.
Q: Are hoses and all necessary fittings included?
A: Yes.
Q: Are the Category I hitch pins included?
A: Yes.
Q: Is hydraulic fluid included? If not, what type and quantity are required?
A: Hydraulic fluid is not included. We recommend using Automatic Transmission Fluid. Please refer to the product manual or manufacturer specifications for the required quantity.
Q: What is the approximate assembled weight with the PTO kit, cradles, and four-way wedge?
A: The approximate assembled weight is 300 lbs with oil.
Q: Will it arrive assembled enough to connect directly to my three-point hitch from the delivery pallet?
A: Yes, but you will need to connect the hoses from the PTO pump to the valve assembly.
NOTE: Most products require at least some assembly.
