20 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT20HV)

Regular price $2,109.00
Regular price -10% $2,349.99 Sale price $2,109.00

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).

20 Ton Horizontal / Vertical Tractor 3-Point Log Splitter (3PT20HV)

Tractor-Powered • Horizontal / Vertical Splitting • Made in the USA

The Ram Splitter 3PT20HV has become a popular choice for tractor owners who want dependable splitting power with the flexibility to work in both horizontal and vertical positions. Built for real firewood work, this American-made 3-point log splitter makes it easy to handle everything from standard firewood to heavy rounds you do not want to lift onto the beam by hand.

Designed to run from your tractor’s hydraulic system, the 3PT20HV delivers up to 20 tons of splitting force, depending on your tractor’s hydraulic output. Its rugged tubular beam design, 4" x 24" cylinder, and 8" splitting wedge provide the strength needed for home, farm, and acreage firewood production. Vertical mode is especially useful for larger rounds, helping reduce lifting and operator strain.

For users who need even more flexibility, this splitter is fully customizable with optional PTO kit, 4-way wedge, log cradles, larger opening, and your choice of paint color.


Key Features & Benefits

  • 20 Tons of Splitting Force
    Built to deliver strong tractor-powered splitting performance for home and farm firewood use.
  • Horizontal / Vertical Operation
    Split in either position for greater flexibility and easier handling of larger rounds.
  • Popular 3-Point Tractor Splitter Design
    Great choice for tractor owners who want a simple, effective, hydraulic-powered splitter.
  • Heavy-Duty Tubular Beam Construction
    Built with a 2" wide x 5" tall beam and 6" reinforced top plate for strength and durability.
  • 4" x 24" Hydraulic Cylinder
    Provides dependable force and consistent splitting action.
  • 8-Inch Splitting Wedge
    Durable wedge designed for reliable performance on a wide range of wood types.
  • Deadman Switch for Added Safety
    Stops the ram when the control handle is released.
  • Auto-Return Control Valve
    Valve locks into return for easier operation and improved workflow.
  • Built-In Relief Valve
    Helps protect the hydraulic system during operation.
  • Rectangular Tube Beam Design
    Helps eliminate twisting and bending under load.
  • Adjustable Working Height
    Use your tractor’s 3-point hitch to set a comfortable working height.
  • Made in the USA
    Built for long-term durability and dependable real-world performance.

Recommended Hydraulic Requirements

  • Recommended minimum flow rate: 7.5 GPM or higher
  • Actual cycle time and tonnage depend on your tractor’s PSI and GPM
  • Tractors not properly equipped can be set up with the optional PTO kit

Optional Upgrades

  • Color Choice
    Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
  • PTO Kit
    Self-contained hydraulic setup with tank and 21 GPM PTO pump designed for 540 RPM PTO operation.
    25 HP minimum tractor required.
  • 4-Way Wedge
    Slips over the standard wedge to split logs into 4 pieces in one pass.
    Note: reduces opening size by 3 inches.
  • Log Cradles
    Helps catch falling wood and reduce bending by keeping split pieces off the ground.
  • Larger Opening Option
    Standard unit features a 25" opening with a 4" x 24" cylinder.
    Optional 4" x 30" cylinder increases opening to 31".

Why Choose the 3PT20HV?

If you want a tractor-powered splitter that gives you the convenience of both horizontal and vertical operation, the Ram Splitter 3PT20HV is a strong option. It offers dependable splitting power, helpful safety features, and the flexibility to handle larger logs without all the lifting. For homeowners, acreage owners, and farms, it is a practical and durable USA-made solution.


Quick Specs

Specification Details
Model 3PT20HV
Beam Structure Tubular Design, 2" Wide x 5" Tall, 6" Reinforced Top Plate
Splitting Wedge 8" High
Operating Position Horizontal / Vertical
Splitting Force 20 Ton (Approx. depending on tractor PSI)
Cylinder 4" x 24" (Optional 30")
Cycle Time Approx. 10–15 Seconds (depends on tractor GPM)
Log Opening 25 in. (31 in. optional)
Working Height Adjustable with 3-Point Hitch
Safety Control Valve Detent, Auto Return
Operating Weight 400 lbs.
Made in USA Yes
Color Options Black, Orange, Green, Blue
Warranty 1 Year
Shipping Freight – Limited Time Free Shipping
4-Way Wedge Optional
PTO Driven Optional
Log Cradles Optional

Important Notes

  • Standard pins are Category 1, but can be changed to Category 2 or 3
  • Hose ends / connectors are not included
  • Top link pins and tractor-related hardware are not included
  • All hoses and connections are included with PTO kits
  • Some assembly is required

Shipping Note

This item ships by freight truck. You will be responsible for unloading the crate unless liftgate delivery is selected.

PTO KIT Q & A:

Q: Does the PTO kit include the reservoir?
A: Yes.

Q: Does the PTO kit include the 21 GPM, 540 RPM pump?
A: Yes.

Q: Is the torque restraint included?
A: Yes.

Q: Are hoses and all necessary fittings included?
A: Yes.

Q: Are the Category I hitch pins included?
A: Yes.

Q: Is hydraulic fluid included? If not, what type and quantity are required?
A: Hydraulic fluid is not included. We recommend using Automatic Transmission Fluid. Please refer to the product manual or manufacturer specifications for the required quantity.

Q: What is the approximate assembled weight with the PTO kit, cradles, and four-way wedge?
A: The approximate assembled weight is 300 lbs with oil.

Q: Will it arrive assembled enough to connect directly to my three-point hitch from the delivery pallet?
A: Yes, but you will need to connect the hoses from the PTO pump to the valve assembly.



NOTE: Most products require at least some assembly.

Shipping Disclaimer

Due to rising fuel costs, limited freight capacity, and delivery restrictions in certain areas, some shipments may be subject to an additional remote area, out-of-area or limited-access delivery fee. If additional shipping charges are required to complete your order, we will contact you after the order is placed and provide available options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)

CALIFORNIA PROPOSITION 65 WARNING

Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.

  • 5 stars: 7 (58%)
  • 4 stars: 2 (17%)
  • 3 stars: 3 (25%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
S
Scott P. (Tecumseh, US)
Update

I just wanted to update my review on my three point, 20 ton splitter. I'm very pleased with Wood Splitter Direct's help line when I had a problem. I also am pleased with the owner of the manufacturing company (Doug). He had me return the splitter and rebuilt me a different unit with new valve. I have used the unit and I'm am surprised by the speed and power. It's a 20 splitter that will do most of what I'll ever throw at it. I like having it on the back of the tractor. I can adjust the height and the whole operation is so much quieter. I don't have a gas engine blasting in my ears and stinky gas fumes going in my lungs.
Thank you Doug!!

Hi Scott,

Glad to hear we got everything squared away. Thanks for the business and the time to leave a review. Please let us know if you need anything else.

WSD

S
Scott P. (Columbia City, US)
Undecided

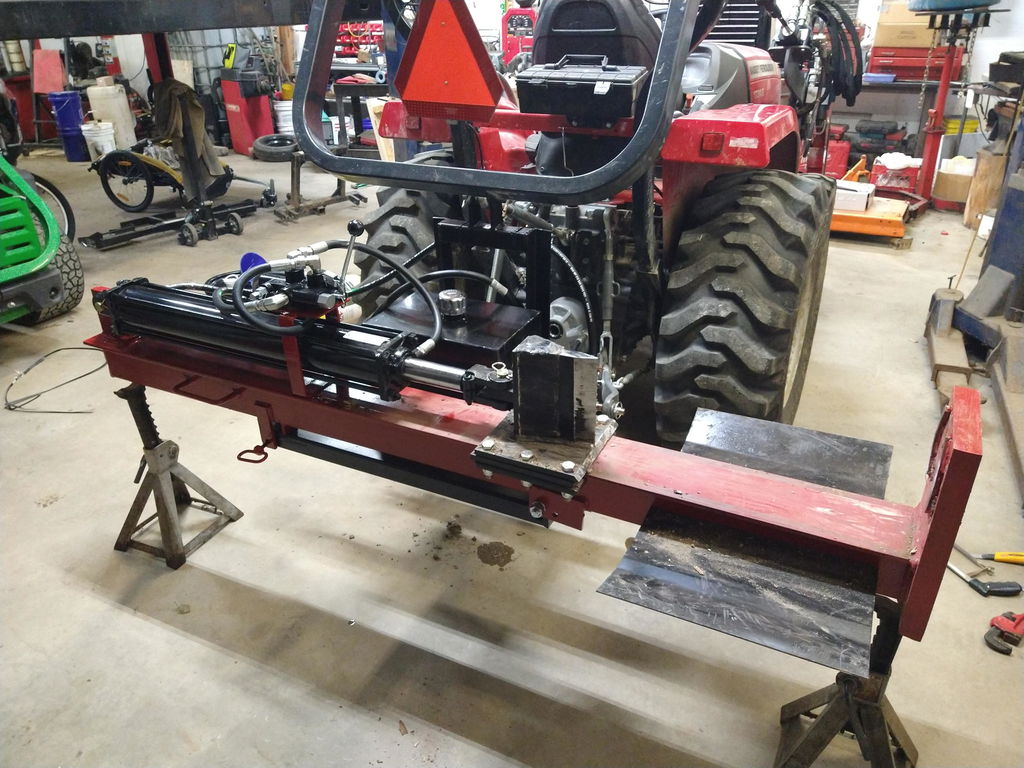

Just gonna be honest. I do have mixed feelings at this time. I ordered the extended splitter ( 30" opening) for boiler logs. It actually measures a bit less than 29". Yes I can adjust my rounds to fit. But the description read that it would be 30" inches and the splitting ram hits up hard on the end plate. I'll share a picture of this. I'm not real impressed with the table I had them add. It's small and doesn't do much for the bigger rounds. Also after an hour of splitting I could smell hydraulic oil. The valve assembly is leaking at the spool.
I have this hooked up to a Massey Ferguson 34hp compact tractor. I ran it at around 2100 rpms. The speed of the ram surprised me (I'm please with that). 20 tons seems to be doing good. I tried a couple of nasty rounds (real nasty) and it didn't make it through them. Bigger is better but I went way over my budget with the 20 ton. I couldn't convince my self I had to have 30 ton.
Now, I am pleased with my buying experience with Wood Splitter Direct. They kept me informed on how my order was coming along and when it was to be shipped out. I'm not sure I can give a fair review at this time, only because I haven't talked with the company yet.

Hi Scott,

Thanks for leaving a review. I have put you in touch with the tech support from the manufacture so they can trouble shoot with you. Sorry about the inconvenience, we will work with you to get this resolved.

WSD

M
Michael M. (Neenah, US)
Strong Splitter

I went all in and bought the 20 ton horizontal/vertical 3 point model with the 4 way wedge, log cradles, and PTO kit. Arrived in good condition but some assembly required for the PTO kit. Cycle time and splitting force is awesome. It doesn't slow down like my old gas splitter. Using with a small 23HP tractor. I added a 2in ball hitch so I can connect my utility trailer. Great product.

Hi Mike,

Glad to hear you like your new splitter. The PTO kit is perfect for smaller tractors that don't have the hydraulic output. Thank you for your business!

WSD

W
Williams B. (Amelia Court House, US)
3PT20HV

The log splitter set up well and fairly easily and works well. What I like about it is that I don't necessarily have to run my tractor at 540rpm at the PTO to
get good results from the splitter. At the much slower, fuel saving rpm, the splitter does not cycle as fast but still has adequate power. I'm in no hurry, so
that feature works for me. I think a more complete, detailed operating manual would be nice, but it's pretty self-explanatory. The delivery time and
process was quick and easy, and I appreciate the prompt response and advice I got from customer service. I look forward to several years of good service.

J
Jeffrey B. (Cle Elum, US)
Great Splitter!

I went with the 20t 3 point splitter for my Kubota L series. Tried it out and was greatly impressed. The speed of the ram and the ease in going through large rounds was impressive. Actually looking forward to wood storage this summer.

Hi Jeff, glad to hear you love your new splitter. The speed depends on your tractors hydraulics so you must have great hydraulics! Thanks for taking the time to leave a review.

WSD

R
Richard S. (Milan, US)
3 pt log splitter running off pto

The splitter splits just fine. The problem I have is the clasps break on the chain provided to keep the pto pump from turning. This caused the pump to turn and the hydraulic hoses to wrap around each other.

Hello,

Sorry to hear about the chain problem. This is the first we have ever heard of a chain breaking. If you leave any slack on the chain it can very well break. Make sure the chain is fairly tight so it does not get a chance to spin the pump. We will bring it to the manufactures attention to double check the quality of the chain used.

Thanks WSD

J
John K. (Edwardsville, US)
Does the job with no problems.

This worked out better than expected. We didn't want to deal with a gas engine so went with a hydraulic powered from a tractor. Easy to connect, easy to use.

M
Mark S. (Roanoke, US)
20HV3P Splitter

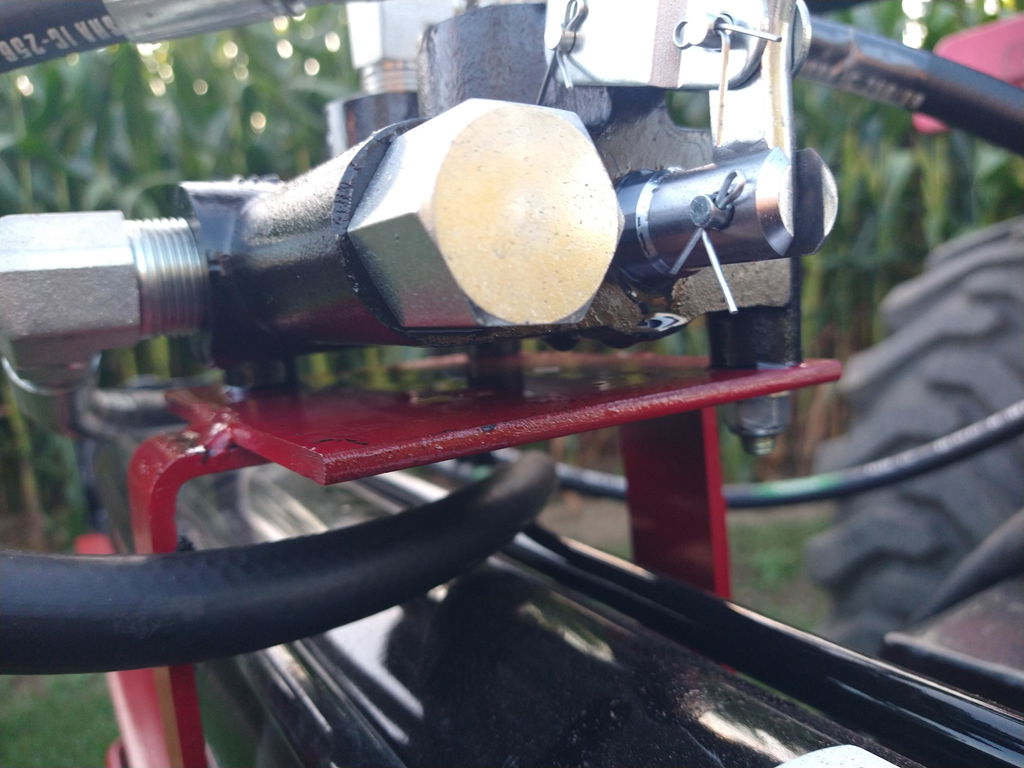

I am pleased with the way the splitter works on my tractor. Had a leak in the valve control handle piston and the company sent me a new control box quickly.

p
peter c. (Washington, US)
Good splitter

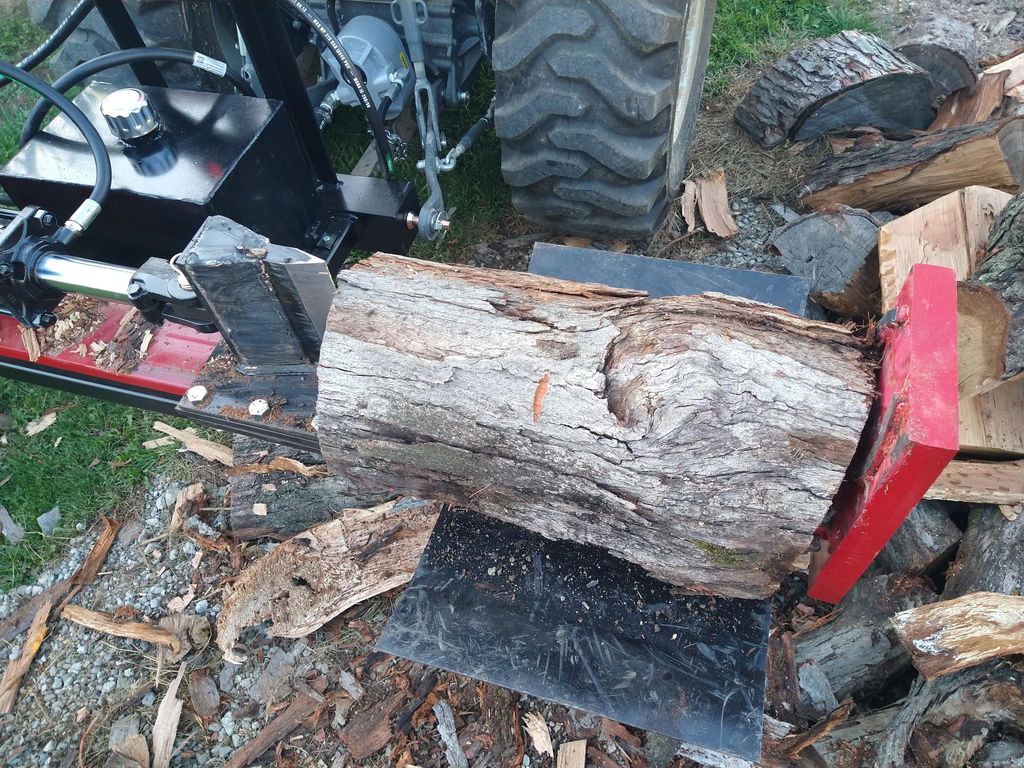

Only 3 Cord into use, but impressed by the splitter. Great power for stubborn rounds. The wood crib is good. The 4 way splitter is excellent.

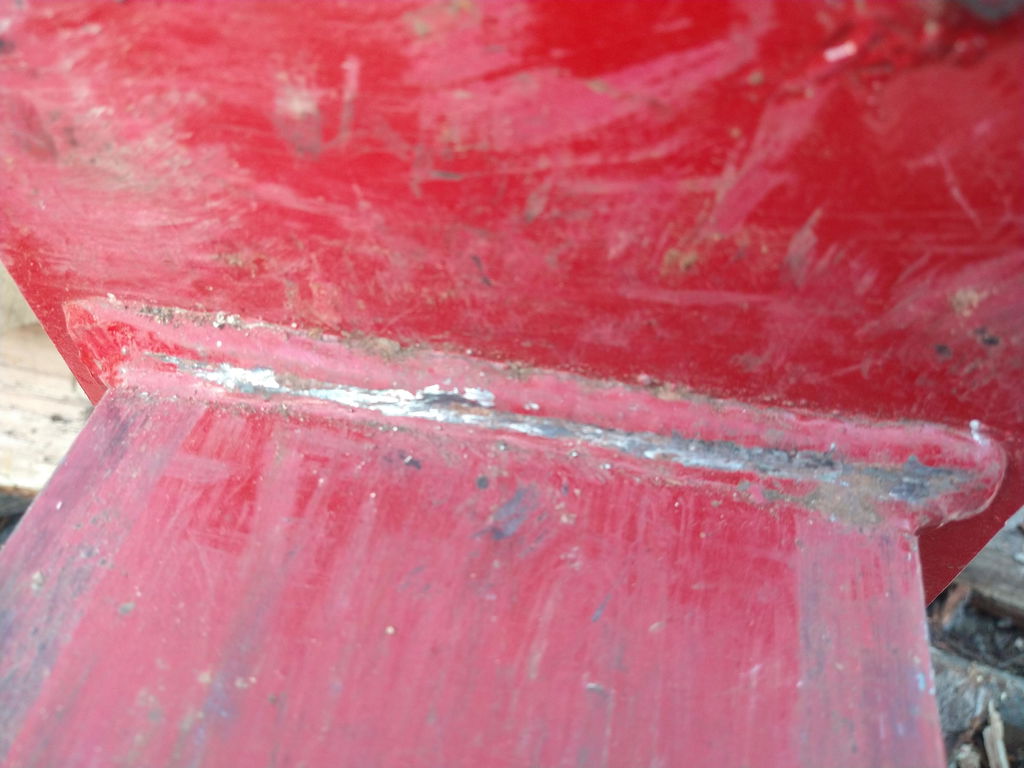

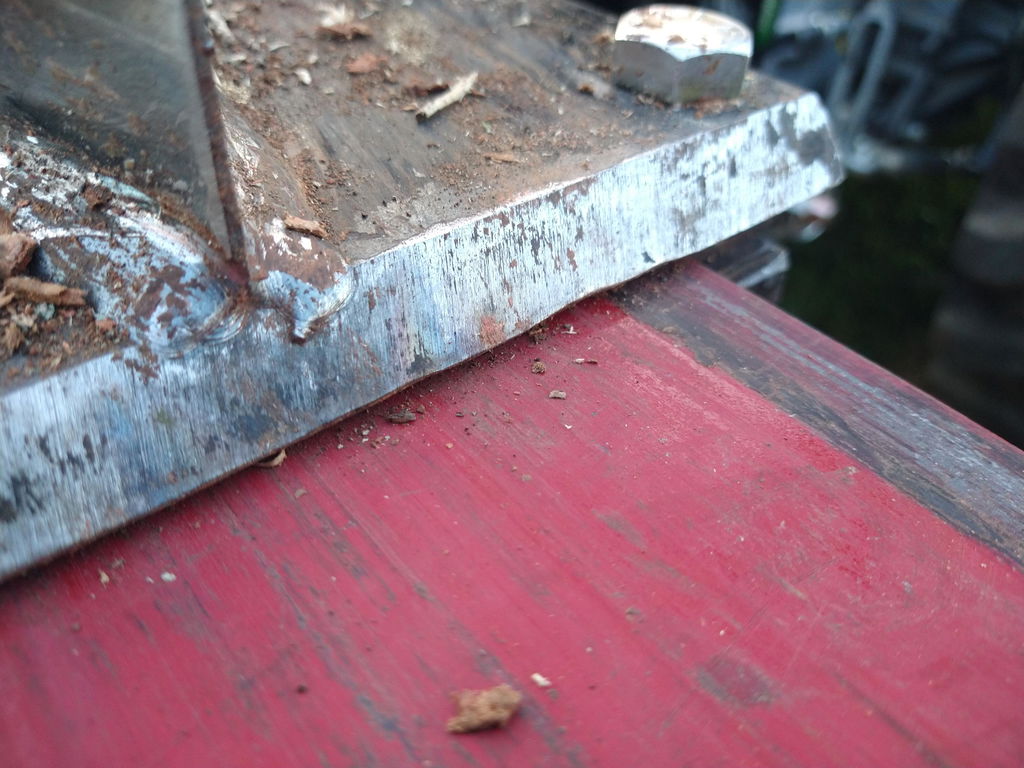

On the flips, The splitter head is chipping out a bit, which is a concern and the hydraulic lines are too short to reach my adapter links. That is a fixable issue that I’ve worked around in short term.

S
Simulacrum
It's what I expected.

The good: splitter, PTO pump, 4-way wedge, and cradles are of decent quality. Using this on a 2016 Kubota L2501, I had no issues with the gnarliest maple/beech/oak I could find. Cycle time is satisfactory at 540 RPM. The cradles aren't very robust but they do the job. 4-way wedge can be a PIA but is overall worth it.
The not so good: A) PTO pump kit does not have all the parts required and there is no spec sheet. I needed to buy a fitting for the suction side between the 90 degree elbow and the barbed receiver for the hose. WSD and the manufacturer were receptive to my requests for the spec sheet and I had a good conversation with the manufacturer but nobody followed through with the spec sheet. B) I can't say I understand some of the fabrication choices; there is one hydraulic line behind the wedge that rests on the reservoir. So far not a huge deal other than worn off paint on the reservoir but I'm curious how that hydraulic connection will hold up over time due to the contact/impact. C) The stabilizer bracket for the PTO pump is garbage. The holes did not line up with the threads on the pump so I tossed it and fabricated my own.
The neutral: It was painted the wrong color. To be fair, the manufacturer offered to repaint it but I didn't feel it was worth the effort. We're trying to split wood, not win fashion shows.
Overall: the splitter gets 4 stars, pump setup gets 2. I recommend the splitter but if you're considering the PTO pump be prepared for some troubleshooting.

A
Alaskan
I ordered in John Deere Green ...

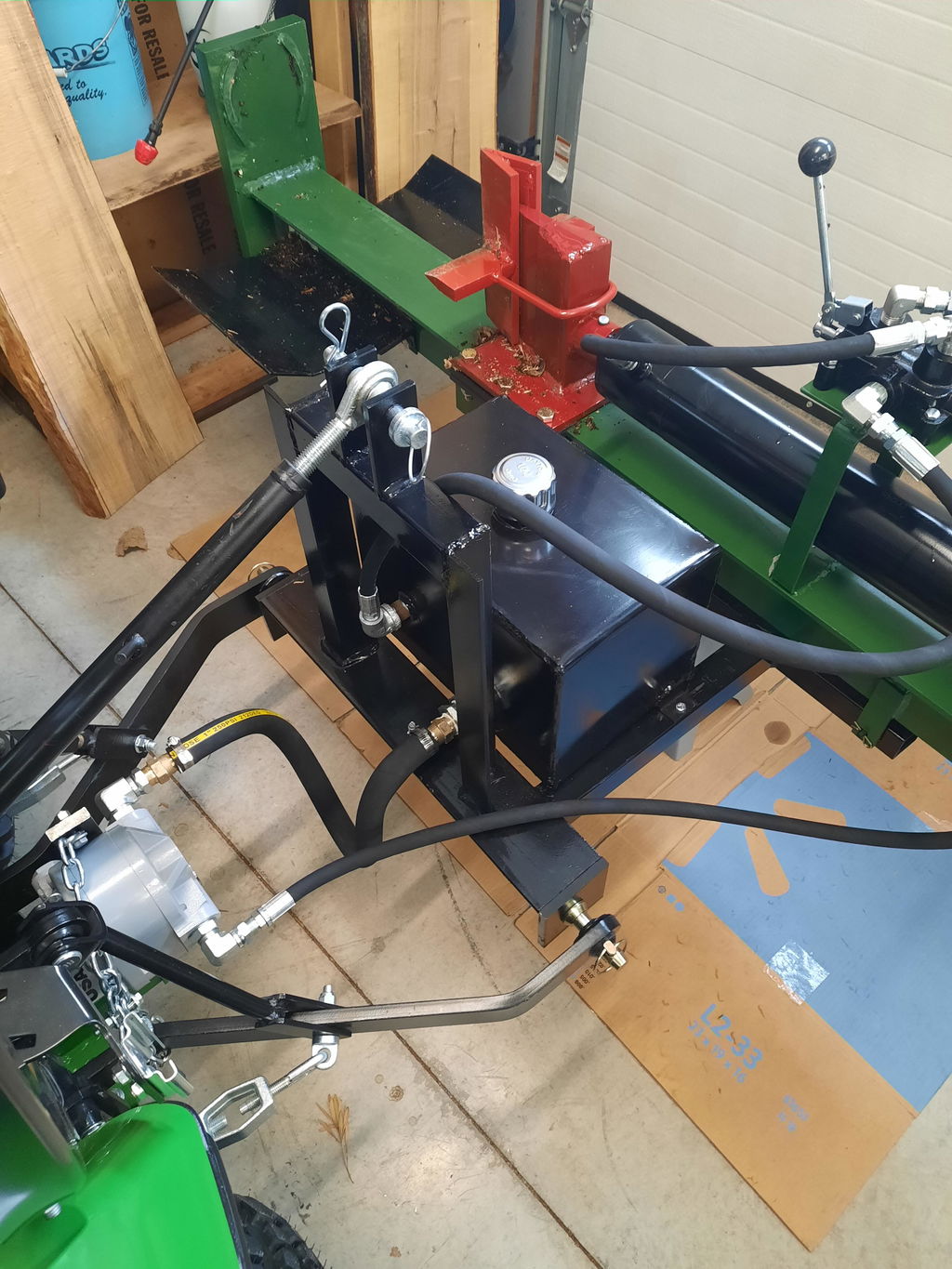

I ordered in John Deere Green with PTO pump, 4-way wedge, and log cradles. The PTO pump was pretty easy to assemble and took a ton of fluid, which is a good sign. You'll need to buy two 5-gallon buckets to have enough. The splitter has not bogged down on any log yet and is FAST! You never wait on the cylinder to retract; you wait on yourself grabbing another log. Ordering was very easy, too. Great Website! Only issue is they forgot to ship my 4-way wedge, so I am hoping they will mail it to me! Other than that, I'm VERY HAPPY with my choice!

WSD Response - Thank you for your review, glad you like your product. Unfortunately you never placed the order for a 4 way wedge. Please log into your account to see the order you placed as it will show you never ordered the 4 way wedge.

L
Lester
I picked up my splitter from t...

I picked up my splitter from the freight company last night. I was a little disappointed in the shipment packaging. The pallet fell all to pieces and the straps had come undone, but since it is such a heavy duty piece of equipment it looks like everything is going to be ok.
I ordered an orange one to go with my Kubota tractor, but it came in black. Obviously not worth the cost and trouble to get that corrected.
I may update my review after I have had a chance to use it.

S
Scott P.

What is the true opening size for logs if you special order the 32-in opening?

Wood Splitter Direct

The opening size should be close to 32" and the stroke of the piston is 30". The extra opening is to accommodate a 4 way wedge if used.
