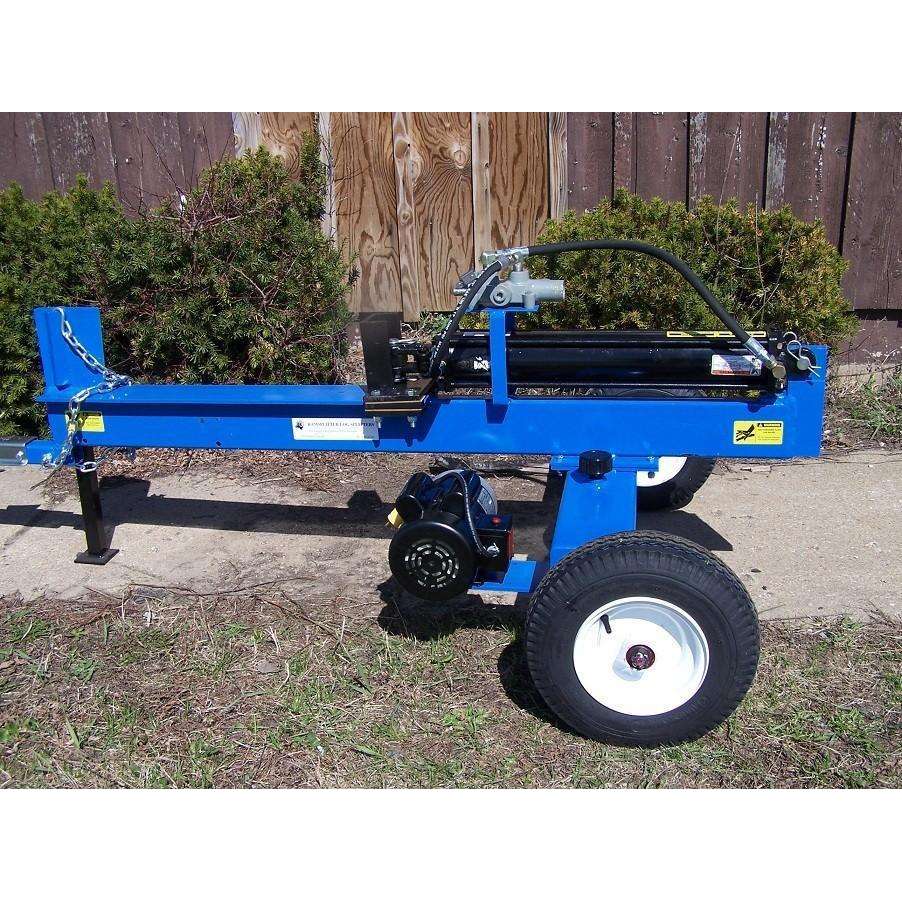

20 Ton Ram Splitter Horizontal Electric Wood Splitter (H20-4-2)

The Ram Splitter H20-4-2 is a heavy-duty 20 ton electric log splitter built for serious firewood splitting without the noise, fumes, or maintenance of a gas engine. Designed with the same rugged frame and hydraulic system used on comparable gas-powered models, this USA-made splitter gives you the power and durability you need—just plug it in and start splitting.

Powered by a 2 HP electric motor, the H20-4-2 delivers strong torque and dependable splitting performance for a wide variety of log sizes. If you want the capability of a full-size 20 ton splitter without dealing with gasoline, oil changes, or engine upkeep, this model is an excellent alternative.

This splitter is also road towable and comes with a full tow package, making it practical to move around your property or between work areas. And because it shares the same platform as Ram Splitter gas models, it offers long-term flexibility if you ever choose to convert it to gas power later.

Key Features & Benefits

• 20 Tons of Splitting Force
  Delivers 40,000 lbs. of splitting power for serious home firewood production.
• 2 HP Electric Motor
  High-torque electric power provides strong splitting performance without gas engine maintenance.
• No Gas, No Fumes, Less Maintenance
  Enjoy the strength of a full-size splitter without dealing with fuel, exhaust, or routine engine service.
• Built on the Same Platform as Gas Models
  Designed with the same rugged structure used on comparable gas-powered Ram Splitters.
• Heavy-Duty Tubular Beam Construction
  Built with a 2" wide x 5" tall beam and 5" top plate tubular design for strength and long-term durability.
• 26-Inch Log Opening
  Handles longer firewood pieces with ease.
• 13–15 Second Cycle Time
  Efficient cycle speed for steady firewood production.
• Horizontal Splitting Design
  Stable layout for easy loading and dependable operation.
• Auto Return Detent Valve
  Helps improve workflow and reduce operator effort.
• 11 GPM 2-Stage Pump
  Delivers dependable hydraulic performance for smooth, consistent splitting.
• Road Towable with Full Tow Package
  Includes 4.80 x 8 high-speed tires, 2-inch coupler, and safety chains for convenient transport.
• Comfortable 19-Inch Working Height
  Good working height for regular horizontal splitting use.
• Made in the USA
  Built for quality, durability, and dependable long-term service.

Electrical Requirements

• Motor: 2 HP Electric
• Recommended Power: 25 amp dedicated breaker
• Designed to run on 110 VAC
• If a 25 amp dedicated 110V line is not available, the unit can be wired for 220 VAC

Optional Upgrades

• 4-Way Wedge
  Quickly slips over the standard wedge to split logs into 4 pieces in one pass.
  Note: 4-way wedge reduces opening size by 2 inches.
• Log Cradles
  Optional welded cradles help hold logs in place so you do not have to support them by hand.

Why Choose the H20-4-2?

If you want the power of a full-size 20 ton splitter with the convenience of electric operation, the Ram Splitter H20-4-2 is a great choice. It gives you strong splitting performance, lower maintenance, and no gas-engine headaches, all in a rugged USA-made platform that is built to last.

This video is from one of our customers from years ago. This is a 16 ton unit in action, imagine what a 20 ton can do.

Quick Specs
