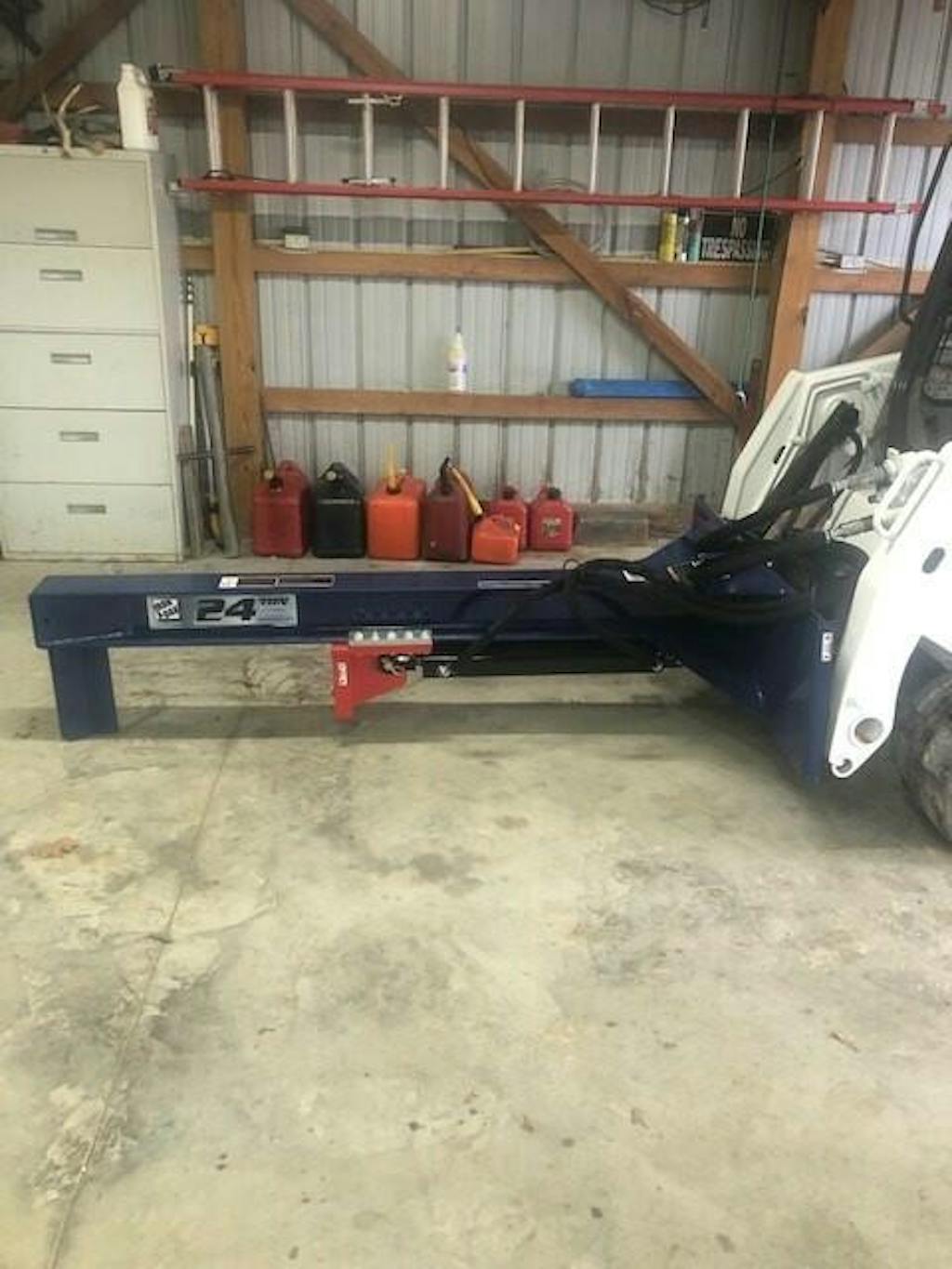

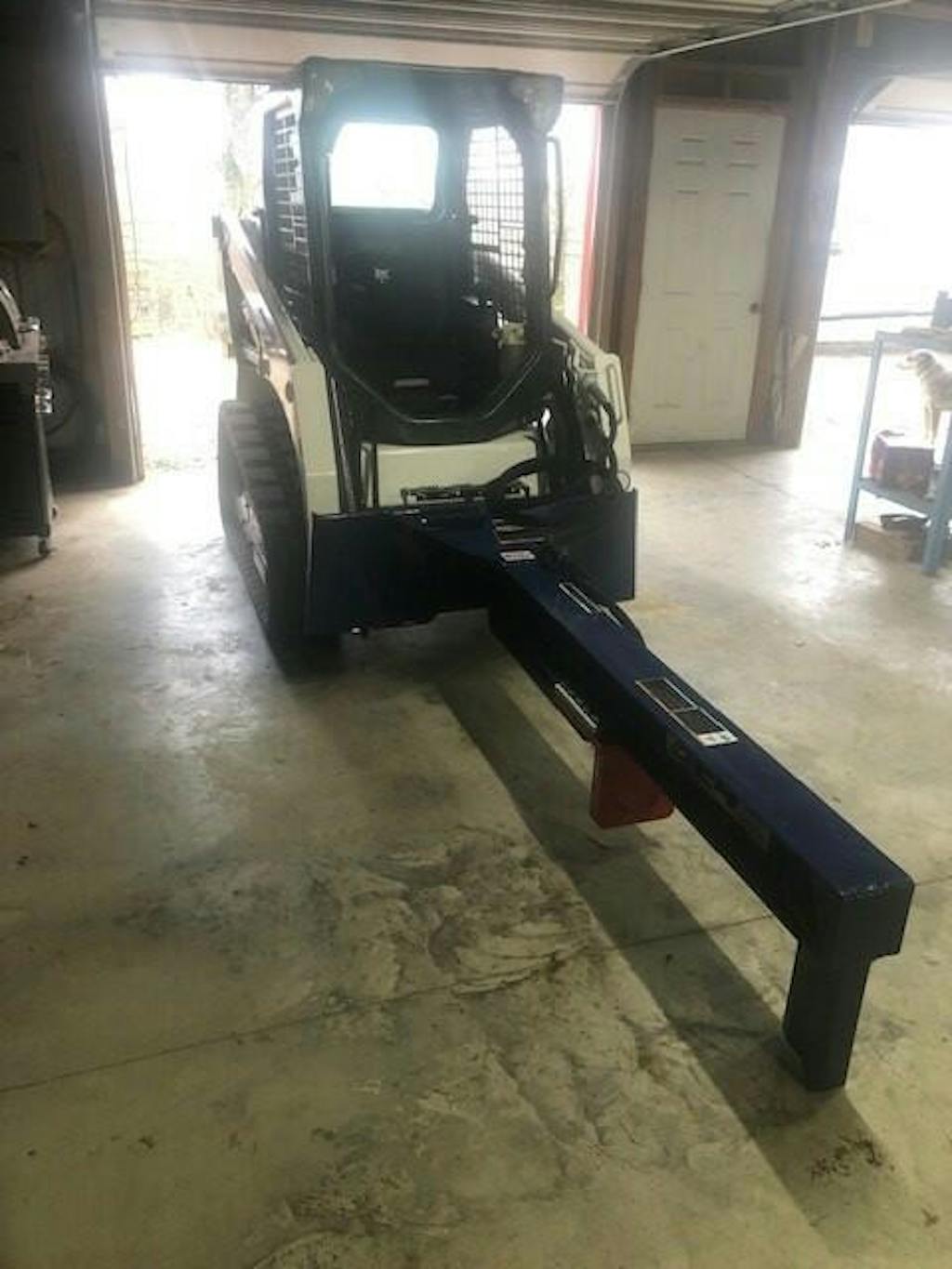

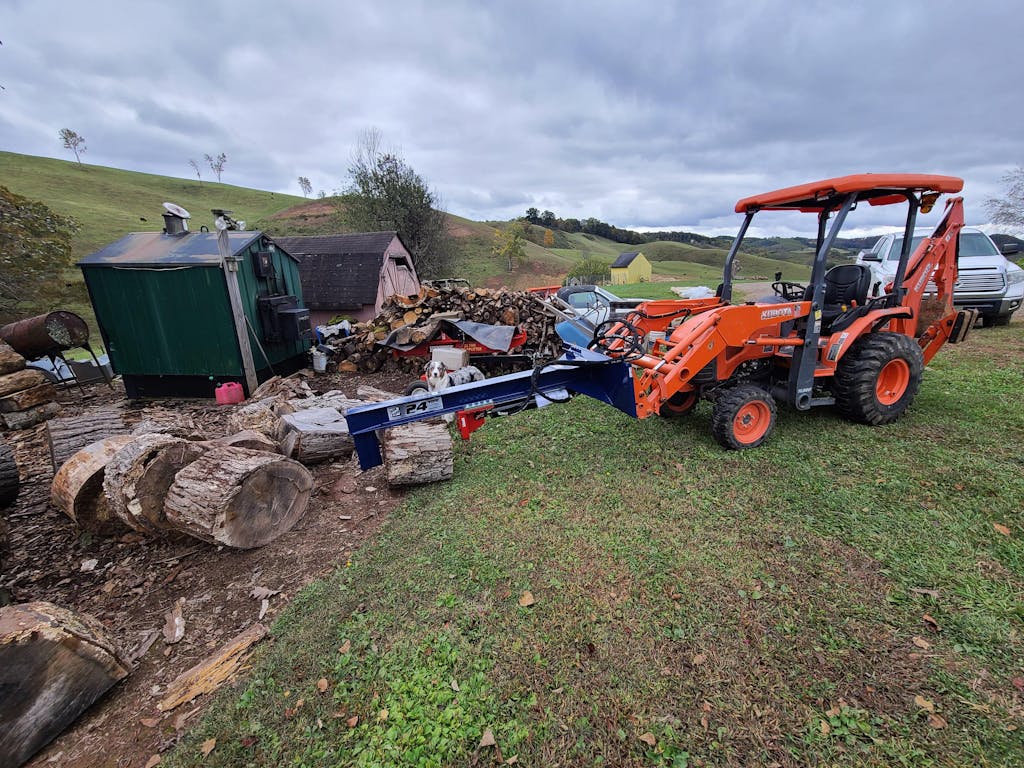

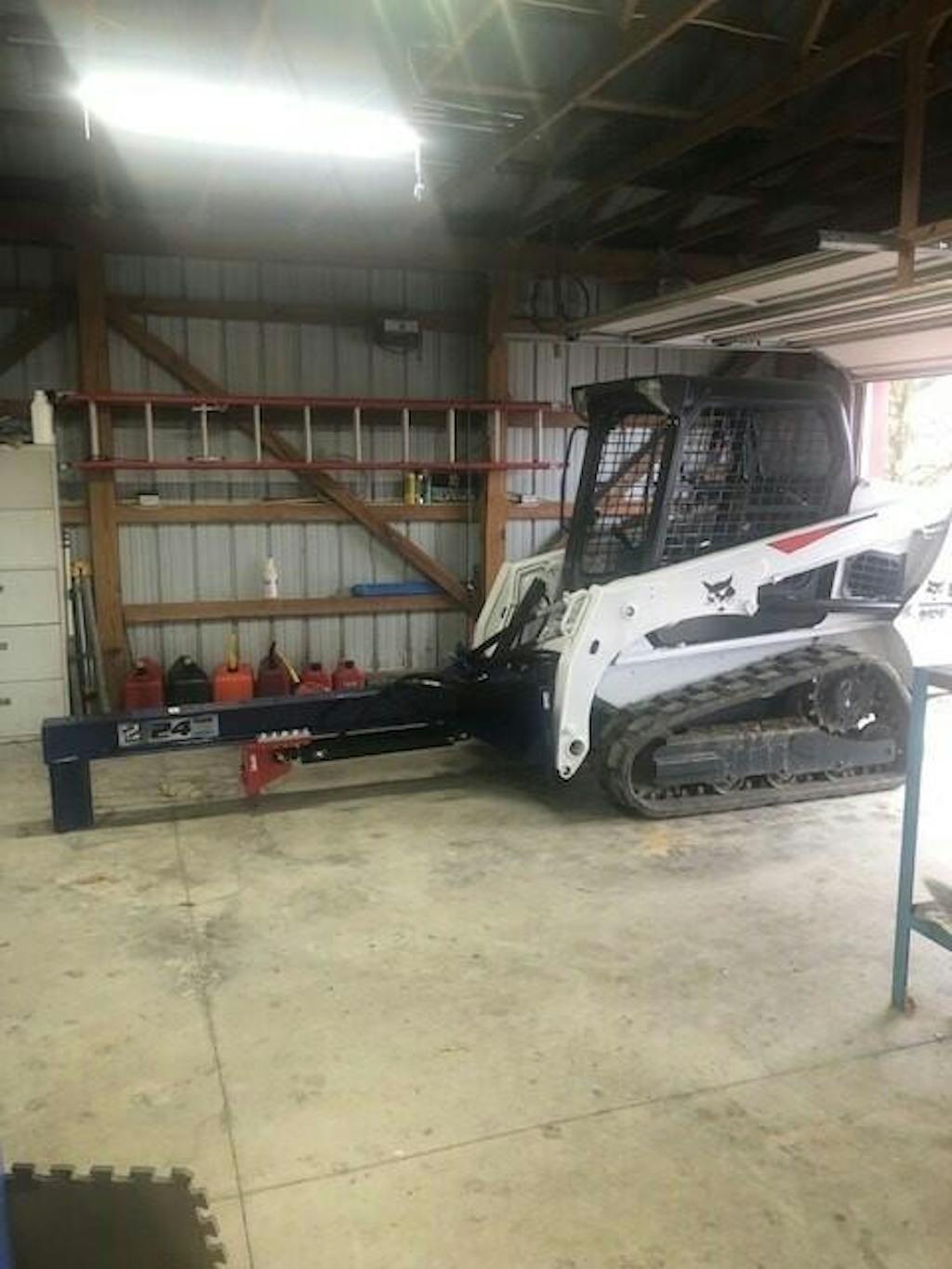

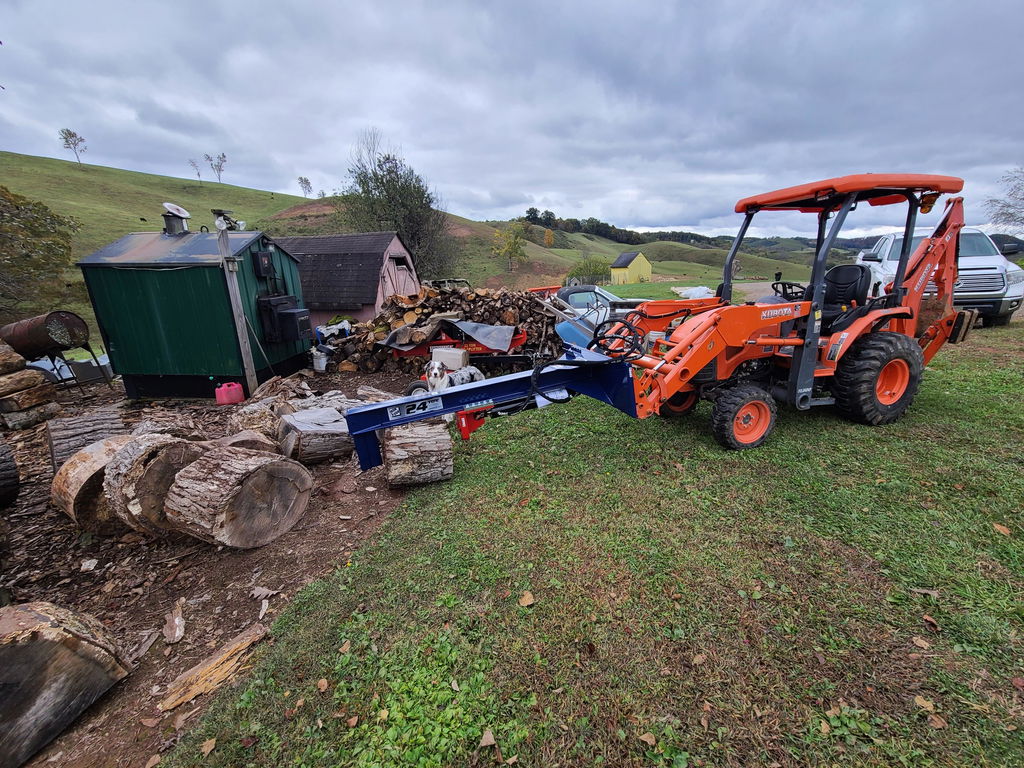

Iron & Oak 24-Ton Upside-Down Skid Steer Log Splitter Attachment (SMH2419)

24-Ton Splitting Force • Upside-Down Operation • 25" Log Opening • Hoses and Flat-Face Couplers Included

Split oversized logs without lifting them by hand with the Iron & Oak SMH2419 Upside-Down Skid Steer Log Splitter Attachment. Built for demanding firewood and commercial wood-processing applications, this American-made attachment allows the operator to pick logs up from the ground, position them, and split them while remaining inside the skid steer cab.

Its industrial-grade I-beam, heavy-duty 4-inch × 24-inch hydraulic cylinder, and tall single wedge deliver a published 24 tons of splitting force. The upside-down configuration is especially useful for handling large, heavy rounds that would be difficult or unsafe to lift onto a conventional log splitter.

A universal quick-attach mounting plate makes the splitter compatible with appropriately equipped skid steers. Hydraulic hoses and standard flat-face disconnects are included for a more convenient installation.

Key Features & Benefits

• 24 Tons of Splitting Force
  Delivers up to 48,000 lbs. of published ram force for splitting large and difficult logs.
• Upside-Down Splitting Design
  Allows the operator to approach logs from above, pick them up, reposition them, and split them directly on the ground.
• Operate from the Skid Steer Cab
  Reduces manual log handling and lets the operator complete the splitting process without repeatedly entering and exiting the machine.
• 25-Inch Log Opening
  Accommodates logs up to approximately 25 inches long.
• Heavy-Duty Hydraulic Cylinder
  Equipped with a 4-inch bore and 24-inch stroke for dependable splitting performance.
• Industrial-Grade I-Beam
  Provides a rigid structural foundation for demanding wood-splitting work.
• 12-Inch-High Single Wedge
  Tall wedge provides substantial contact with large rounds during the splitting cycle.
• Universal Quick-Attach Plate
  Connects to compatible skid steers using a standard universal quick-attach mounting system.
• Hydraulic Hoses Included
  Supplied with hoses for connection to a compatible skid steer auxiliary hydraulic system.
• Standard Flat-Face Disconnects Included
  Helps simplify connection while reducing dirt and fluid loss during attachment changes.
• Powder-Coated Finish
  Durable blue powder coating provides better protection against wear and corrosion than conventional paint.
• Made in the USA
  Manufactured domestically for demanding professional and property-maintenance applications.

Ideal Applications

The Iron & Oak SMH2419 is well suited for:

• Splitting oversized logs and heavy rounds
• Commercial firewood production
• Tree-service and land-clearing operations
• Farm and ranch wood processing
• Forestry and logging work
• Storm cleanup
• Splitting logs directly where they are located
• Reducing manual lifting and repositioning

Quick Specifications

Package Contents

• Iron & Oak SMH2419 skid steer log splitter attachment
• Universal quick-attach mounting plate
• Hydraulic hoses
• Standard flat-face hydraulic disconnects
• 12-inch single splitting wedge

Important Compatibility Information

This attachment requires a skid steer with a compatible universal quick-attach mounting system and auxiliary hydraulics. Before ordering, confirm:

• Mounting-plate compatibility
• Auxiliary hydraulic pressure and flow
• Hydraulic coupler size and configuration
• Skid steer lift capacity
• Attachment operating capacity
• Hose routing and clearance

The attachment weighs approximately 505 lbs. before adding the weight of a log. Confirm that the skid steer can safely lift and control the combined load.

Important Operating Information

Keep all people clear of the attachment, log, wedge, and skid steer during operation. Logs may shift, roll, or split unpredictably. Operate only from the skid steer cab with the machine positioned on stable ground and follow all skid steer and attachment safety instructions.

**Optional Rush Processing - We are pleased to offer RUSH PROCESSING. For an additional $39.95 your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day.   Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery.  If we don't get it shipped out by next business day its simple, you don't get charged the $39.95.

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.  Images may slightly differ from actual product if there are upgrades or slight changes made.
