30 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT30HV)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
30 Ton Horizontal / Vertical Tractor 3-Point Log Splitter (3PT30HV)
American Made • Horizontal / Vertical Operation • Built for Serious Tractor-Powered Splitting
The Ram Splitter 3PT30HV is a heavy-duty, American-made 30 ton tractor 3-point log splitter built for serious firewood production. Designed for durability and long-term use, this splitter is a true workhorse for tractor owners who need the flexibility to split in both horizontal and vertical positions.

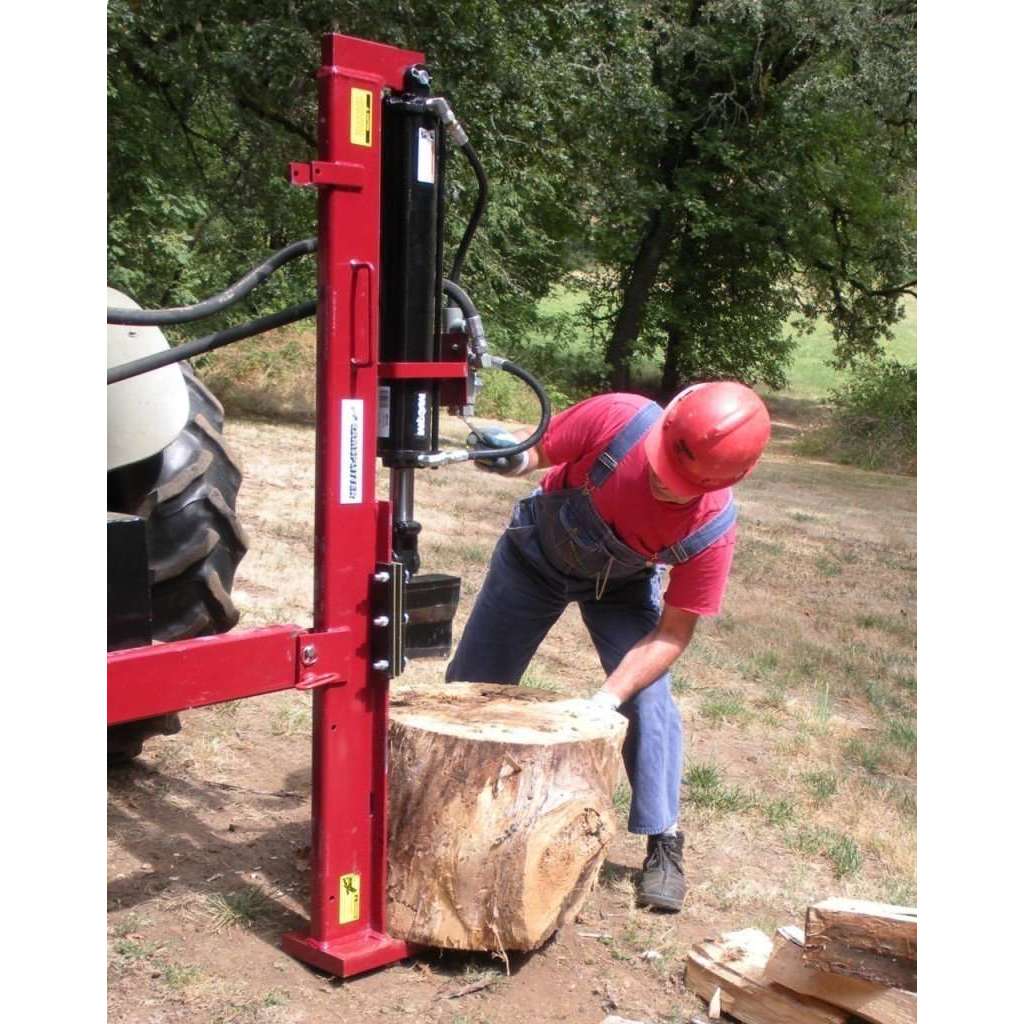

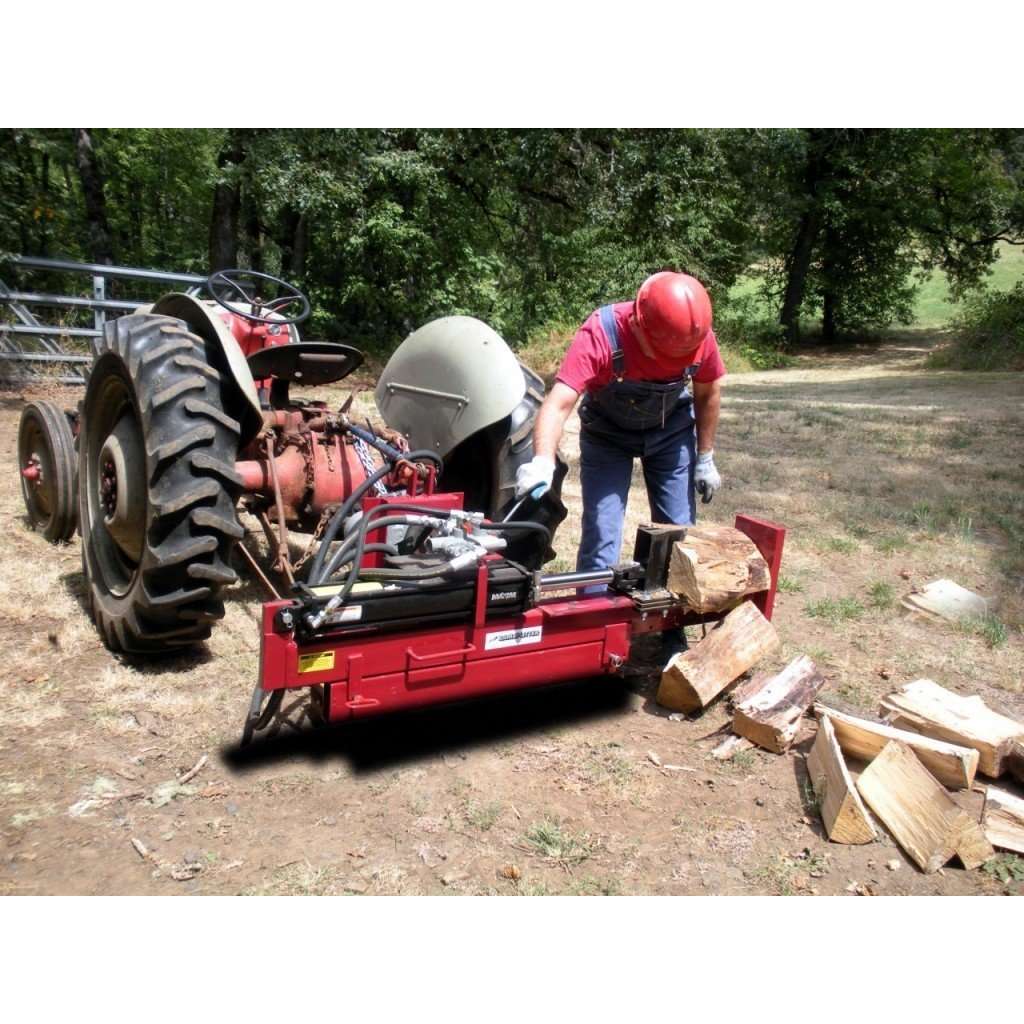

The vertical mode is especially useful for oversized rounds that are too heavy to lift onto the beam, while the horizontal position keeps routine splitting efficient and comfortable. With its heavy-duty tubular beam, 10-inch wedge, and 5" x 24" cylinder, the 3PT30HV is built to handle demanding splitting jobs with confidence.
This model is designed to run from your tractor’s hydraulic system, with actual tonnage and cycle time depending on your tractor’s hydraulic PSI and GPM. For best performance, a minimum 12 GPM flow rate is recommended. If your tractor is not properly equipped, an optional self-contained PTO kit is available.
Please allow 2–4 weeks ship-out time.
Key Features & Benefits
-
30 Tons of Splitting Force
Built for serious firewood production with actual output depending on tractor hydraulic PSI. -
Horizontal / Vertical Operation
Split in either position for greater flexibility and easier handling of heavy logs. -
Heavy-Duty Tubular Beam Construction
Designed with a 3" wide x 5" tall beam and 6" reinforced top plate for strength and long-term durability. -
10-Inch Splitting Wedge
Tall, rugged wedge built for aggressive splitting performance. -
5" x 24" Cylinder
Heavy-duty cylinder provides dependable hydraulic power.
Optional 5" x 30" cylinder available for more opening length. -
Ideal for Large Logs
Vertical mode eliminates the need to lift oversized rounds onto the beam. -
Adjustable Working Height
Set working height using your tractor’s 3-point hitch. -
Auto Return Detent Valve
Helps improve efficiency and ease of operation. -
American Made
Built in the USA for quality, strength, and long-term reliability. -
Customizable to Fit Your Needs
Available with color choice, PTO kit, 4-way wedge, larger opening, and optional log cradles.
Recommended Hydraulic Requirements
- Recommended minimum flow rate: 12 GPM or higher
- Lower flow tractors may result in long cycle times
- Actual cycle time and tonnage depend on tractor hydraulic performance
Optional Upgrades
-
Color Choice
Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost. -
PTO Kit
Self-contained hydraulic system with tank and 21 GPM PTO pump. Designed for 540 RPM PTO operation.
35 HP minimum tractor required. -
4-Way Wedge
Slips over the standard wedge to split logs into 4 pieces in one pass.
Note: reduces opening size by 3 inches. -
Log Cradles
Helps catch split wood and reduce bending by keeping wood off the ground. -
30" Cylinder / Larger Opening
Upgrade from the standard 26" opening to a 32" opening with optional 5" x 30" stroke cylinder.
Why Choose the 3PT30HV?
If you want a tractor-powered splitter that can handle both everyday firewood and oversized rounds, the Ram Splitter 3PT30HV is a strong choice. Its 30 ton capacity, horizontal / vertical flexibility, and USA-made construction make it ideal for farms, acreage owners, and anyone producing serious amounts of firewood.
Quick Specs
| Specification | Details |
|---|---|
| Model | 3PT30HV |
| Beam Structure | Tubular Design, 3" Wide x 5" Tall, 6" Reinforced Top Plate |
| Splitting Wedge | 10" High |
| Operating Position | Horizontal / Vertical |
| Splitting Force | 30 Ton (Approx. depending on tractor PSI) |
| Cylinder | 5" x 24" (Optional 30") |
| Cycle Time | Approx. 15–20 Seconds (depends on tractor GPM) |
| Log Opening | 25 in. |
| Working Height | Adjustable with 3-Point Hitch |
| Safety Control Valve | Detent, Auto Return |
| Operating Weight | 500 lbs. |
| Color Options | Black, Orange, Green, Blue |
| Made in USA | Yes |
| Warranty | 1 Year |
| Shipping | Freight – Limited Time Free Shipping |
| 4-Way Wedge | Optional |
| PTO Driven | Optional |
| Log Cradles | Optional |
Important Notes
- Standard pins are Category 1, but can be changed to Category 2 or 3
- Hose ends / connectors are not included
- Top link pins and tractor-related hardware are not included
- All hoses and connections are included with PTO kits
- Some assembly is required
