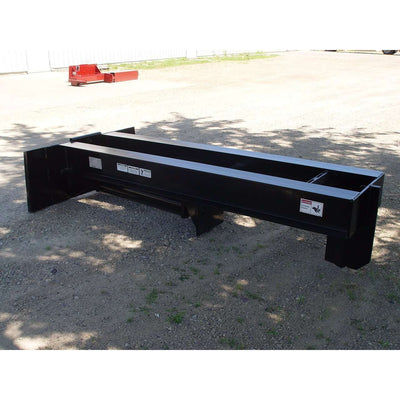

30 Ton Twin Beam Upside Down Skid Steer Log Splitter (TB530)

Regular price $4,299.99
Regular price -14% $4,999.99 Sale price $4,299.99

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).

Product Description

Limited Time Free Shipping

This twin beam wood splitter attaches to your Bobcat or any skid loader converting it into an effective firewood producing machine. The standard opening and cylinder size on this unit is 30" making the cylinder a 5 x 30. This log splitter is also available to upgrade to a 36" open 5 x 36, see options. The dual 8" beams make this the heaviest duty skid steer log splitter we sell and possibly on the market.

The unique viewing window of the twin beam attachment allows you to see between the beams exactly what and where your splitting on the log. This attachment can also grip the log for positioning over a wagon or truck bed eliminating the task of lifting the split wood into the transport vehicle.

This log splitter is American made and has been a proven effective tool. This unit has the universal mounting plate (two lock down handle type) for quick easy loading. Hoses and flat face disconnects are included. Please feel free to contact us if you have any questions at all at 888-706-2434. Full manufacturer 1 year limited warranty.

This log splitter can be customized with the following options:

  • Bigger Opening - This attachment is available to upgrade to a 5 x 36 inch cylinder for those of you who like to split longer firewood or have larger wood stoves such as outdoor boilers.
  • 4 Way Wedge- This 4 way design is a slip on that bolts on behind the single wedge, making it easy to take on and off. (Select options for picture)

Splitters are sand blasted and wiped down before paint. Splitters are painted black with Diamond Vogel, Pinnacle 460 3.5 VOC 2 part Polyurethane.

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.

Detailed Specifications

Tonnage:
30 Ton (60,000 lbs)
Cylinder:
5" x 30" or 5" x 36" - Welded cylinder 2.5" Rod
Beams:
Twin 8" Heavy duty beams
Color:
Black Only
Mounting Plate:
Universal ( 2 quick attach lock handle type)
Weight:
Shipped Weight 980 lbs
Length:
84 or 96 Inches
Wedge:
Single 12" High
Warranty:
1 Year
Hoses & Connectors:
Included
Made in USA:
Yes!
4 Way Wedge:
Optional 22" Wide

NOTE: Most products require at least some assembly.

Shipping Disclaimer

Due to rising fuel costs and lack of space on shipping trucks the costs in certain areas have been affected. An "out of area" fee may be necessary. If additional funds are required to fulfill your order we will reach out to you after your order is placed and give you options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)

CALIFORNIA PROPOSITION 65 WARNING

Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.

Customer Reviews

Based on 7 reviews
71%
(5)
29%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Randy B. (Fort Thomas, US)

The Splitter itself so far is fine,
The issue I had was the skid it was shipped on, by the time it arrived it was completely broken apart and was quite a chore to unload due to this.

From Our use so far the single wedge works extremely well, however the 4 way wedge due the clearance on top keeps sticking the pieces of wood theres not enough clearance on top of the 4 way.

Randy Bezold

V
Vincente F. (Sacramento, US)

30 Ton Twin Beam Upside Down Skid Steer Log Splitter (TB530)

D
Daryl J. (Reelsville, US)
Heavy Duty for big wood

Well built heavy duty and strong. Took over a month to get it due to countries issues, but I was told it would be before I purchased. They did not charge me until shipped. The splitter works great as a two way splitter, but will not split hickory or beech with the four way splitter on. It does not have the power to push through. It is on a new Case TR270 skid steer it has plenty of hydraulic power. I will attempt to sharpen the four way when I can and see if it helps. At this time I would not buy the bolt on four way blade again. I would recommend the splitter for big wood. I would give 5 stars to wood splitters direct and four stars to the splitter it would be 5 stars if four way works after I put an edge it. It was really dull and looks like after it was welded they forgot to sharpen it. It is hard to push 1/4 steel through wood.

A
Auger (Tomah, US)
Heavy duty

Took a month to get which wasn’t a big deal since I ordered it way before I needed it. Have not used it yet but will be in another month or so. Looks to be the heaviest made splitter I have seen

M
Mike V.
Bought this for my John Deere ...

Bought this for my John Deere 250 and it works great , I am very happy with it and would recommend to anyone

S
Scotty
When this thing showed up I ha...

When this thing showed up I had no idea... This thing is impressive. Only downside was it took a few weeks to get it. We were informed the day we ordered they were delayed, great customer service. Well worth the wait.

G
Greeview L.
All I can say is its a beast! ...

All I can say is its a beast! Bigtime heavy duty. I recommend to anyone. Wood splitters was also very easy to work with a+.
