MTD-Style Replacement • Valve-Support Bracket Installed • Double Acting • 3,500 PSI Maximum

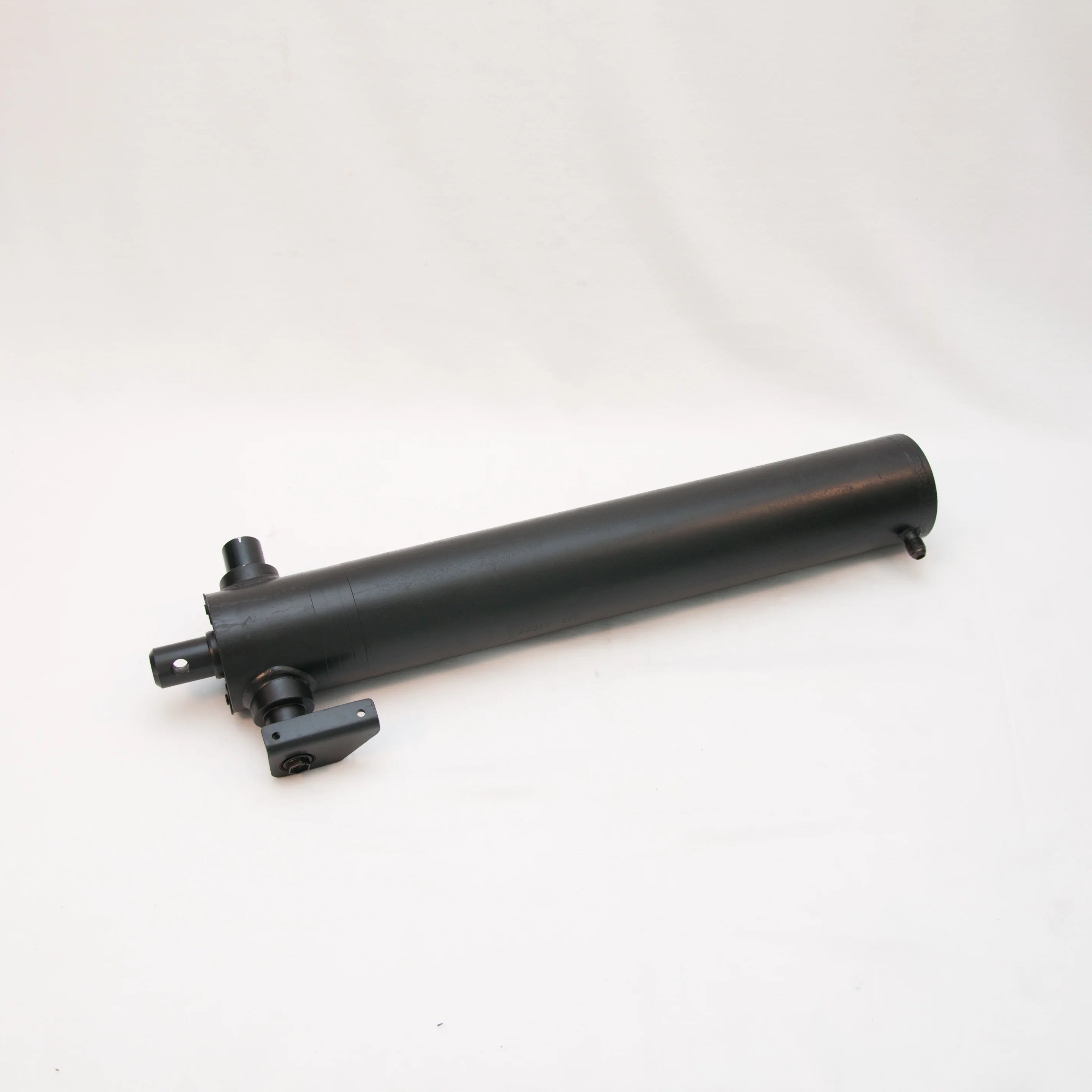

Replace a worn or leaking cylinder on a compatible MTD-style log splitter with the WSD31-118 Hydraulic Log Splitter Cylinder. This OEM-grade replacement features a 4.5-inch bore, 24-inch stroke, and trunnion-mount configuration commonly used on select Troy-Bilt, Cub Cadet, Bolens, and MTD log splitters.

Unlike Tool Tuff model WSD31-117, this version includes a valve-support bracket near the piston end. The bracket can support compatible control-valve installations but does not have to be used on earlier machines that mount the valve separately.

Key Features & Benefits

• 4.5-Inch Bore
  Provides the large piston area used on compatible full-size hydraulic log splitters.
• 24-Inch Stroke
  Delivers the cylinder travel commonly required for standard firewood lengths.
• Trunnion-Mount Configuration

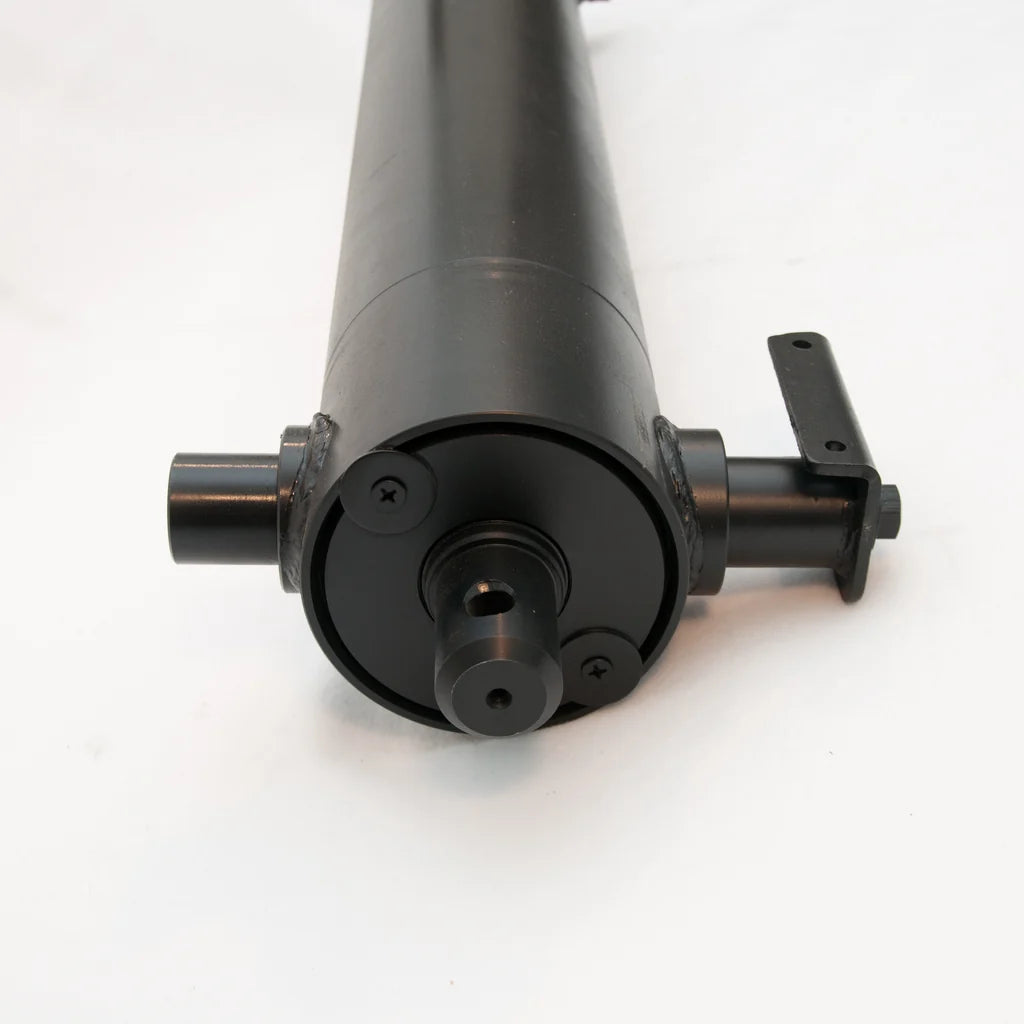

  Designed for compatible splitters that support the cylinder through mounting points positioned around the cylinder body.
• Valve-Support Bracket Installed
  Includes the handle and control-valve support flange required by certain later MTD-style splitter configurations.
• Bracket Use Is Optional
  The installed support bracket does not need to be used when replacing a cylinder on an earlier machine with a separate valve-mounting arrangement.
• Double-Acting Operation
  Hydraulic pressure powers both cylinder extension and retraction.
• 3,500 PSI Maximum Operating Pressure
  Built for compatible high-pressure log splitter hydraulic systems operating within the published limit.
• Rebuildable Construction
  Internal seals can be replaced after normal wear, extending the useful life of the cylinder.
• OEM-Grade Replacement Design
  Made to replace several MTD-family hydraulic cylinder part numbers when mounting and hydraulic connections match.
• Black Painted Finish
  Helps protect the cylinder exterior against corrosion and outdoor exposure.

Replacement Part Compatibility

The WSD31-118 is a replacement for compatible MTD-style cylinders associated with the following part numbers:

• 918-04713
• 918-04713A
• 918-0769A
• 718-0769A
• Other compatible 4.5-inch MTD trunnion-mount cylinders

The genuine MTD 918-0769A cylinder also supersedes earlier part numbers 718-0769 and 718-0769A.

Compatible brands may include select models sold under:

• MTD
• Troy-Bilt
• Cub Cadet
• Bolens

Exact compatibility must be determined by the original cylinder part number, mounting configuration, ports, dimensions, and valve-support arrangement—not by brand or splitter tonnage alone.

Valve-Support Bracket

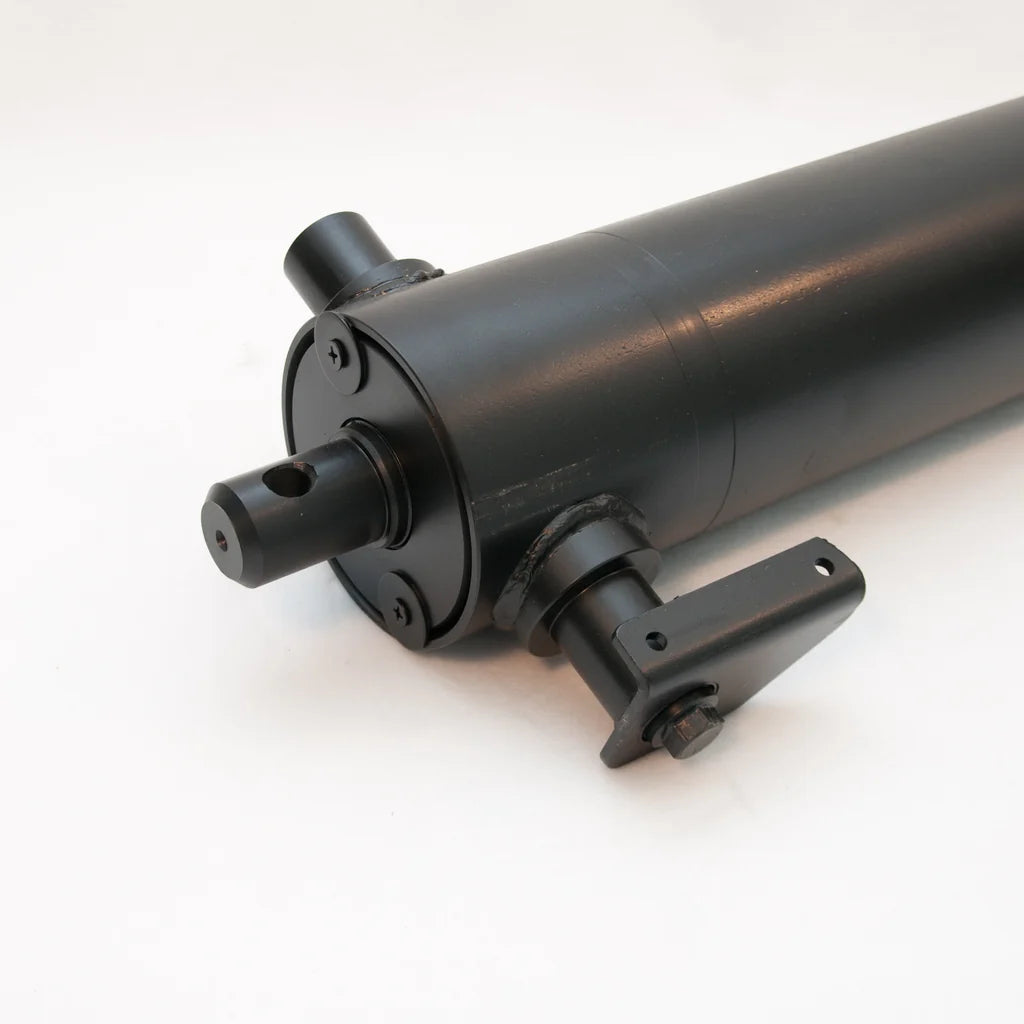

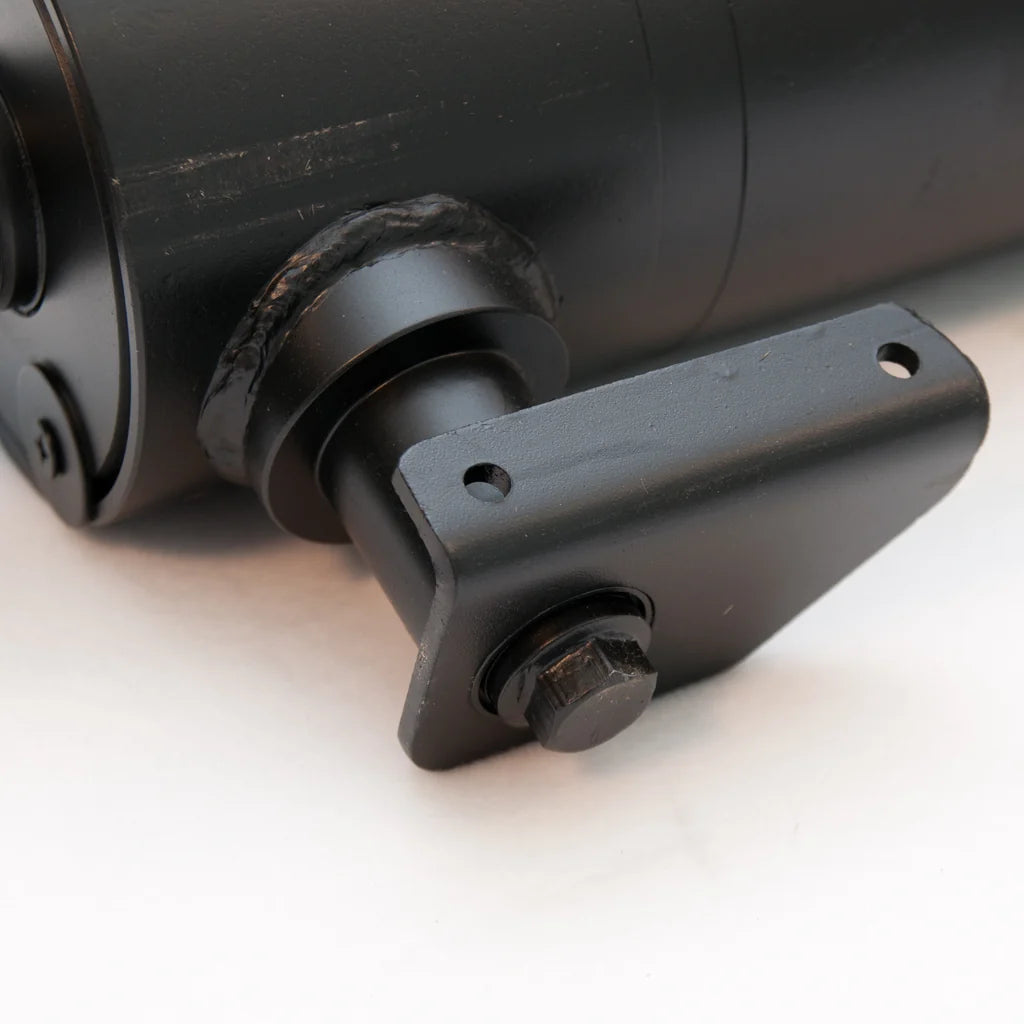

This cylinder includes a factory-installed bracket near the piston end for supporting a compatible hydraulic control valve and operating handle.

Choose this version when the existing cylinder has a similar bracket or when the splitter’s valve assembly requires cylinder-mounted support.

Tool Tuff also offers model 31-117, which uses the same general 4.5-inch-bore, 24-inch-stroke trunnion configuration but does not include the valve-support bracket.

Hydraulic Connections

The cylinder uses two different hydraulic connections:

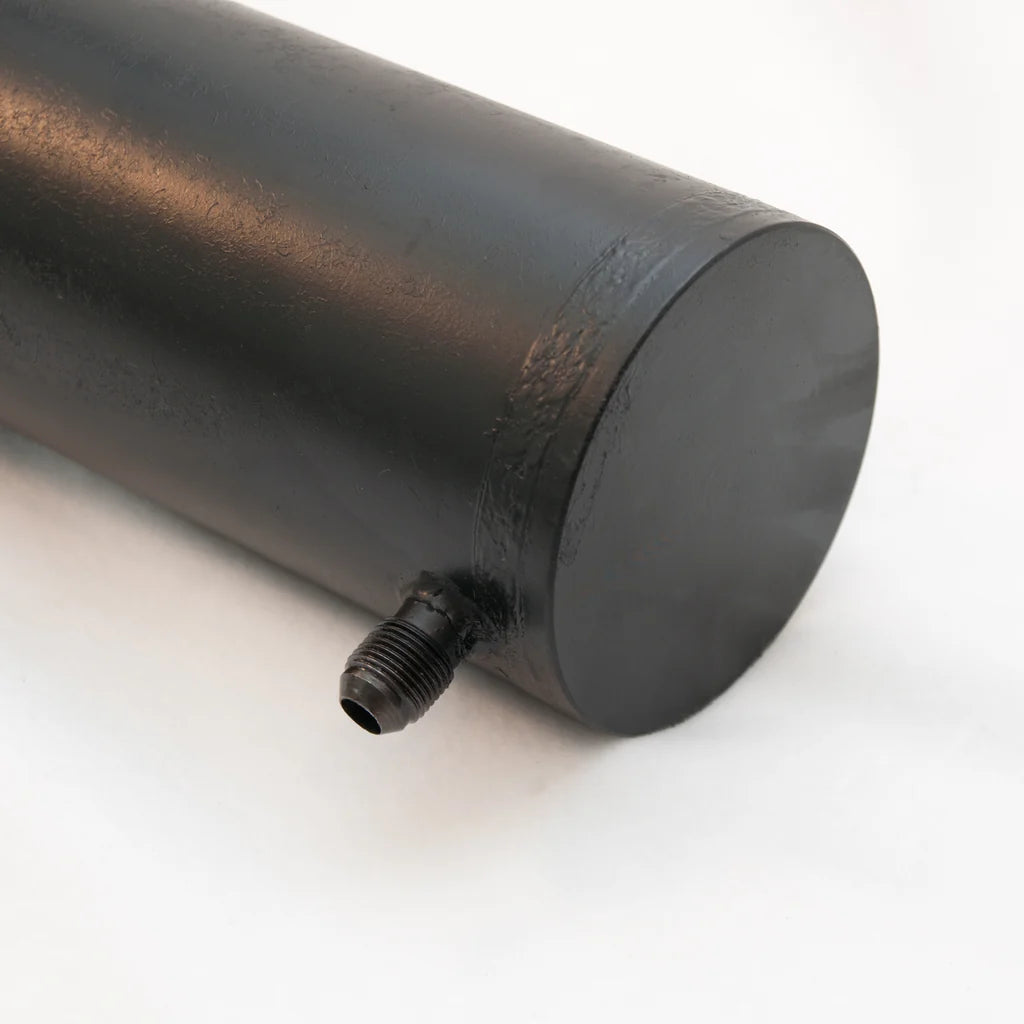

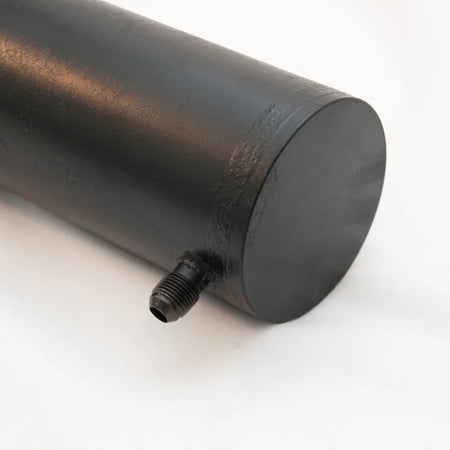

• SAE-8 ORB female port
• JIC-8 male connection

Confirm that the existing hoses and fittings match these connection types. NPT, JIC, and ORB fittings are not automatically interchangeable, even when their nominal sizes appear similar.

Quick Specifications

Package Contents

• One WSD31-118 hydraulic log splitter cylinder
• Factory-installed valve-support bracket

Hydraulic hoses, control valve, fittings, mounting pins, hardware, hydraulic fluid, and seal kit are not listed as included.

Important Fitment Information

This cylinder is not universal. Before ordering, verify:

• Original cylinder part number
• 4.5-inch bore
• 24-inch stroke
• Trunnion location and dimensions
• Fully retracted and extended lengths
• Hydraulic port types and locations
• Mounting-pin dimensions
• Available installation clearance
• Control-valve mounting arrangement
• Whether the valve-support bracket is required

Do not purchase this cylinder solely because the splitter is advertised as a 25-, 27-, or 28-ton machine. MTD-family splitters produced in different years may use different cylinders and valve-mounting arrangements.
