4.80-8 Log Splitter Wheel and Tire Assembly with 1" Bearings (WSD21-071)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
16" DOT-Approved Tire • 1" Tapered Roller Bearings • 4-3/8" Hub Spacing • 390 lb. Capacity
Replace a worn log splitter wheel or complete a compatible equipment build with the WSD21-071 Wheel and Tire Assembly. This complete assembly combines a 4.80-8 tubeless tire, 8-inch wheel, tapered roller bearings, and hub cap in one convenient package.
Designed for 1-inch spindles, the assembly features 4-3/8-inch hub spacing and a published load capacity of 390 lbs. per wheel. Tool Tuff lists it as a direct replacement for compatible Brave, Husky, and SpeeCo log splitters.
Key Features & Benefits
-
Complete Wheel and Tire Assembly

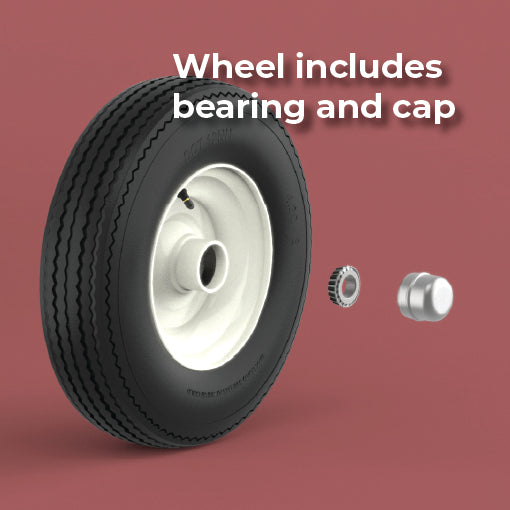

Includes the mounted tire, wheel, tapered roller bearings, and hub cap. -
Fits 1" Spindles
Equipped with tapered roller bearings designed for compatible 1-inch spindle assemblies. -
4-3/8" Hub Spacing
Provides an important fitment measurement when comparing the assembly with an existing wheel and axle. -
390 lb. Capacity per Wheel
Each properly installed wheel is rated to carry up to 390 lbs. -
4.80-8 Tubeless Tire
Uses a common compact-equipment tire size suitable for compatible log splitters, generators, wagons, and carts. -
16" Overall Tire Diameter
The mounted tire measures approximately 16 inches in diameter, while the wheel itself measures 8 inches. -
Four-Ply Construction
Provides durable support for compatible outdoor power equipment and utility applications. -
DOT-Approved Tire
The included tire carries a DOT-approved designation. -
Direct-Replacement Applications
Tool Tuff identifies this assembly as a direct replacement for compatible Brave, Husky, and SpeeCo log splitters.
Ideal Applications
The WSD21-071 wheel assembly may be suitable for compatible:
- Brave log splitters
- Husky log splitters
- SpeeCo log splitters
- Portable generators
- Utility wagons
- Garden carts
- Custom hydraulic equipment
- Other equipment using matching spindle and hub dimensions
Compatibility depends on the spindle diameter, hub spacing, tire clearance, load requirements, and wheel-retention system.
Quick Specifications
| Specification | Details |
|---|---|
| Number of Tires Included | 1 |
| SKU / Model | 21-071 |
| Product Type | Wheel and Tire Assembly |
| Tire Size | 4.80-8 |
| Tire Type | Tubeless |
| Overall Tire Diameter | Approximately 16 in. |
| Wheel Diameter | 8 in. |
| Tire Construction | 4-Ply |
| Bearing Type | Tapered Roller Bearings |
| Compatible Spindle Diameter | 1 in. |
| Hub Spacing | 4-3/8 in. |
| Load Capacity | 390 lbs. per Wheel |
| DOT Approved | Yes |
| Hub Cap Included | Yes |
| Bearings Included | Yes |
| Quantity | One Wheel and Tire Assembly |
These specifications follow Tool Tuff’s current product information for SKU 21-071.
Package Contents
- One 4.80-8 tubeless tire
- One 8-inch wheel
- Tapered roller bearings for a 1-inch spindle
- One hub cap
The axle, spindle, mounting hardware, and second wheel assembly are not listed as included.
Important Compatibility Information

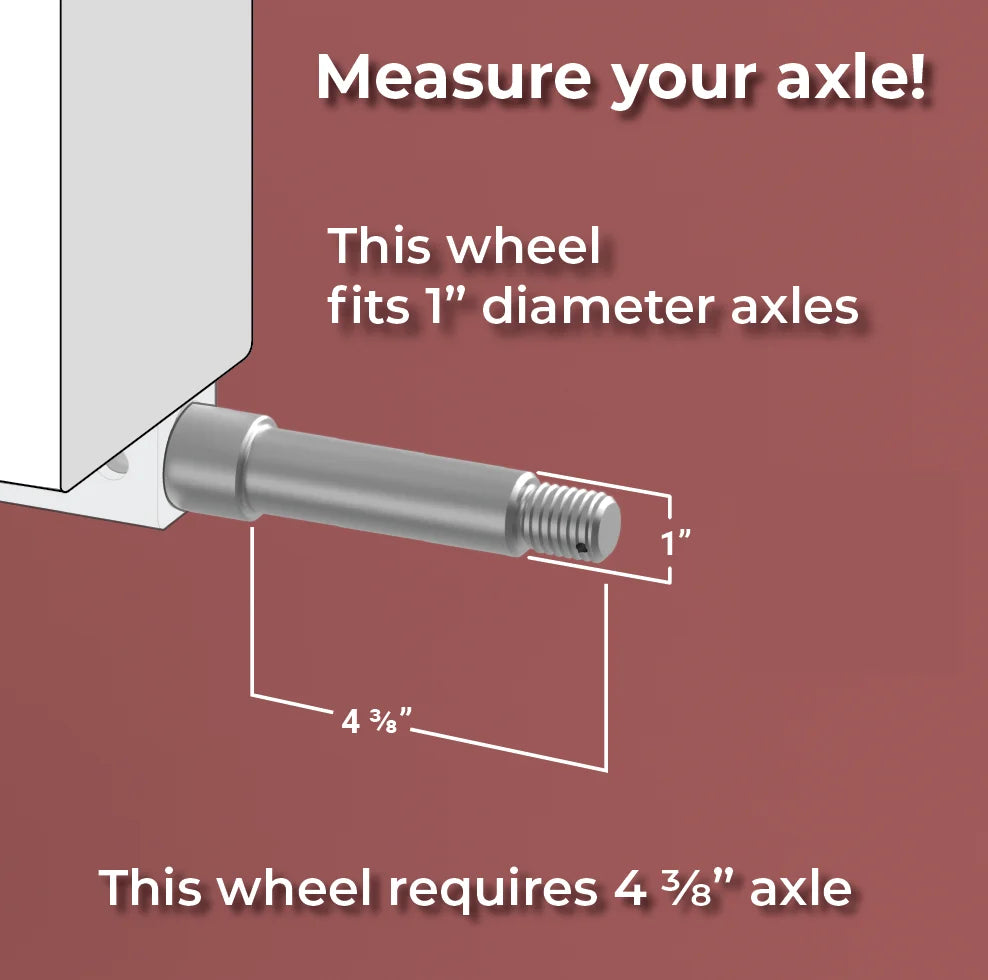

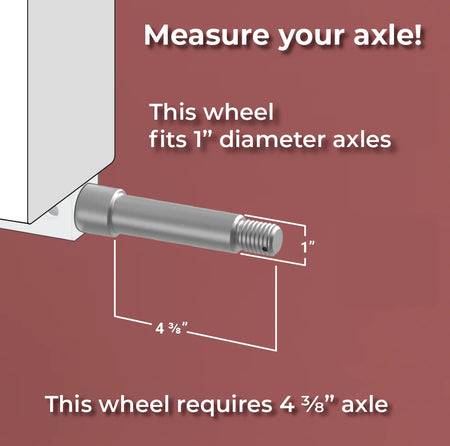

This wheel assembly is not universal. Before ordering, verify:
- 1-inch spindle diameter
- 4-3/8-inch hub spacing
- Existing tire size
- Tire and wheel clearance
- Required load capacity
- Bearing and hub configuration
- Wheel-retention method
A DOT-approved tire does not by itself make a log splitter, wagon, cart, or other machine approved for public-road towing. Follow the equipment manufacturer’s towing instructions and all applicable regulations.
NOTE: Most products require at least some assembly.
