5" Bore • 24" Stroke • Double-Acting • Clevis Mount • Rebuildable Design

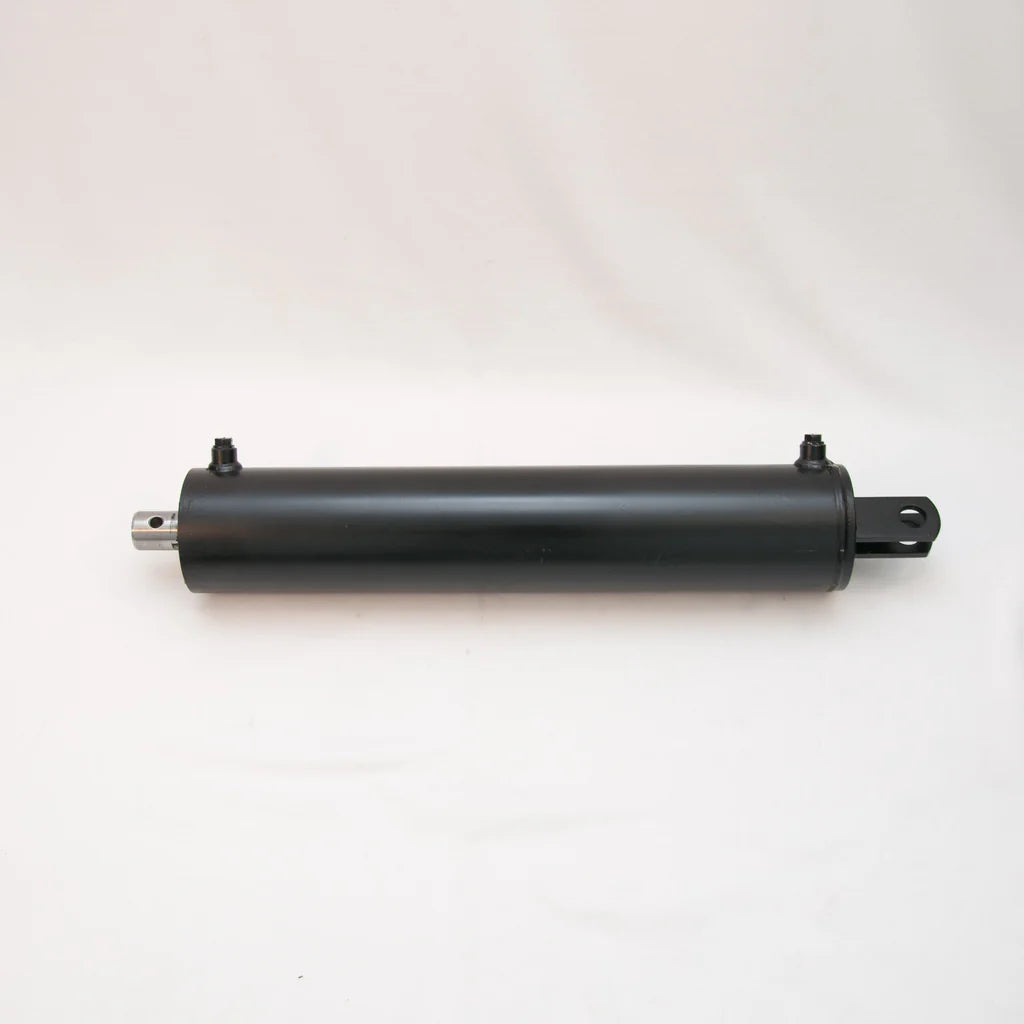

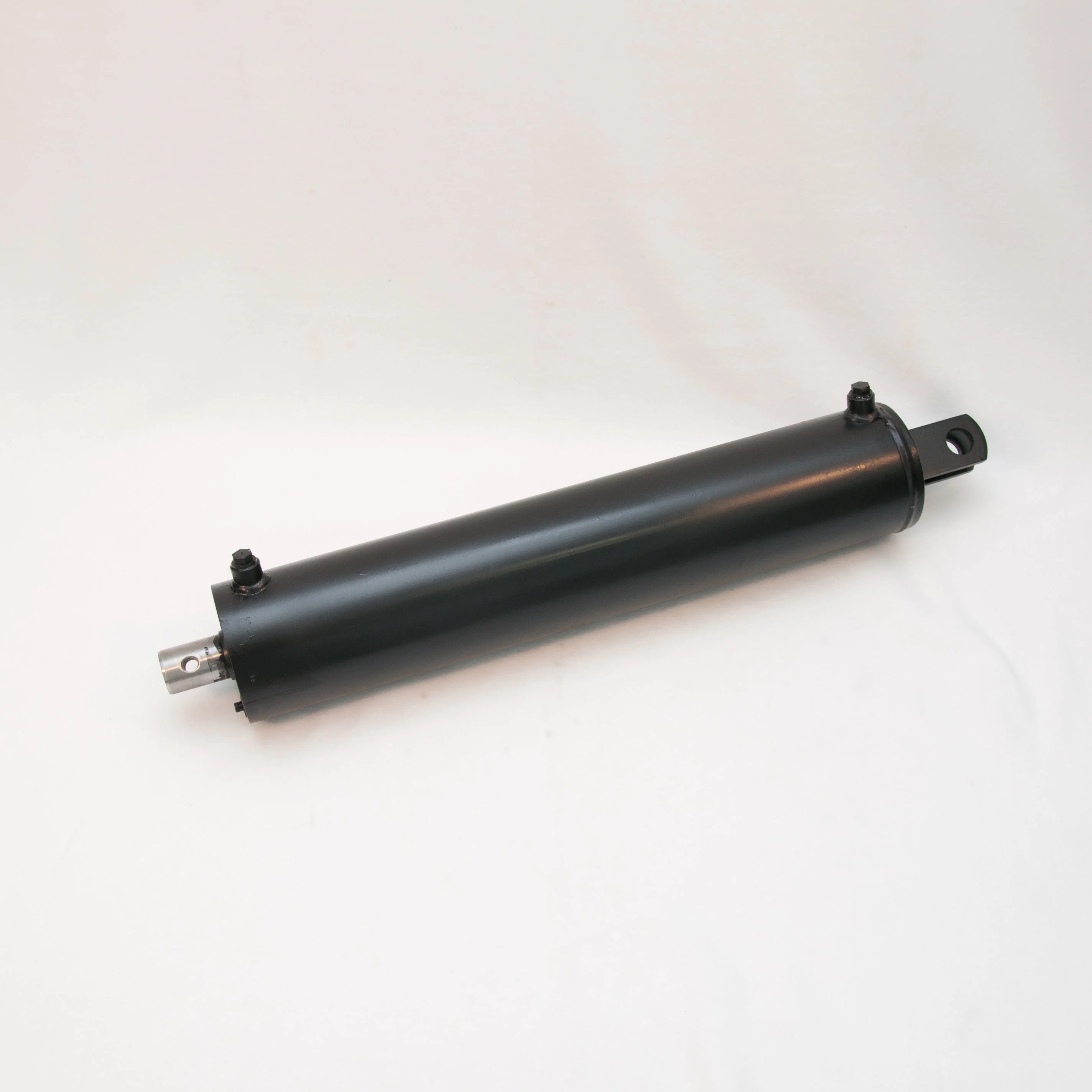

Restore the splitting power and dependable operation of a compatible Dirty Hand Tools log splitter with the WSD31-172 Hydraulic Log Splitter Cylinder. Designed as a direct replacement for compatible DHT cylinders that have part number 100211.  This heavy-duty component features a 5-inch bore, 24-inch stroke, and double-acting operation for powered extension and retraction.

With a maximum operating pressure of 4,000 PSI, a substantial 2-inch piston rod, and rugged clevis-style mounting, this cylinder is built for demanding log-splitting applications. Its rebuildable construction allows worn seals to be replaced, helping extend the cylinder’s service life.

Key Features & Benefits

• Direct DHT Replacement for PN 100211
  Designed to replace compatible Dirty Hand Tools log splitter cylinders with matching dimensions and mounting points.
• 5-Inch Bore
  Provides the large piston area needed to generate substantial splitting force when paired with a compatible hydraulic system.
• 24-Inch Stroke
  Delivers the travel required for common full-size log splitter configurations.
• Double-Acting Operation
  Two hydraulic ports provide powered forward and reverse movement for controlled wedge operation and return.
• Maximum 4,000 PSI Operating Pressure
  Built to handle high-pressure hydraulic log splitter systems within the manufacturer’s stated limit.
• Heavy-Duty Piston Rod
  Features a 2-inch-diameter rod reduced to 1-3/4 inches at the wedge mounting end.
• Clevis-Style Mounting
  Double clevis ears help provide secure attachment to a compatible splitter beam.
• Rebuildable Construction
  Replaceable seals allow the cylinder to be serviced rather than automatically replaced when normal seal wear occurs.
• Black Powder-Coat Finish
  Helps protect the exterior against corrosion, scratches, and jobsite wear.

Mounting and Connection Details

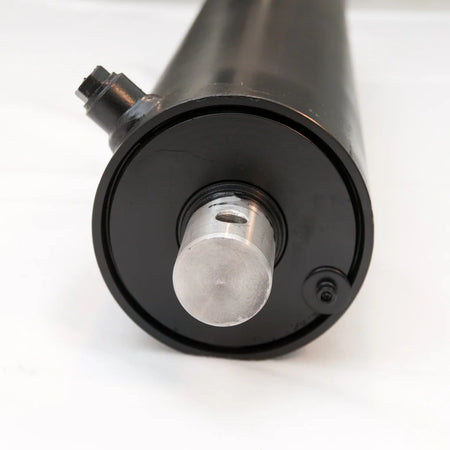

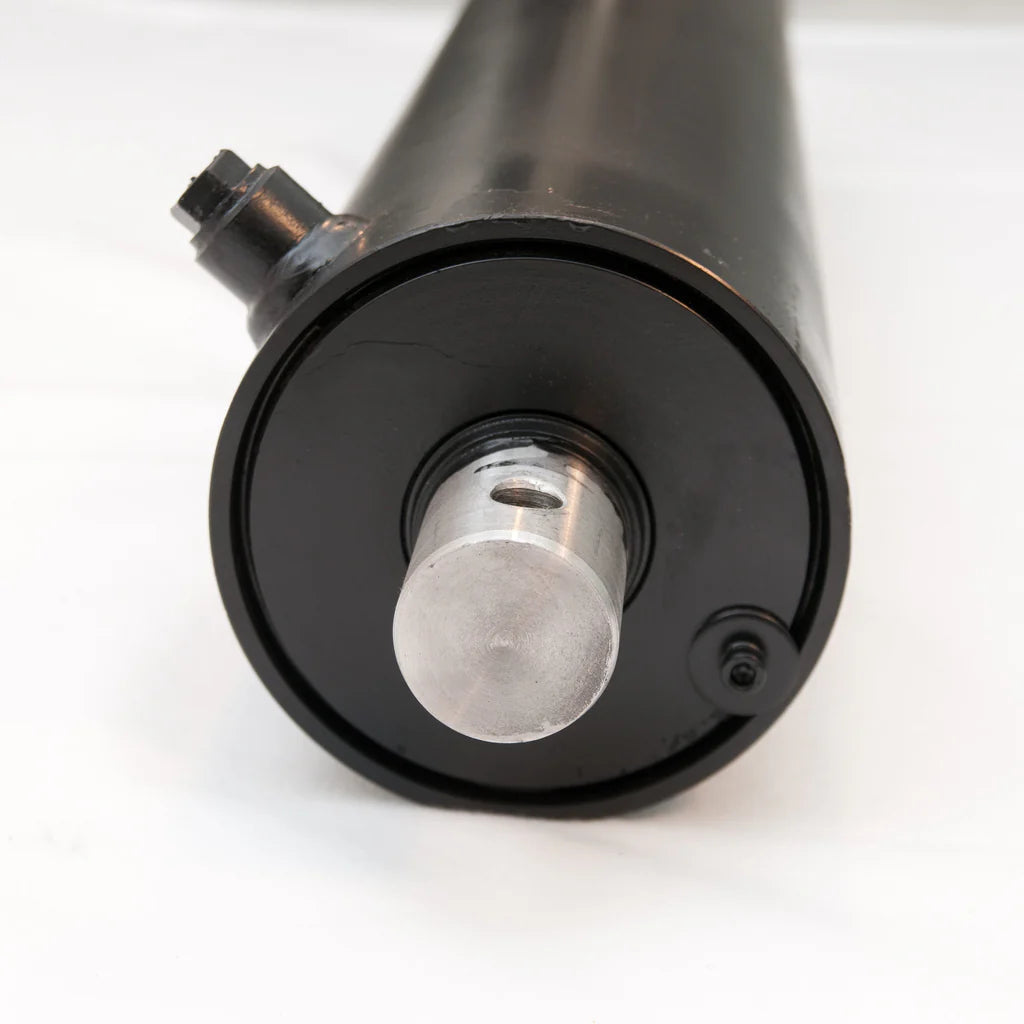

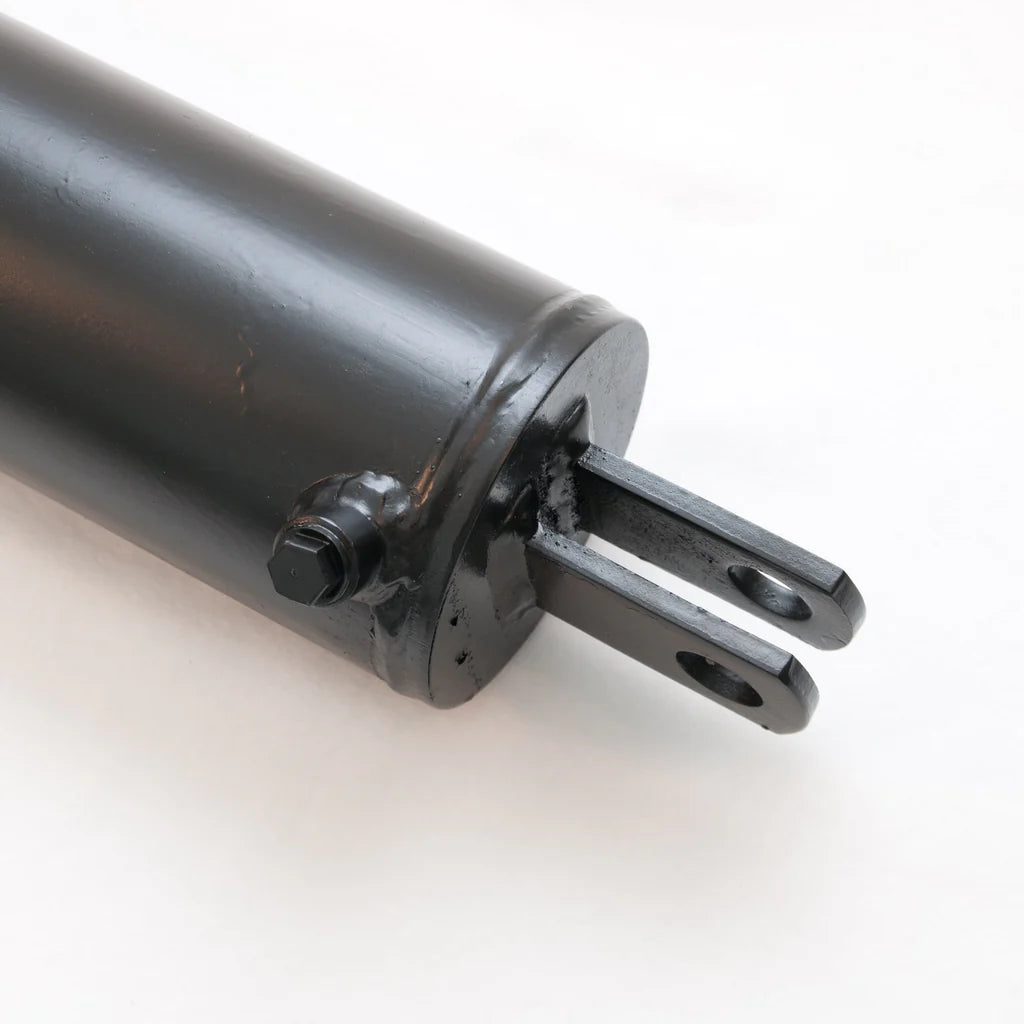

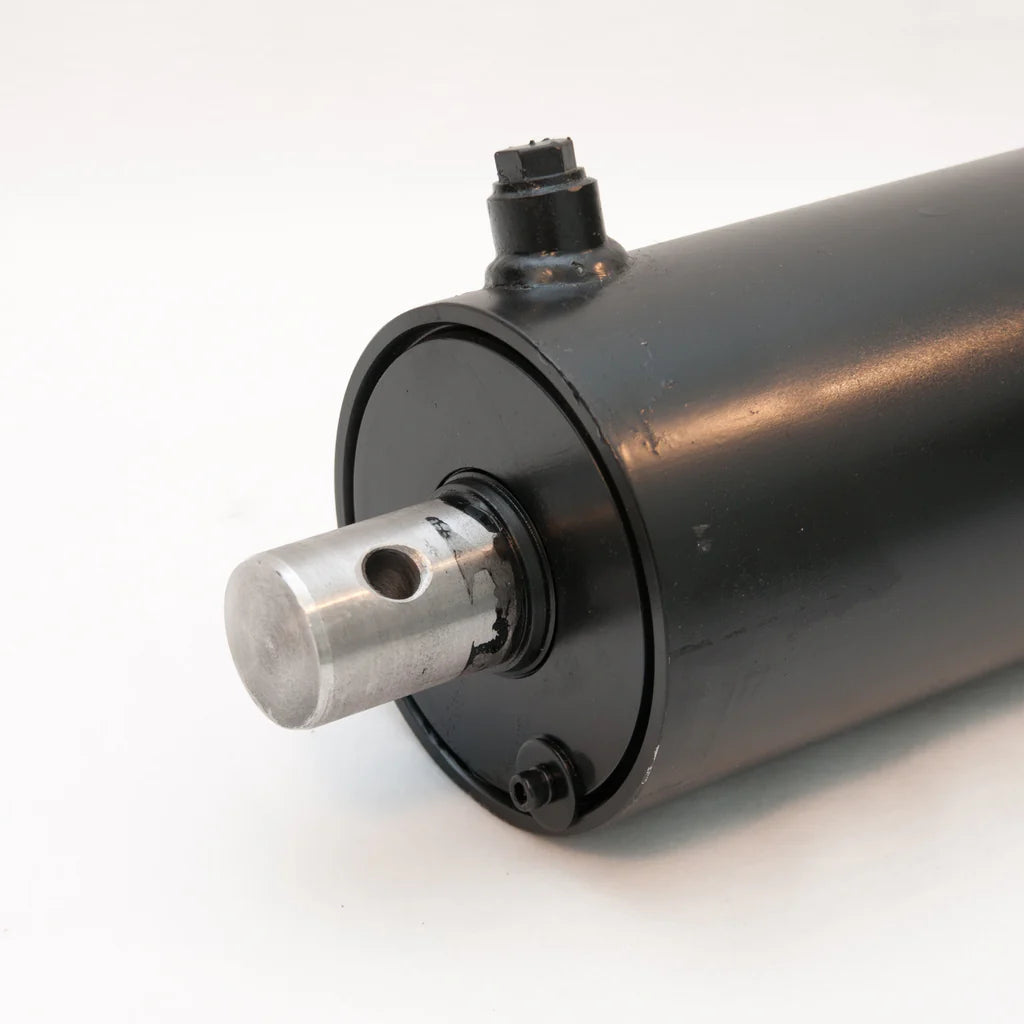

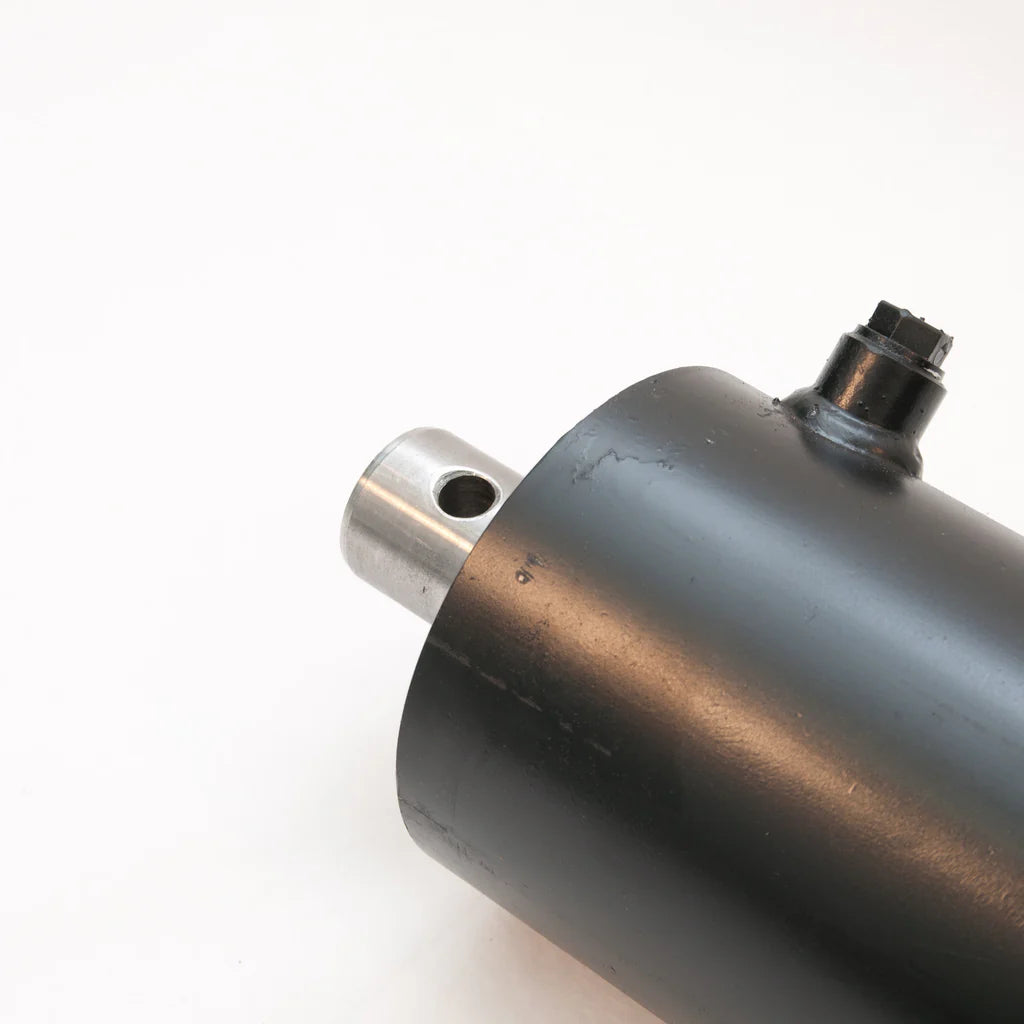

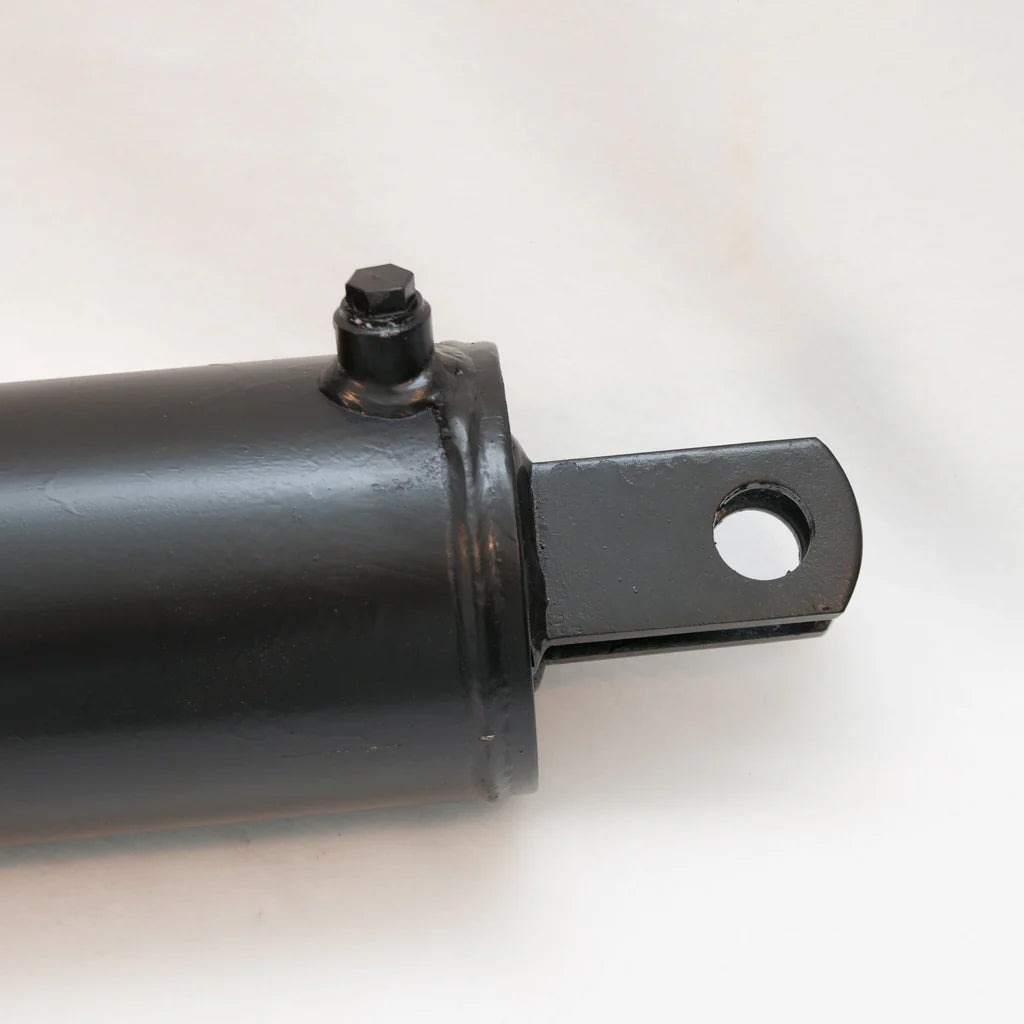

The wedge end of the piston rod is reduced to 1-3/4 inches and includes a 9/16-inch mounting hole. The rear mounting clevis has double ears spaced 7/8 inch apart, accepts a 3/4-inch beam, and uses a mounting pin up to 1-1/8 inches in diameter. Two 1/2-inch NPT hydraulic ports connect the cylinder to a compatible hydraulic valve and hose system.

Ideal Applications

This replacement cylinder is designed for:

• Compatible Dirty Hand Tools log splitters 35 & 37 ton.
• Log splitter repair and restoration
• Hydraulic cylinder replacement for DHT PN 100211
• Custom splitter builds with matching dimensions
• Replacing leaking or damaged rebuildable cylinders

Quick Specifications

The specifications above are based on the measurements and operating information published for SKU 31-172.

Important Compatibility Information

This cylinder is not universal. Before ordering, compare the bore, stroke, fully retracted and extended lengths, rod-end mounting hole, clevis-ear spacing, mounting-pin diameter, hydraulic-port size, and port locations with your existing cylinder.

The “DHT replacement” designation does not guarantee compatibility with every Dirty Hand Tools log splitters, just PN 100211. Confirm all measurements and mounting details before installation.

Hydraulic System Requirements

Use this cylinder only with a compatible hydraulic pump, valve, hoses, fittings, and reservoir. Do not exceed the manufacturer’s stated 4,000 PSI maximum operating pressure. Hydraulic installation and pressure testing should be performed by a qualified person familiar with high-pressure hydraulic equipment.
