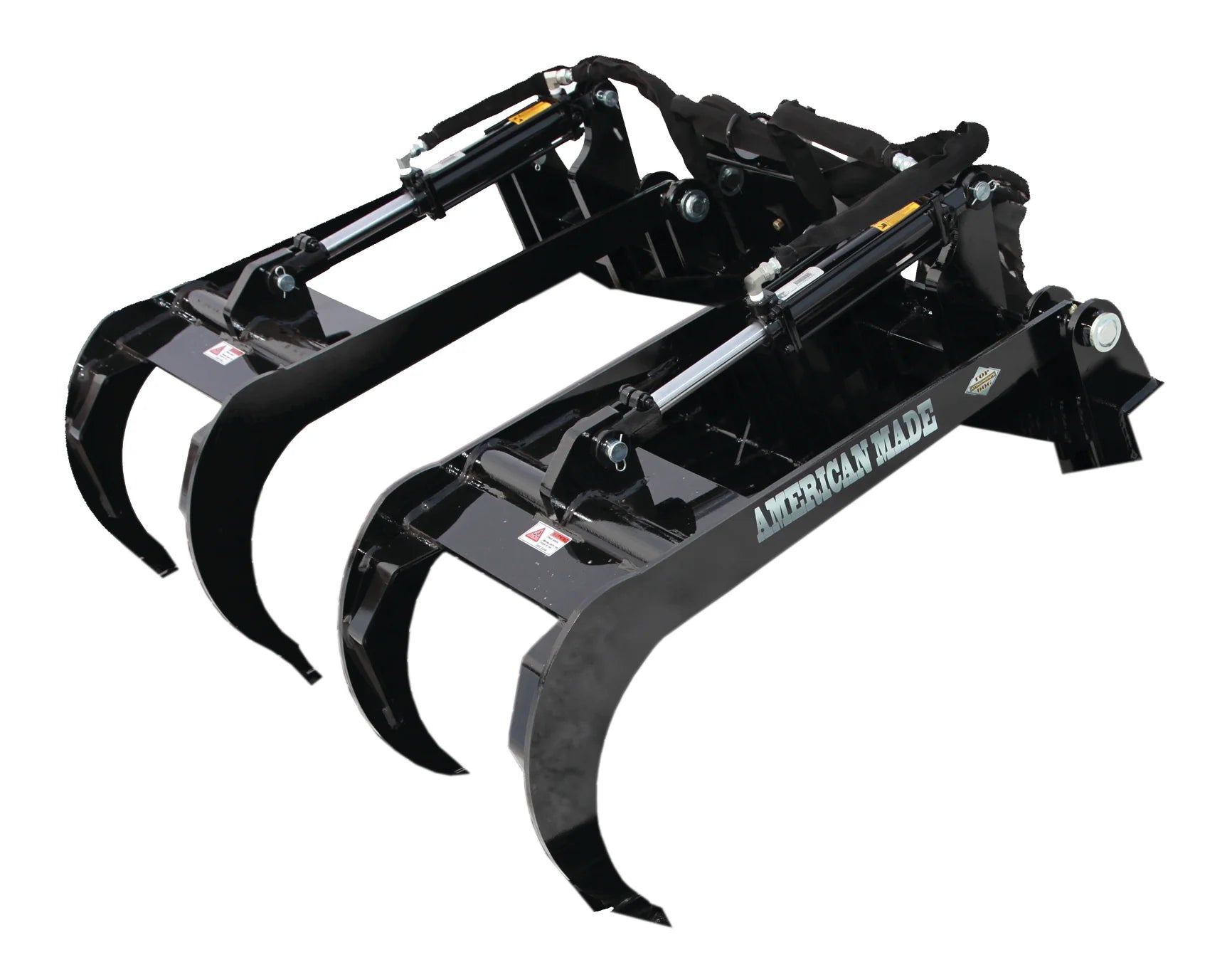

60" Dual Arm Weld-On Grapple - Top Dog Attachments (9000190)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Heavy-Duty GR50 Steel • Fully Assembled • Hydraulics & Hoses Included
The Top Dog Attachments 60" Dual Arm Weld-On Grapple is built for serious material handling, land clearing, and debris management. Designed for strength and durability, this grapple is constructed from high-quality GR50 steel and arrives fully assembled with hydraulics and hoses included, making installation faster and easier once welded to your attachment.
Ideal for handling logs, brush, limbs, debris, and other bulky materials, this dual-arm grapple provides strong, even clamping force for better control and improved load security. For proper installation, Top Dog recommends welding the grapple onto a tube at least 3" x 3" in size, welding at each ear location on both the top and bottom of the angle iron.
Key Features & Benefits
-
Dual Arm Grapple Design
Provides strong, balanced clamping for improved grip on uneven, bulky, or irregular loads. -
Heavy-Duty GR50 Steel Construction
Built for demanding work and long-term durability in tough land management and material handling applications. -
Fully Assembled for Easier Installation
Comes ready with hydraulics and hoses already included to simplify setup. -
Hydraulic Clamping Power
Equipped with 2" x 8" tie rod cylinders for dependable gripping force. -
3000 PSI Maximum Operating Pressure
Designed to handle demanding hydraulic applications. -
1/2" Arm Plate Thickness
Strong grapple arm construction for added durability and long service life. -
Versatile Use
Excellent for logs, brush, limbs, storm debris, and general cleanup work.
Installation Note
Top Dog recommends welding this grapple onto a tube that is at least 3" x 3" in size. Be sure to weld at each ear location, on both the top and bottom of the angle iron, for proper support and performance.
Quick Specs
| Specification | Details |
|---|---|
| Brand / Model | Top Dog Attachments 9000190 |
| Product Type | Dual Arm Weld-On Grapple |
| Width | 59.5" |
| Overall Depth | 36" |
| Inside Depth | 41.5" |
| Weight | 342 lbs |
| Cylinders | 2" x 8" Tie Rod Cylinders |
| Max PSI | 3000 PSI |
| Steel Type | GR50 |
| Arm Plate Thickness | 1/2" |
Ideal For
- Brush and limb cleanup
- Log handling
- Storm debris removal
- Land clearing
- Farm and property maintenance
- Custom bucket or attachment builds
