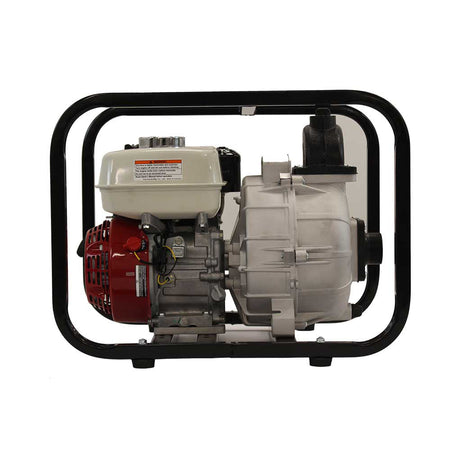

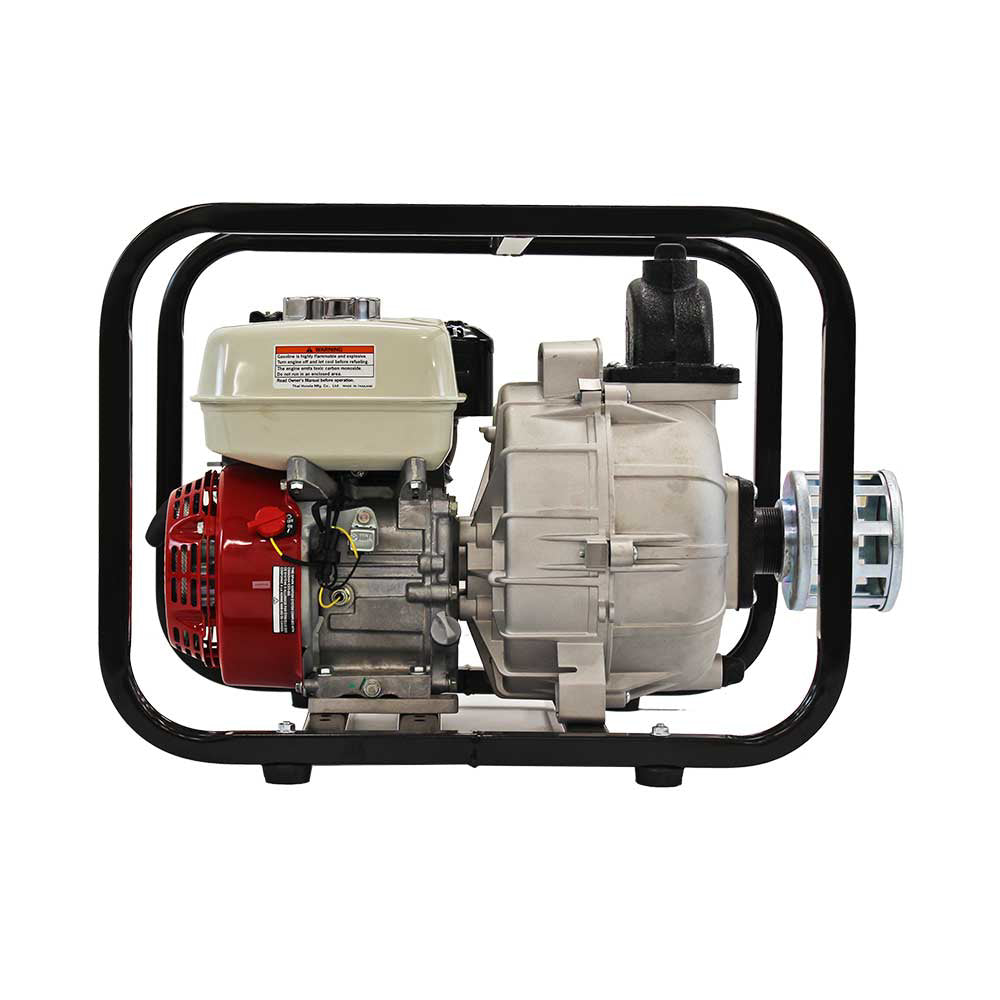

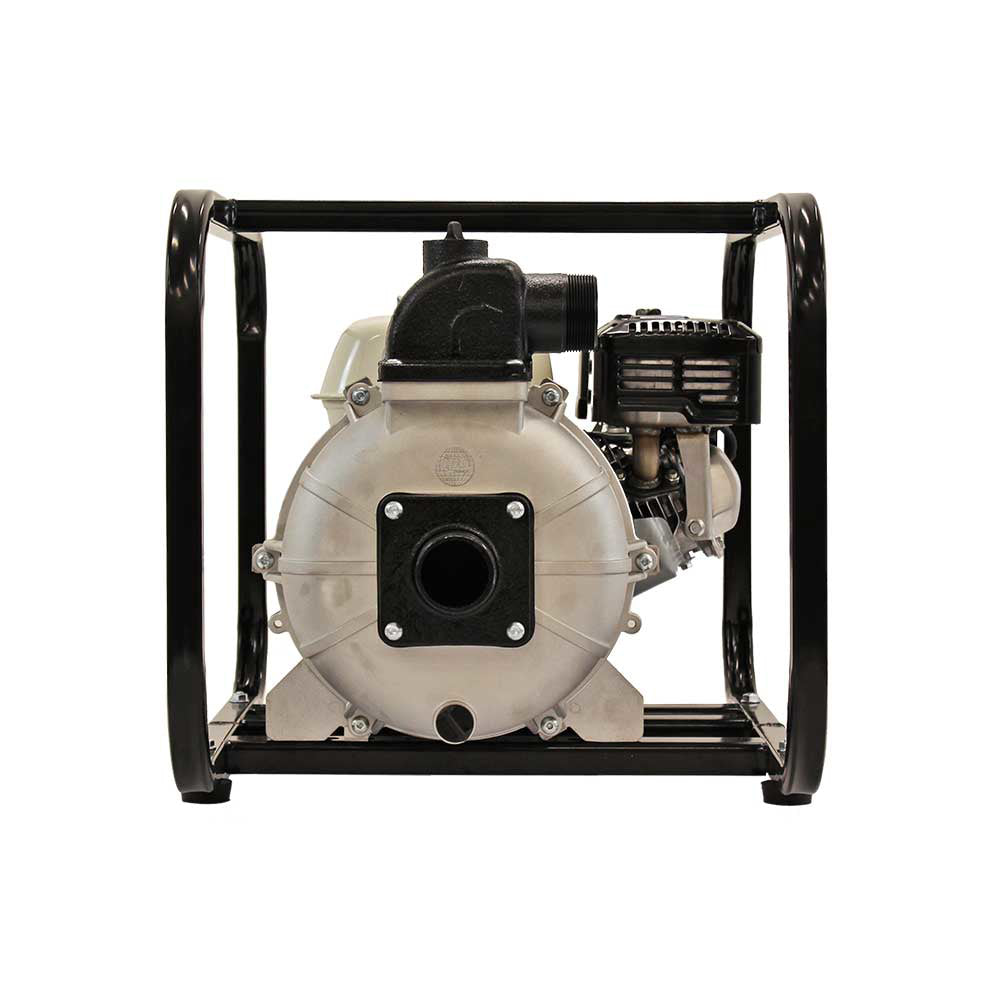

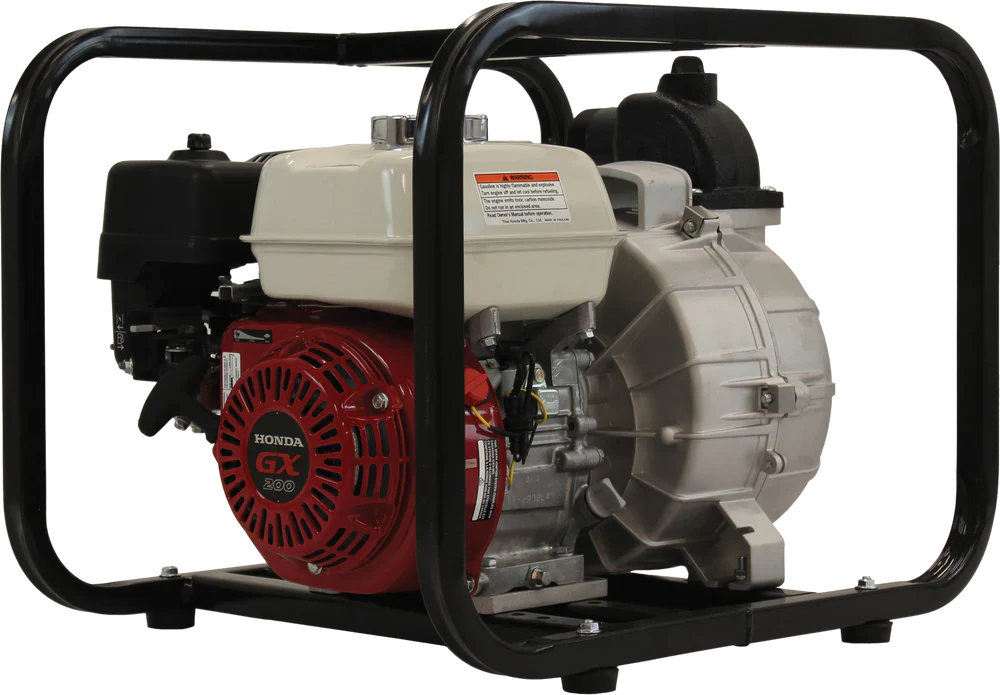

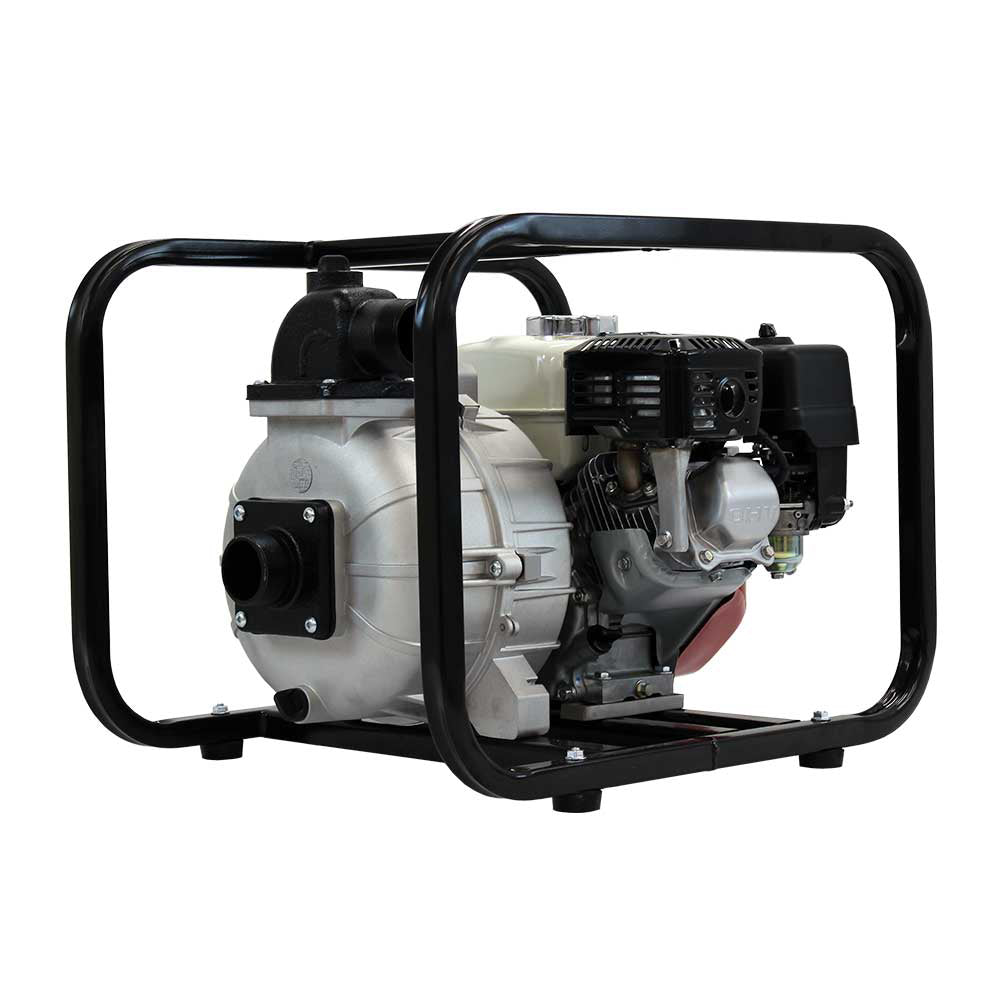

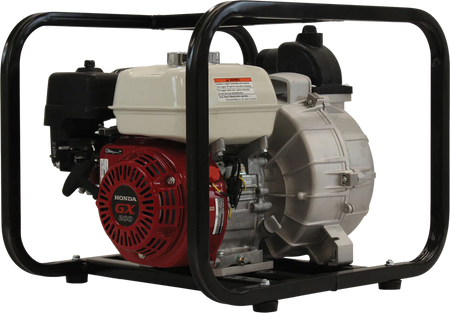

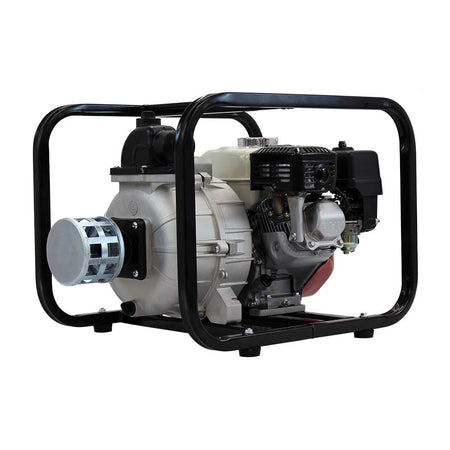

Brave Commercial 3" Trash Water Pump 290 GPM Honda GX200 (BRP520TP3)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Heavy-Duty 3-Inch Gas-Powered Trash Pump with Honda GX200 Engine & 1¼-Inch Solids Handling
Move large volumes of dirty water quickly and efficiently with the Brave BRP520TP3 3-Inch Commercial-Grade Trash Pump. Powered by a dependable 196cc Honda GX200 gasoline engine, this heavy-duty pump delivers up to 290 gallons per minute and handles solids up to 1¼ inches in diameter.
Designed for contractors, farmers, and property owners, the BRP520TP3 is ideal for draining ponds, construction excavations, flooded areas, and other applications involving water containing leaves, small stones, and debris.
Its rugged steel roll cage, durable cast-iron impeller, self-priming design, and serviceable pump components provide dependable performance in demanding environments.
Key Features & Benefits
-

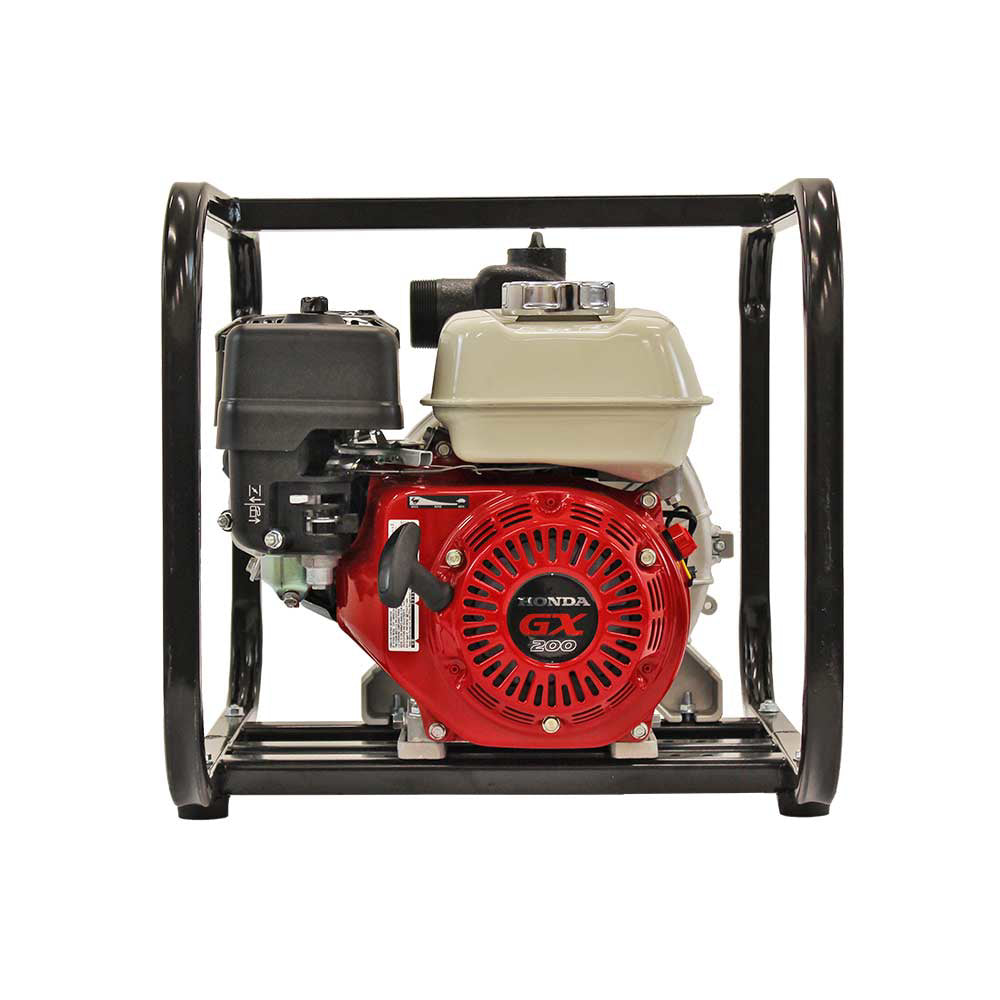

Reliable Honda GX200 Engine: Commercial-grade 196cc four-stroke gasoline engine provides dependable power for demanding water-transfer applications.
-
290 GPM Maximum Flow Rate: Moves up to 290 gallons of water per minute under optimal operating conditions.
-
3-Inch Suction & Discharge Ports: Standard NPT connections accommodate compatible 3-inch suction and discharge hoses.
-
1¼-Inch Solids Handling: Handles water containing leaves, twigs, pebbles, and other small debris up to 1¼ inches in diameter.
-
110-Foot Maximum Total Head: Provides powerful pumping performance for water transfer and drainage applications.
-
Self-Priming Design: Capable of suction lifts up to 26 feet after the pump casing is initially filled with liquid.
-
Durable Cast-Iron Impeller: Heavy-duty impeller designed for demanding trash-pumping applications.
-
Premium Mechanical Seal: Silicon carbide mechanical seal with graphite-impregnated seat and Viton elastomers helps resist wear.
-
Serviceable Pump Components: Replaceable cast-iron suction and discharge fittings simplify maintenance and repairs.
-
Adjustable Discharge Direction: Discharge port rotates in 90-degree increments for flexible hose positioning.
-
Built-In Check Valve: EPDM/EPR check valve helps maintain prime during operation.
-
Heavy-Duty Steel Roll Frame: Protective frame with vibration-dampening feet provides stability and portability.
-

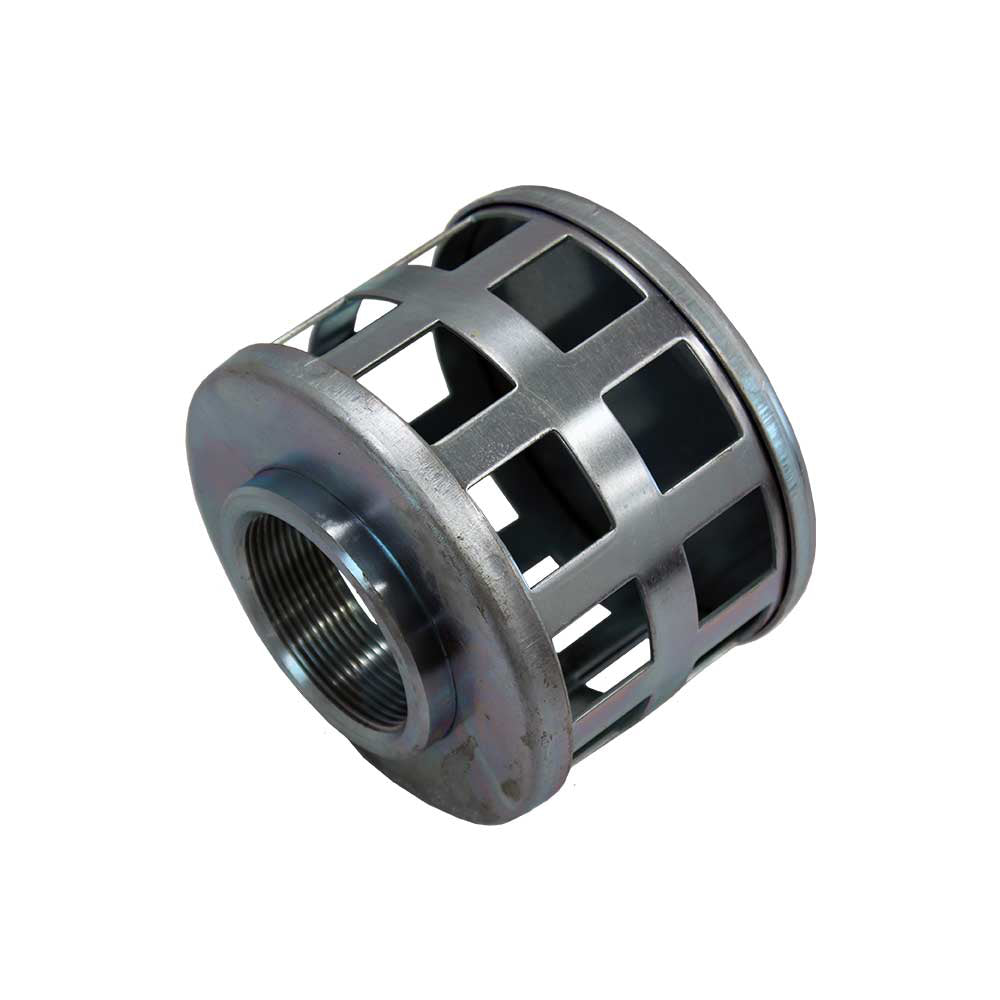

Included Suction Strainer: Helps prevent oversized debris from entering the pump.
-

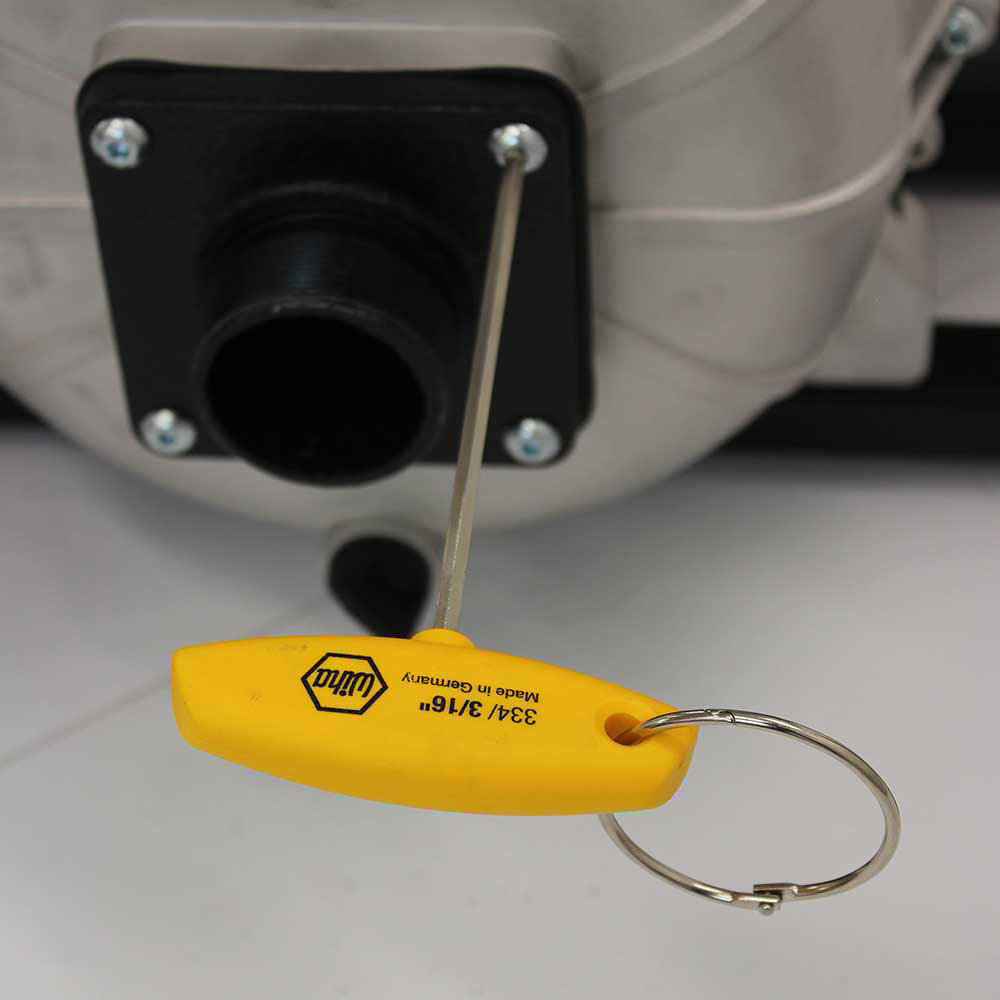

Easy Maintenance: Includes a service tool for convenient access to pump components.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Brave / BravePro |
| Model | BRP520TP3 |
| Product Type | Commercial Trash Water Pump |
| Pump Size | 3 Inches |
| Maximum Flow Rate | 290 GPM |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Engine Displacement | 196cc |
| Engine Type | 4-Stroke Gasoline |
| Suction Port | 3-Inch NPT |
| Discharge Port | 3-Inch NPT |
| Maximum Solids Diameter | 1¼ Inches |
| Maximum Total Head | 110 Feet |
| Maximum Pressure | 48 PSI |
| Maximum Self-Priming Suction Lift | 26 Feet |
| Impeller | Cast Iron |
| Pump Housing | Cast Aluminum |
| Suction / Discharge Components | Replaceable Cast Iron |
| Mechanical Seal | Silicon Carbide with Graphite-Impregnated Seat |
| Seal Elastomers | Viton |
| Check Valve | EPDM / EPR |
| Discharge Rotation | 90-Degree Increments |
| Frame | Heavy-Duty Steel Roll Cage |
| Vibration-Dampening Feet | Included |
| Suction Strainer | Included |
| Dimensions | 25" L × 20" W × 19" H |
| Dry Weight | 100 lbs |
| Manufacturer Warranty | 1-Year Limited |
Ideal Applications
-
Construction site dewatering
-
Pond and ditch drainage
-
Flooded basements and properties
-
Farm and agricultural water transfer
-
Excavation and trench dewatering
-
Stormwater and emergency drainage
-
Water containing leaves, small stones, and debris
-
Contractor and property maintenance operations
What's Included
-
(1) Brave BRP520TP3 3-Inch Trash Pump with Honda GX200 Engine
-
(1) Heavy-Duty Steel Roll Frame
-
(1) Suction Strainer
-
(1) Pump Service Tool
-
(1) Owner's Manual
Note: Suction and discharge hoses are sold separately unless specifically included in an advertised package.
Frequently Asked Questions
How much water can the Brave BRP520TP3 pump?
The BRP520TP3 has a maximum flow rating of 290 gallons per minute (GPM). Actual flow varies depending on suction lift, discharge height, hose length, and system resistance.
What engine powers the BRP520TP3?
The pump features a 196cc Honda GX200 four-stroke gasoline engine.
What size debris can this trash pump handle?
The BRP520TP3 is designed to handle solids up to 1¼ inches in diameter, including small stones, leaves, twigs, and other debris commonly found in dirty water.
What is the maximum pumping height?
The pump has a maximum total head rating of 110 feet. Actual operating capacity decreases as pumping height and system resistance increase.
Is the Brave BRP520TP3 self-priming?
Yes. The BRP520TP3 is self-priming up to approximately 26 feet of suction lift. However, the pump casing must be filled with water before initial operation. Never operate the pump dry.
Are suction and discharge hoses included?
A suction strainer is included. Suction and discharge hoses are available separately and should be selected to match the pump's 3-inch connections.
Can this pump handle muddy or dirty water?
Yes. The BRP520TP3 is designed for dirty-water transfer involving small solids and debris. It is not intended for flammable liquids, hazardous chemicals, or materials incompatible with its pump components.
Can the pump be used for draining ponds or flooded areas?
Yes. Its 290 GPM maximum flow rate and 1¼-inch solids-handling capability make it suitable for pond drainage, construction dewatering, storm cleanup, and similar applications.
What warranty is included?
The BRP520TP3 is advertised with a 1-year limited manufacturer's warranty, subject to Brave's warranty terms.
Why Choose the Brave BRP520TP3?
The Brave BRP520TP3 3-Inch Trash Pump combines reliable Honda engine performance with high-volume water transfer and rugged commercial construction.
With its 290 GPM maximum flow, 1¼-inch solids capacity, cast-iron impeller, and serviceable pump design, the BRP520TP3 is built for demanding dewatering and property maintenance applications.
Move more water with confidence using the Brave BRP520TP3 Commercial-Grade Trash Pump.
