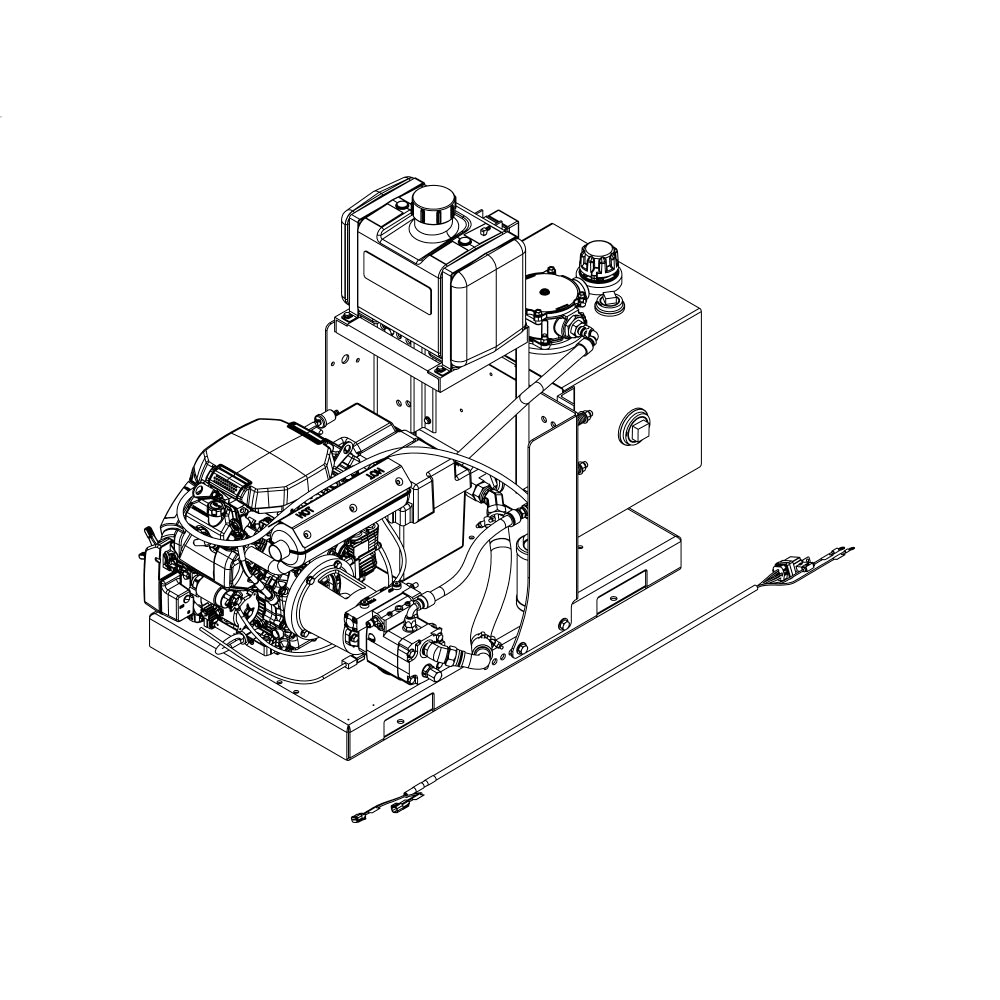

Brave HBHS690GXE High-Pressure Hydraulic Power Pack – Honda GX690, 5100 PSI
The Brave HBHS690GXE High-Pressure Hydraulic Power Pack is a heavy-duty skid-mounted hydraulic power unit designed for demanding commercial, industrial, marine, agricultural, and job site applications. Powered by a reliable Honda GX690 V-Twin engine, this hydraulic power pack delivers the high-pressure performance needed to run knuckle boom loaders, material handling cranes, conveyors, augers, lifts, and other hydraulic equipment.
With up to 5100 PSI and 6 GPM hydraulic flow, the HBHS690GXE is built for applications that require strong hydraulic pressure in a portable, self-contained package. The electric start system makes operation more convenient, while the skid-mount frame allows the unit to be securely mounted to equipment, trailers, barges, or other mobile applications.
This unit also includes a sight gauge for monitoring hydraulic oil volume and temperature, a filter indication gauge for maintenance planning, and a 12VDC oil cooler with a 145°F temperature switch and relay harness to help keep the hydraulic system running efficiently.
Key Features & Benefits
✔ High-Pressure Hydraulic Power
Delivers up to 5100 PSI for demanding hydraulic applications requiring serious pressure output.
✔ Honda GX690 V-Twin Engine
Powered by a dependable 688cc Honda GX690 engine built for commercial-grade performance and long service life.
✔ 6 GPM Hydraulic Flow
Provides hydraulic flow for compatible cranes, loaders, lifts, conveyors, augers, and hydraulic equipment.
✔ Electric Start
Convenient electric start makes operation easier compared to recoil-start systems.
✔ Pressure-Compensated Piston Pump
Designed to provide efficient hydraulic performance for high-pressure applications.
✔ Skid-Mount Design
Securely mounts to trailers, barges, equipment platforms, or other applications.
✔ Forklift Transportable
The skid-mounted frame allows the unit to be moved around the job site with a forklift.
✔ Open-Center or Closed-Center Compatibility
Can be installed in either an open-center or closed-center hydraulic circuit.
✔ Hydraulic Sight Gauge
Allows quick monitoring of hydraulic oil volume and temperature during operation.
✔ Filter Indication Gauge
Helps schedule maintenance and monitor filter condition for better system performance.
✔ 12VDC Oil Cooler
Includes oil cooler with 145°F temperature switch and relay harness to help manage hydraulic temperatures.
✔ Heavy-Duty Steel Hydraulic Tank
12-gauge steel hydraulic tank provides durability for demanding work environments.
Best Applications
The Brave HBHS690GXE is ideal for:
- Knuckle boom loaders
- Material handling cranes
- Conveyors
- Augers
- Hydraulic lifts
- Hydraulic equipment
- Marine and barge-mounted applications
- Trailer-mounted hydraulic systems
- Industrial and commercial job sites
- Agricultural and equipment support applications
- Remote job sites without available hydraulic power
Important Compatibility Notes
This unit can be installed in either an open-center or closed-center hydraulic circuit.
Always confirm hydraulic flow, pressure, port size, and system compatibility before connecting this power pack to your equipment.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Brave |
| Model | HBHS690GXE |
| Product Type | High-Pressure Hydraulic Power Pack |
| Equipment Type | Hydraulic Power Pack |
| Engine Brand | Honda |
| Engine Model | GX690 |
| Engine Displacement | 688cc |
| Starter | Electric |
| Hydraulic Flow | 6 GPM |
| Maximum Pressure | 5100 PSI |
| Pump Type | Pressure-Compensated Piston Pump |
| Pump Displacement | .66 CIR De-Stroked |
| Pump Ports | Inlet: #12 ORB / Outlet: #10 ORB / Case: #8 ORB |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Volume | 19.2 Gal. Nominal / 17.5 Gal. Actual / 13.5 Gal. Usable |
| Oil Cooler | 12VDC with 145°F Temperature Switch and Relay Harness |
| Mount Style | Skid Mount |
| Dry Weight | 429 lbs. |
| Dimensions | 49 in. L x 35 in. W x 42.125 in. H |
| SKU | HBHS690GXE |
Package Contents
- Brave HBHS690GXE High-Pressure Hydraulic Power Pack
- Honda GX690 Engine
- Pressure-Compensated Piston Pump
- 12VDC Oil Cooler
- User’s Manual HBHS690GXE
Recommended Use
The Brave HBHS690GXE is a strong choice for users who need high-pressure hydraulic power for heavy-duty equipment and mobile applications. With its Honda GX690 V-Twin engine, 5100 PSI output, 6 GPM flow, pressure-compensated piston pump, skid-mount frame, and oil cooling system, this hydraulic power pack is built for demanding applications where reliable hydraulic performance matters.
NOTE: Most products require at least some assembly.
