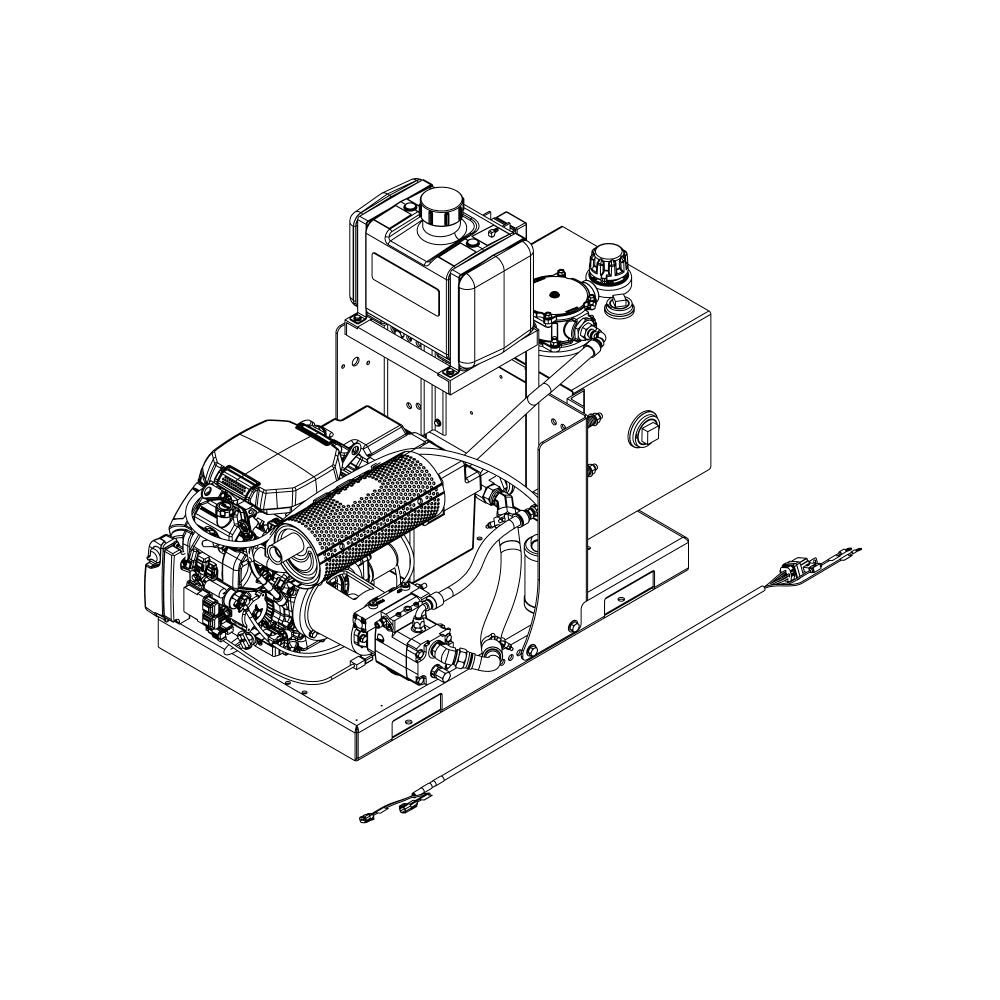

Brave Hi-Pressure Power Pack GX800 Electric Start (HBHS800GXE)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Brave HBHS800GXE High-Pressure Hydraulic Power Pack – Honda GX800 EFI, 5100 PSI
The Brave HBHS800GXE High-Pressure Hydraulic Power Pack is a heavy-duty skid-mounted hydraulic power unit built for demanding commercial, industrial, marine, agricultural, and job site applications. Powered by a commercial-grade Honda GX800 V-Twin EFI engine, this hydraulic power pack delivers the high-pressure performance needed to run knuckle boom loaders, material handling cranes, conveyors, augers, lifts, and other compatible hydraulic equipment.
With up to 5100 PSI and 6 GPM hydraulic flow, the HBHS800GXE is designed for applications that require strong hydraulic pressure in a portable, self-contained package. The electric start system makes operation convenient, while the skid-mount frame allows the unit to be securely mounted to equipment, barges, trailers, or other mobile applications.
The GX800 engine adds advanced features such as Electronic Fuel Injection, integrated ECU architecture, STR governor technology, and CAN bus communication capability. These features help improve fuel efficiency, engine control, speed stability, and remote-control possibilities in demanding work environments.
Key Features & Benefits
✔ Honda GX800 V-Twin EFI Engine
Powered by a 779cc Honda GX800 engine with Electronic Fuel Injection for strong performance and improved fuel efficiency.
✔ High-Pressure Hydraulic Power
Delivers up to 5100 PSI for demanding hydraulic applications that require serious pressure output.
✔ 6 GPM Hydraulic Flow
Provides hydraulic flow for compatible cranes, loaders, lifts, conveyors, augers, and hydraulic equipment.
✔ Electric Start
Convenient electric start makes operation easier and more efficient.
✔ Pressure-Compensated Piston Pump
Designed for efficient hydraulic performance in high-pressure applications.
✔ Open-Center or Closed-Center Compatibility
Can be installed in either an open-center or closed-center hydraulic circuit.
✔ Skid-Mount Design
Securely mounts to trailers, barges, equipment platforms, or other applications.
✔ Forklift Transportable
The skid-mounted frame allows the unit to be moved around the job site with a forklift.
✔ Hydraulic Sight Gauge
Allows quick monitoring of hydraulic oil volume and temperature during operation.
✔ Filter Indication Gauge
Helps monitor filter condition and schedule maintenance for optimal performance.
✔ 12VDC Oil Cooler
Includes oil cooler with 145°F temperature switch and relay harness to help keep the hydraulic system running efficiently.
✔ Integrated ECU Architecture
Helps manage key aspects of engine operation for improved control and performance.
✔ STR Governor Technology
Self Tuning Regulator governor helps maintain stable engine speed under changing load conditions.
✔ CAN Bus Communication Capability
Allows advanced communication and remote-control possibilities in compatible applications.
Best Applications
The Brave HBHS800GXE is ideal for:
- Knuckle boom loaders
- Material handling cranes
- Conveyors
- Augers
- Hydraulic lifts
- Hydraulic motors
- Marine and barge-mounted applications
- Trailer-mounted hydraulic systems
- Industrial and commercial job sites
- Agricultural and equipment support applications
- Remote job sites without available hydraulic power
Important Compatibility Notes
This unit can be installed in either an open-center or closed-center hydraulic circuit.
Always confirm hydraulic flow, pressure, port size, cooling requirements, and system compatibility before connecting this power pack to your equipment.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Brave |
| Model | HBHS800GXE |
| Product Type | High-Pressure Hydraulic Power Pack |
| Equipment Type | Hydraulic Power Pack |
| Engine Brand | Honda |
| Engine Model | GX800 |
| Engine Displacement | 779cc |
| Engine Technology | EFI / Electronic Fuel Injection |
| Starter | Electric |
| Hydraulic Flow | 6 GPM |
| Maximum Pressure | 5100 PSI |
| Pump Type | Pressure-Compensated Piston Pump |
| Pump Displacement | .66 CIR De-Stroked |
| Pump Ports | Inlet: #12 ORB / Outlet: #10 ORB / Case: #8 ORB |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Volume | 19.2 Gal. Nominal / 17.5 Gal. Actual / 13.5 Gal. Usable |
| Oil Cooler | 12VDC with 145°F Temperature Switch and Relay Harness |
| Mount Style | Skid Mount |
| Dry Weight | 437 lbs. |
| Dimensions | 49 in. L x 35 in. W x 42.125 in. H |
| SKU | HBHS800GXE |
Package Contents
- Brave HBHS800GXE High-Pressure Hydraulic Power Pack
- Honda GX800 EFI Engine
- Pressure-Compensated Piston Pump
- 12VDC Oil Cooler
- User’s Manual HBHS800GXE
Recommended Use
The Brave HBHS800GXE is a strong choice for users who need high-pressure hydraulic power with advanced engine technology. With its Honda GX800 EFI engine, 5100 PSI output, 6 GPM hydraulic flow, pressure-compensated piston pump, oil cooling system, and skid-mounted frame, this unit is built for demanding hydraulic applications where power, efficiency, and reliability matter.
NOTE: Most products require at least some assembly.
