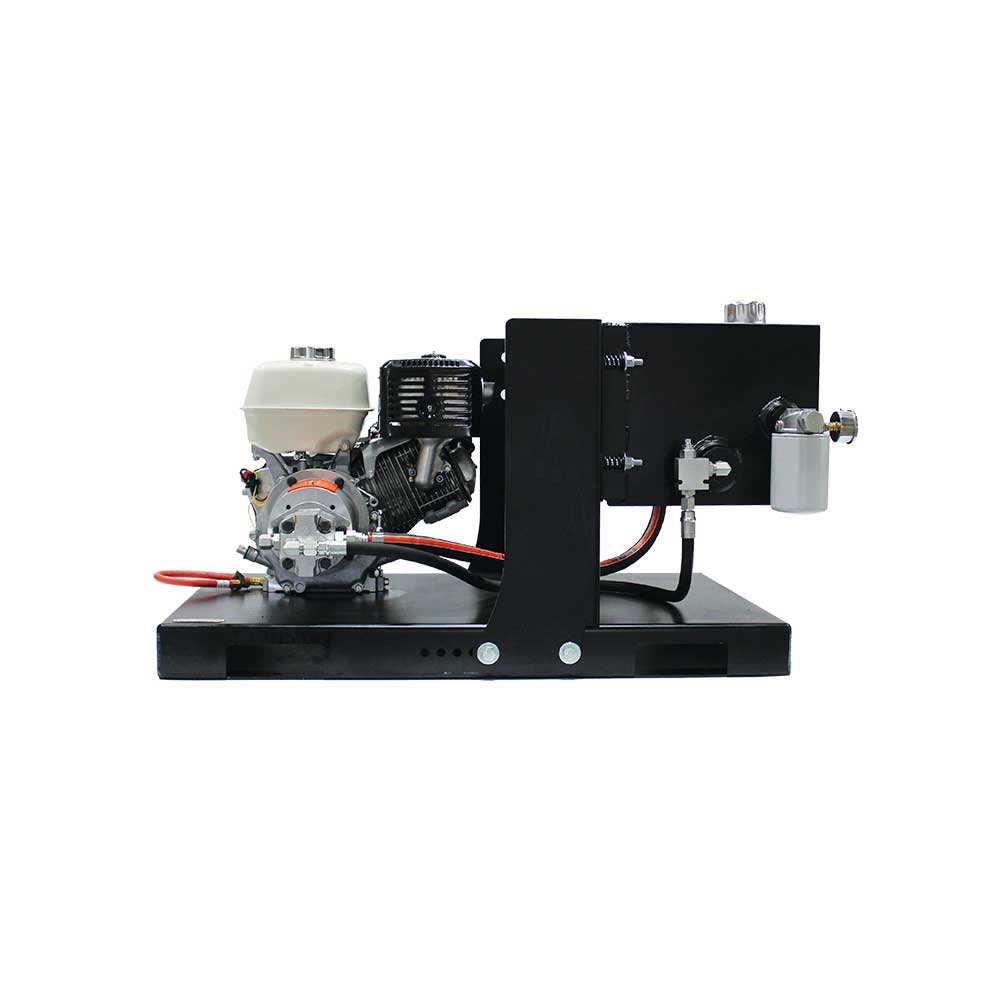

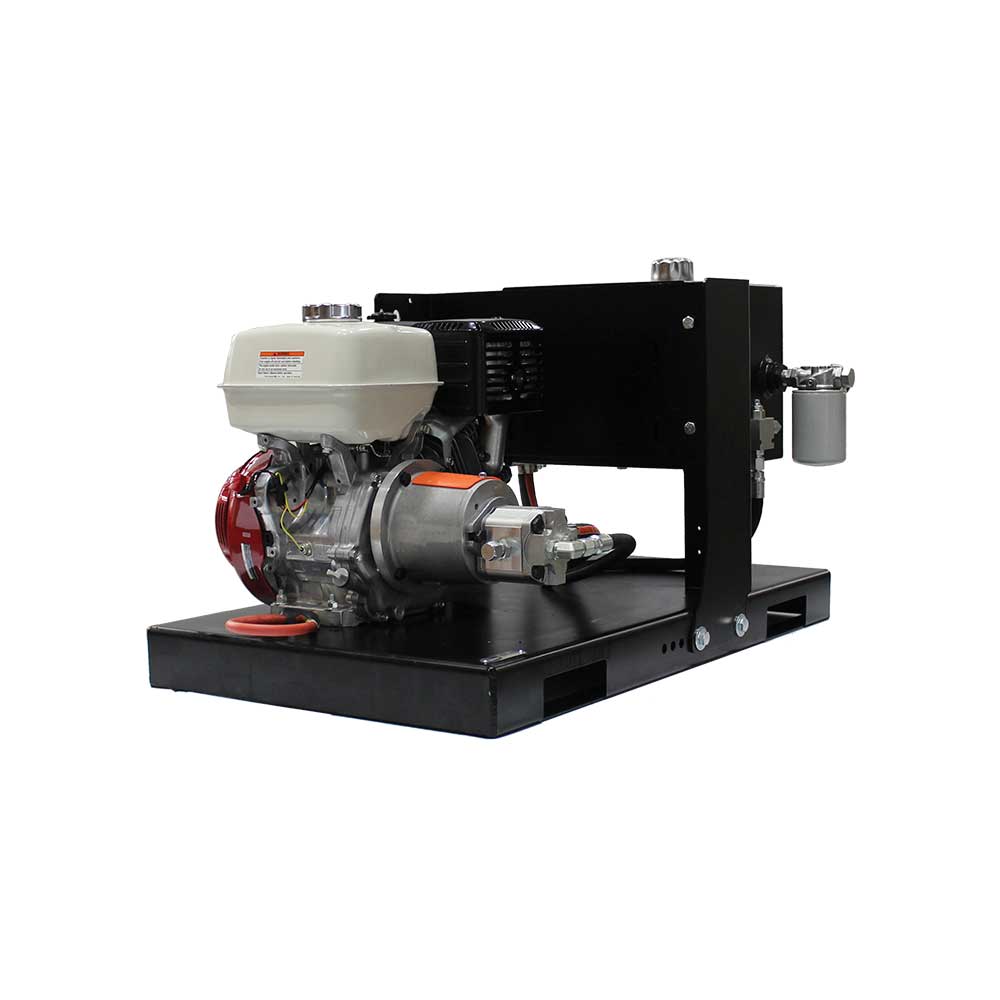

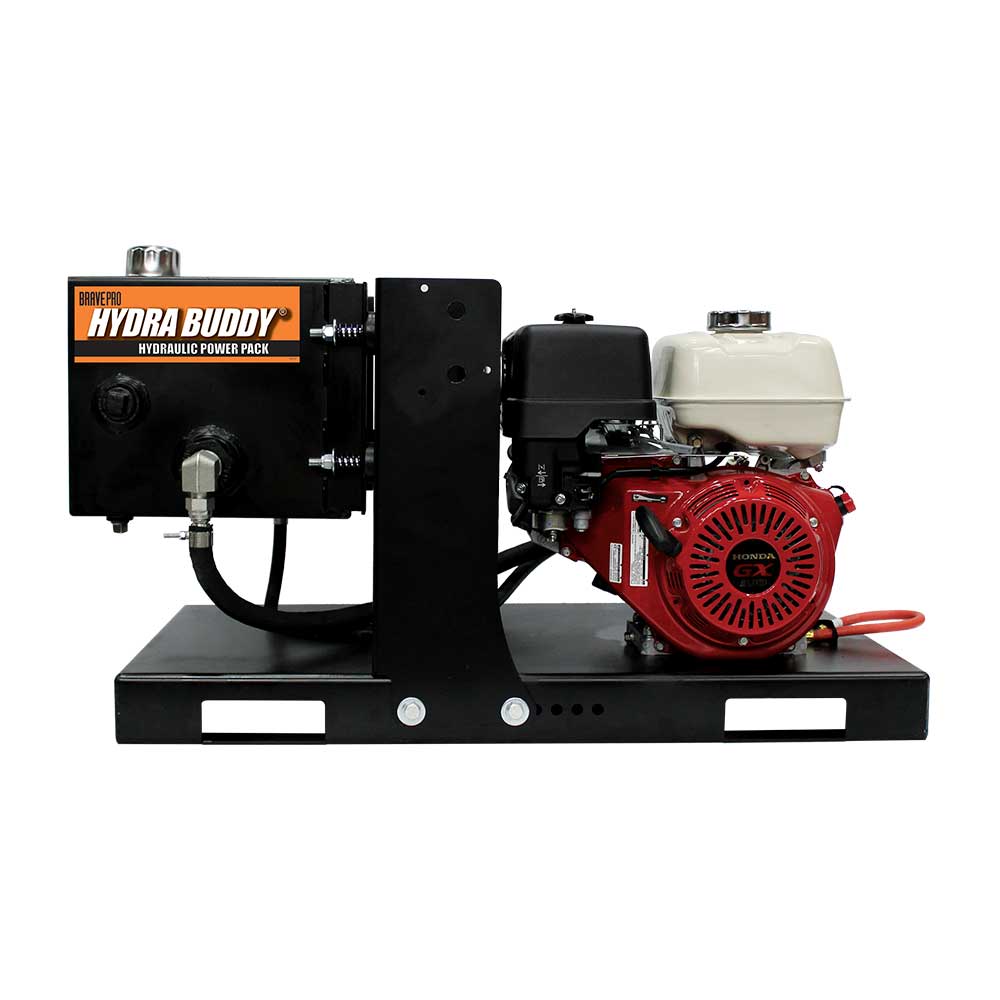

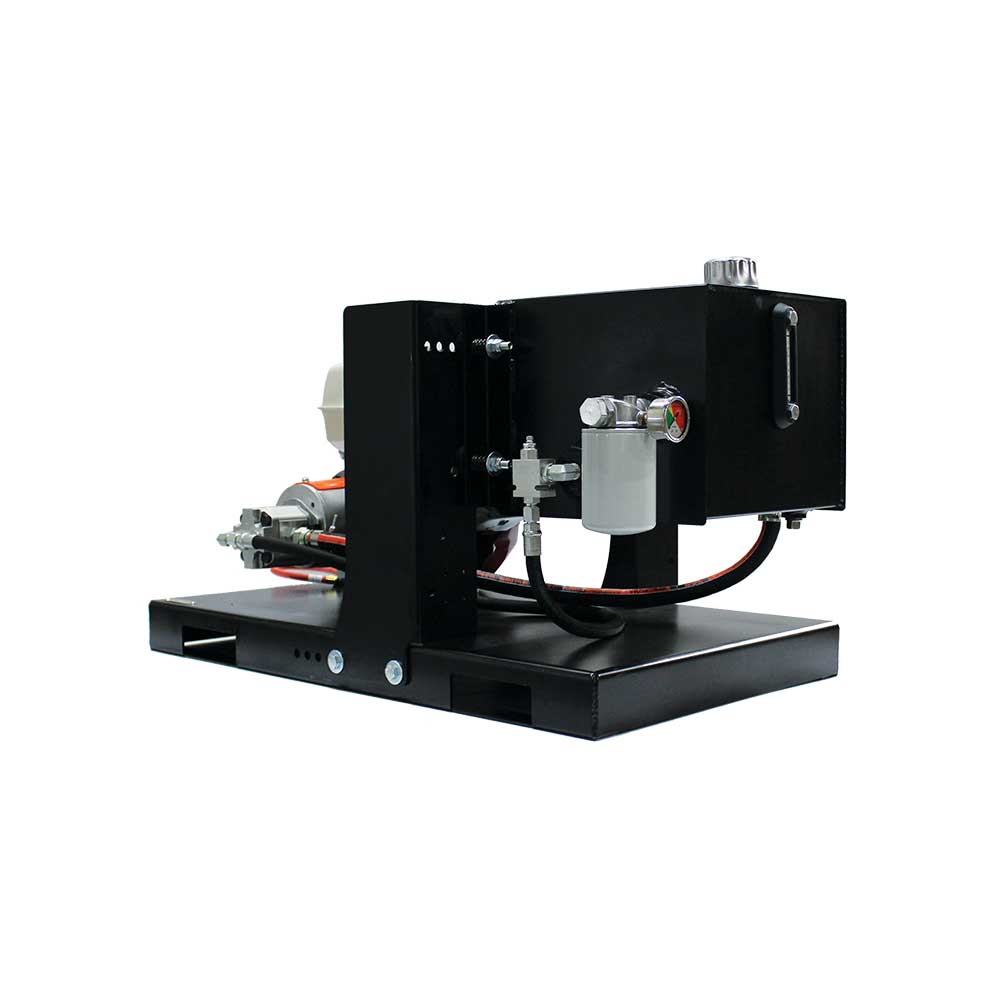

BravePro Hydra Buddy 2,000 PSI Skid-Mount Hydraulic Power Pack with Honda GX390 Electric Start (HBHS310GXE)

2,000 PSI • 7 GPM Flow • Honda GX390 Engine • Electric Start • Skid-Mount Design

Bring dependable hydraulic power to remote jobsites with the BravePro HBHS310GXE Hydra Buddy Hydraulic Power Pack. Designed for mounting to a trailer, service vehicle, or compatible equipment platform, this self-contained unit provides up to 2,000 PSI and 7 GPM for operating properly matched hydraulic equipment where tractor hydraulics, electricity, or compressed air are unavailable.

A commercial-grade 389cc Honda GX390 engine powers the hydraulic pump, while electric starting provides convenient operation throughout the workday. The skid-mounted configuration offers a secure installation and can also be moved into position with suitable material-handling equipment.

Key Features & Benefits

• 2,000 PSI Hydraulic Output
  Delivers the pressure needed to operate compatible hydraulic equipment within the power pack’s ratings.
• 7 GPM Flow Rate
  Provides steady hydraulic flow for properly matched conveyors, augers, lifts, motors, cylinders, and other implements.
• Honda GX390 Engine
  Powered by a durable 389cc commercial-grade gasoline engine.
• Electric Start
  Provides convenient keyed starting for frequent jobsite operation.
• Self-Contained Hydraulic Power
  Supplies portable hydraulic power where a tractor or other primary hydraulic source is unavailable.
• Skid-Mount Configuration
  Designed to mount securely to a trailer, truck, barge, machinery platform, or other suitable structure.
• Supports Multiple Hydraulic Applications
  Can power equipment using single- or double-acting cylinders when properly plumbed and equipped with the required control components.
• Sight and Temperature Gauge
  Allows the operator to monitor hydraulic-fluid level and temperature.
• Filter-Condition Indicator
  Helps determine when the return-line hydraulic filter requires service.
• Heavy-Duty Steel Reservoir
  Uses a rugged 12-gauge steel hydraulic tank for demanding work environments.
• Integrated Carrying Handles
  Provides convenient grip points for positioning the unit when appropriate lifting equipment is used.
• Optional Directional-Control Valve
  A four-way directional-control valve kit is available separately for applications requiring operator-controlled cylinder extension and retraction.

Ideal Applications

The BravePro HBHS310GXE is suitable for properly matched hydraulic equipment used in:

• Agriculture
• Construction
• Equipment repair
• Mobile fabrication
• Material handling
• Conveyor systems
• Hydraulic augers
• Lifts and jacks
• Hydraulic motors
• Remote jobsite equipment
• Trailer- or truck-mounted hydraulic systems

Flow, pressure, reservoir capacity, hydraulic temperature, and duty cycle must be evaluated for the intended equipment before installation.

Hydraulic Reservoir and Monitoring

The power pack uses a 12-gauge steel reservoir with the following published capacities:

• Nominal capacity: 9.7 gallons
• Actual capacity: 8.5 gallons
• Usable capacity: 5.75 gallons

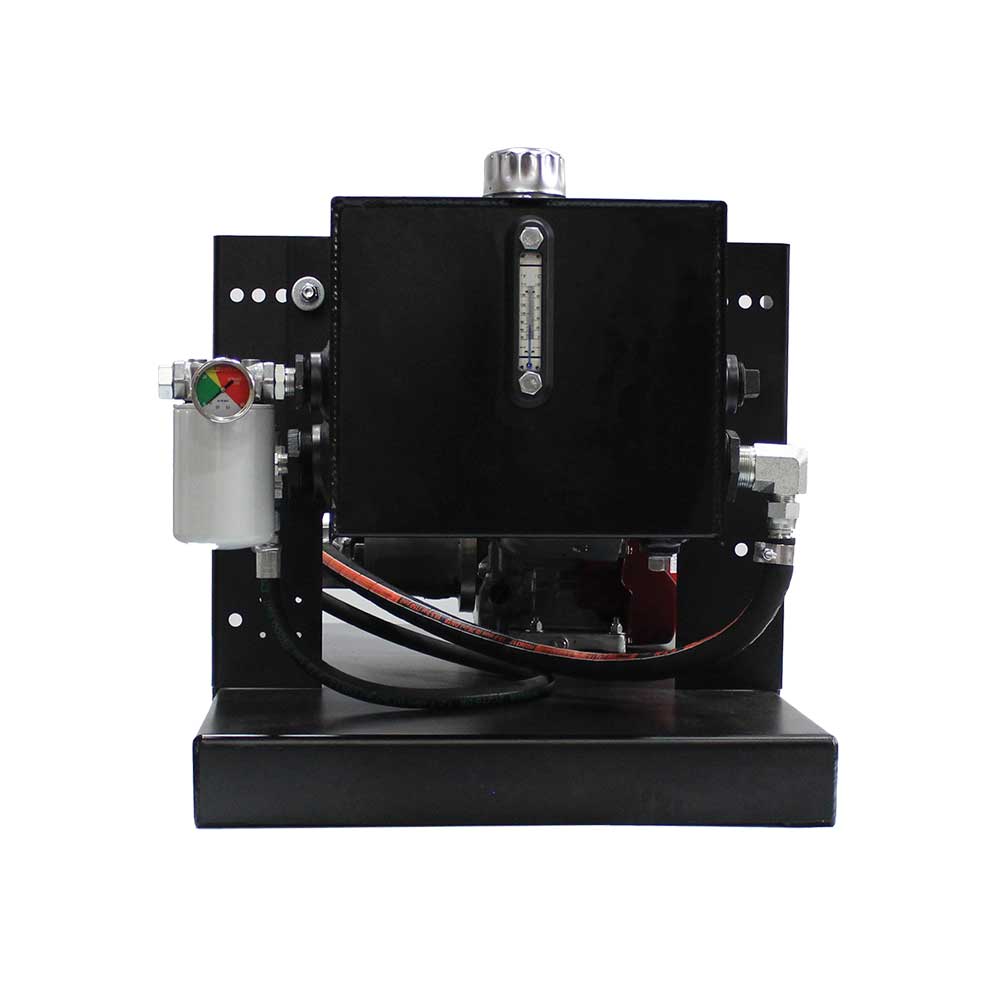

A combination sight and temperature gauge helps the operator monitor the reservoir during operation. The hydraulic system also includes a return-line filter and filter-condition gauge to support scheduled maintenance.

Quick Specifications

The technical specifications are based on the published HBHS310GXE information and Brave Hydra Buddy operator documentation.

Package Contents

• BravePro HBHS310GXE skid-mount hydraulic power pack
• Honda GX390 electric-start engine
• Hydraulic reservoir and pump assembly
• Sight and temperature gauge
• Return-line filter with condition indicator
• Operator’s manual HBHS310GXE

Important Hydraulic Compatibility Information

This unit is not intended for connection to a closed-center hydraulic system. The pressure, flow, reservoir capacity, hose sizes, fittings, control valve, and duty cycle must all be compatible with the attached equipment.

The HBHS310GXE includes a system relief valve but does not come standard with the directional-control valve required for many cylinder-powered applications. A suitable valve and plumbing kit must be purchased separately when required.

The power pack must be fully connected to a compatible hydraulic circuit before starting. Operating an HBHS unit without a properly connected implement can damage the engine or hydraulic components.

Important Setup Information

The engine crankcase and hydraulic reservoir may be shipped without oil. Before starting the unit:

1. Add the engine oil specified in the Honda engine manual.
2. Fill the hydraulic reservoir with the recommended hydraulic fluid.
3. Inspect all hoses, fittings, and hydraulic components.
4. Confirm that the attached implement is compatible.
5. Check the fuel system for leaks.
6. Fill the engine tank with fresh unleaded gasoline.

Never check for hydraulic leaks with your hands. Escaping high-pressure fluid can penetrate the skin and cause severe injury. Use cardboard or wood to locate suspected leaks and completely relieve system pressure before loosening hydraulic components.

• Mounts securely to your trailer or application
• Spin-on hydraulic return filter with indicator
• System relief valve
• Compatible for use with single or double-acting cylinders
• Large hydraulic oil tank with sight / temperature gauge
• Fork lift accessible
