BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR280GX)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR280GX)
Portable Hydraulic Power • Honda GX270 Engine • Built for Remote Job Sites

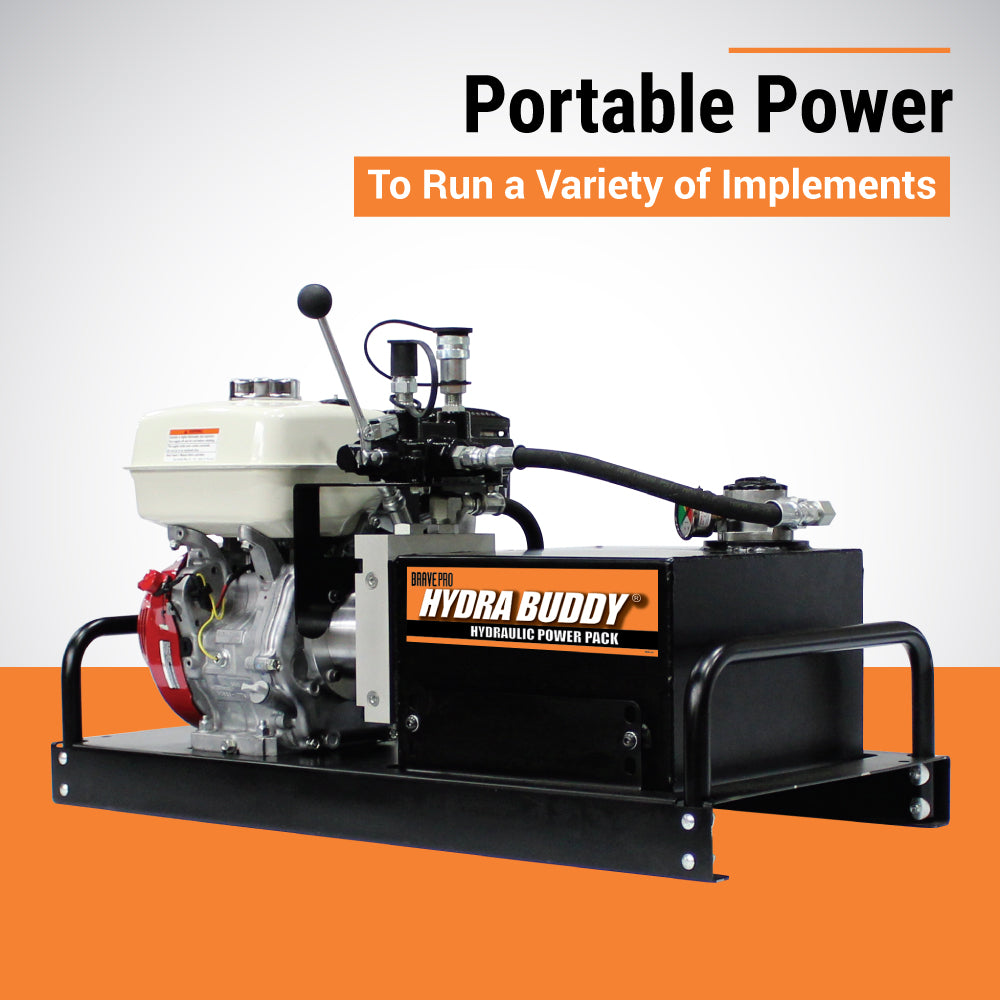

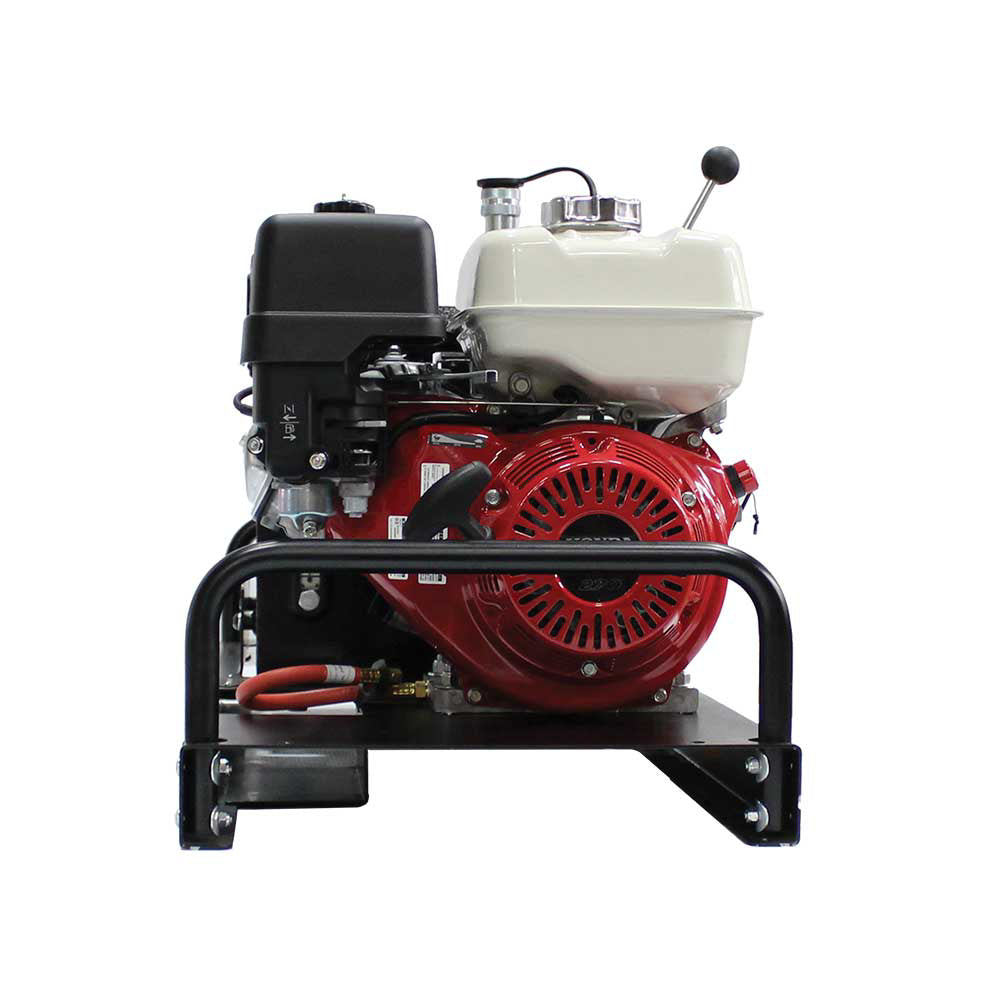

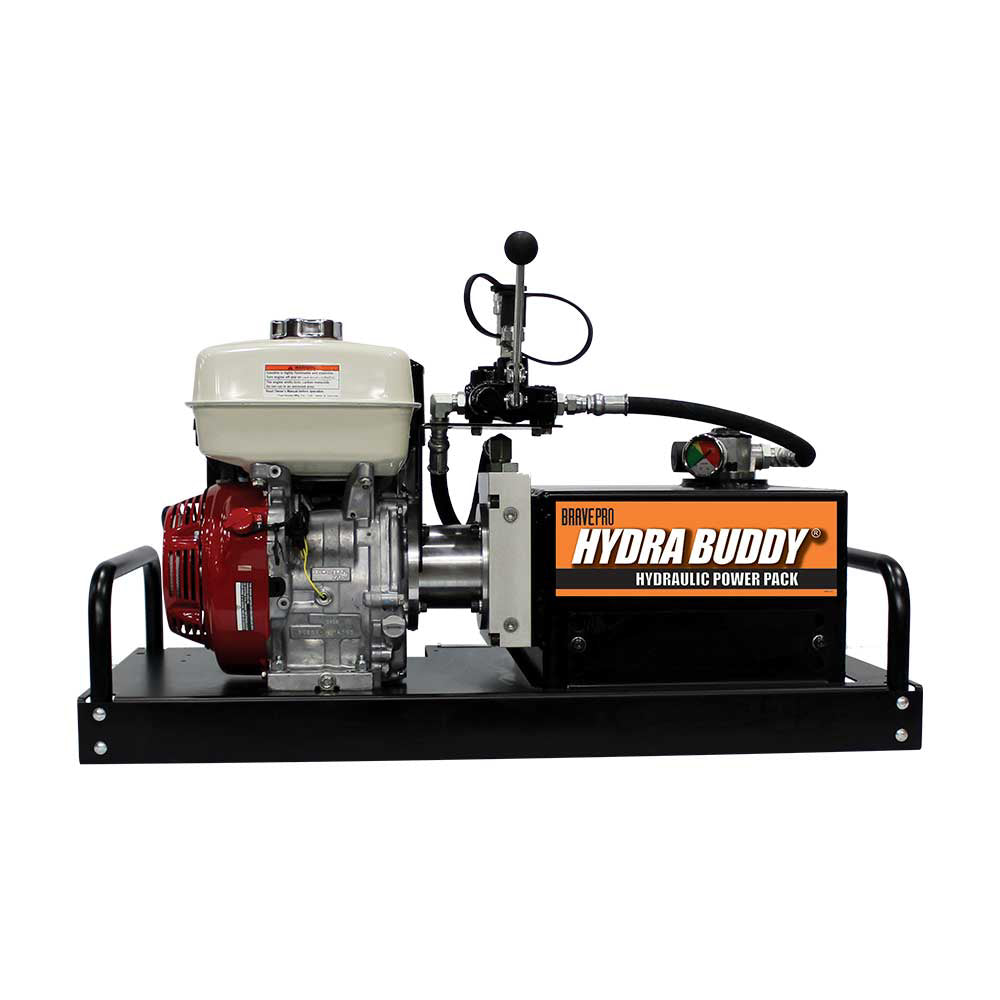

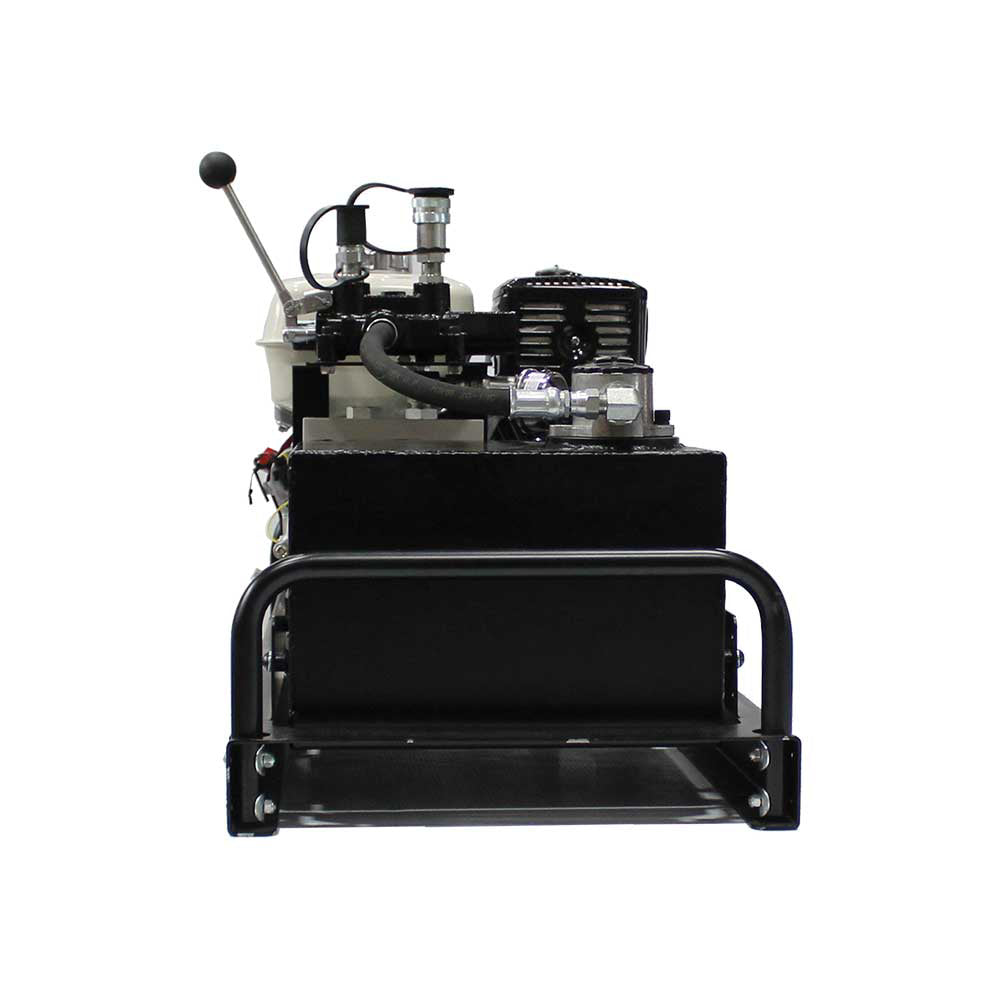

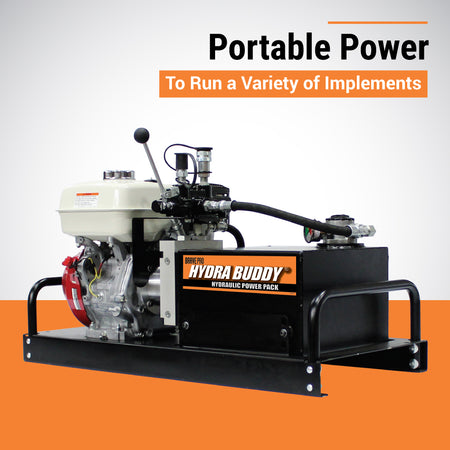

The BravePro Hydra Buddy HBHR280GX is a compact, portable hydraulic power pack built for job sites where electrical power or compressed air is not available. Powered by a dependable Honda GX270 commercial engine, this remote hydraulic unit is designed to deliver reliable performance for a wide range of field applications.
The HBHR280GX comes standard with a control valve and quick disconnect couplings, making setup fast and convenient. Compatible with both single-acting and double-acting cylinders, it is a versatile solution for contractors, equipment users, and mobile hydraulic applications that need dependable standalone power.
Built for durability and ease of maintenance, this unit features a Zinga in-tank hydraulic filter with indicator, a system relief valve, and a large hydraulic oil tank with a built-in sight / temperature gauge for quick fluid monitoring.
Key Features & Benefits
-

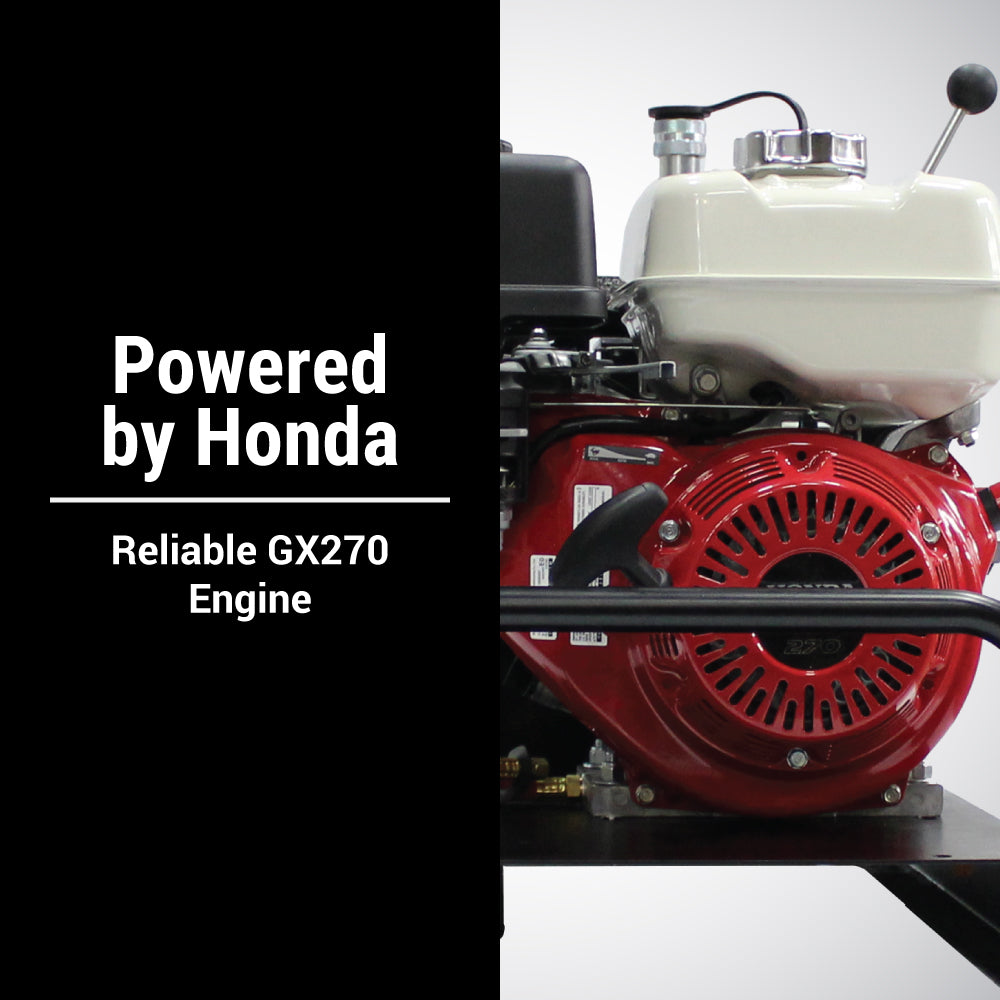

Honda GX270 Commercial Engine
Reliable 270cc Honda power delivers dependable performance for demanding hydraulic applications. -
Portable Remote Hydraulic Power
Ideal for job sites where no air or electrical power is available. -

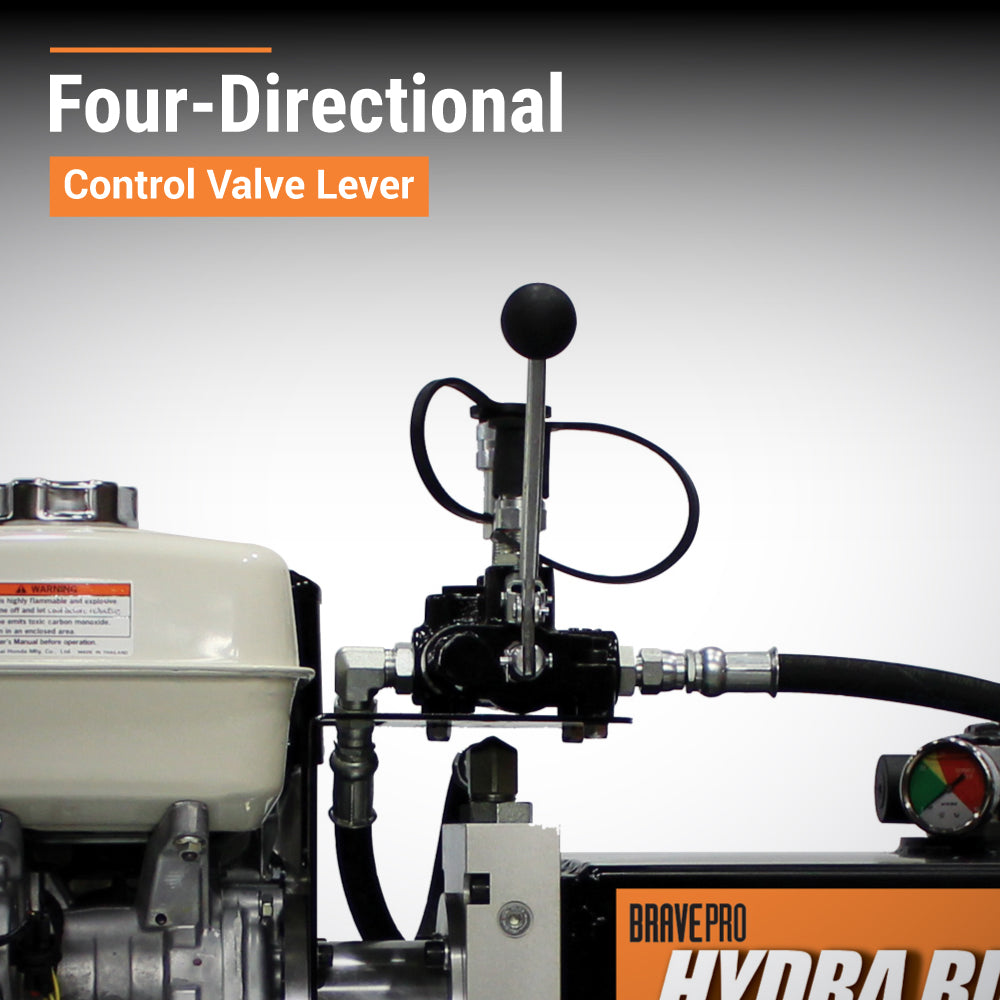

Standard Control Valve & Quick Disconnect Couplings
Makes hookup and operation faster and easier. -
Compatible with Single- or Double-Acting Cylinders
Flexible design supports a wide range of hydraulic equipment and tasks. -
Zinga In-Tank Hydraulic Filter with Indicator
Helps simplify maintenance and monitor filter condition. -
System Relief Valve
Added protection for hydraulic components and safer operation. -
Large Hydraulic Oil Tank
Built for dependable performance with convenient fluid monitoring. -
Sight / Temperature Gauge
Makes it easy to check fluid level and operating condition at a glance. -
12-Gauge Steel Tank Construction
Heavy-duty hydraulic tank built for rugged work environments. -
Free Standard Ground Shipping
Added value on a professional-grade hydraulic power unit.
Optional Rush Processing
For in-stock items, Rush Processing is available and guarantees your order ships as fast as same day or by the next business day excluding holidays. Tracking information is emailed as soon as the order is processed. If the order does not ship by the next business day, the rush processing fee is not charged.
Quick Specs
| Specification | Details |
|---|---|
| Model | HBHR280GX |
| Shipping | Free Standard Ground Shipping |
| Engine | Honda GX270 / 270cc |
| Start Type | Recoil |
| Flow Rate | 5.5 GPM |
| Pump Displacement | .36 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORB / Outlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Hydraulic Tank Volume | Nominal: 8 gal. / Actual: 7.3 gal. / Useable: 5.4 gal. |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Drain Port | 1/2" NPT |
| Hydraulic Valve Pressure | 2,000 PSI |
| Hydraulic Valve Type | 3-Position, 4-Way Spring-to-Center Direction Control Valve with Integral Adjustable Main Relief Valve |
| Hydraulic Valve Connections | Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed |
| Dry Weight | 155 lbs. |
| Dimensions (L x W x H) | 38.25" x 19" x 20" |
| Warranty | 2 Years |
Ideal For
- Remote hydraulic applications
- Job sites without air or electrical power
- Single-acting cylinder operation
- Double-acting cylinder operation
- Contractor and field equipment use
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
NOTE: Most products require at least some assembly.
Shipping Disclaimer
Due to rising fuel costs and lack of space on shipping trucks the costs in certain areas have been affected. An "out of area" fee may be necessary. If additional funds are required to fulfill your order we will reach out to you after your order is placed and give you options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)
CALIFORNIA PROPOSITION 65 WARNING
Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.
 |
 |
