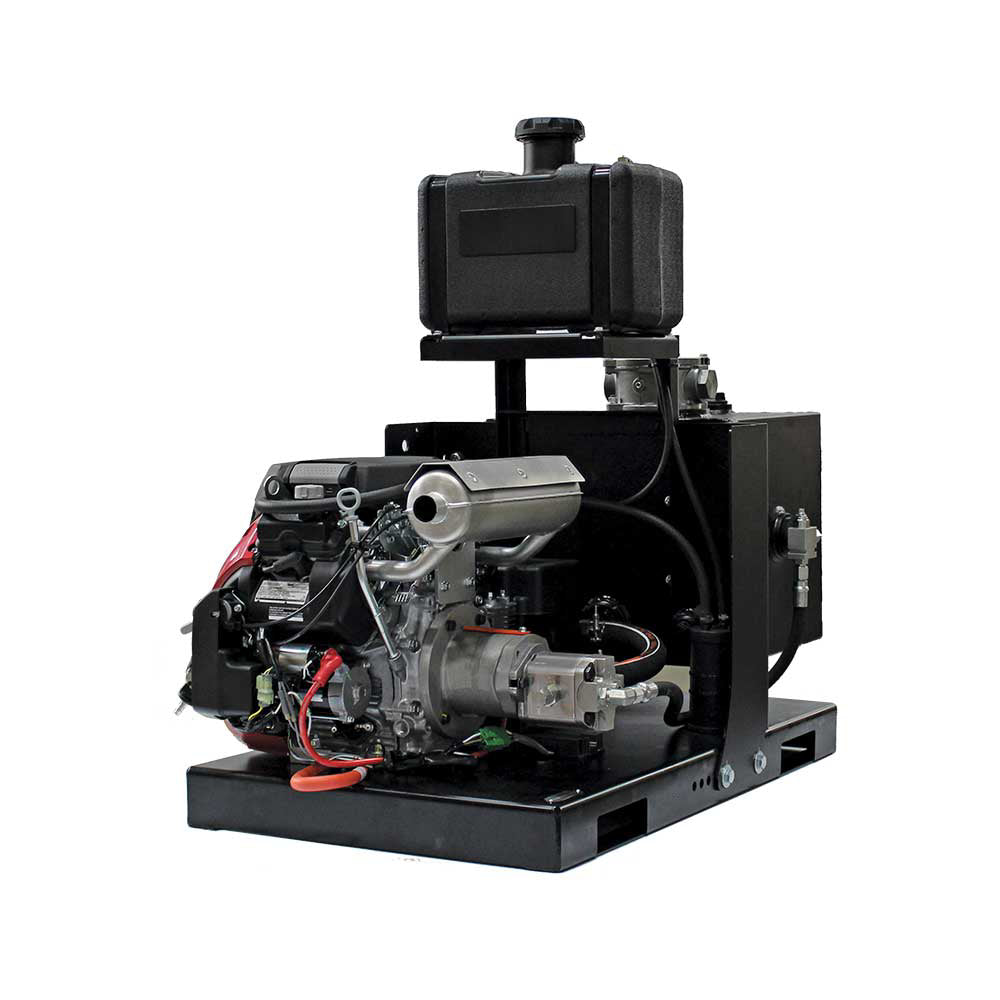

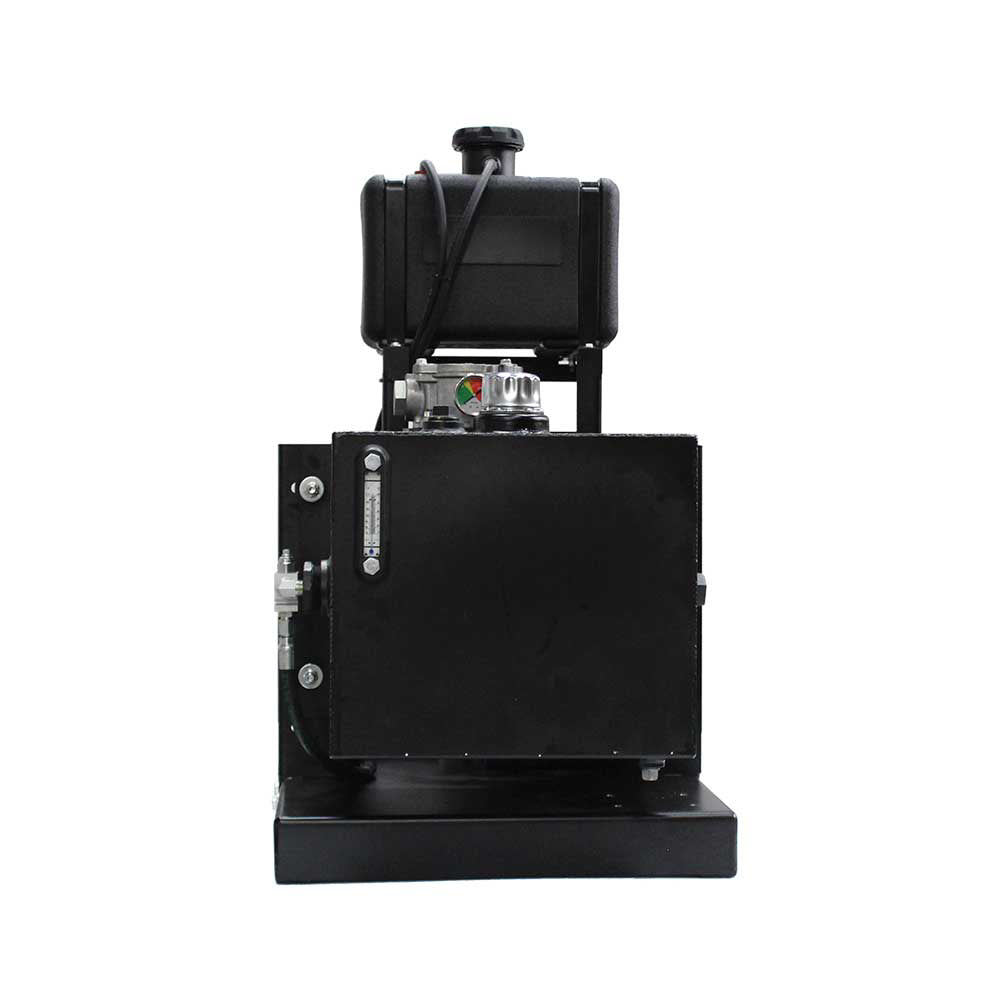

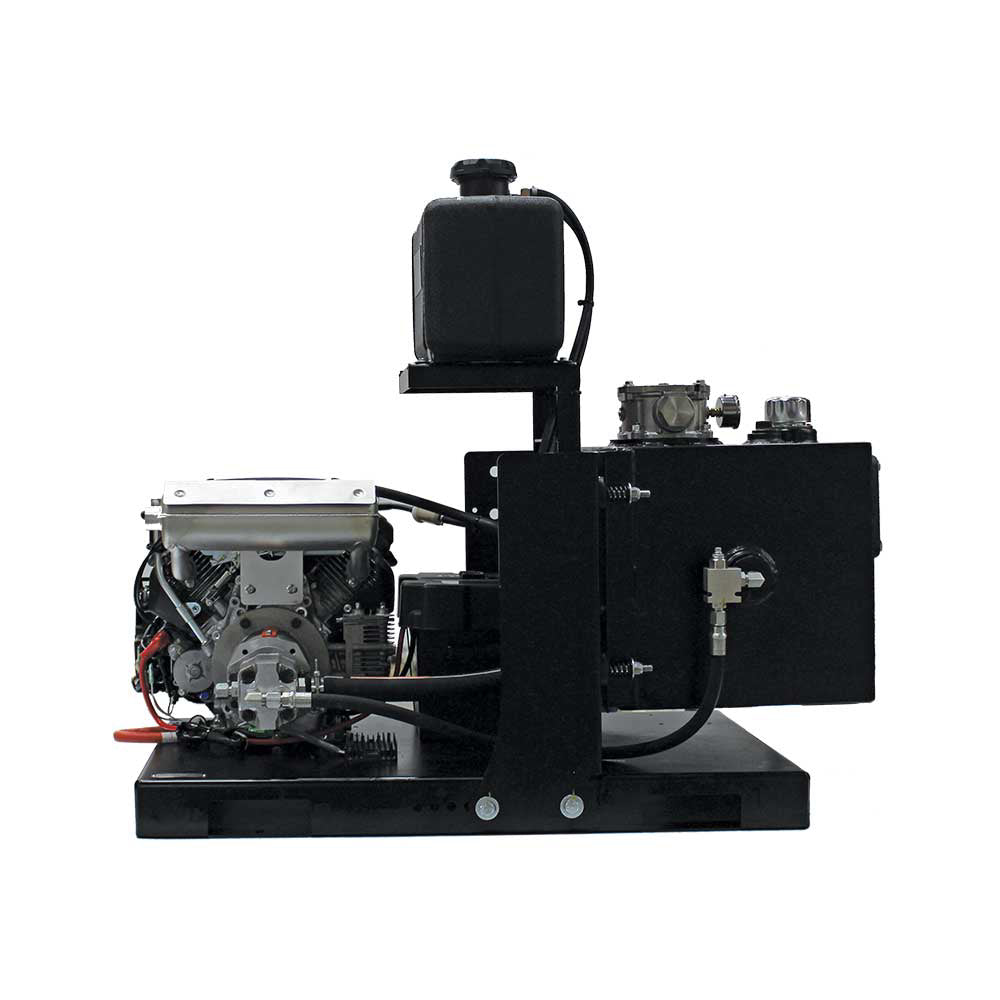

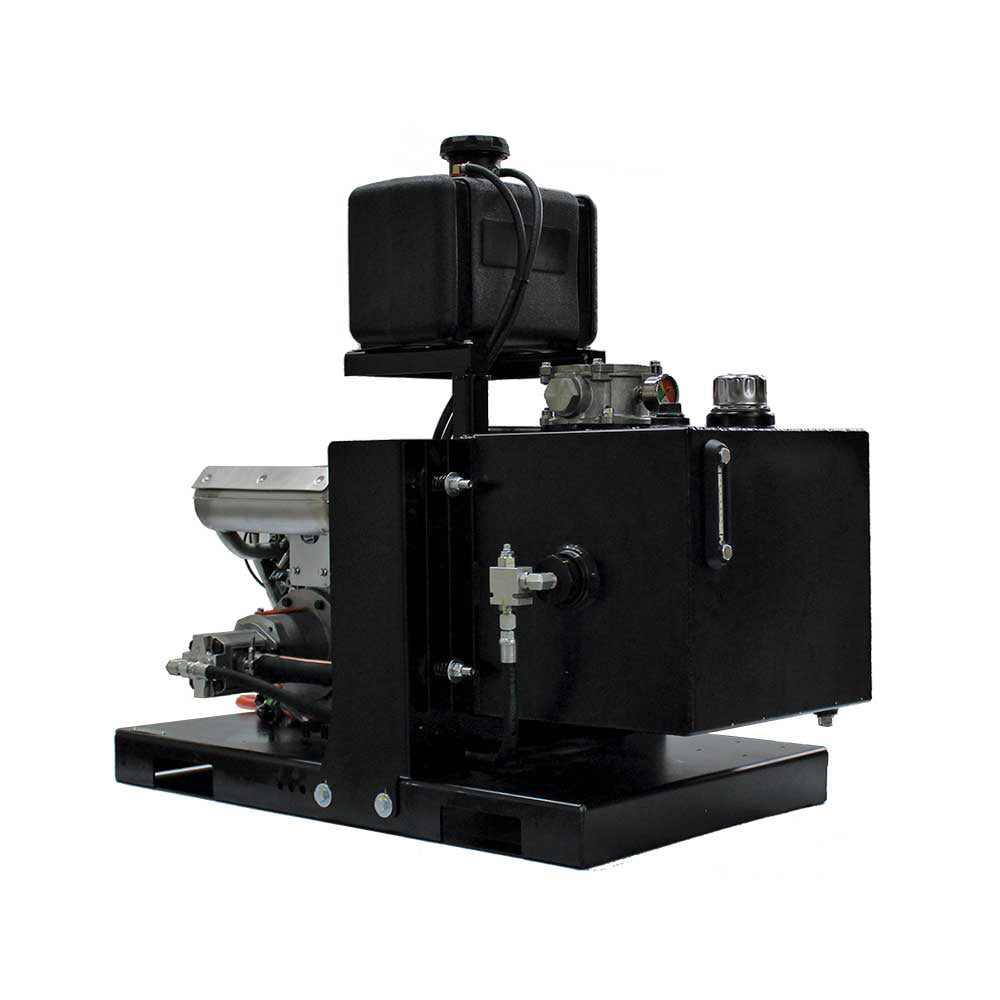

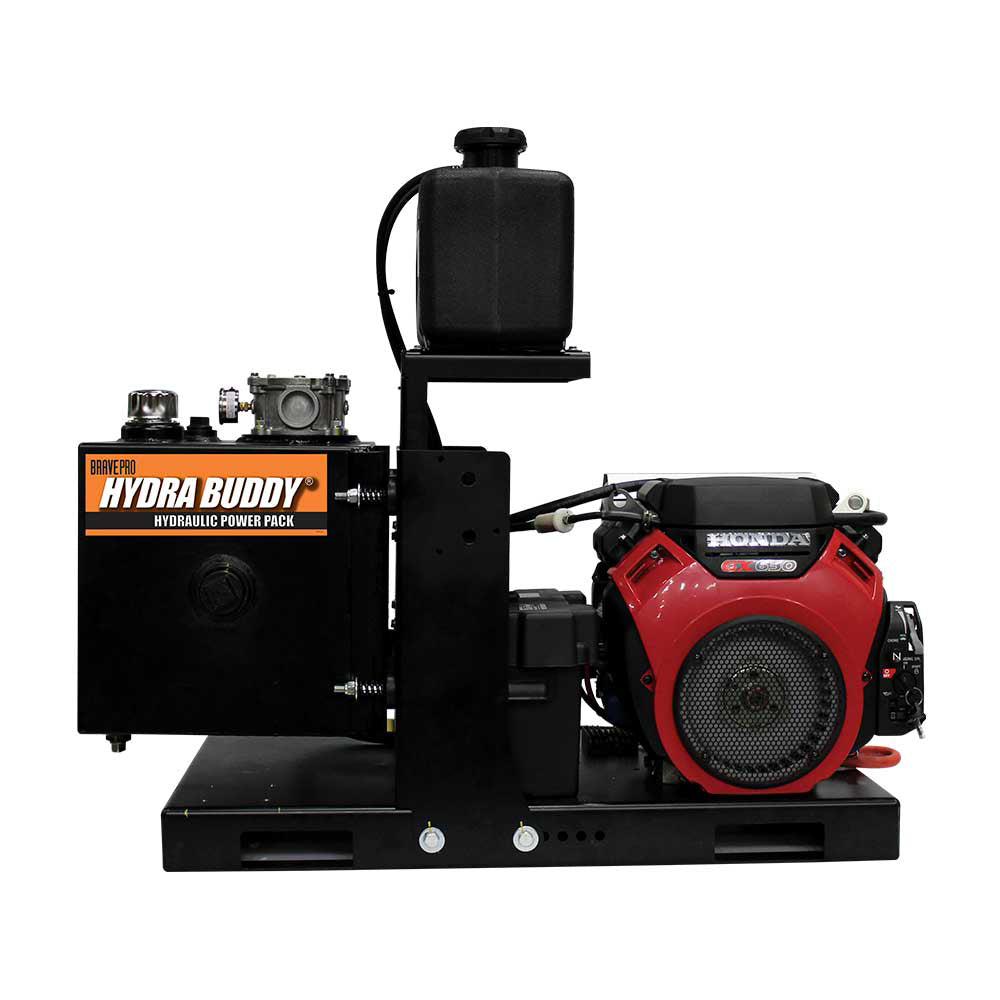

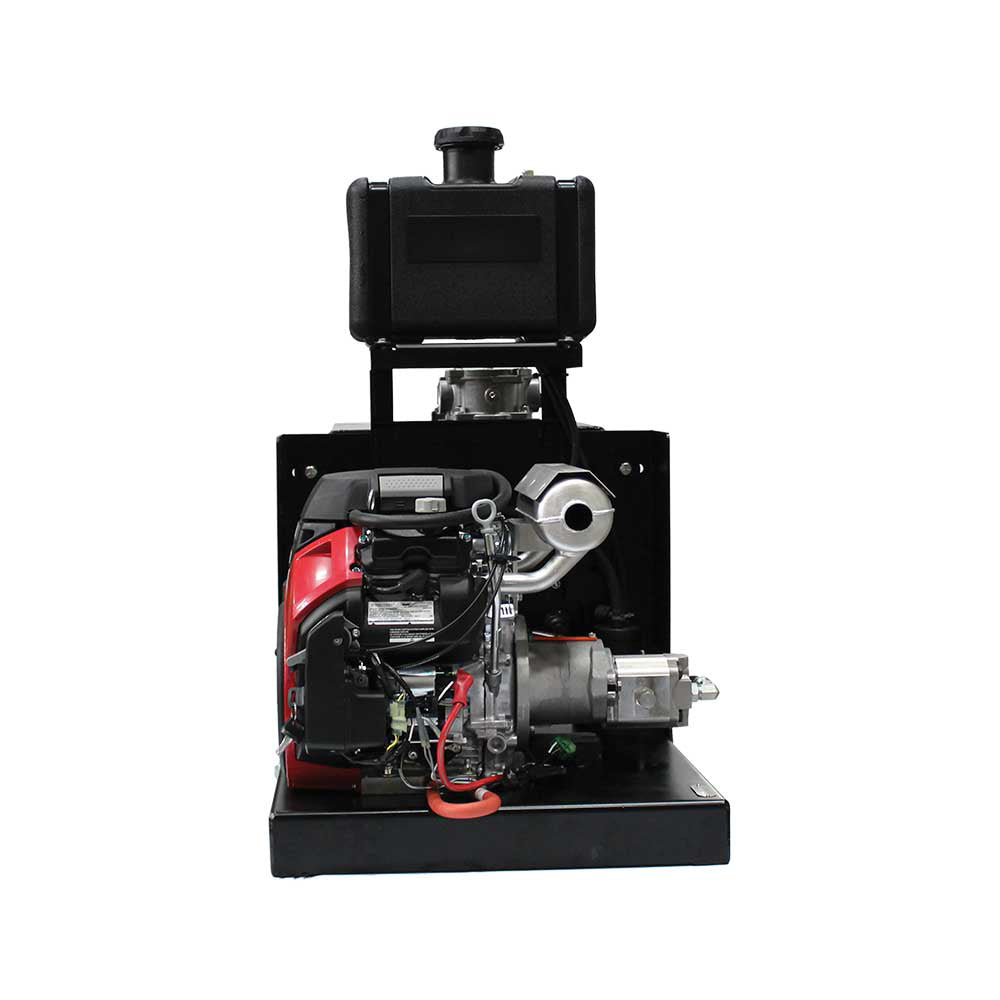

BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS600GXE)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Powered by Honda GX commercial engines these units mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.
Highlights
- Mounts securely to your trailer or application
- Spin-on hydraulic return filter with indicator
- System relief valve
- Compatible for use with single or double-acting cylinders

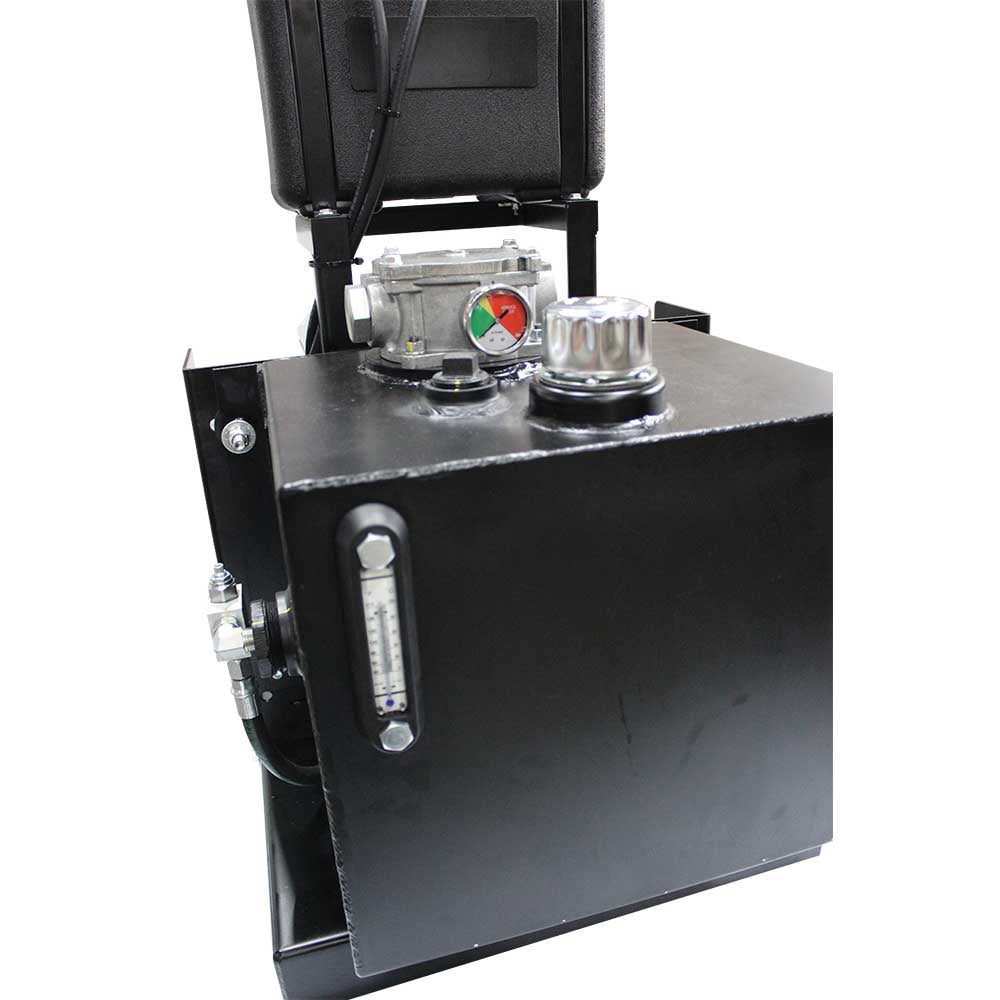

- Large hydraulic oil tank with sight / temperature gauge
- Fork lift accessible
Detailed Specifications
| Category | Details |
|---|---|
| Shipping | Free (standard ground shipping) |
| Manual | Download PDF |
| UPC | — |
| Engine | 688cc Honda GX630 |
| Start | Electric |
| Pump Flow | 9 GPM |
| Pump Displacement | 0.66 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORBOutlet: 7/8-14 ORB |
| Pump Rotation | Clockwise |
| Hydraulic Tank Volume | Nominal: 19.2 gal Actual: 17.5 gal Usable: 13.5 gal |
| Tank Material | 12 Gauge Steel |
| Tank Drain Port | 3/4" NPT |
| Hydraulic Valve Pressure | 3,000 PSI |
| Valve Type | Optional kits available (see product options) |
| Valve Ports | Inlet: 12 ORB (plumbed to reservoir)Outlet: 8 Male JIC Adapter installed |
| Dry Weight | 368 lbs |
| Dimensions (L×W×H) | 48" × 24.5" × 43" |
| Warranty | 2 years |
Optional Add-Ons
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
NOTE: Most products require at least some assembly.
