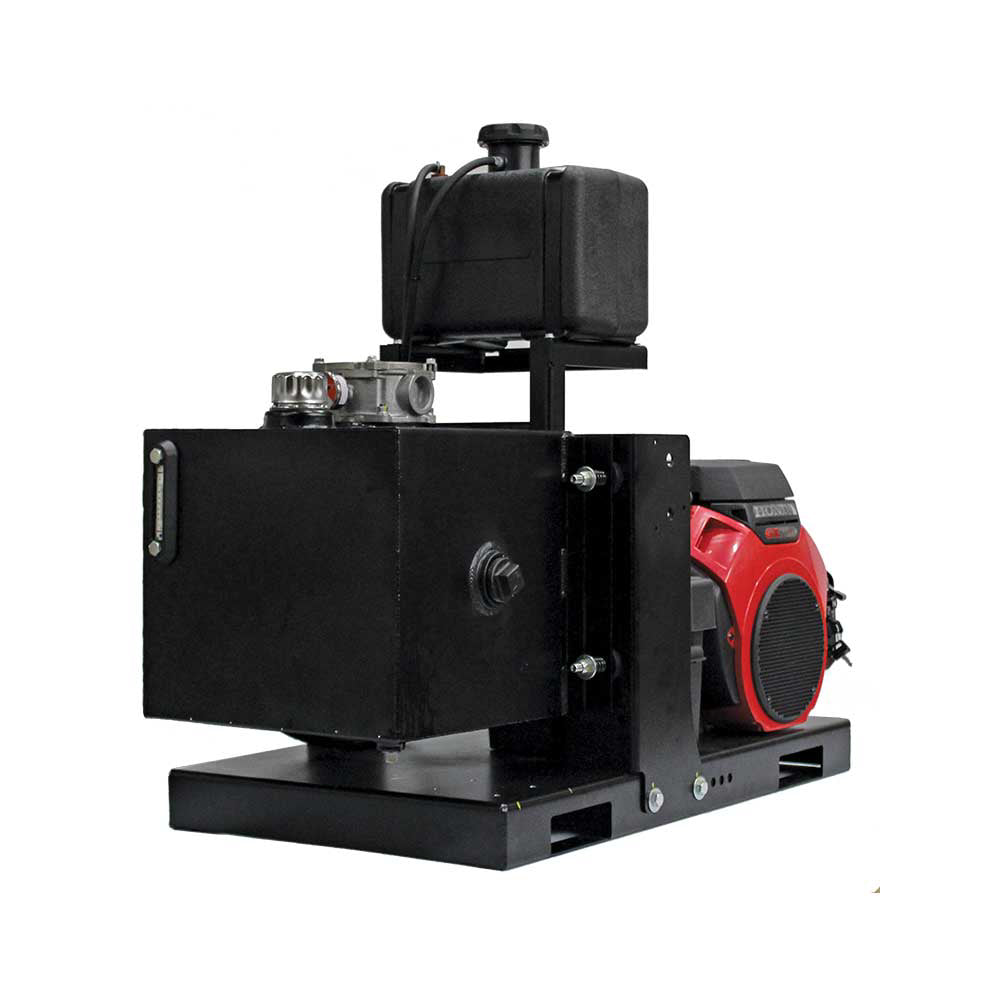

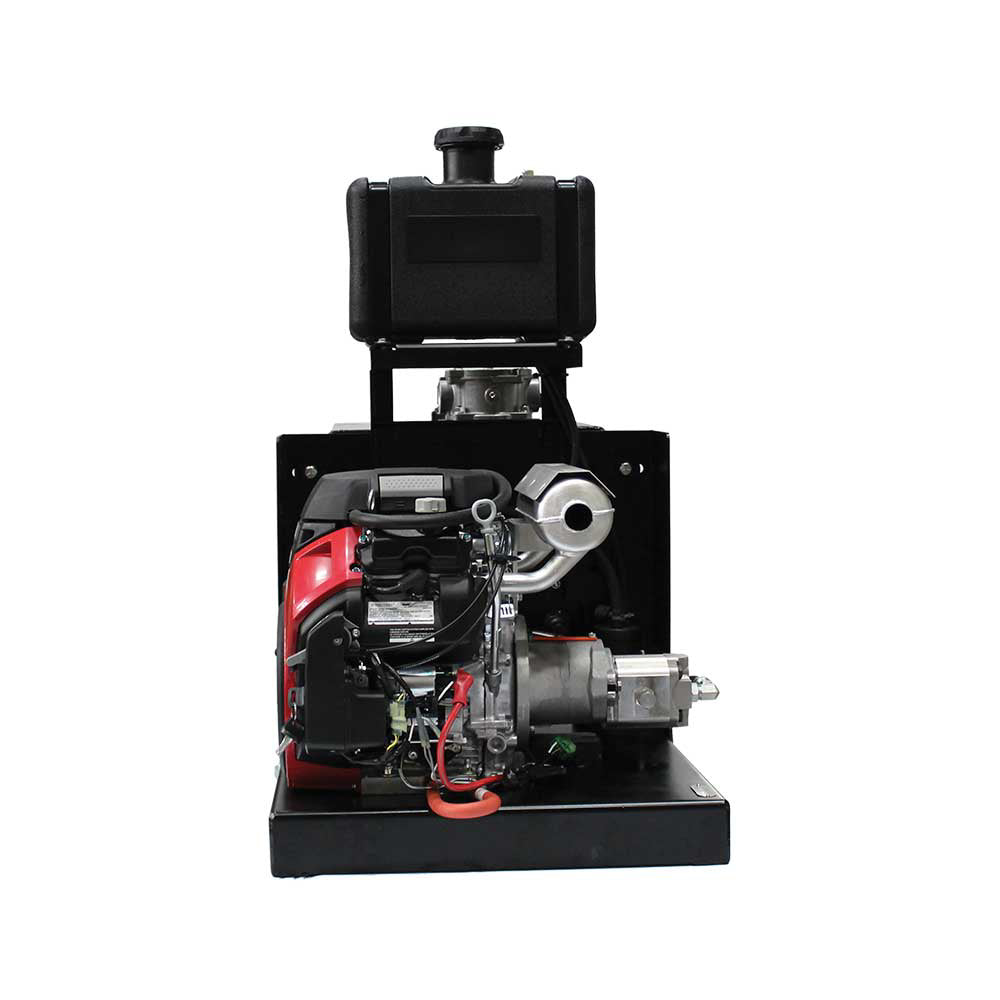

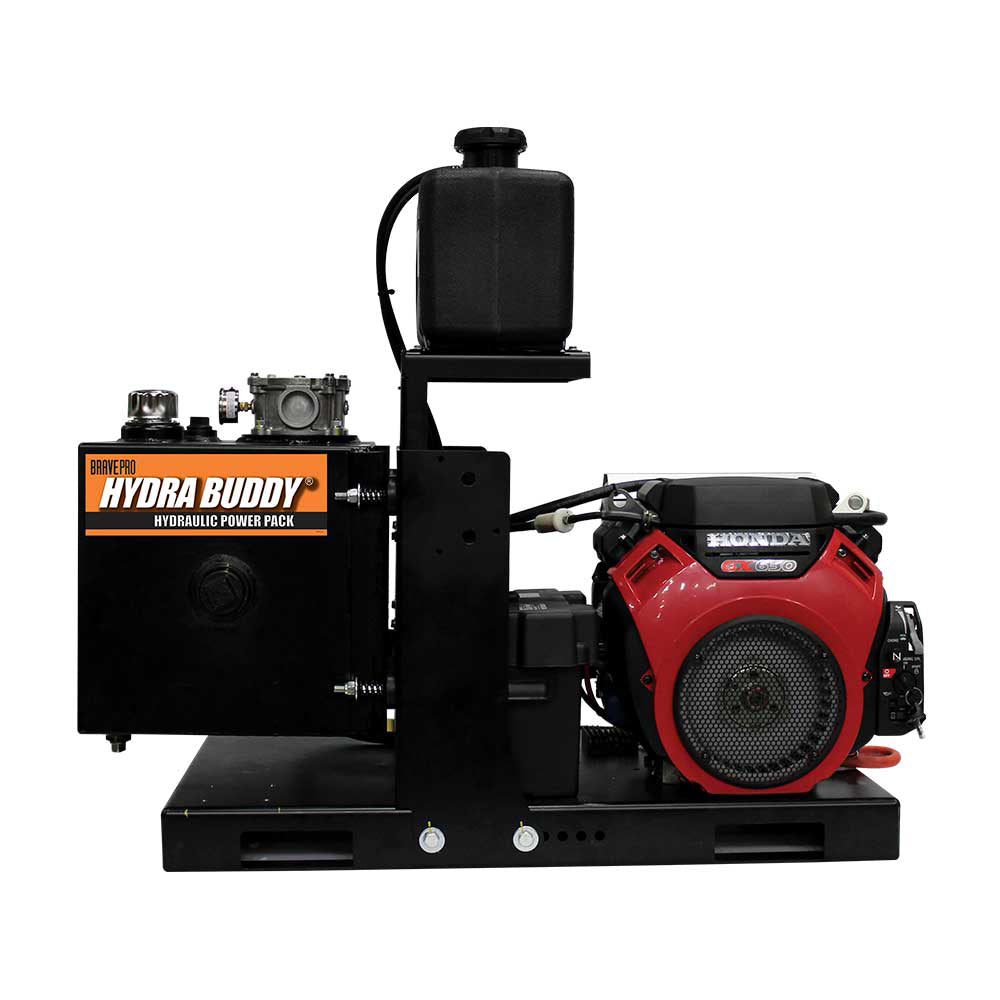

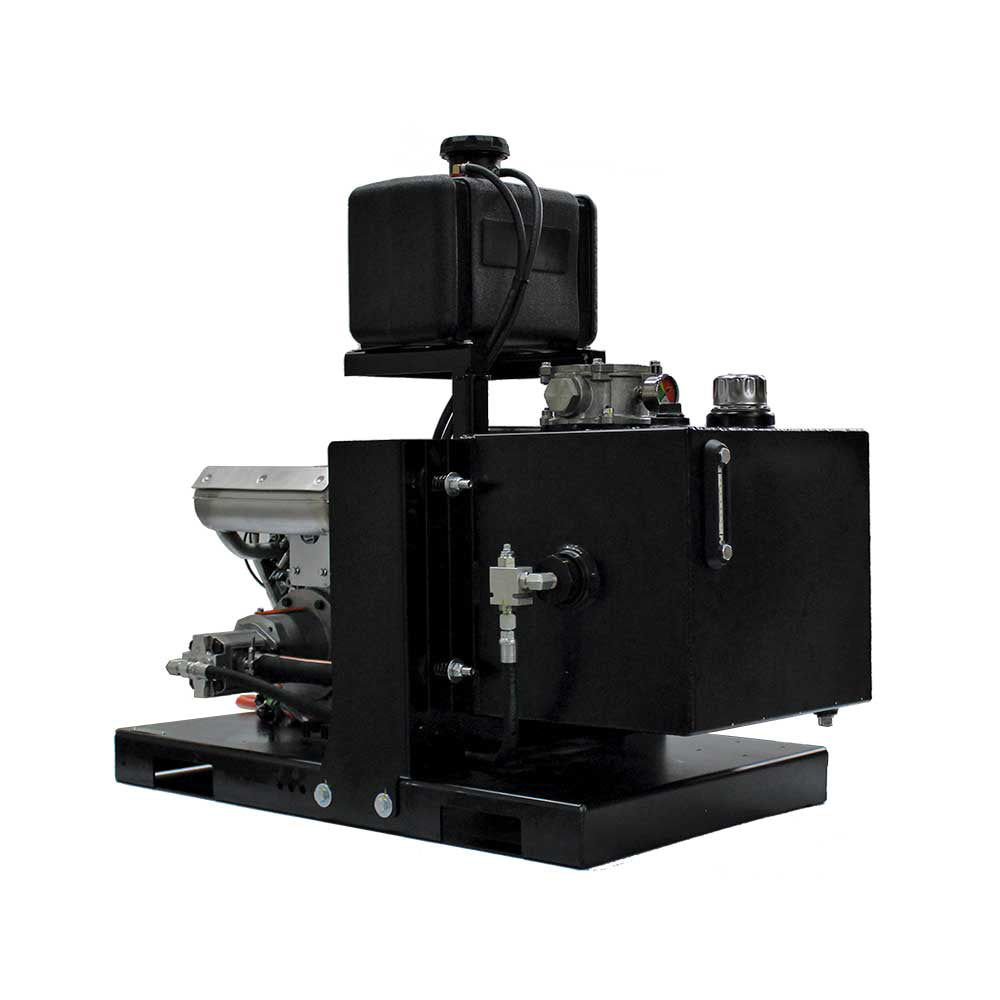

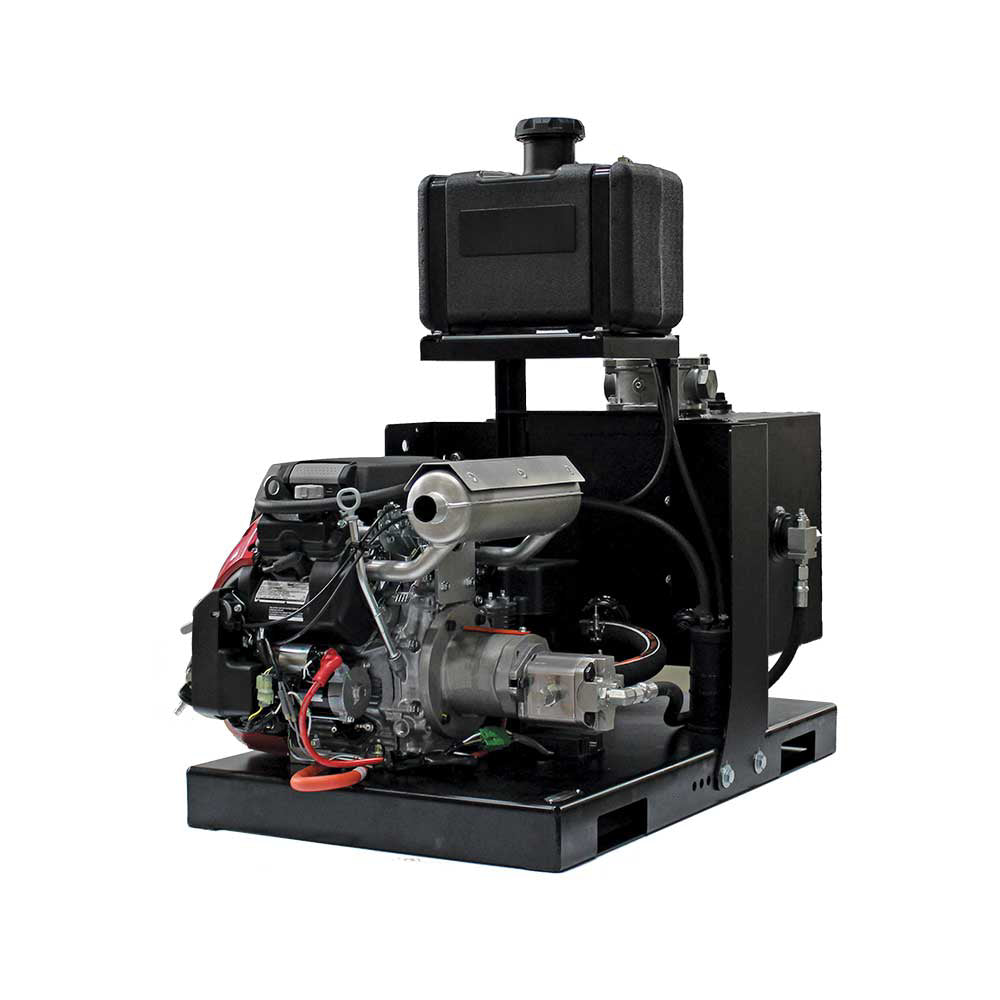

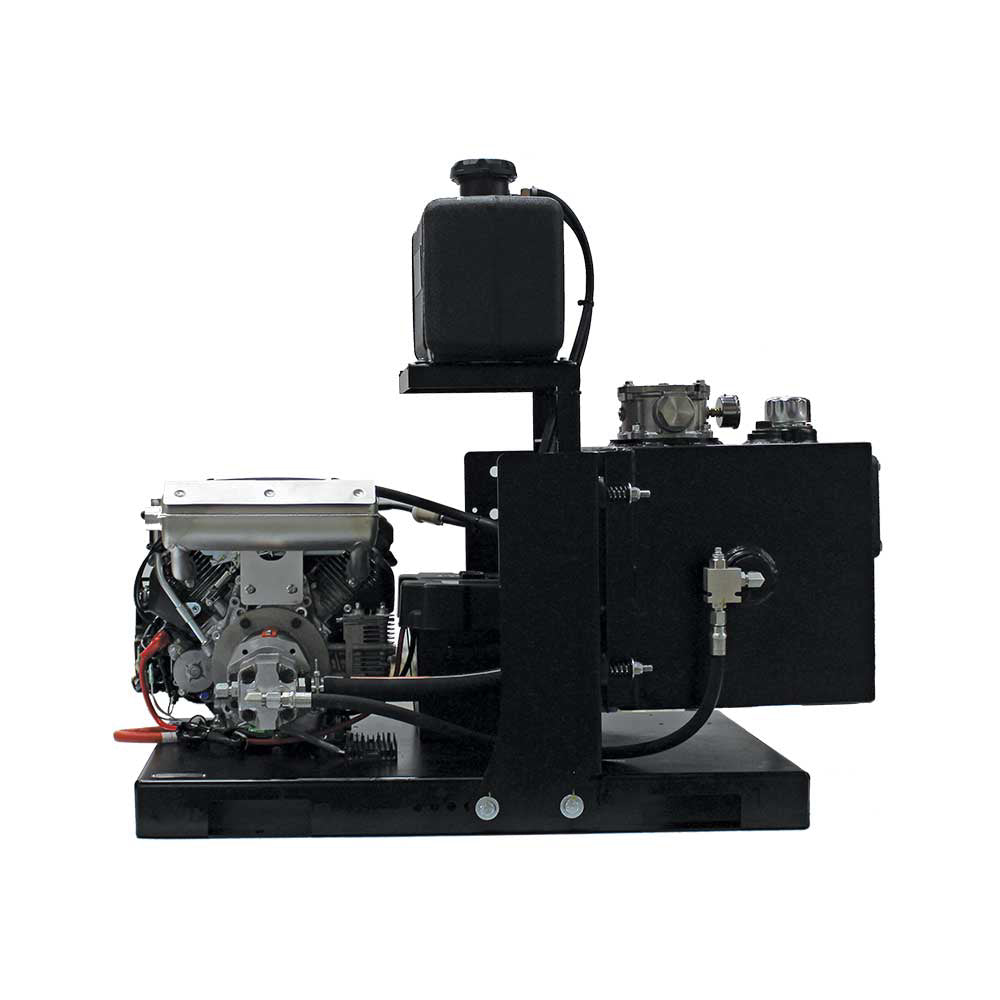

BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS620GXE)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us.

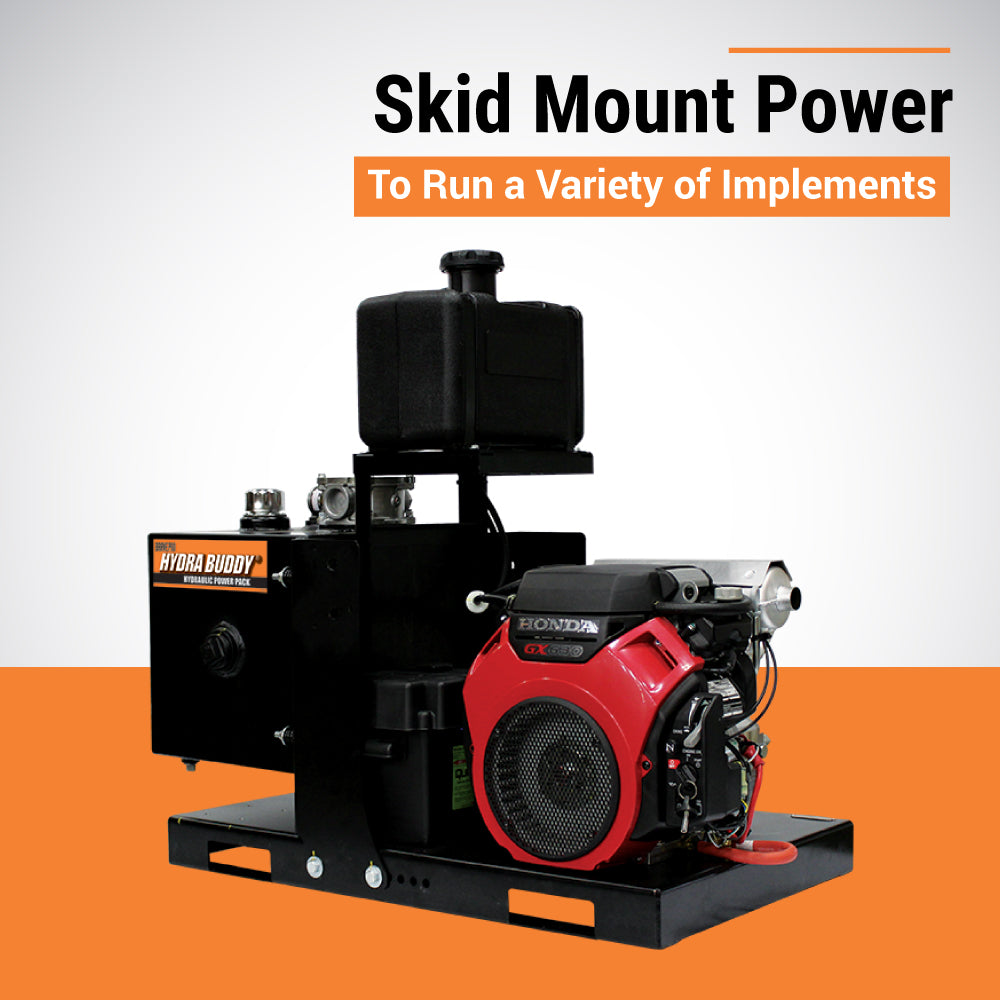

Powered by Honda® GX commercial engines these units mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.
- Mounts securely to your trailer or application
- Spin-on hydraulic return filter with indicator
- System relief valve
- Compatible for use with single or double-acting cylinders

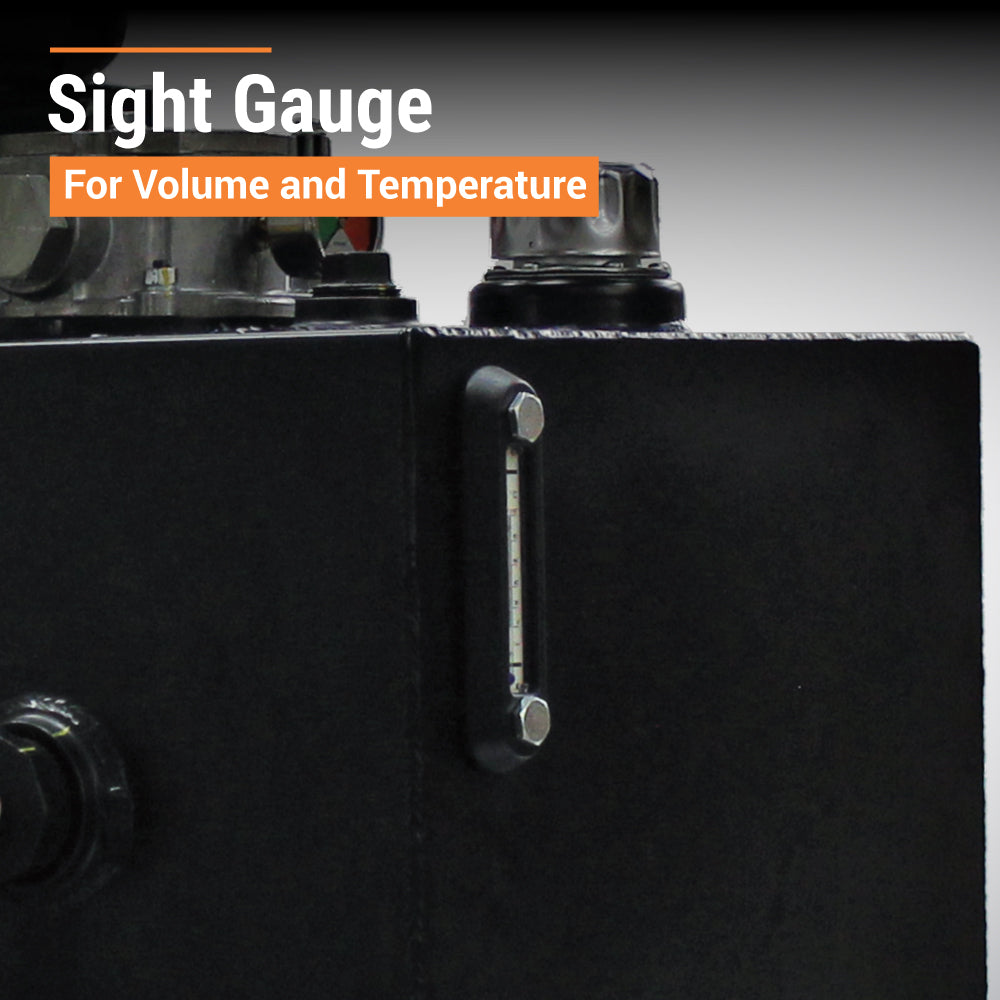

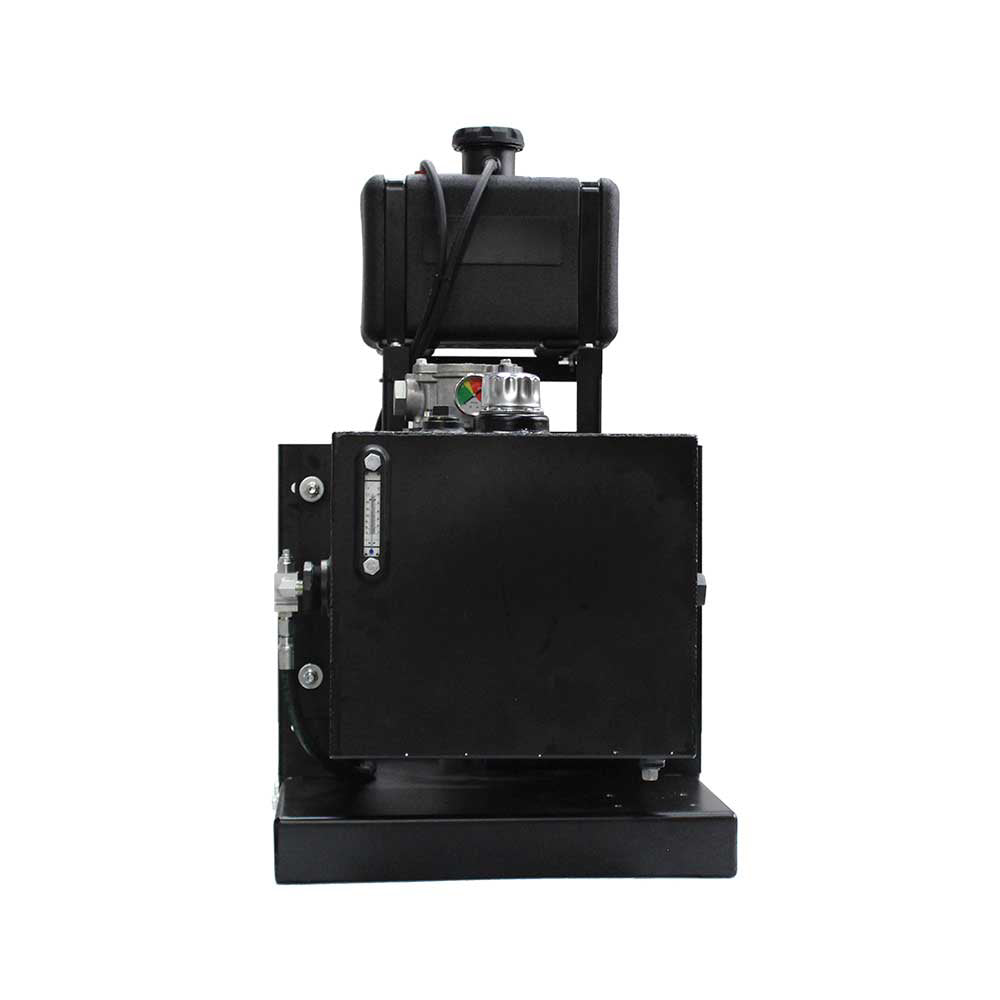

- Large hydraulic oil tank with sight / temperature gauge
- Fork lift accessible
- Shipping: Free (standard ground shipping)
- Manual: Download PDF
- UPC: __

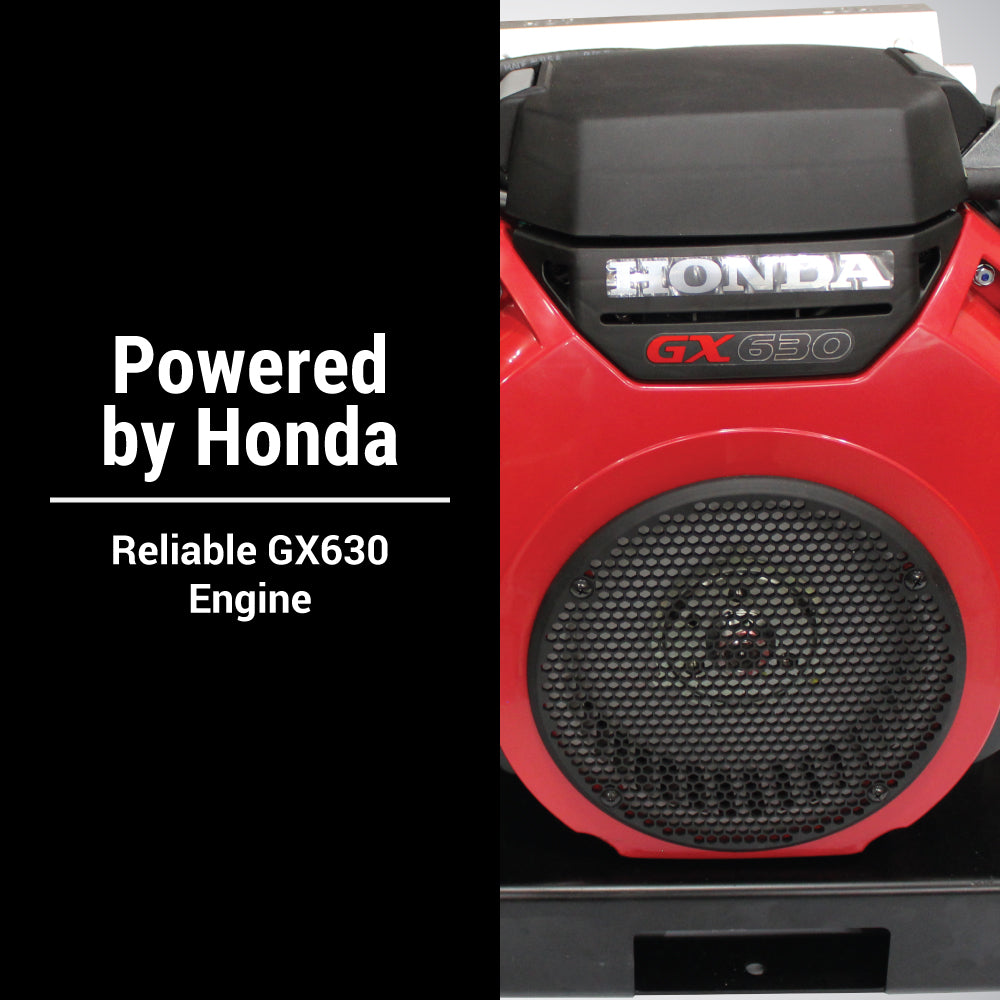

- Engine: 688cc Honda GX630

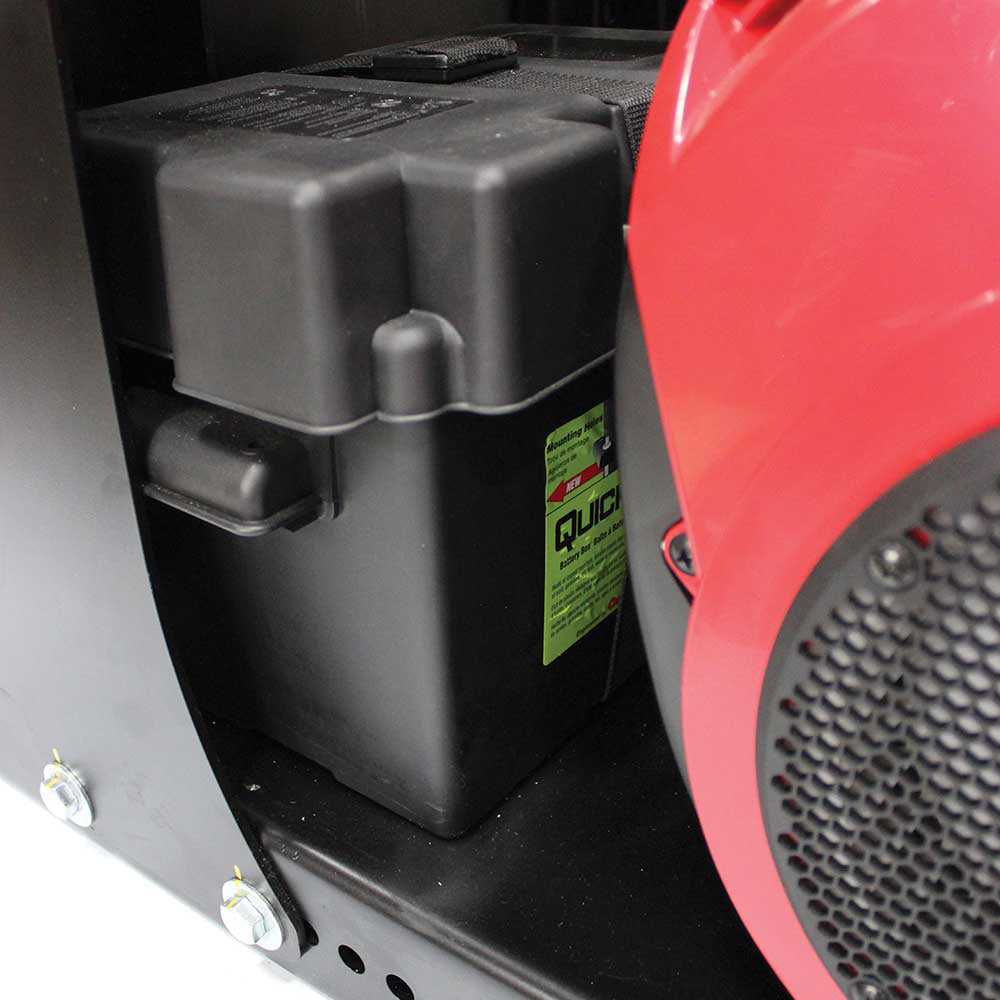

- Start: Electric
- Flow: 14 GPM
- Pump Displacement: 1.02 CIR
- Pump Ports: Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
- Pump Rotation Direction: Clockwise
- Hydraulic Tank Volume: (Nominal, Actual, Useable) 19.2, 17.5, 13.5
- Hydraulic Tank Material: 12 Gauge Steel
- Hydraulic Tank Drain Port: 3/4" NPT
- Hydraulic Valve: 2,000 PSI
- Hydraulic Valve Type: Optional kits available (see product options)
Hydraulic Valve: Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed
- Weight (Dry): 368 lbs
- Dimensions (LxWxH): 48" x 24.5" x 43"
- Warranty: 2 years
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
