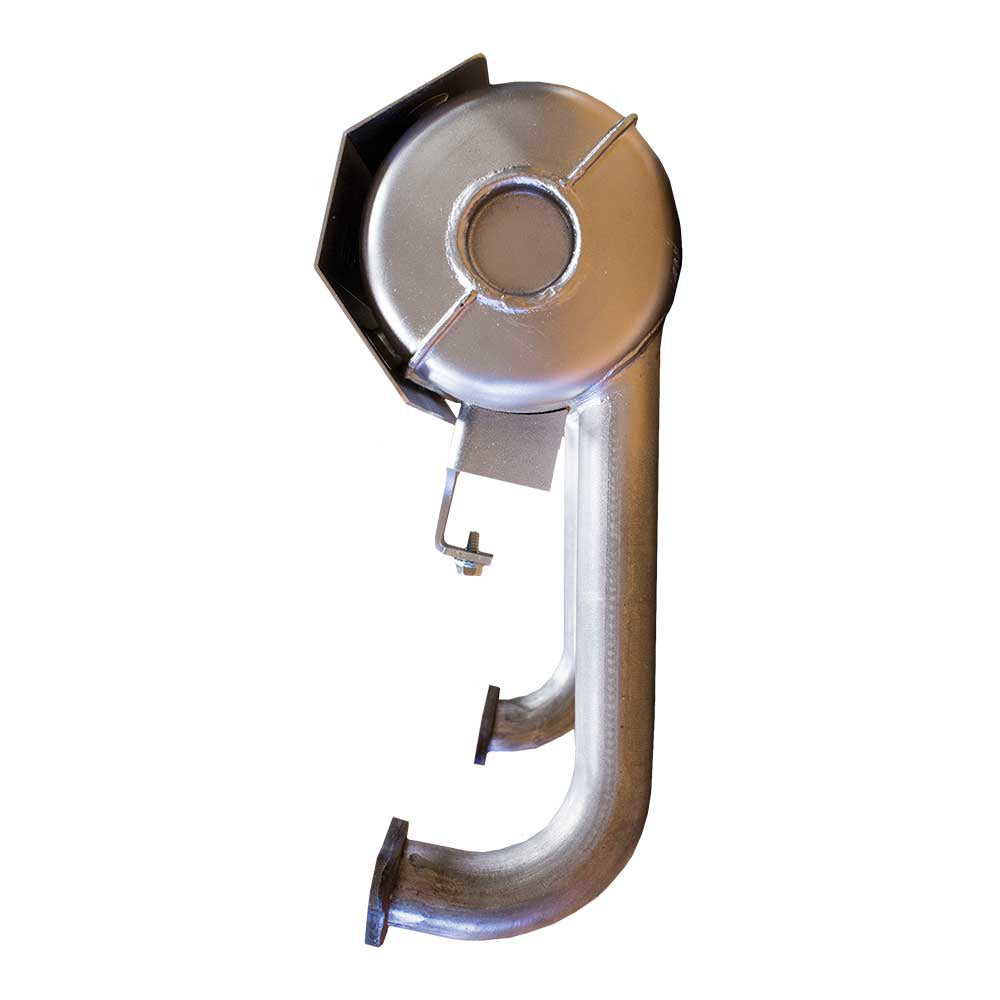

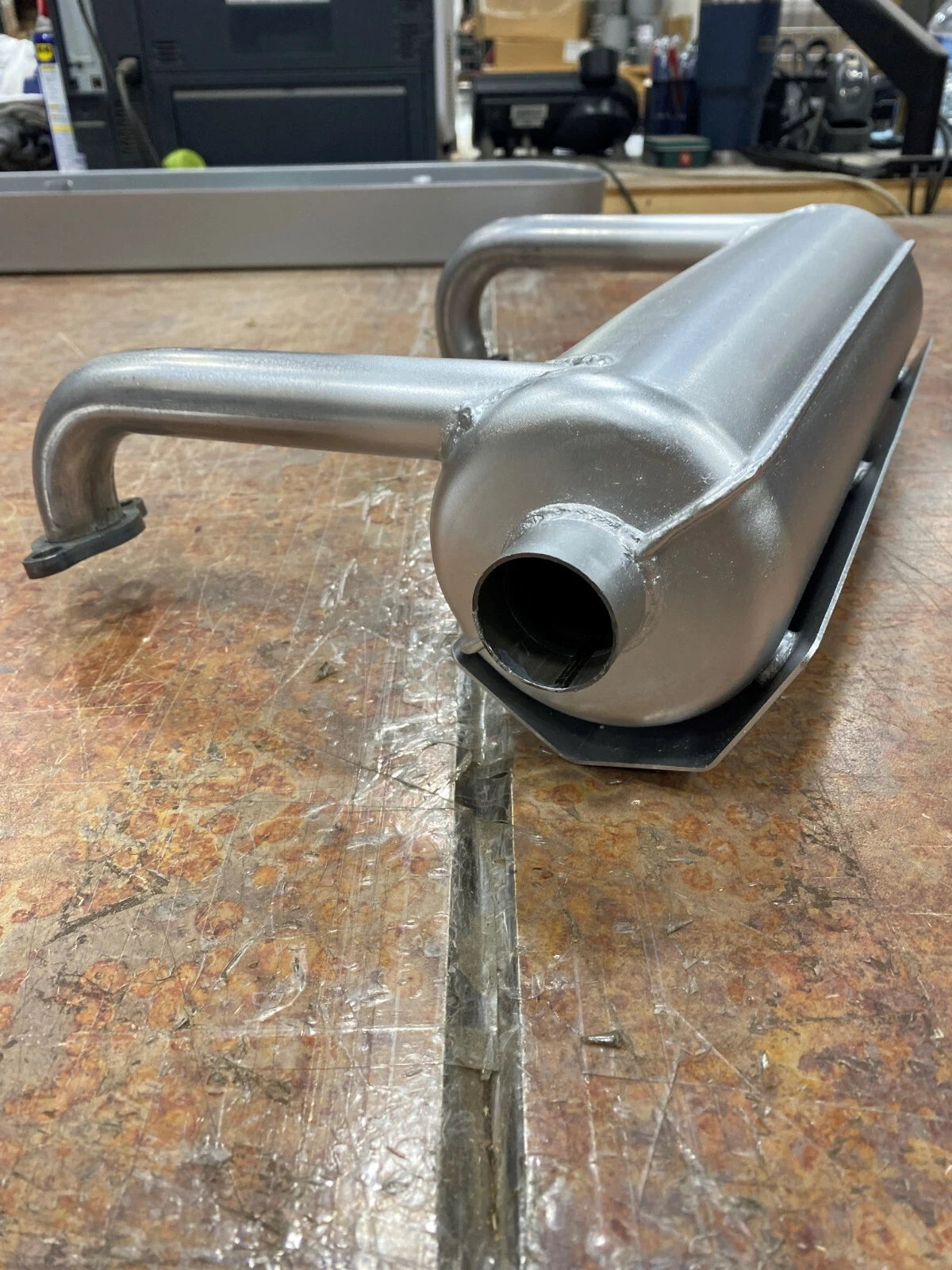

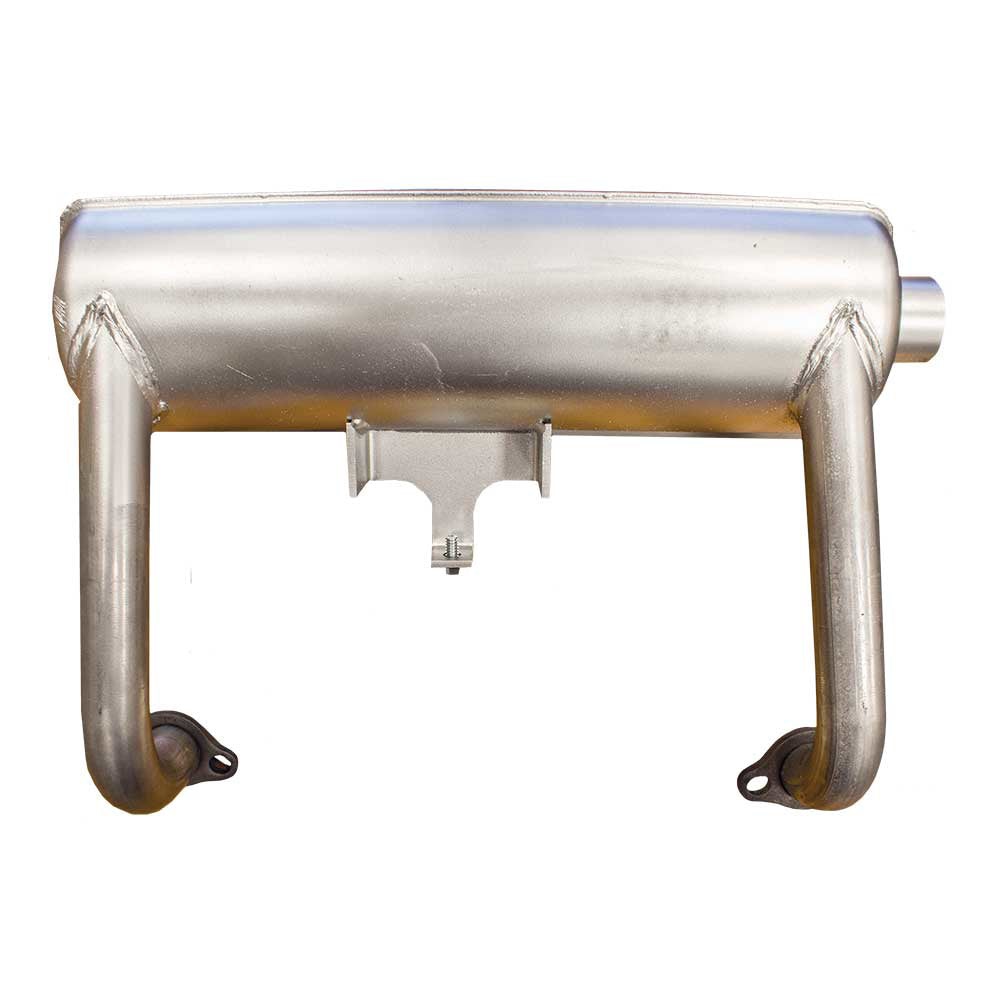

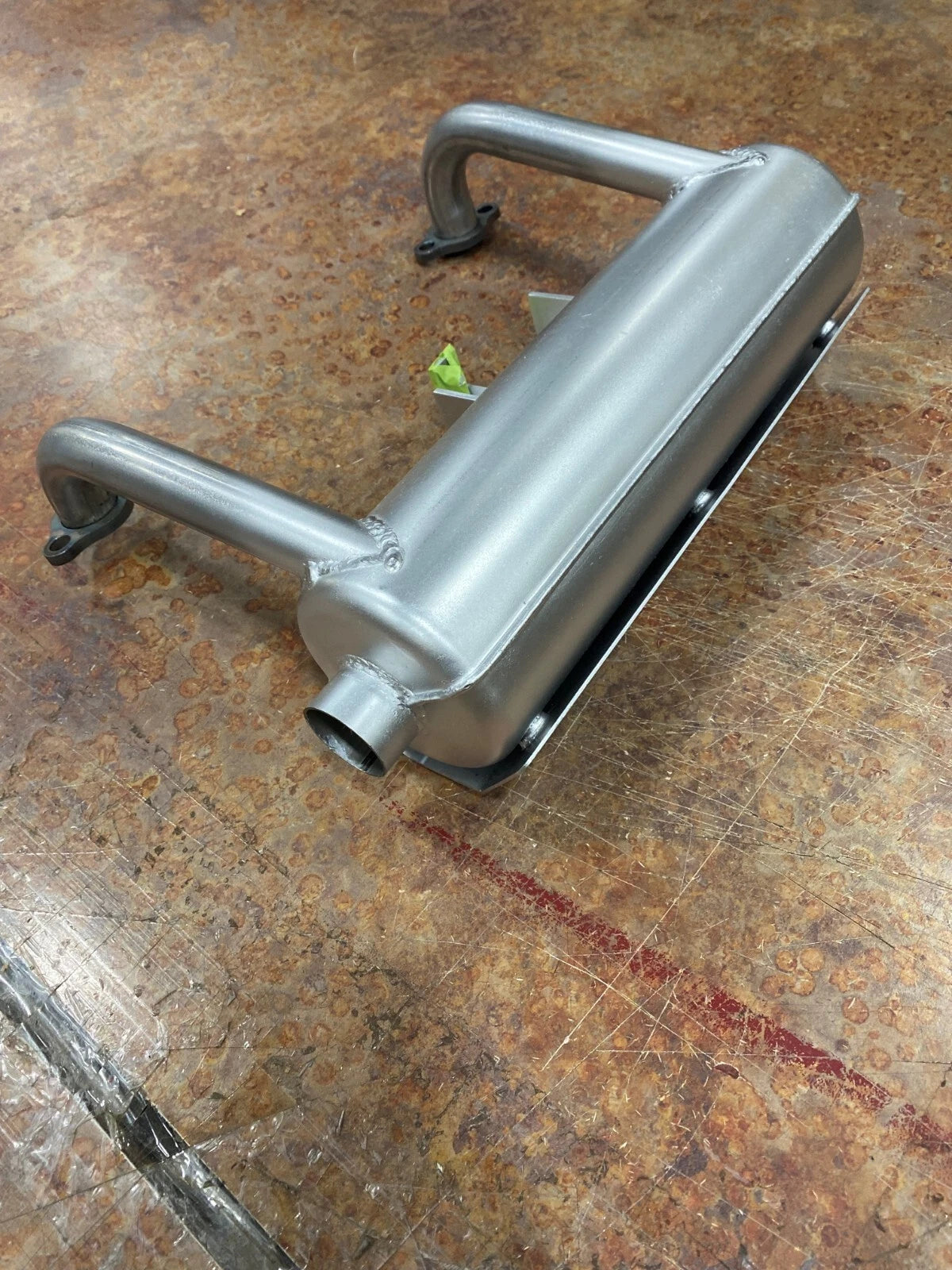

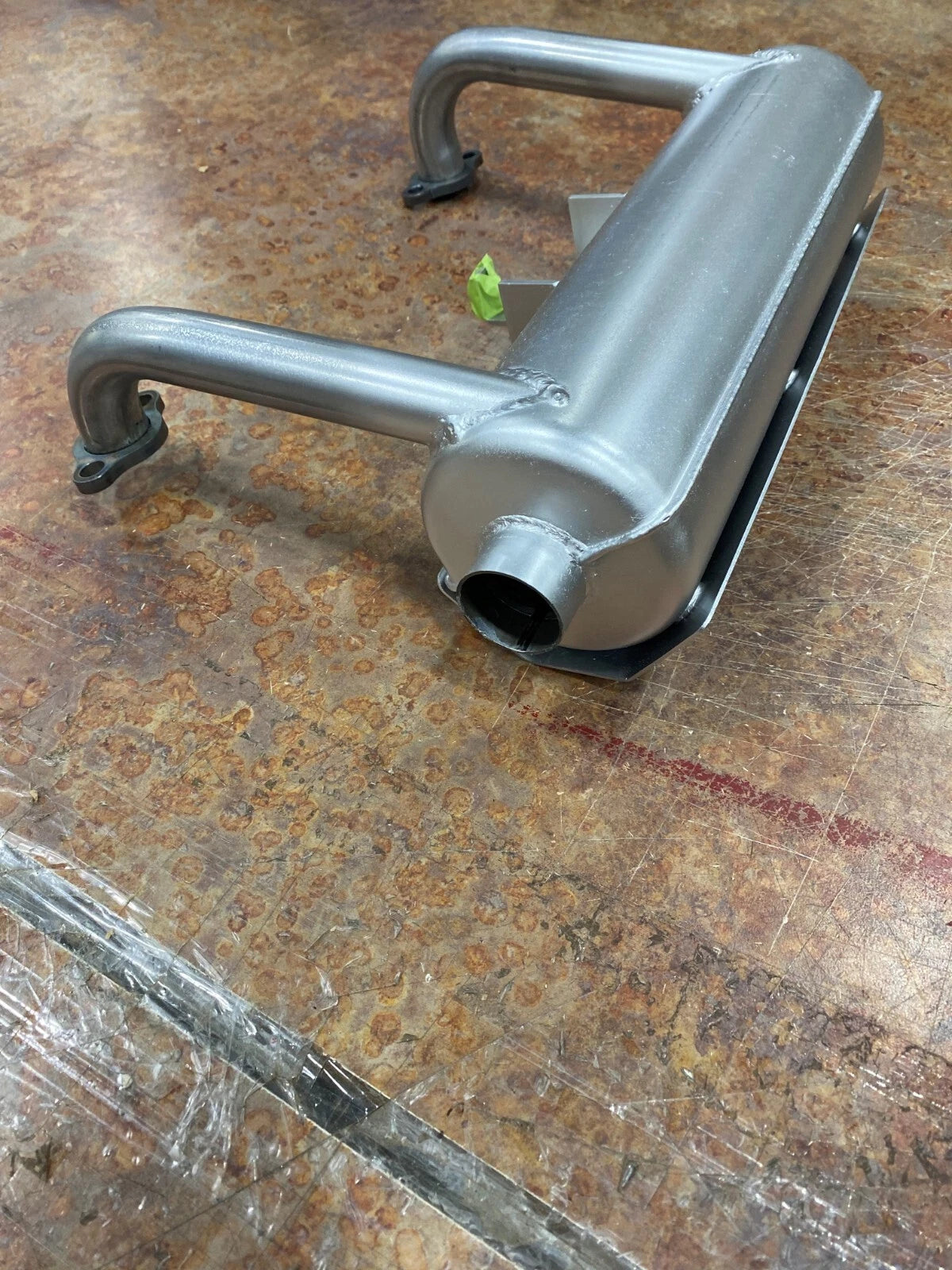

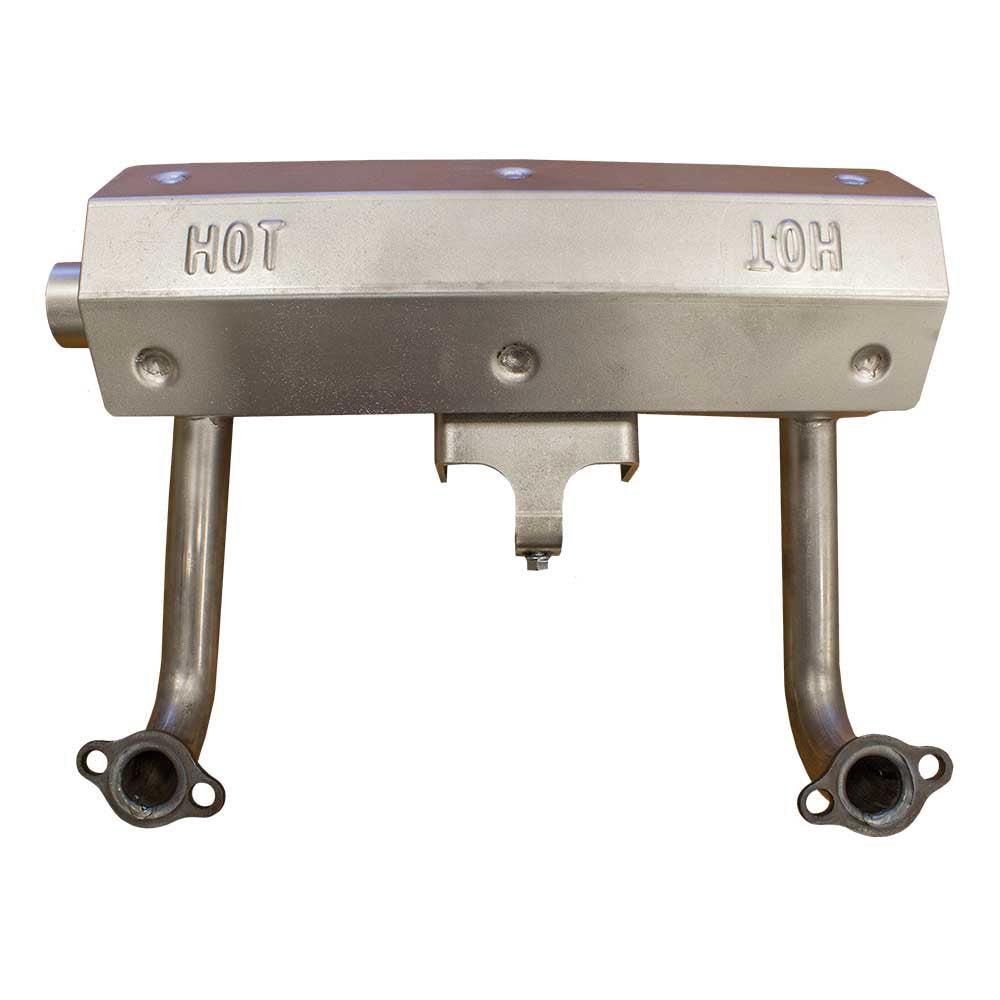

MUF0626 Muffler for Briggs & Stratton Vertical V-Twin Engines

Fits 18–30 HP Intek & Professional Series • Filter-Side Exhaust • Aluminized Construction • Made in USA

Replace a worn or damaged exhaust system with the MUF0626 Muffler for select Briggs & Stratton Vertical V-Twin engines. Designed for compatible 18–30 HP Intek and Professional Series V-Twin engines, this muffler mounts above the engine base and routes the exhaust toward the oil-filter side of the engine.

The muffler features an aluminized steel body, header, and tailpipe for improved resistance to heat and corrosion. It is designed for compatible Briggs & Stratton 40xxxx, 44xxxx, and 49xxxx vertical-shaft engine families.

Key Features & Benefits

• Designed for Briggs & Stratton Vertical V-Twins
  Fits select 18–30 HP Intek and Professional Series vertical V-Twin engines.
• Fits 40xxxx, 44xxxx & 49xxxx Engine Families
  Compatible with select engines beginning with these Briggs & Stratton model-series numbers.
• Filter-Side Exhaust Configuration
  Exhaust exits on the oil-filter side of the engine for compatible equipment layouts.
• Above-Plane Mounting Design
  On compatible vertical engines, the muffler and exhaust remain above the engine mounting base.
• Aluminized Construction
  The muffler body, header, and tailpipe use aluminized steel for durability in high-temperature exhaust applications.
• Catalytic-Style Exhaust Assembly
  The MUF0626 is marketed as a catalytic-combustion muffler for compatible Briggs & Stratton V-Twin engines (Will NOT fit Vanguards).
• Made in the USA
  The current product listing identifies the MUF0626 as manufactured in the United States.

Engine Compatibility

The MUF0626 is intended for select:

• Briggs & Stratton Intek V-Twin engines
• Briggs & Stratton Professional Series V-Twin engines
• Vertical-shaft configurations
• 18–30 HP applications
• 40xxxx model-series engines
• 44xxxx model-series engines
• 49xxxx model-series engines

Important: Vanguard Compatibility

This muffler is not listed for Vanguard Series engines. The current sales listing specifically states that MUF0626 will not fit Vanguard models.

Because exhaust configurations can vary within the same engine family, always verify the complete engine model, type, and code numbers before ordering.

Filter-Side Exhaust Configuration

The MUF0626 is a right-hand/filter-side muffler configuration. When installed on the intended vertical V-Twin engine, the exhaust outlet is positioned toward the oil-filter side of the engine and remains above the engine mounting plane.

This orientation is important because similar Briggs & Stratton engines may use mufflers with different outlet positions or mounting arrangements.

Quick Specifications

The current GNE catalog identifies the product as MUF-0626.SIL – Aluminized Right Hand, Filter Side | Briggs, while the corresponding MUF0626 listings provide the engine-family, horsepower, weight, and exhaust-position information.

Required Installation Parts

The following installation parts are listed as required but are not included with the muffler:

• 2 × Briggs & Stratton 690970 Exhaust Gaskets
• 4 × Briggs & Stratton 690341 Exhaust Manifold Screws
• 1 × Briggs & Stratton 690297 Muffler Bracket Screw

Inspect the existing hardware before installation and replace worn, corroded, or damaged components as necessary.

Package Contents

• One MUF0626 vertical V-Twin muffler assembly

Exhaust gaskets, manifold screws, bracket screw, engine, and other mounting components are not included unless specifically stated with the order.

Important Fitment Information

This muffler is not universal. Do not order based solely on horsepower or the fact that your engine is a Briggs & Stratton V-Twin.

Before ordering, confirm:

• Complete engine model number
• Engine type and code
• Vertical-shaft configuration
• Oil-filter-side exhaust orientation
• Existing muffler mounting points
• Exhaust flange location
• Equipment clearance
• 40xxxx, 44xxxx, or 49xxxx engine family
