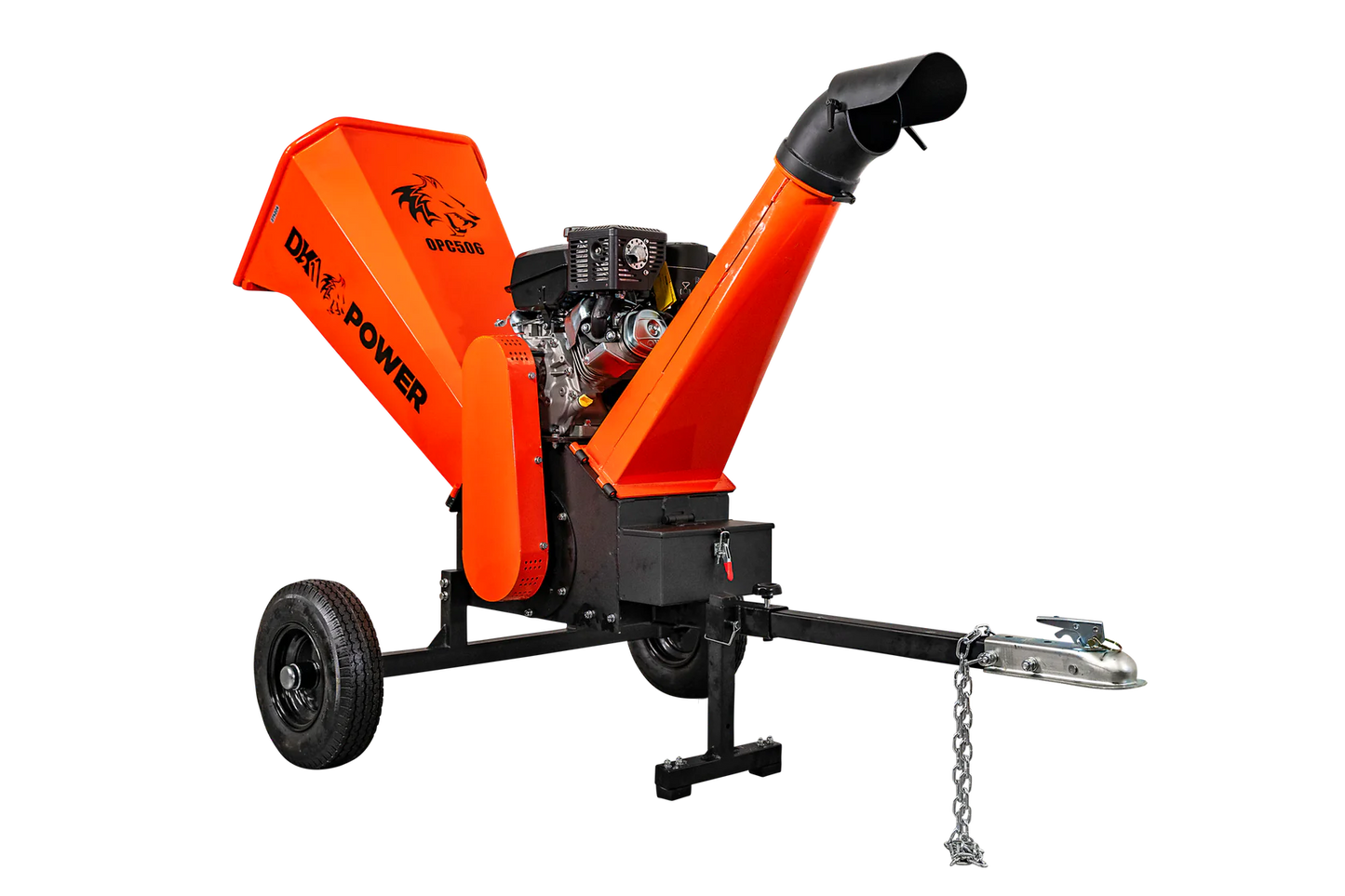

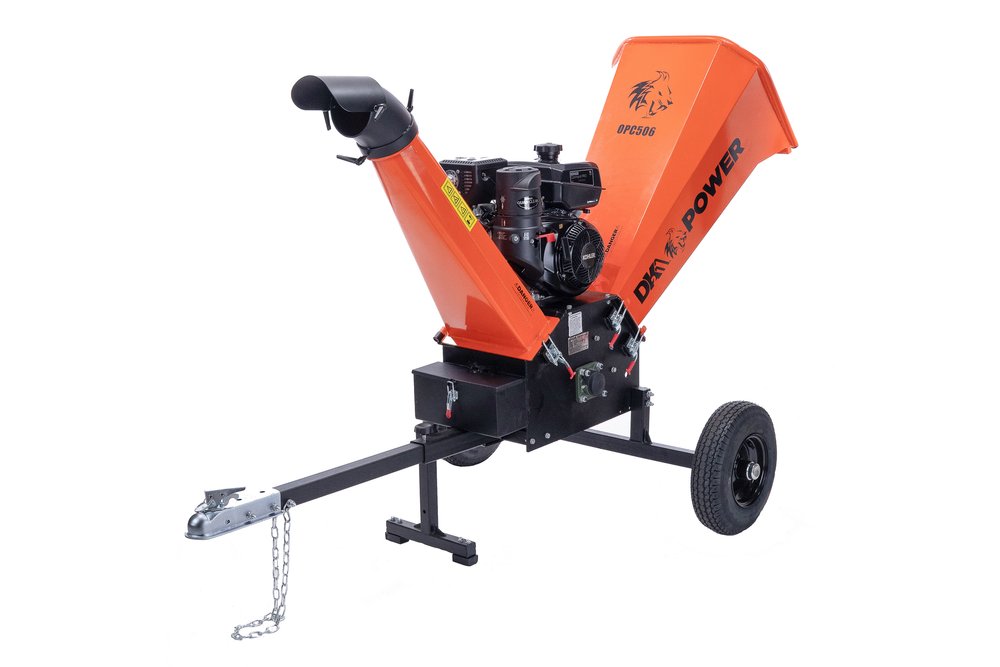

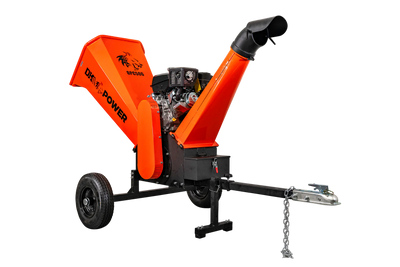

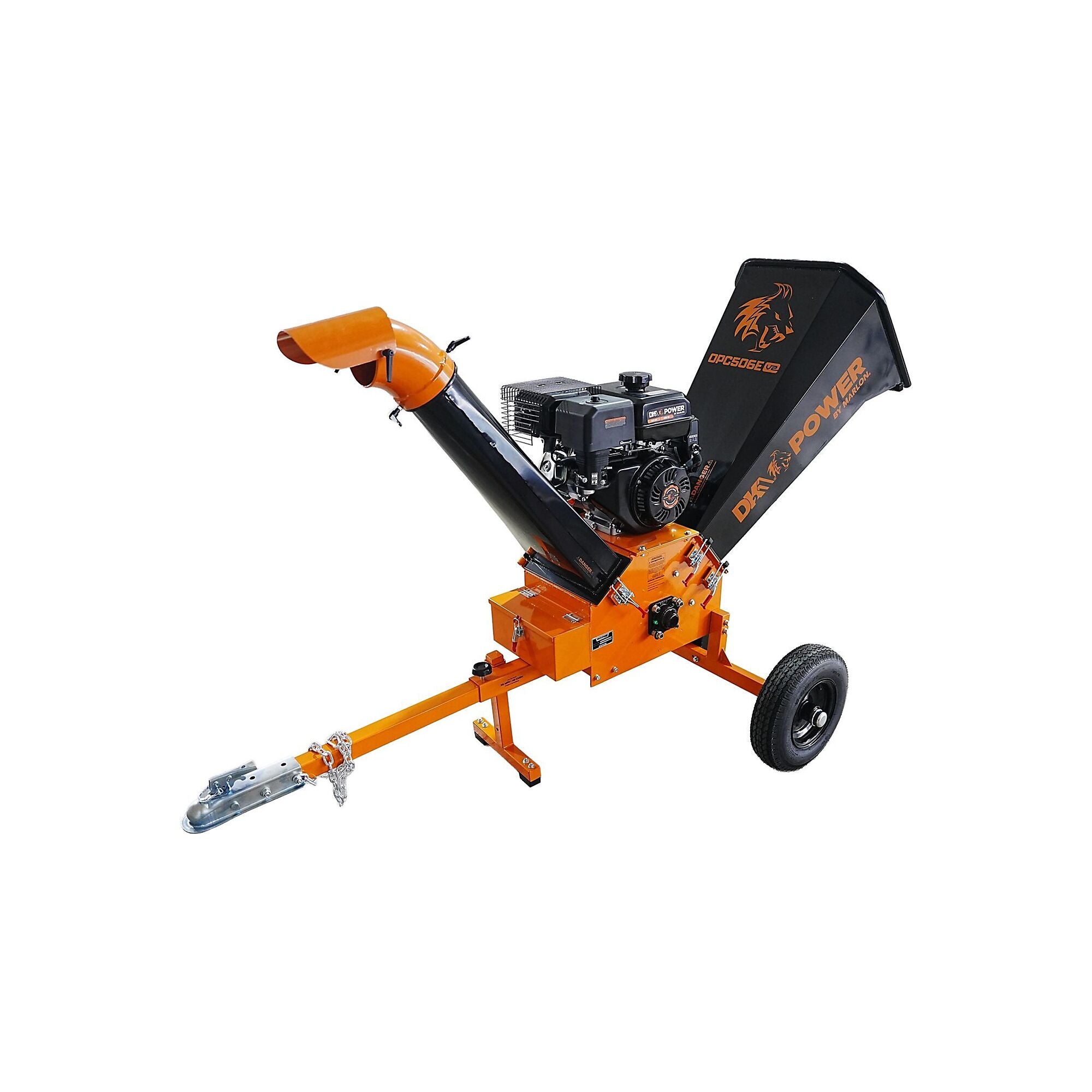

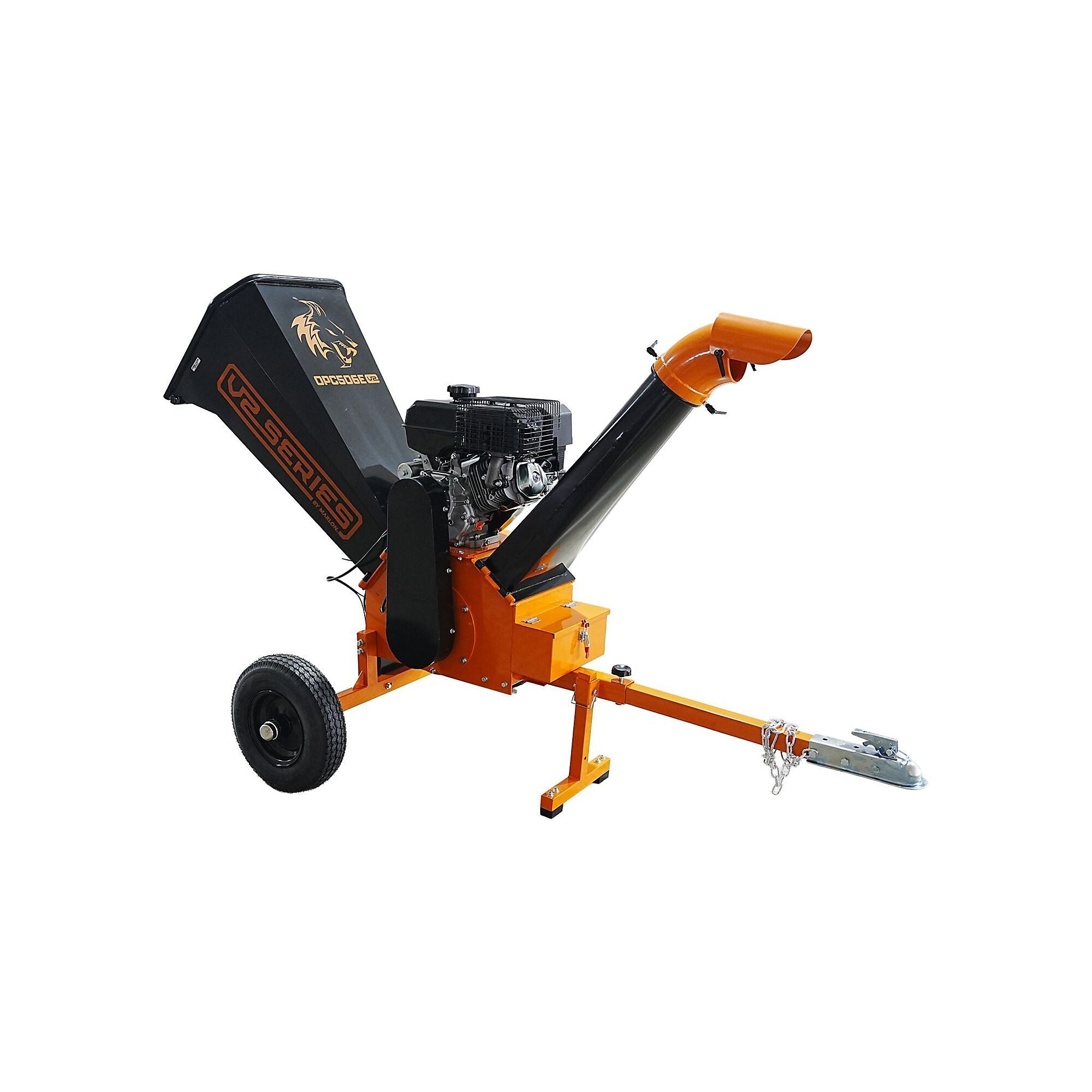

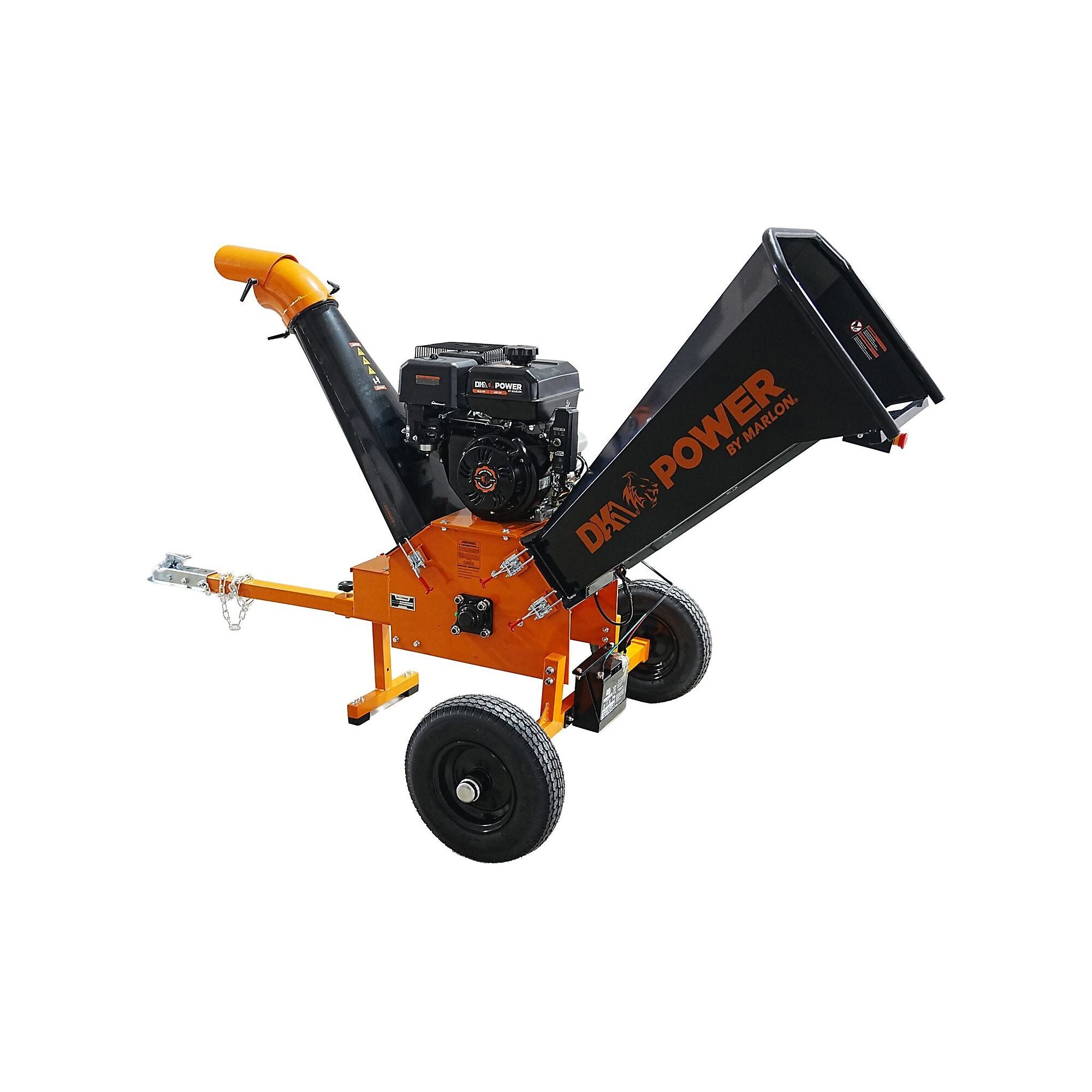

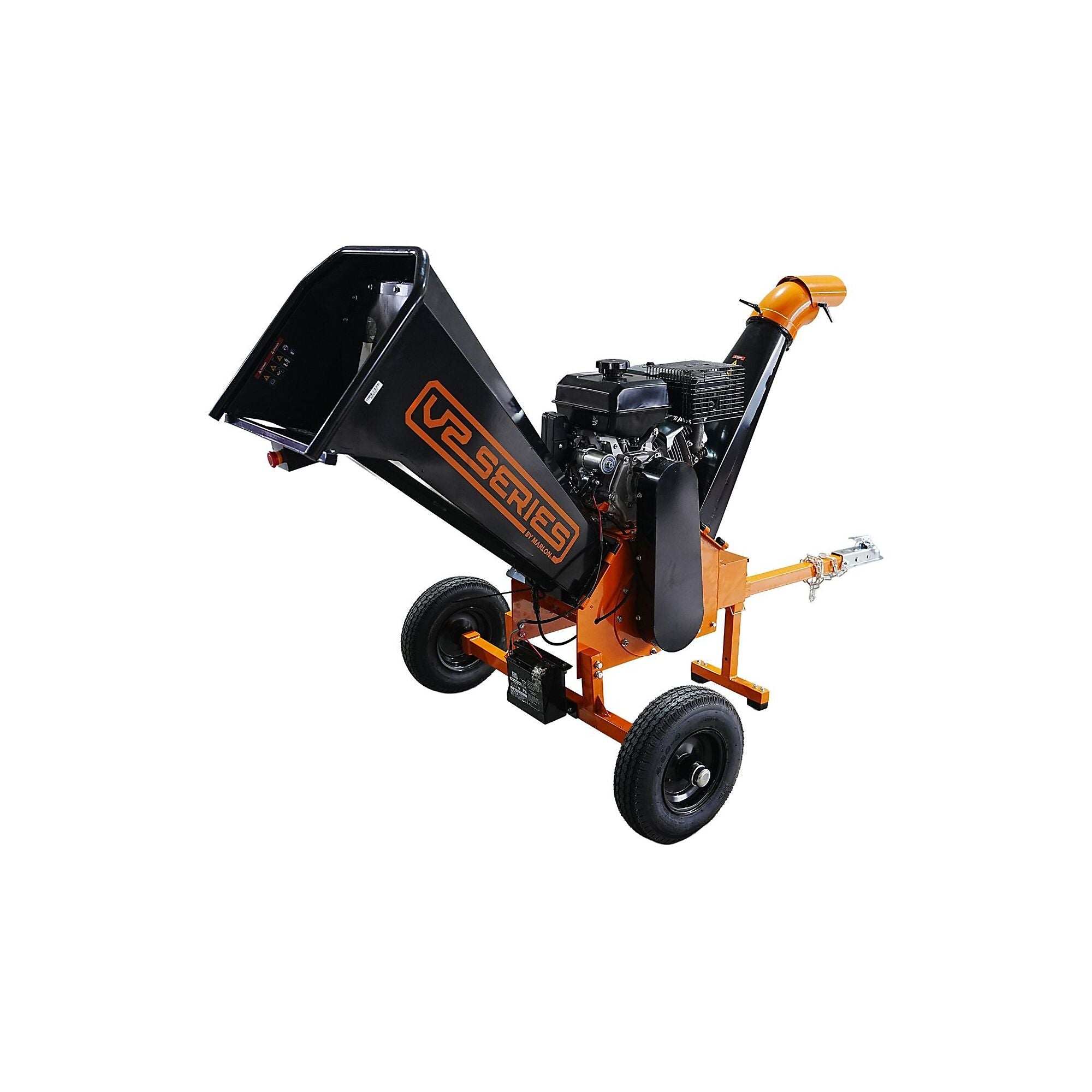

DK2 POWER V2 Series 6" Tow-Behind Chipper Shredder with Electric Start (OPC506E-V2)

6.25" Chipping Capacity • 15 HP 420cc OHV Engine • Electric and Recoil Start • Tow-Behind Design

Take on thick branches, storm debris, and demanding property cleanup with the DK2 POWER OPC506E-V2 Chipper Shredder. Powered by a high-torque 15 HP 420cc OHV engine, this heavy-duty machine combines convenient electric starting with a dual-belt, bearing-mounted chipping drum for smooth and continuous material processing.

The extra-large feed chute accepts woody material up to a published 6.25 inches in diameter. Two hardened-steel, double-edge reversible blades provide durable cutting performance and can be reversed to expose a second cutting edge before replacement is required.

Key Features & Benefits

• Electric and Recoil Starting
  Start the engine using the electric-start system, with a traditional recoil starter available as a backup.
• 15 HP 420cc OHV Engine
  Delivers the power and torque needed for processing thick limbs, heavy brush, and large branches.
• 18.4 ft.-lbs. of Net Torque
  Provides consistent cutting force during demanding chipping applications.
• 6.25" Chipping Capacity
  Handles compatible branches and woody material measuring up to the manufacturer’s published capacity.
• Dual-Belt Drum Drive
  Transfers engine power to the bearing-mounted chipping drum while building kinetic force for smooth material feeding.
• Two Reversible Chipping Blades
  Hardened-steel, double-edge cutters can be reversed to extend usable blade life.
• Tool-Free Swing-Open Chutes
  Provides convenient access to the drum chamber for inspection, maintenance, and clearing obstructions.
• 180° Adjustable Discharge Chute
  Allows the operator to direct chips toward a pile, trailer, collection area, or other suitable location.

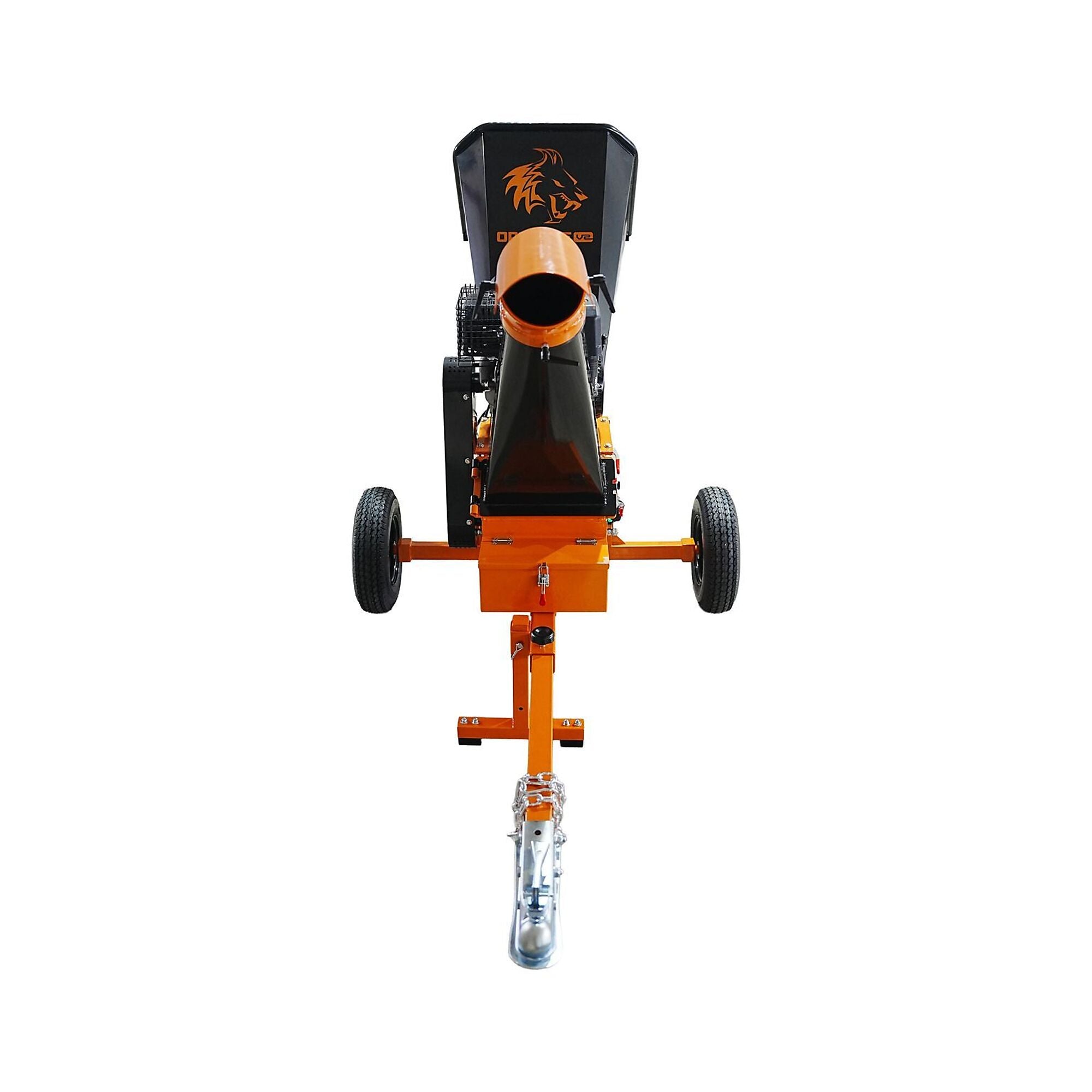

• Stable Tow-Behind Frame

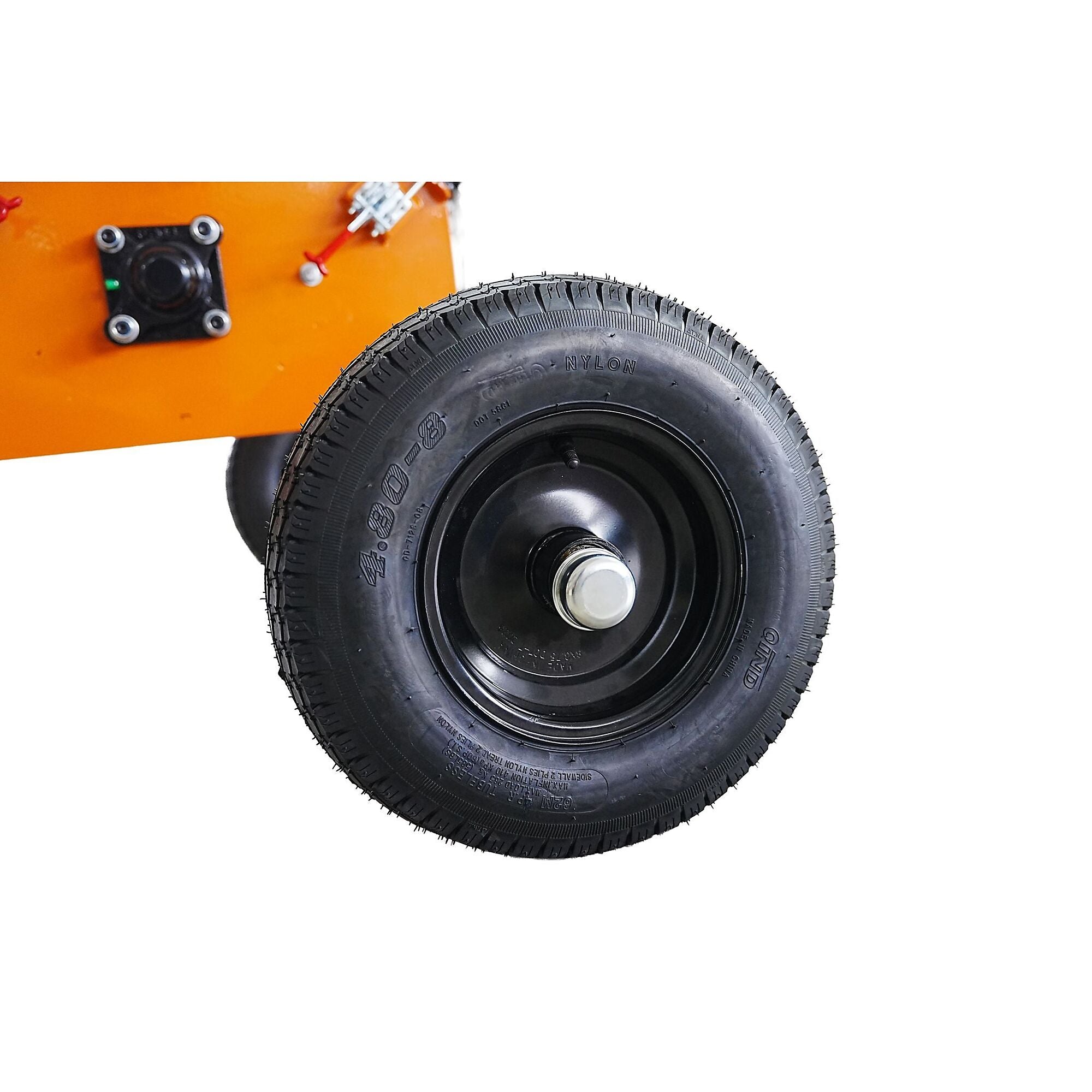

  A 48-inch axle and heavy-duty tires provide a wide, stable stance during transport.

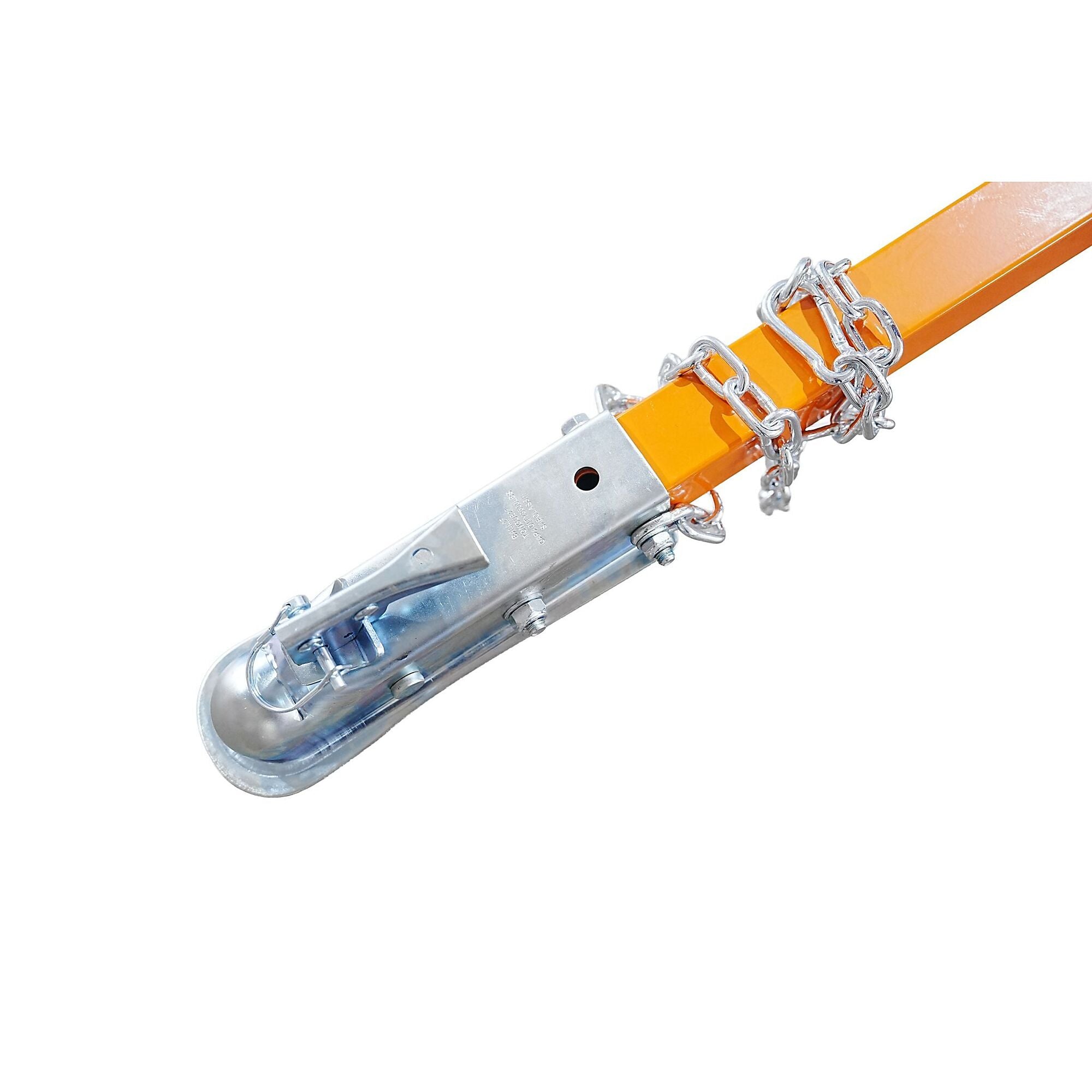

• 2" Ball Coupler
  Connects to compatible towing equipment equipped with a properly rated 2-inch hitch ball.
• Key Shut-Off Switch
  Helps prevent unauthorized engine startup when the key is removed.

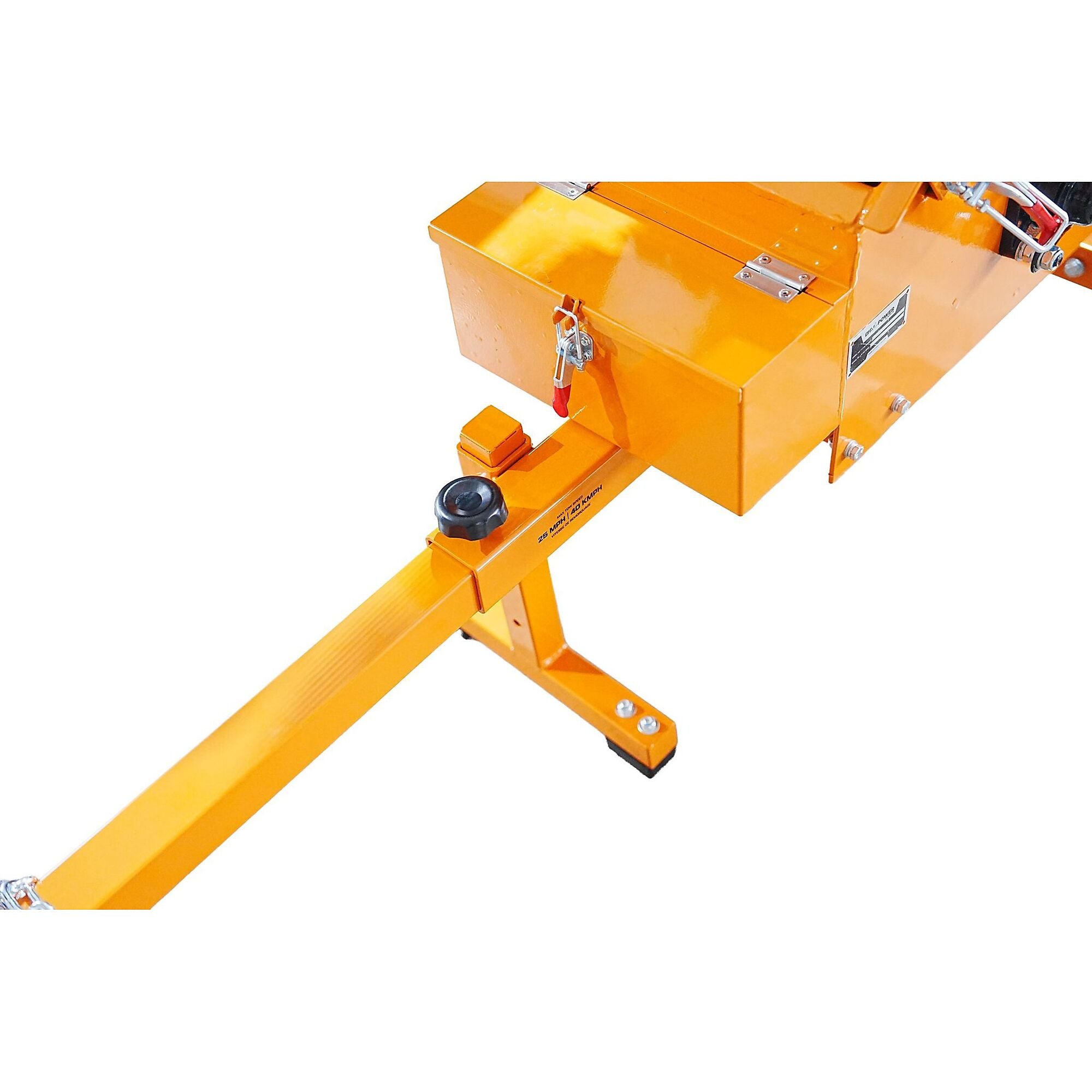

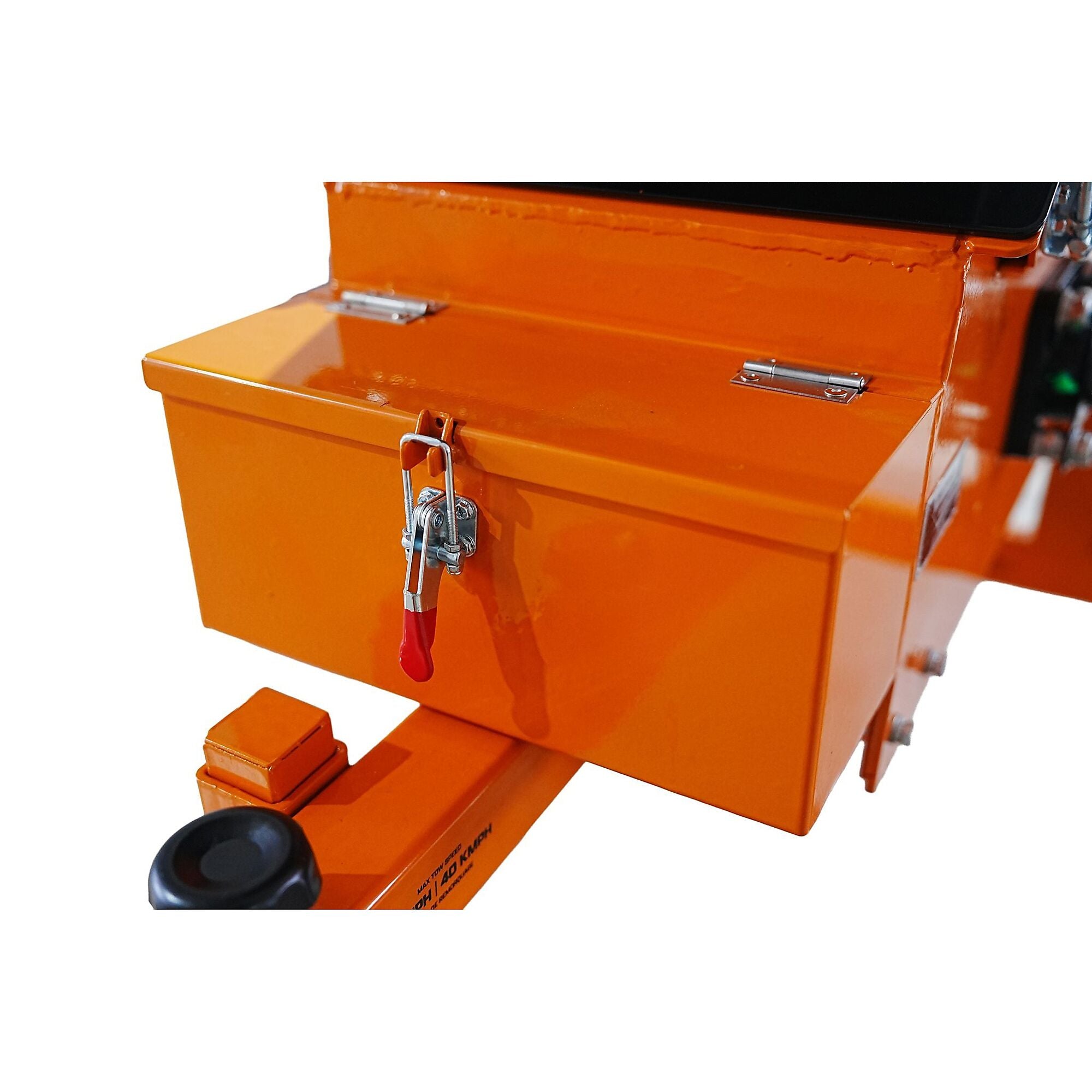

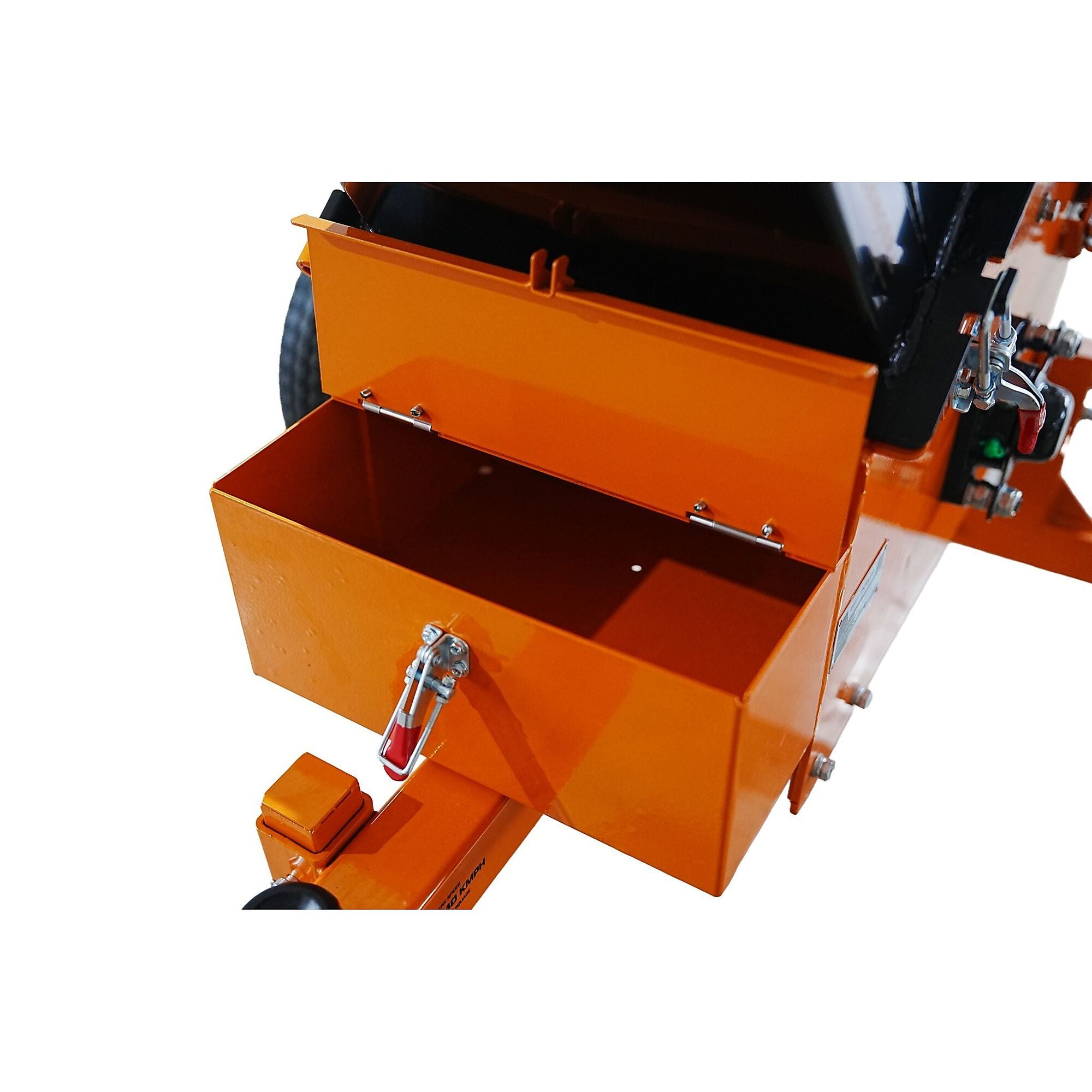

• Integrated Toolbox
  Provides onboard storage for assembly tools, maintenance items, and safety equipment.

Convenient Electric Start

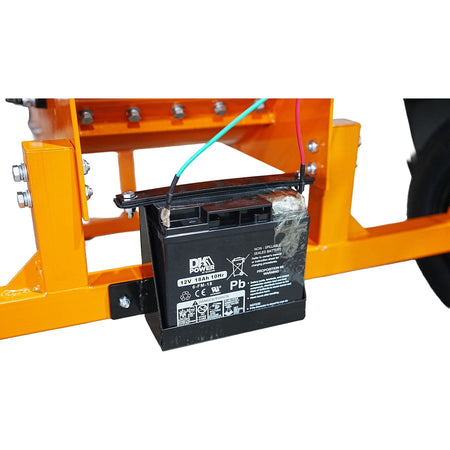

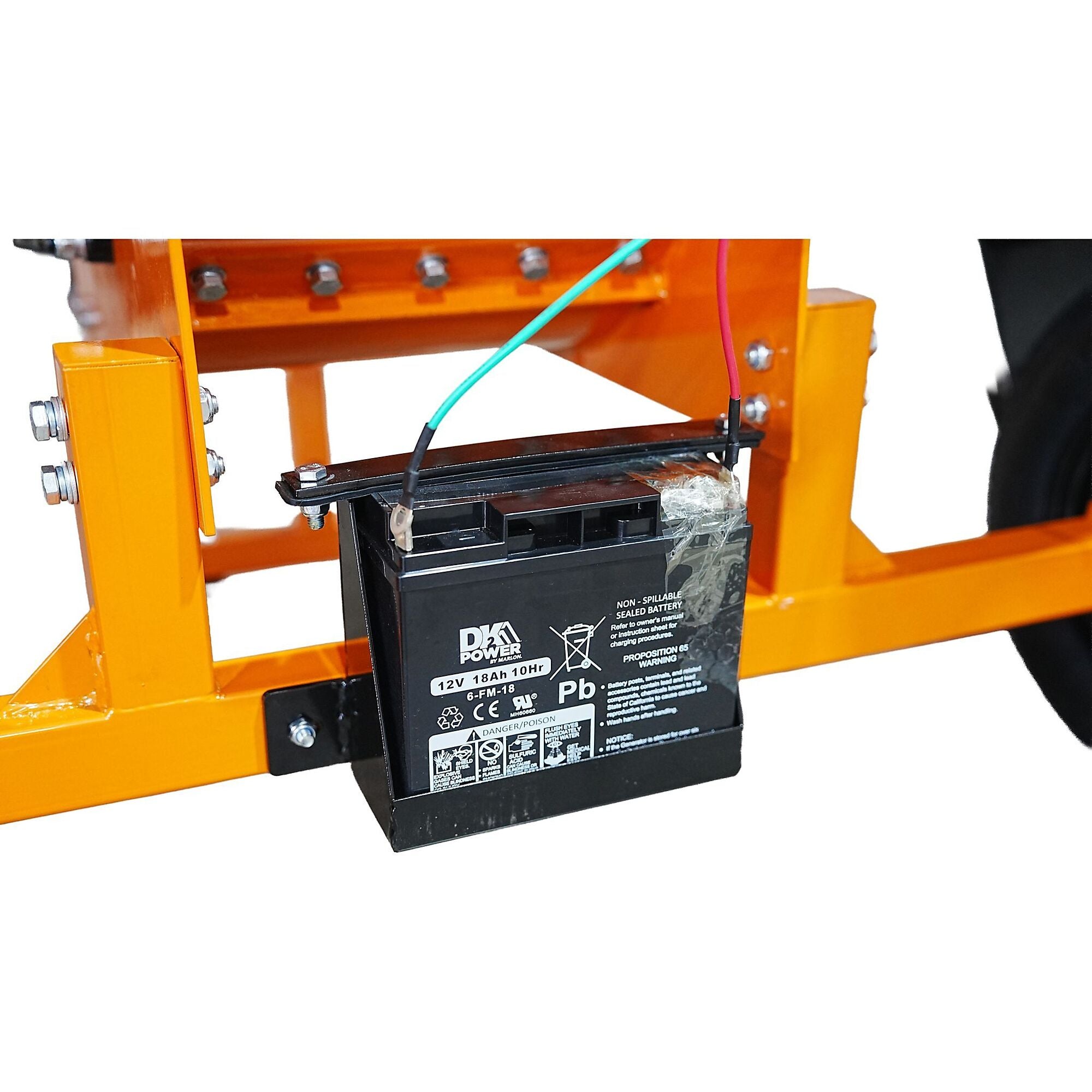

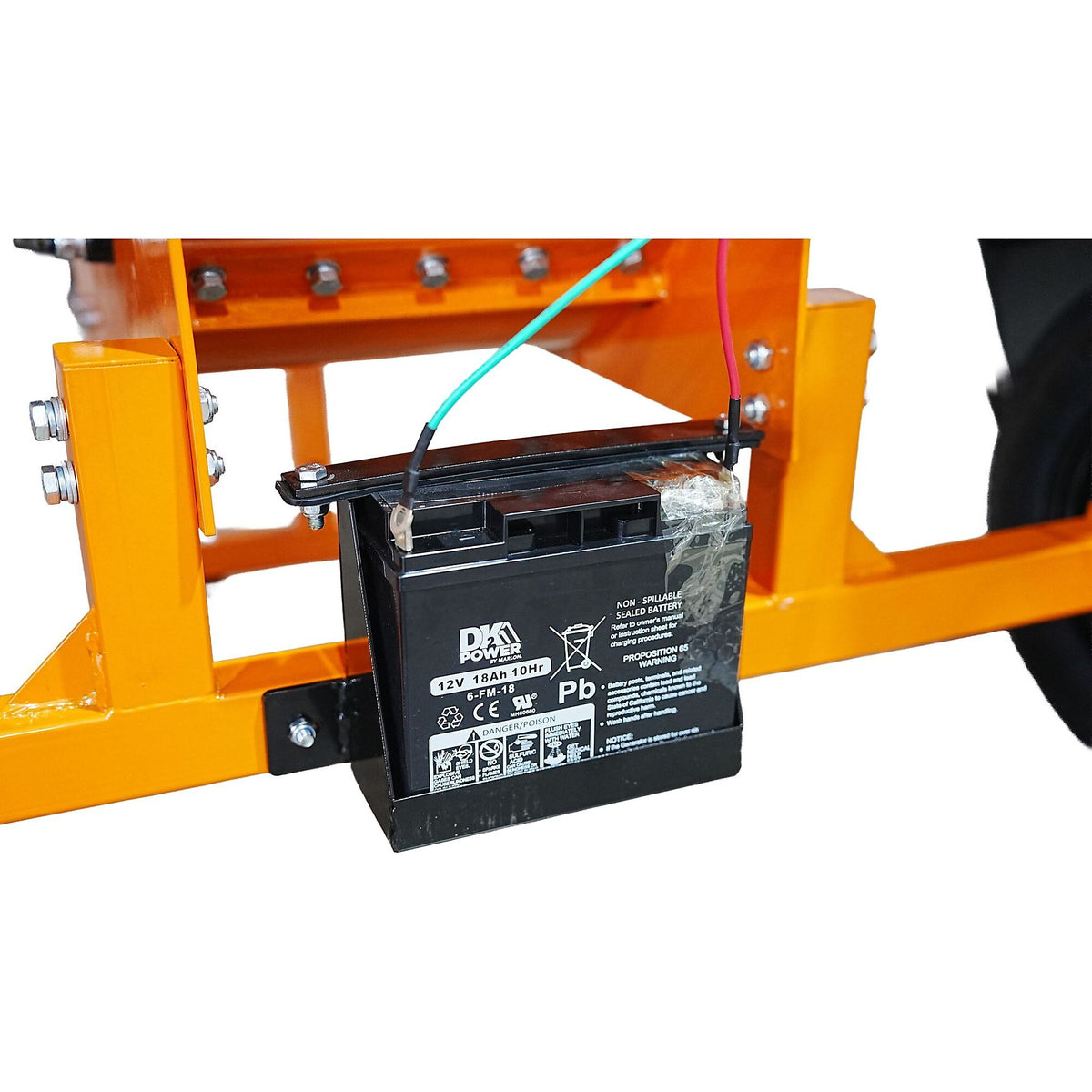

The OPC506E-V2 is equipped with a 12V, 18Ah battery system for electric starting. The engine also includes a recoil starter, providing a secondary starting method when needed.

Electric start is especially useful when the chipper is used frequently or moved between multiple work areas throughout the day.

Built for Demanding Property Cleanup

The DK2 OPC506E-V2 is well suited for:

• Large tree branches
• Storm-damaged limbs
• Heavy brush and woody growth
• Orchard and tree-pruning debris
• Farm and rural-property maintenance
• Land-clearing projects
• Seasonal property cleanup
• Producing chips for landscaping and ground cover

Actual chipping performance depends on the wood species, moisture level, branch shape, material condition, blade sharpness, and operator feeding technique.

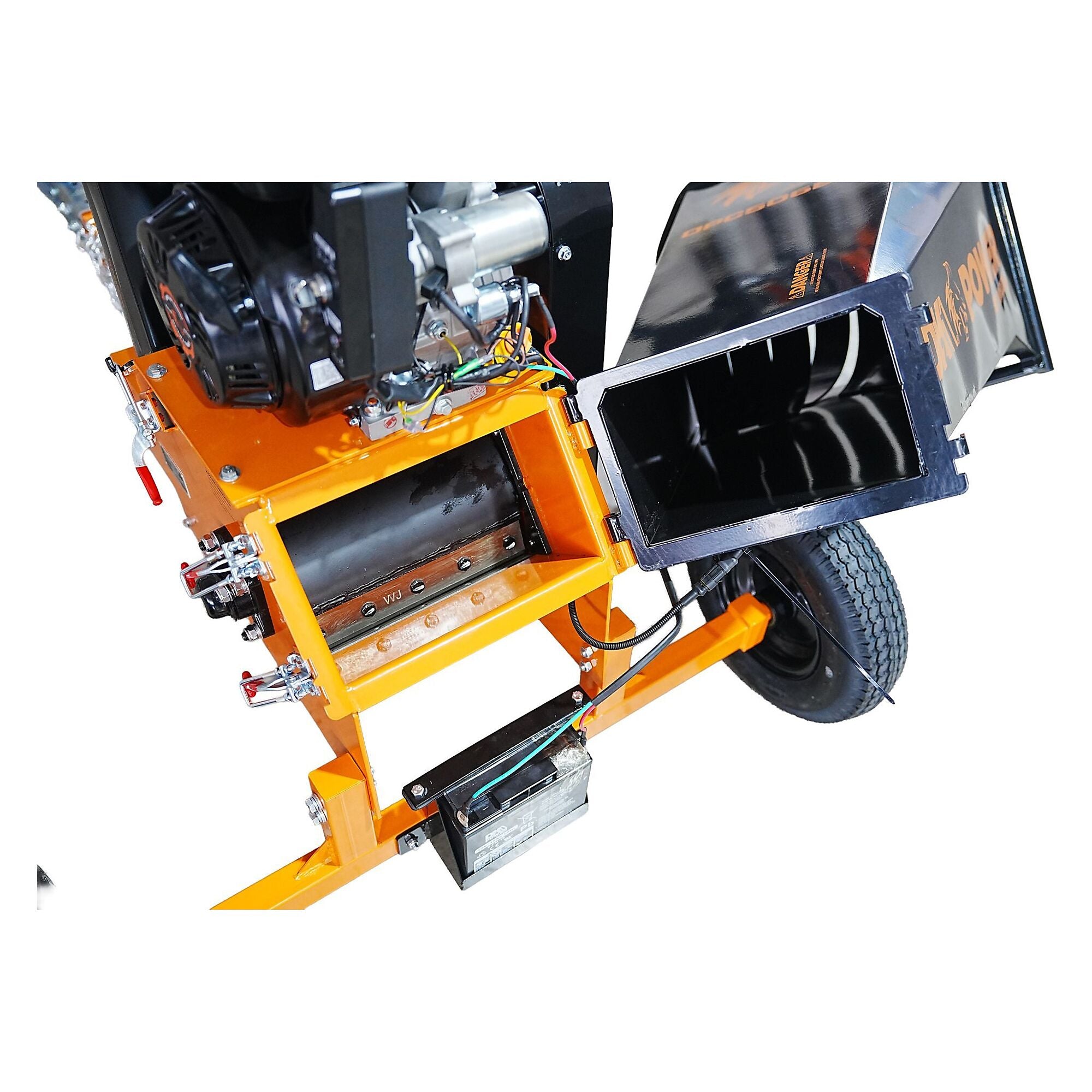

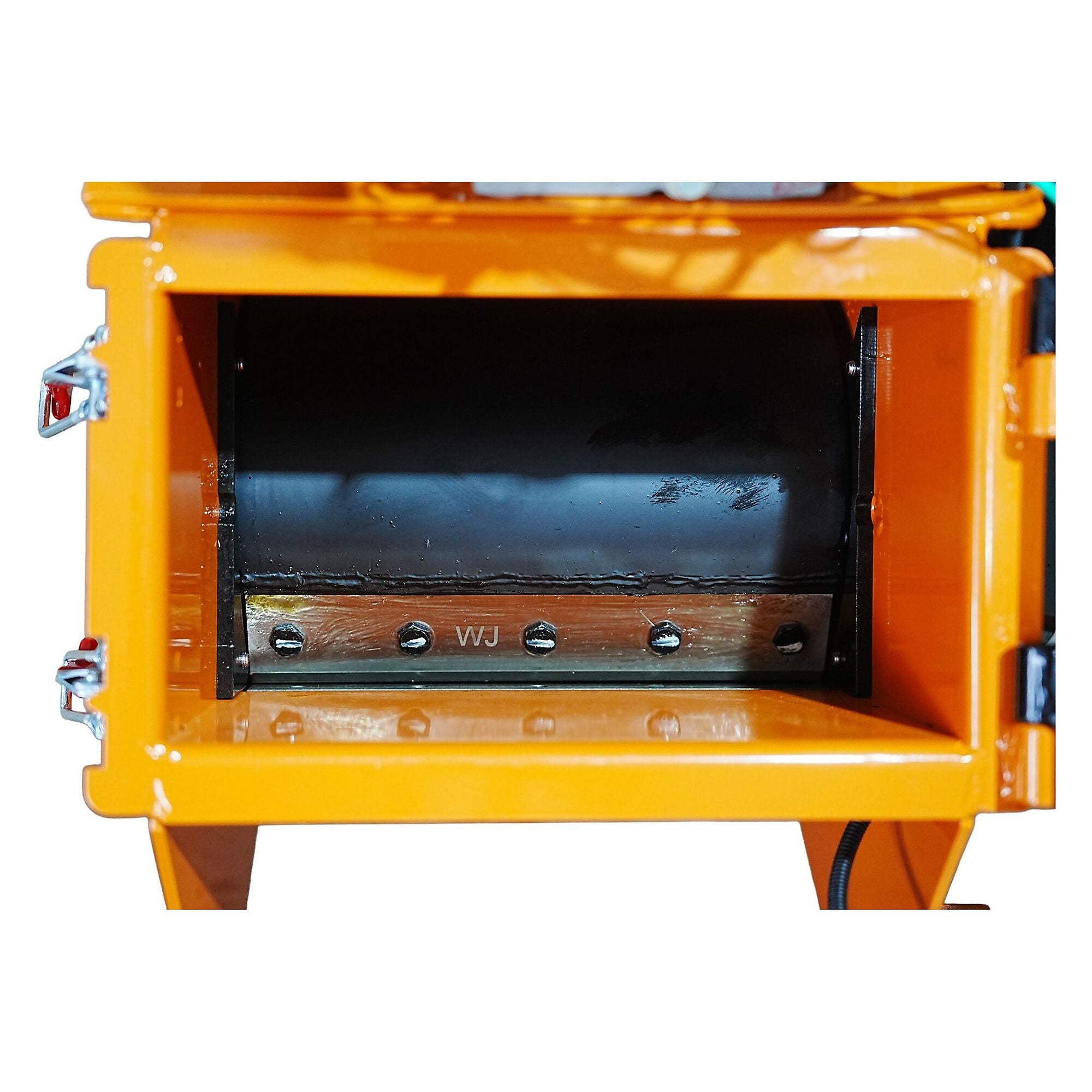

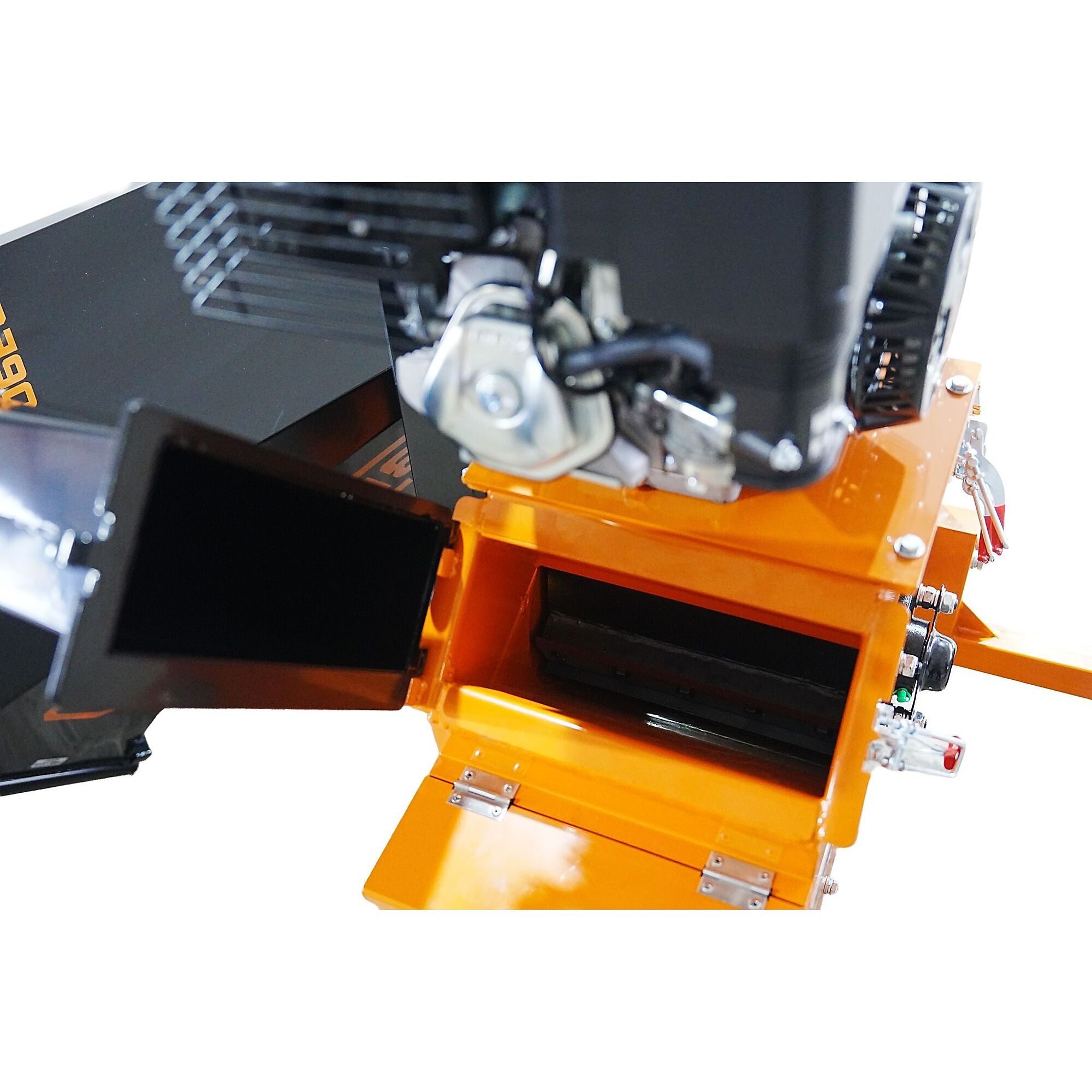

Tool-Free Drum Access

The feed and discharge chutes swing open without tools, providing direct access to the drum chamber. This design simplifies blade inspection, routine cleaning, and removal of lodged material.

Always shut off the engine, remove the key, disconnect the spark-plug wire, and wait for all moving parts to stop completely before opening either chute or approaching the cutting chamber.

Adjustable Chip Discharge

The expulsion chute swings through 180 degrees, allowing processed material to be directed to either side or behind the machine. This can reduce the amount of manual cleanup required after chipping and makes it easier to fill a trailer or create a controlled chip pile.

Quick Specifications

The specifications above are drawn from the Northern Tool listing and the current OPC506E-V2 operator’s manual.

Package Contents

• DK2 POWER OPC506E-V2 chipper shredder
• Electric-start system
• Feed and adjustable discharge chutes
• Tow-behind frame with 2-inch ball coupler
• Integrated toolbox
• Operator Manual OPC506E-V2
• OPC506-V2 Engine Manual
• Safety Sheet

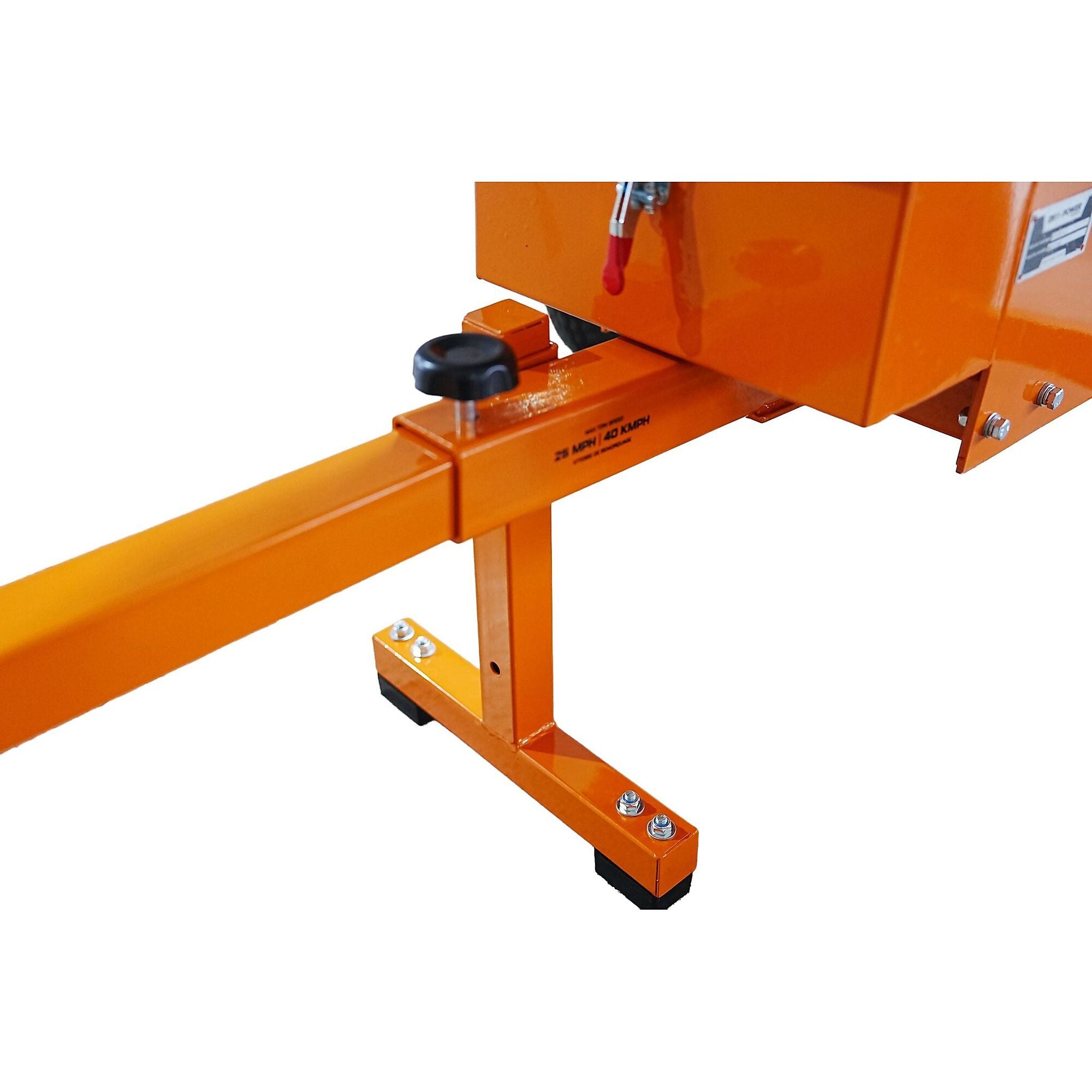

Important Towing Information

The operator’s manual lists a maximum towing speed of 25 mph. Reduce speed for rough terrain, turns, slopes, and changing ground conditions. Disconnect the chipper from the towing vehicle before operating it.

D.O.T.-approved tires do not necessarily mean the complete machine is approved for unrestricted highway travel. Follow the operator’s manual and all applicable state and local transportation requirements.

Important Operating Information

Operate the chipper outdoors on firm, level ground. Use wheel chocks or blocks to help prevent unintended movement during operation.

Never place hands, feet, clothing, or tools inside the feed or discharge chute while the machine is running. Wear appropriate eye, hearing, hand, foot, and head protection, and keep bystanders away from the operating area.

Never operate the gasoline engine inside a garage, building, trailer, or other enclosed space. Engine exhaust contains carbon monoxide, which can accumulate to dangerous or fatal levels.
