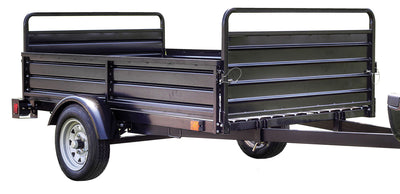

DK2 by Marlon 4.5' × 7.5' Multi-Utility Trailer (MMT5X7)

1,641 lb. Payload Capacity • Removable Steel Panels • Two-Position Dump Bed • Powder-Coated Steel

Take on landscaping projects, equipment transport, property cleanup, and everyday hauling with the DK2 by Marlon MMT5X7 Single-Axle Multi-Utility Trailer. Its fully welded tubular-steel frame, reinforced corrugated-steel floor, removable panels, and load-bearing gates create a versatile cargo platform for home, farm, and commercial use.

The trailer provides an exact cargo-bed size of 88 inches long × 52 inches wide, a 1,641 lb. payload capacity, and a 2,090 lb. GVWR. Lowering both 24-inch gates extends the usable platform to approximately 11.3 feet for properly supported and secured longer cargo.

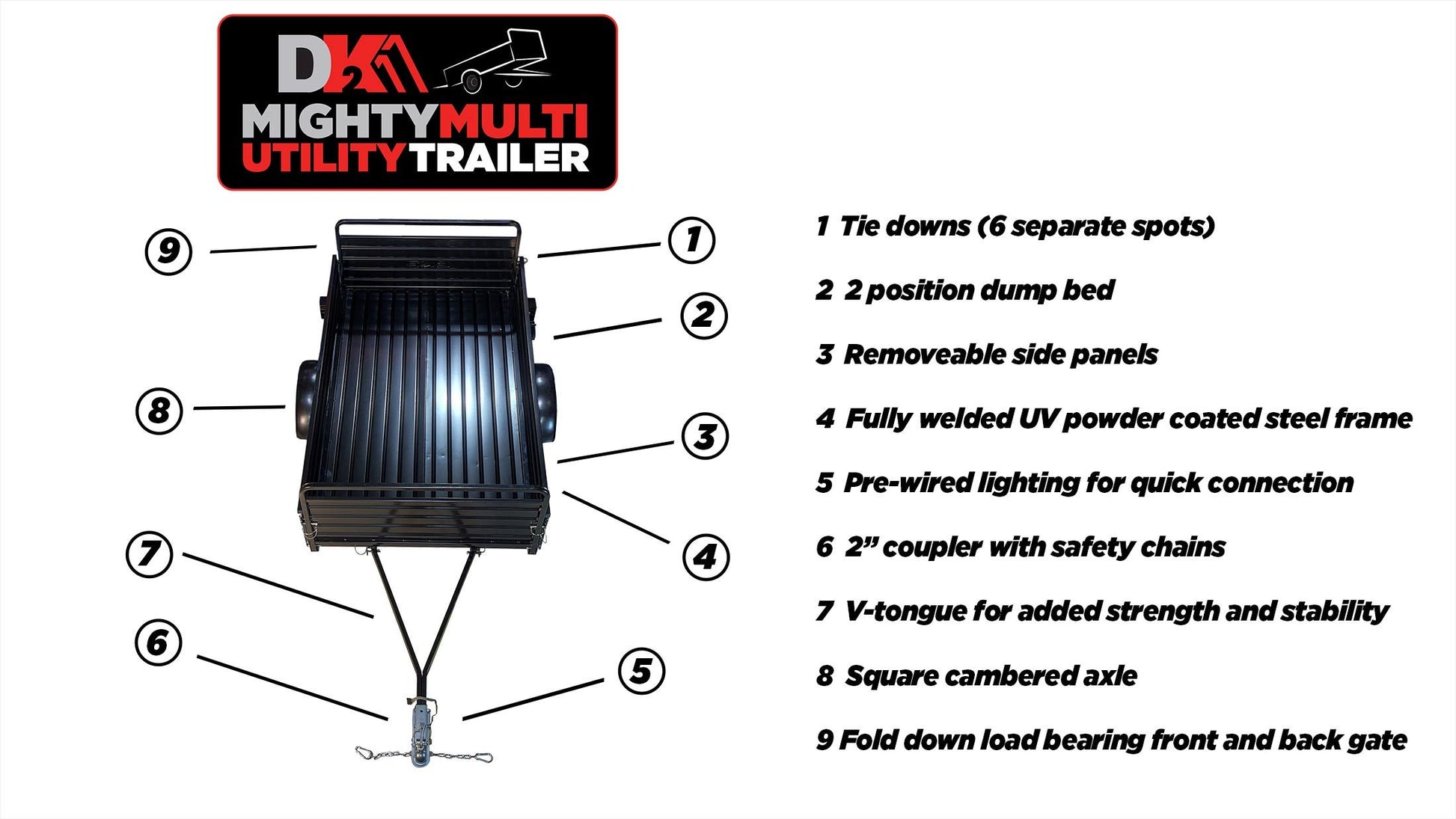

Key Features & Benefits

• 1,641 lb. Payload Capacity
  Provides dependable capacity for hauling tools, equipment, landscaping materials, recreational gear, and other cargo.
• Fully Welded Tubular-Steel Frame
  Heavy-duty steel construction provides a rugged foundation for demanding hauling applications.
• UV-Resistant Powder-Coated Finish
  The black powder-coated exterior helps protect the steel against normal weather exposure and wear.
• 88" × 52" Cargo Bed
  Offers a versatile hauling area for equipment, materials, supplies, and recreational cargo.
• Load-Bearing Front and Rear Gates
  Two 24-inch corrugated reinforced-steel gates support properly secured extended loads.
• Extended 11.3' Platform
  Lowering both gates extends the usable trailer bed for transporting longer materials.
• Removable Panels and Gates
  Both side panels and the front and rear gates can be removed to accommodate oversized or irregularly shaped cargo.
• Two-Position Dump Bed
  The axle-mounted tilt mechanism and quick-release locking pin help simplify loading and unloading.
• Corrugated Reinforced-Steel Floor
  Provides a durable all-steel cargo surface with a published floor height of 20 inches.
• Solid Cambered Steel Axle
  Square-tubular construction provides dependable support and stable trailer tracking.
• D.O.T. 5.30-12 Tires
  Equipped with bias trailer tires using a common 5-on-4.5-inch wheel bolt pattern.
• Prewired D.O.T. LED Lighting
  Quick-connect LED lights include side markers and heavy-duty taillight protectors.
• A-Frame Tow Bar
  Includes a 2-inch ball coupler with a published hitch height of 16 inches.
• Registration Documentation Included
  The trailer includes a Certificate of Origin for U.S. customers for use during local registration.

Extended Cargo Configuration

Lowering the front and rear gates creates an extended platform measuring approximately 11.3 feet long. This configuration can help support longer cargo such as:

• Lumber and building materials
• Landscaping supplies
• Long tools and machinery components
• Canoes and recreational equipment
• Logs and firewood
• Farm and property-maintenance materials

All extended cargo must be properly supported and secured. Follow applicable regulations concerning cargo overhang, flags, lighting, and tie-downs.

Tilt and Dump Capability

The trailer bed pivots at the axle and offers two operating positions. A quick-release lock pin secures the bed during transport and allows it to tilt during loading or unloading.

The tilt function can reduce the loading angle for compatible wheeled equipment. The standard front and rear gates are not designed to serve as drive-up ramps; DK2 recommends using the trailer’s tilt feature or purchasing the appropriate drive-up gate for that application.

Ideal Applications

The DK2 MMT5X7 is well suited for:

• Landscaping and lawn-care equipment
• Building and renovation materials
• Firewood and logs
• Camping and recreational gear
• Farm and ranch supplies
• Furniture and appliances
• Yard debris and property cleanup
• General residential and commercial hauling

Quick Specifications

The specifications above are based on DK2’s published product information for the MMT5X7.

Important Towing Information

This trailer uses a 2-inch ball coupler and has a 2,090 lb. GVWR. Confirm that the tow vehicle, receiver, hitch ball, wiring connection, and safety equipment are compatible and properly rated before towing.

Never exceed the trailer’s 1,641 lb. payload capacity or GVWR. The total weight of the trailer, cargo, accessories, and optional equipment must remain within all applicable ratings.

Care and Maintenance

Because this model is powder-coated steel rather than galvanized steel, scratches that expose bare metal should be cleaned and protected promptly to reduce the risk of corrosion. DK2 recommends checking the wheel bearings before initial road use and greasing them approximately every 2,000 miles, with more frequent service under heavy or full-capacity operation.

Important Gate Information

The included 24-inch gates are load-bearing drop gates but are not drive-up ramps. Driving equipment over the standard gates may damage them. Use the trailer’s tilt feature or a compatible optional drive-up gate when loading ATVs, lawn mowers, or similar equipment.
