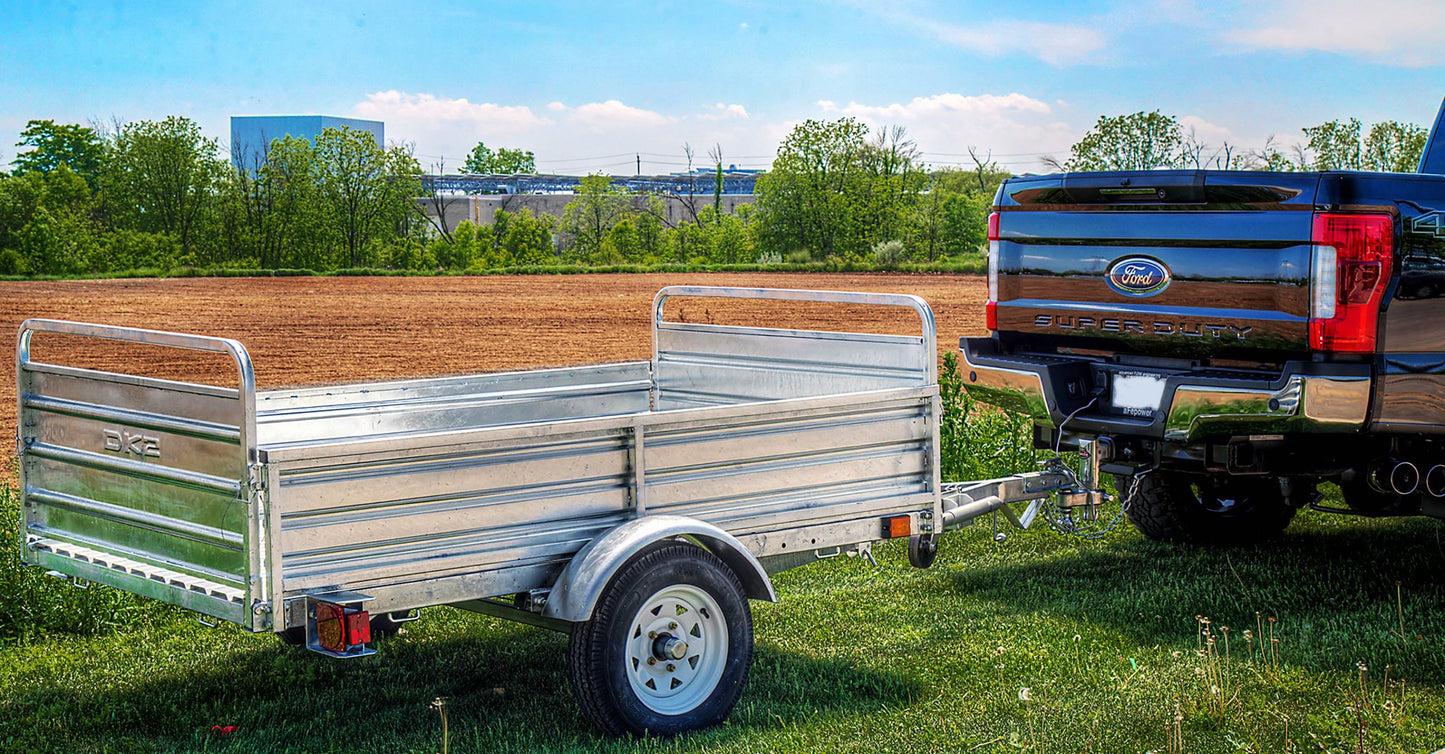

DK2 4.5' × 7.5' Galvanized Utility Trailer (MMT5X7G)

1,637 lb. Payload Capacity • Hot-Dip Galvanized Steel • Two-Position Dump Bed • Load-Bearing Front and Rear Gates

Handle landscaping supplies, recreational equipment, building materials, firewood, and general hauling jobs with the DK2 by Marlon MMT5X7G Single-Axle Multi-Utility Trailer. Built from fully welded, heavy-duty tubular steel, this versatile trailer features a hot-dip galvanized finish for enhanced resistance to corrosion and outdoor exposure.

The trailer provides an 88-inch × 52-inch cargo bed, a 1,637 lb. payload capacity, and a 2,090 lb. GVWR. Its removable steel side panels and load-bearing front and rear gates allow the cargo area to be adapted for different loads. When both gates are lowered, the usable platform extends to approximately 11.3 feet.

Key Features & Benefits

• 1,637 lb. Payload Capacity
  Provides dependable hauling capacity for equipment, landscaping materials, recreational gear, and property-maintenance supplies.
• Hot-Dip Galvanized Steel Construction
  The fully welded tubular-steel frame and galvanized finish help protect the trailer against corrosion and weather-related wear.
• 4.5' × 7.5' Cargo Bed
  The exact published bed dimensions are 88 inches long × 52 inches wide.
• Load-Bearing Front and Rear Gates
  Both 24-inch corrugated-steel gates can support properly secured extended cargo.
• Extended 11.3' Platform
  Lowering both gates extends the usable trailer bed for carrying longer materials.
• Removable Steel Side Panels
  Solid corrugated-steel panels can be removed to accommodate oversized or irregularly shaped cargo.
• Two-Position Dump Bed
  An axle-mounted tilt mechanism with a quick-release locking pin helps simplify loading and unloading.
• Corrugated Reinforced-Steel Floor
  Provides a rugged all-steel cargo surface with a published floor height of 20 inches.
• Cambered Steel Axle
  Solid square-tubular construction supports stable towing and load handling.
• D.O.T. 5.30-12 Tires
  Bias-ply trailer tires use a common 5-on-4.5-inch wheel bolt pattern.
• D.O.T. LED Lighting
  Prewired quick-connect lights include side markers and heavy-duty taillight protectors.
• A-Frame Tow Bar
  Equipped with a 2-inch ball coupler and a published hitch height of 16 inches.
• Registration Paperwork Included
  Supplied with the necessary manufacturer paperwork for registration with the appropriate local motor vehicle agency.

Versatile Extended-Bed Configuration

Both the front and rear gates can be lowered to create an extended platform measuring approximately 11.3 feet long. This configuration can provide additional support for longer cargo such as:

• Lumber and building materials
• Landscaping supplies
• Canoes and recreational equipment
• Long tools and machinery components
• Logs and firewood
• Farm and property-maintenance materials

All extended cargo must be properly supported and secured. Follow applicable regulations governing load overhang, flags, lighting, and tie-downs.

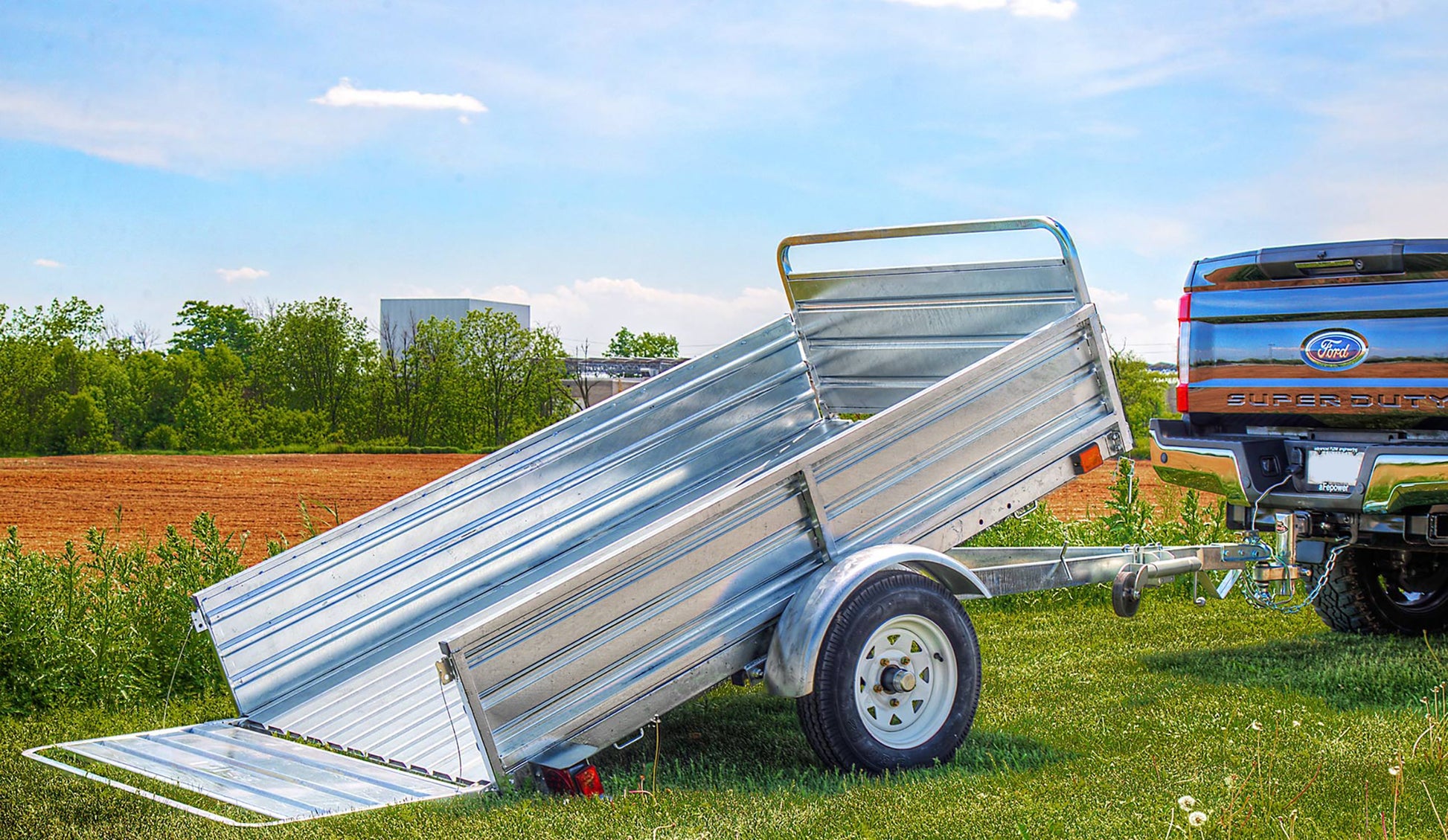

Tilt and Dump Capability

The trailer bed pivots at the axle and offers two operating positions. A quick-release locking pin secures the bed during transport and allows it to tilt during loading or unloading.

The tilt feature can reduce the loading angle and make it easier to unload bulky or loose materials. Cargo should be evenly distributed and properly secured before the trailer is moved.

Ideal Applications

The DK2 MMT5X7G is well suited for:

• Landscaping and lawn-care equipment
• Building and renovation materials
• Firewood and logs
• Camping and recreational gear
• Farm and ranch supplies
• Furniture and appliances
• Yard debris and cleanup materials
• General residential and commercial hauling

Quick Specifications

These specifications are based on DK2’s published product information for the MMT5X7G.

Important Towing Information

This trailer uses a 2-inch ball coupler and has a published 2,090 lb. GVWR. Confirm that the tow vehicle, receiver, hitch ball, wiring connection, and safety equipment are compatible and properly rated before towing.

Never exceed the trailer’s 1,637 lb. payload capacity or 2,090 lb. GVWR. The total weight of the trailer, cargo, accessories, and optional equipment must remain within all applicable ratings.
