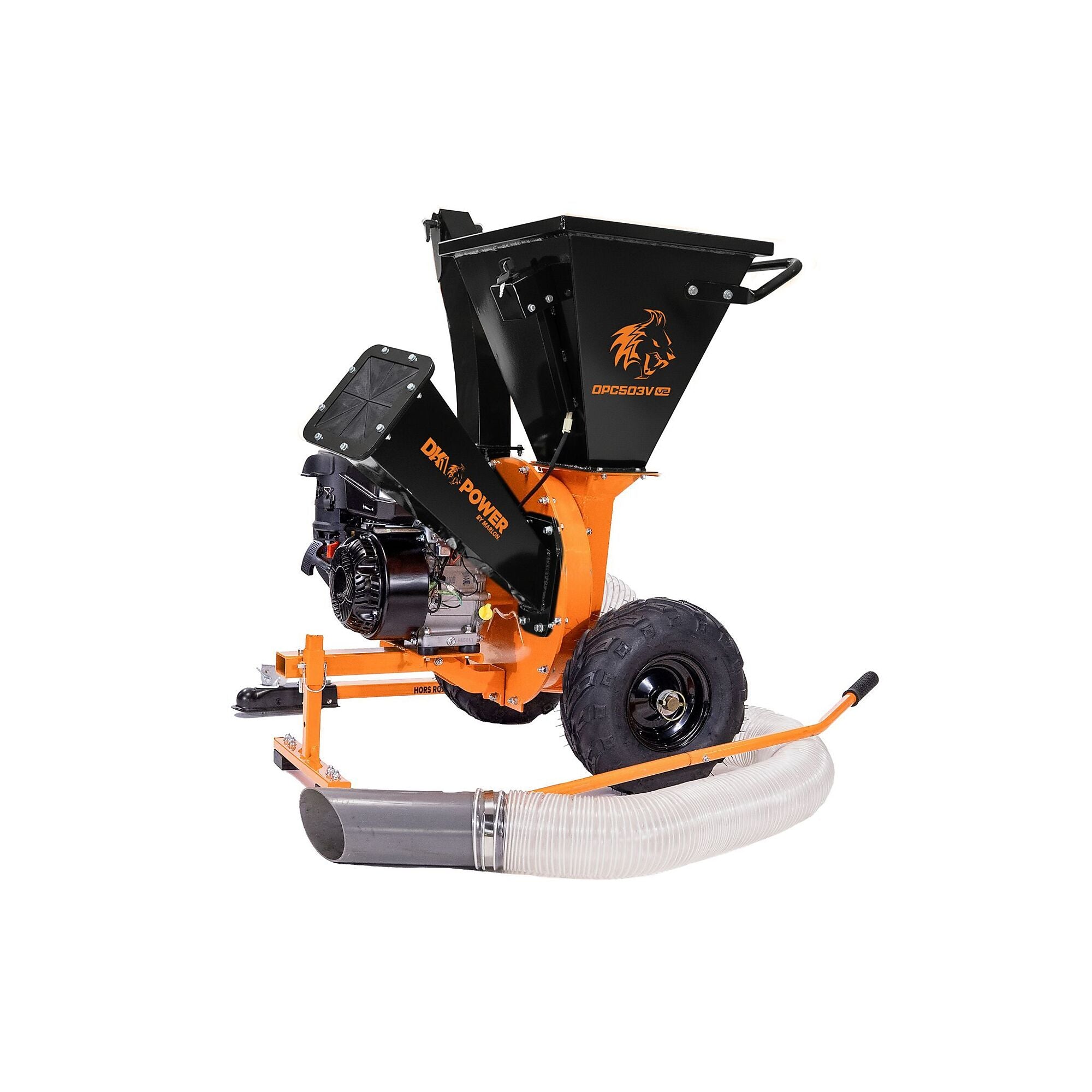

DK2 POWER V2 Series 3" Chipper Shredder Vacuum Combo with 7 HP 209cc Engine (OPC503V-V2)

3" Chipping Capacity • Leaf Vacuum Kit • Top-Loading Shredder • Tow-Behind Design

Take on complete yard cleanup with the DK2 POWER OPC503V-V2 Chipper Shredder Vacuum Combo. Powered by a 7 HP 209cc OHV gasoline engine, this versatile machine chips branches, shreds leaves and garden debris, and vacuums loose material into the cutting system for efficient processing.

A dedicated side-feed chute accepts branches up to 3 inches in diameter, while the extra-large top hopper processes leaves, brush, and finer material. The included vacuum kit features an approximately 7.67-foot hose, helping collect leaves and debris from around landscaping, fences, garden beds, and other areas where material cannot be swept directly into the hopper.

Key Features & Benefits

• 7 HP 209cc OHV Engine
  Delivers dependable gasoline-powered performance with a published 9.1 ft.-lbs. of net torque.
• Three-in-One Yard-Cleanup System
  Combines a branch chipper, top-loading shredder, and debris vacuum in one mobile machine.
• 3-Inch Branch Capacity
  The side-feed chute handles compatible branches and woody material measuring up to 3 inches in diameter.
• Top-Loading Shredder Hopper
  Processes leaves, brush, garden compost, twigs, and other finer organic material.
• Vacuum Kit Included
  Draws loose leaves and yard debris into the shredding system for faster cleanup around landscaped areas.
• Two Reversible Chipper Blades
  Double-edge hardened-steel blades provide efficient branch cutting and can be reversed to expose a second cutting edge.
• Four Free-Swinging Shredder Hammers
  Quad hammer shredders reduce leaves and lighter garden debris entering through the top hopper or vacuum hose.
• Direct-Drive Flywheel
  Transfers engine power directly to the cutting assembly for efficient material processing.
• Adjustable Expulsion Chute
  Lets the operator control where chips and shredded material are discharged.
• Wide Off-Road Tires
  Equipped with 145/70-6 ATV-style tires for stability and movement across lawns and uneven property surfaces.
• Removable Tow Bar with Trolley Wheel
  Provides easier connection to compatible towing equipment and improved manual positioning when disconnected.
• Key Shut-Off Switch
  Allows the engine to be disabled by removing the key.

Three Ways to Process Yard Debris

Side-Feed Branch Chipper

Feed compatible branches measuring up to 3 inches in diameter into the dedicated side chute. Two double-edge chipper blades cut the material as it reaches the direct-drive flywheel.

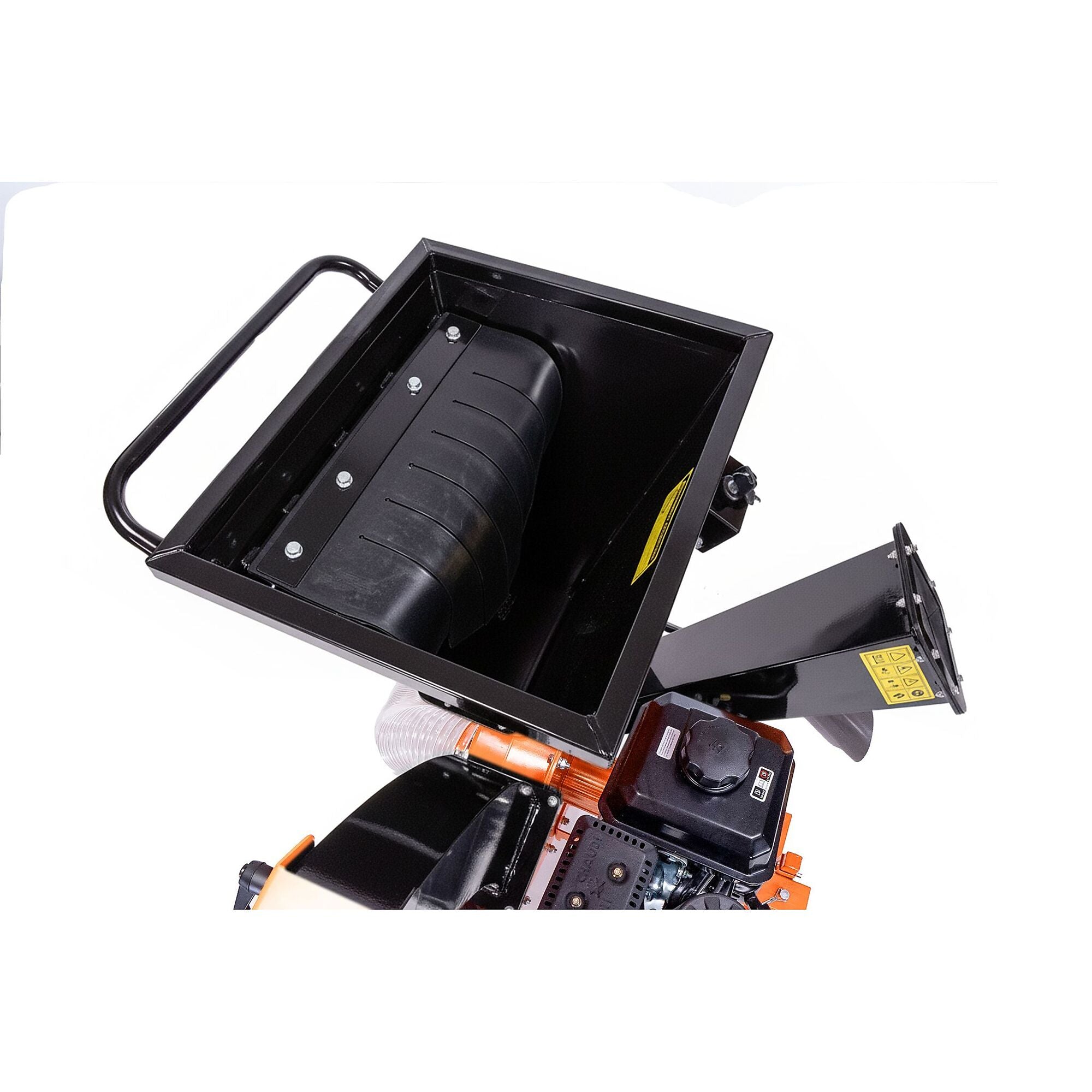

Top-Loading Shredder

Use the upper hopper for smaller material such as:

• Leaves
• Light brush
• Small twigs
• Garden debris
• Compostable yard waste

Four free-swinging hammers help reduce the material into a finer consistency for disposal, composting, or landscaping use.

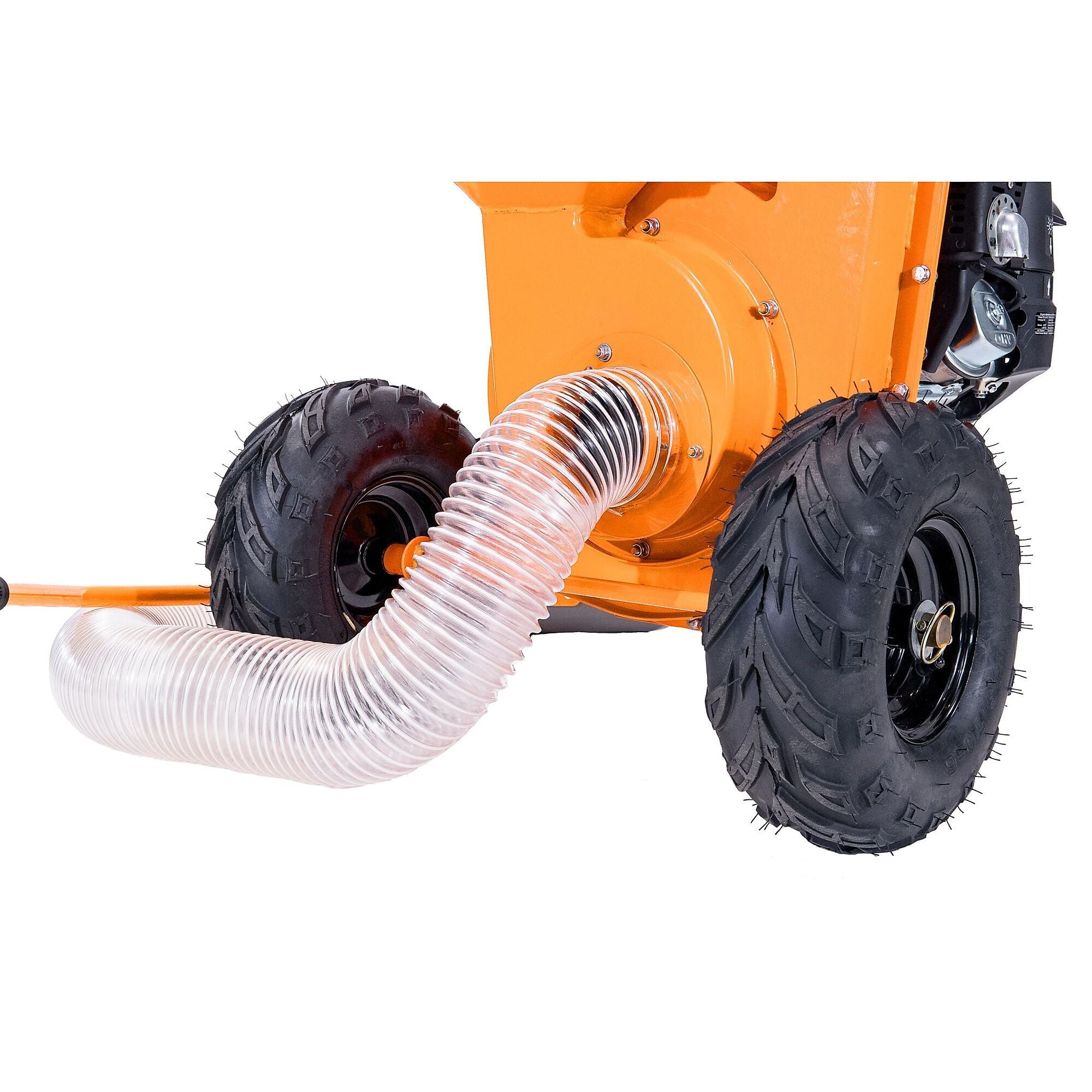

Leaf and Debris Vacuum

The included vacuum hose allows the operator to collect loose material from lawns, landscaped areas, garden beds, and other spaces. The Northern Tool specification table lists the hose length at approximately 7.67 feet.

Ideal Applications

The DK2 OPC503V-V2 is well suited for:

• Seasonal leaf cleanup
• Tree and shrub pruning
• Storm-debris processing
• Garden-waste reduction
• Residential property maintenance
• Farm and rural-property cleanup
• Vacuuming debris around landscaping and fences
• Producing wood chips and compost material

Quick Specifications

The dimensions, weights, cutting capacities, tire specifications and residential/commercial warranty terms above are taken from the current OPC503V-V2 manual.

Package Contents

• DK2 POWER OPC503V-V2 chipper shredder
• Vacuum kit and hose
• Side-feed chipper chute
• Top-loading shredder hopper
• Adjustable expulsion chute
• Removable tow bar
• Drop stand and trolley wheel
• Operator documentation
• OPC506-V2 Engine Manual
• OPC503-V2 Manual

Northern Tool describes the package as one 3-inch chipper shredder with vacuum kit.

Important Towing Information

The tow-behind assembly is intended for moving the chipper around private property with compatible equipment. The operator’s manual states:

• Do not exceed 15 mph
• Reduce speed on rough or uneven terrain
• Do not carry cargo or passengers on the machine
• Turn the fuel shutoff valve off before towing
• Disconnect the chipper from the tow vehicle before operating it

This machine should not be treated as a highway trailer or used for unrestricted public-road towing.

Important Operating Information

Operate the chipper outdoors on firm, level ground. Use wheel chocks to prevent unintended movement and keep hands, feet, clothing, and tools away from all feed and discharge openings.

Before clearing a blockage or performing maintenance:

1. Shut off the engine.
2. Wait for every moving component to stop.
3. Disconnect the spark-plug wire.
4. Allow the engine and cutting system to cool.

Wear suitable eye, hearing, hand, and foot protection. Never operate the gasoline engine inside a garage, building, trailer, or other enclosed area because dangerous carbon monoxide can accumulate.

Warranty

The current operator’s manual lists the following coverage:

• Residential engine warranty: Two years, parts and labor
• Residential machine warranty: One year, parts only
• Commercial warranty: 90 days, subject to the stated terms
• Product registration required: Registration conditions apply
