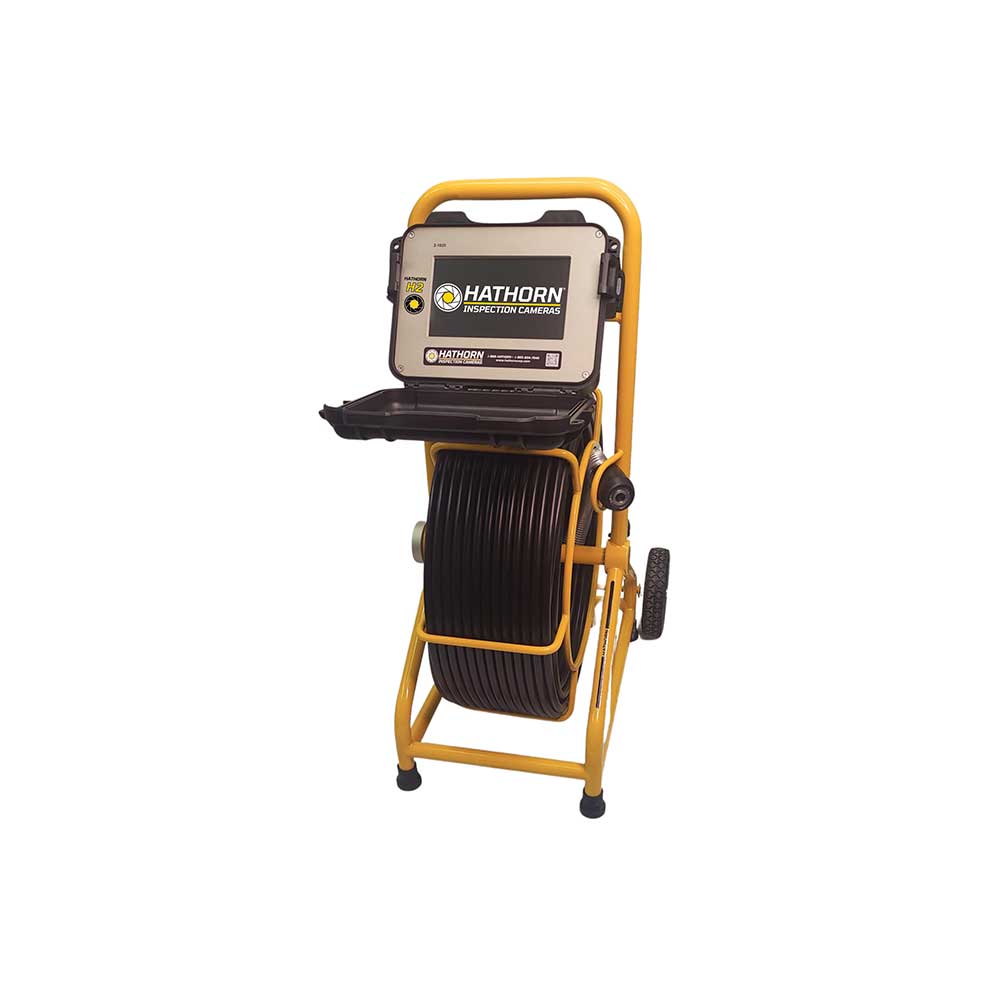

Hathorn® H2 Camera 1.43-In. SL Camera Head 200-Ft. Push Rod (H2-2143-SL.HAT)

1.43" Self-Leveling Camera • 200' Push Rod • 7" Shatter-Resistant Monitor

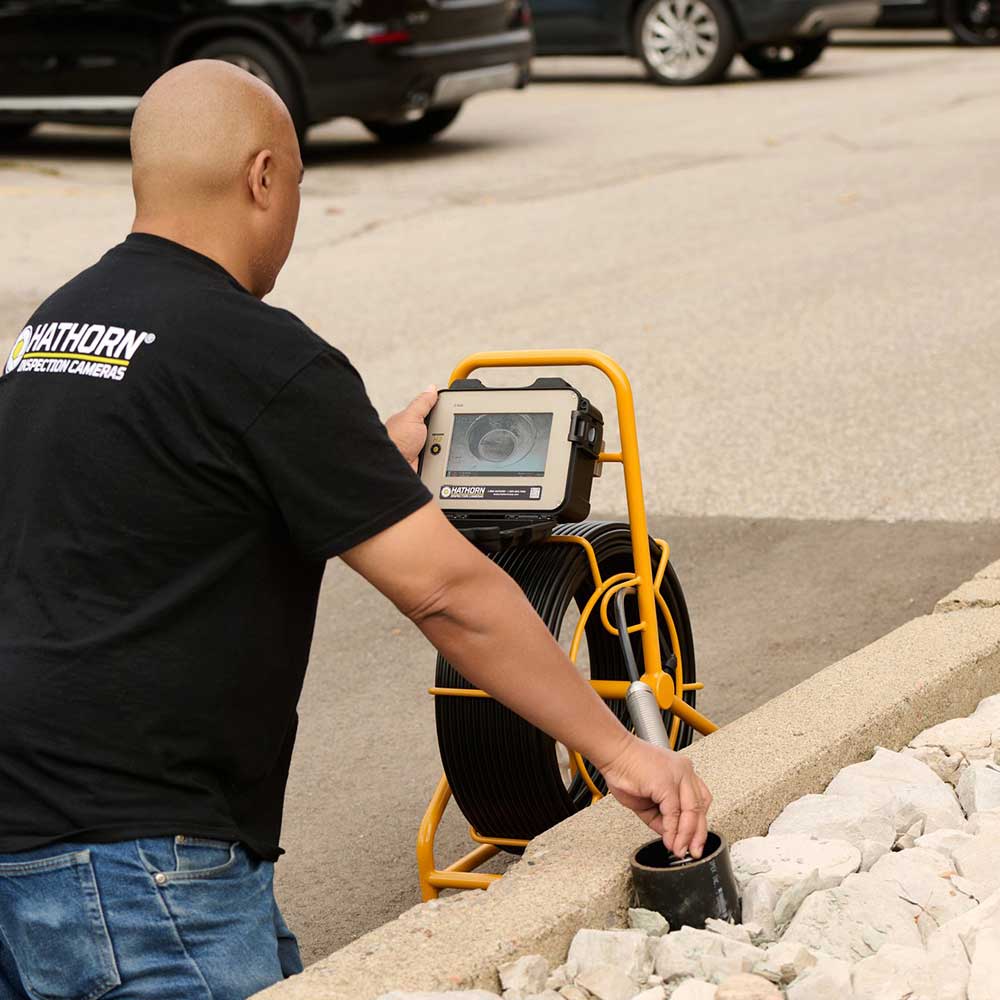

The Hathorn H2-2143-SL Inspection Camera provides a dependable, budget-friendly solution for drain, sewer, and pipe inspections without sacrificing durability or image quality. Designed for plumbers, contractors, maintenance teams, and property inspectors, this entry-level system combines a 1.43-inch self-leveling camera head with a rugged 200-foot push rod for inspecting long pipe runs and hard-to-reach areas.

The self-leveling camera head automatically keeps the image upright as it travels through the pipe, providing a more consistent viewing experience without requiring manual adjustment. A built-in footage counter displays distance in both feet and meters and includes a reset function for accurately tracking the camera’s location inside the line.

Inspection footage is displayed on a 7-inch shatter-resistant LCD monitor mounted in a lightweight, butt-welded steel frame. Military-grade faceplates and connectors help the system withstand demanding field conditions, while compatibility with Milwaukee M18 18V batteries or equivalent batteries provides convenient cordless operation. A 12V AC/DC adapter is also included for continuous powered use.

Key Features & Benefits

• 1.43" Self-Leveling Camera Head
  Automatically keeps the image upright for clearer, more consistent inspection footage.
• 200-Foot Push Rod
  Provides extended reach for inspecting long drain, sewer, and pipe systems.
• 7-Inch LCD Monitor
  Shatter-resistant display provides clear visual feedback in demanding work environments.
• On-Screen Footage Counter
  Displays camera travel distance in feet or meters and includes a reset function for precise tracking.
• Multiple Power Options
  Operates from a compatible Milwaukee M18 18V battery or equivalent battery, or from the included 12V AC/DC adapter.
• Up to 5 Hours of Battery Operation
  Supports extended inspection sessions when used with a compatible charged battery.
• Rugged Steel Frame
  Butt-welded construction provides durability while maintaining a manageable overall weight.
• Military-Grade Components
  Faceplates and connectors are built to withstand regular use in challenging inspection environments.
• Lightweight and Portable
  At approximately 45 lbs., the system is easier to transport between service calls and inspection sites.
• Multilingual Menu
  Monitor menus are available in English, Spanish, and French.
• Handles Common Pipe Configurations
  Designed to navigate a minimum 3-inch, 90-degree elbow under suitable pipe conditions.
• Well-Lit Viewing Up to 10" Pipe Diameter
  Camera lighting is rated for visibility in compatible pipes up to 10 inches in diameter.

Optional Camera Skids

For added camera protection, improved centering, and clearer visibility, consider these compatible accessories:

• Hathorn P-Trap Skid for 1.43" Camera Heads
• Hathorn 3" Grooved Skid for 1.43" Camera Heads

Camera skids help protect the camera head from pipe walls, lift it above standing water, and center it within the line.

Ideal Applications

The Hathorn H2 inspection camera is well suited for:

• Residential drain inspections
• Sewer line inspections
• Plumbing diagnostics
• Commercial pipe maintenance
• Property inspections
• Locating blockages and damaged pipe sections
• Preventive maintenance
• Contractor and service-truck use

Quick Specifications

Package Contents

• Hathorn H2 inspection camera system
• 1.43" self-leveling camera head
• 200' push rod and reel
• 7" LCD monitor
• 12V AC/DC adapter
• Operator documentation

Important Compatibility and Operating Information

The Milwaukee M18 battery or equivalent battery is not included. Verify battery compatibility before use.

A properly sized camera skid is recommended to protect the camera head, improve pipe centering, and reduce visual interference from standing water or debris.
