BravePro® Hydra Buddy™ XL Portable Hydraulic Unit (HBHXL16GX)

Regular price $1,789.99
Regular price -11% $1,999.99 Sale price $1,789.99

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us.

Product Description

BravePro® HBHXL16GX - No sales tax in most states

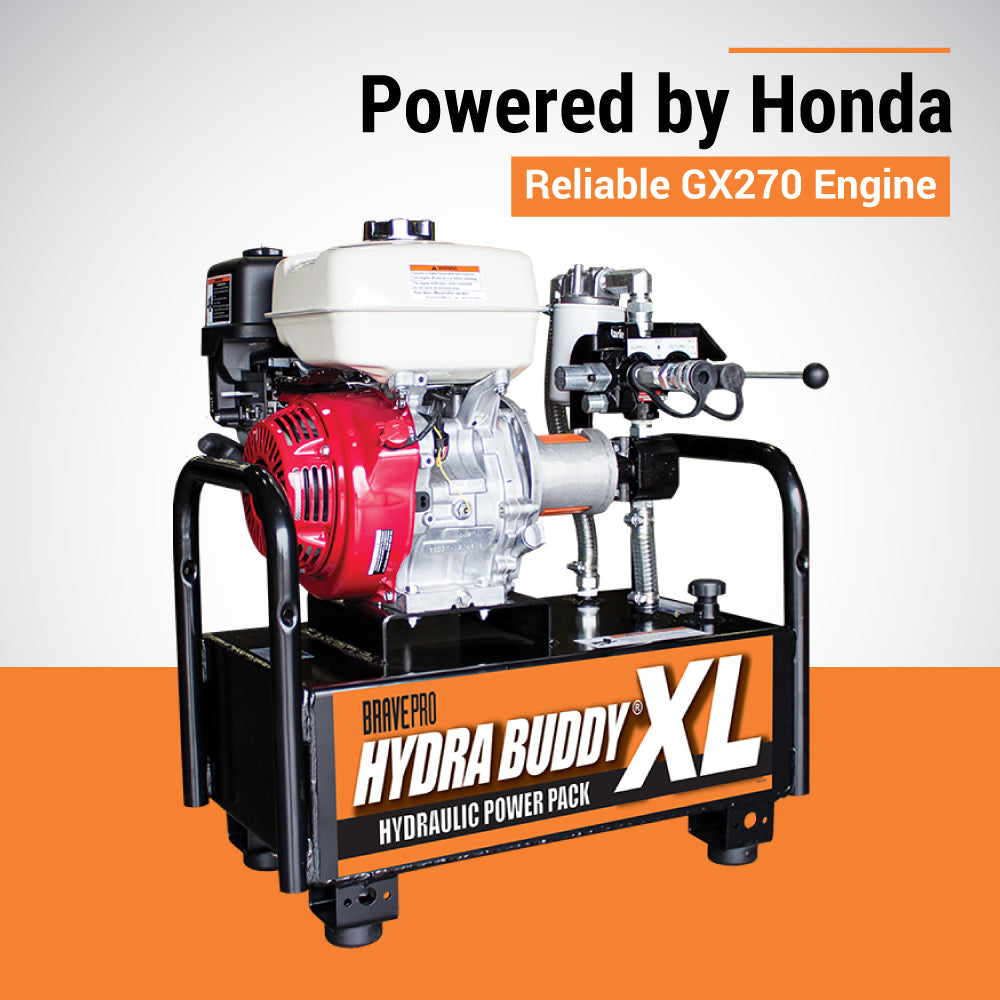

This BravePro® HBHXL16GX Hydraulic Power Pack is powered by a Honda® GX270 commercial engine. The Hydra Buddy™ replaces tractor power for augers, conveyors, dump wagons and more. This portable power unit saves you time & money by using less fuel and by requiring less maintenance than a tractor.

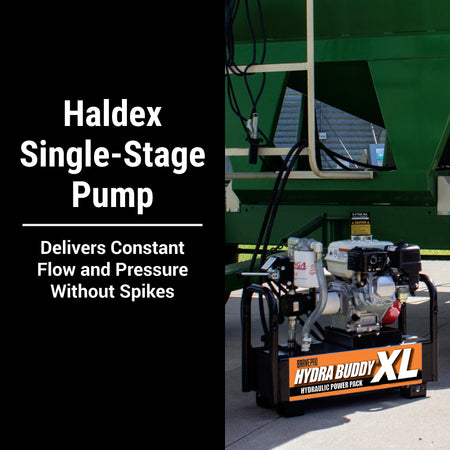

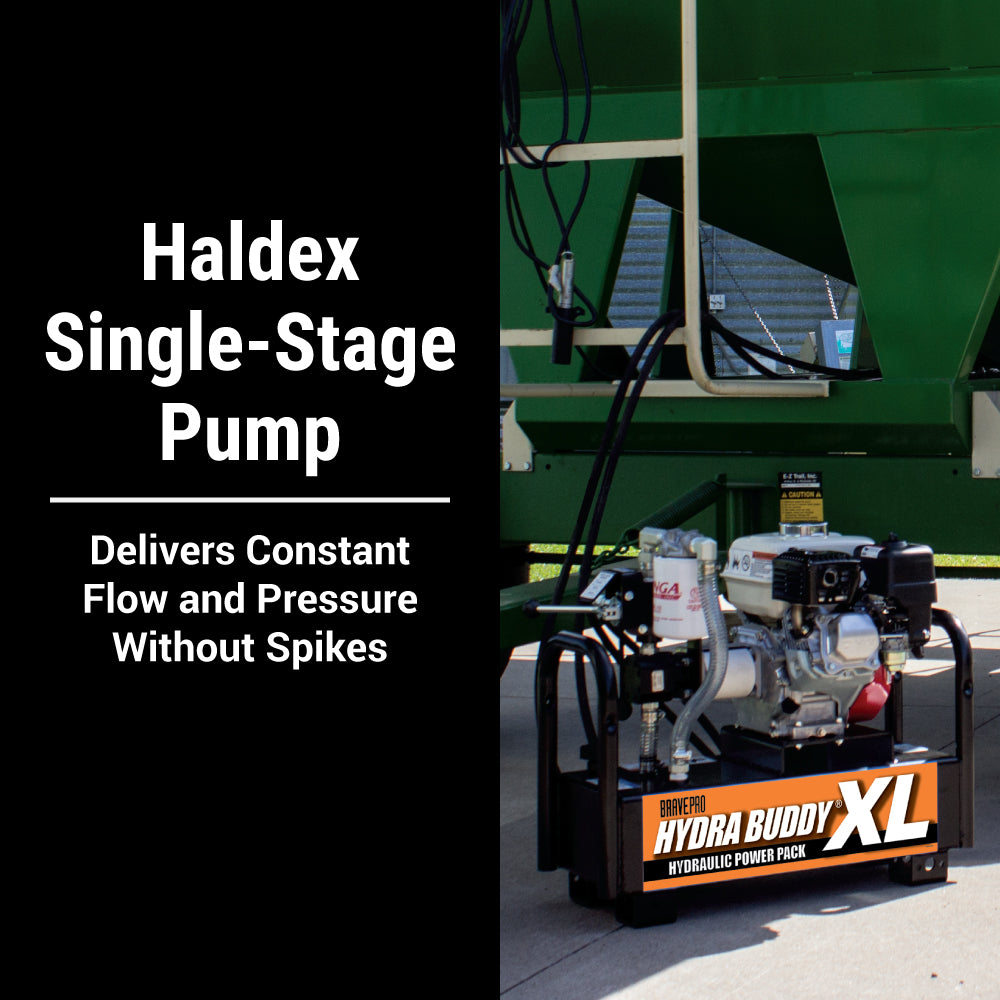

With a 7 GPM Haldex Single-Stage Pump (1500 PSI), will deliver a constant flow and pressure without spikes. Comes standard with 1/2” Stainless Steel Ports with Quick Disconnect Couplers which will minimize any downtime when changing applications.

The large 10.3 gallon hydraulic tank provides ample fluid for whatever application you need.

Optional wheel kit (item #HBHXLW16) makes moving this power pack around very easy (see product options).

Hydra Buddy Brochure

**Optional Rush Processing - We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays).   Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery.  If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.

Please note about lift gate delivery: You must select the $75 lift gate option if you can’t unload the 225+ LBS crate off the freight truck.You will not have to pay the $75 charge if you can ship to a business and you can unload the crate off the back of the freight truck. Shipping to a business is your best choice if possible saving you $75.These deliveries are “curb-side” only, please read the details about curbside, lift gate and residential freight deliveries.

Detailed Specifications

  • Shipping: Free (Standard ground)
  • UPC: 011343000268
  • Engine: 270cc Honda® GX270
  • Pump Capacity: 7 GPM
  • Pump Ports: 1/2" -14 O-Ring
  • Pump Direction: Counterclockwise
  • Hydraulic Fluid Type: AW32, ASLE H-150 or ISO 32
  • Hydraulic Tank Capacity: 10.3 gal
  • Hydraulic Tank Material: 3/16" Steel
  • Tank Drain Port: Yes - 1/2" NPT
  • Hydraulic Valve: 1500 PSI
  • Valve Type: One-Way Detent, One Way Spring Return
  • Hydraulic Valve Inlet: 3/4-14 NPT
  • Hydraulic Valve Outlet: 3/4-14 NPT
  • Filter Type: Parker 12AT25CN25BBN
  • Quick Disconnects: ISO 7241-1 Series A
  • Weight: 185 lbs
  • Warranty: 2 Year

Optional Add-Ons

Optional accessories for the Hydra Buddy HBHXL16GX by BravePro

Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system

Shipping Disclaimer

Due to rising fuel costs and lack of space on shipping trucks the costs in certain areas have been affected. An "out of area" fee may be necessary. If additional funds are required to fulfill your order we will reach out to you after your order is placed and give you options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)


Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.
