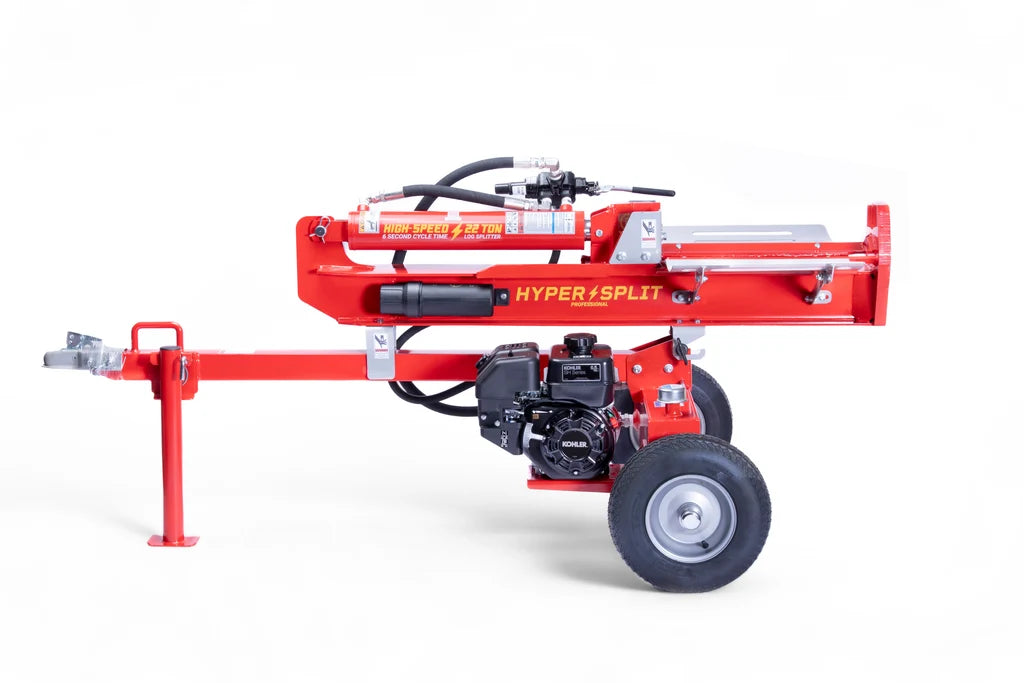

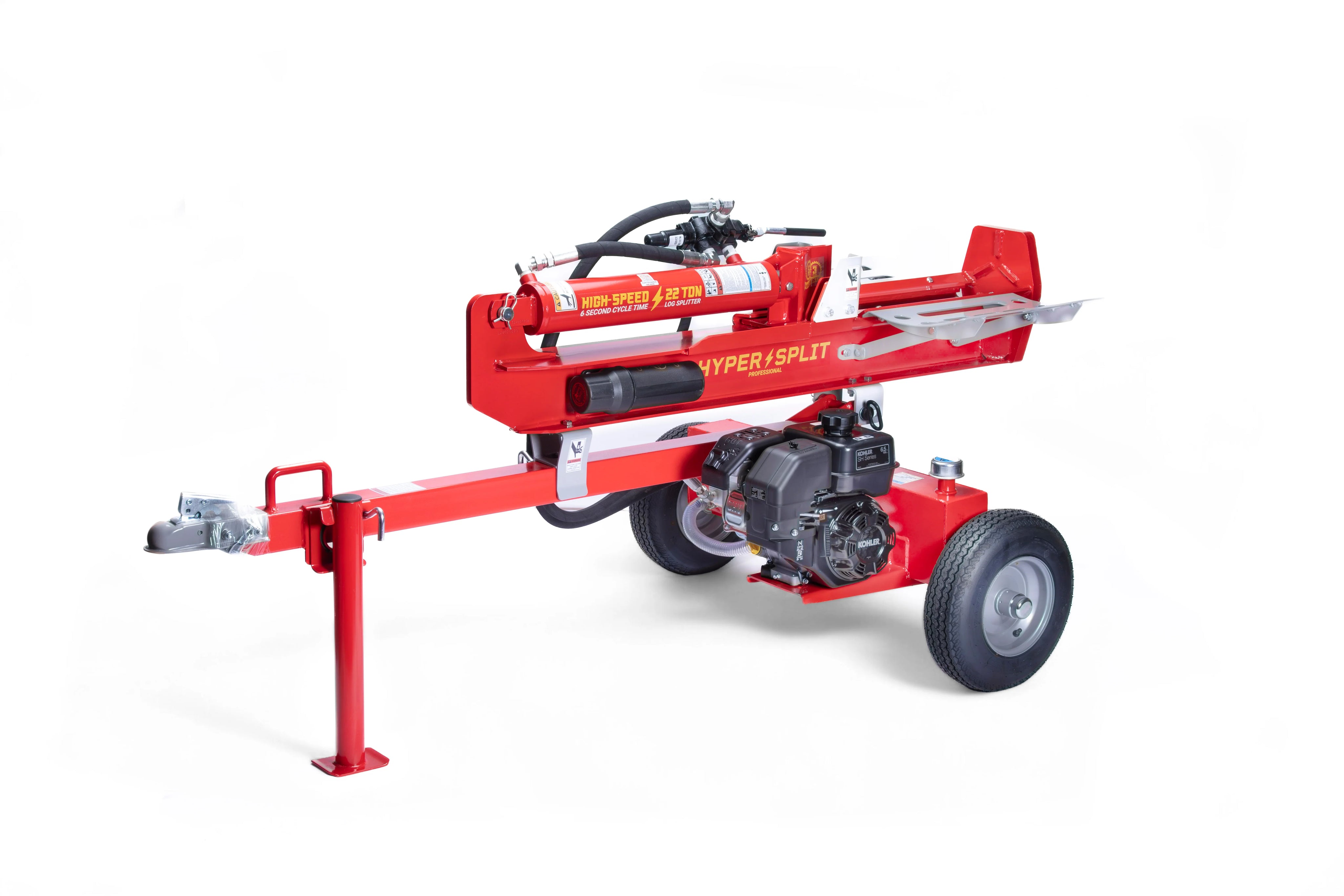

HyperSplit 22 Ton Fast Cycle Log Splitter with Kohler Engine (33-132)

5.8-Second Cycle • 22 Tons of Splitting Force • Kohler SH265 Engine • Horizontal and Vertical Operation

Process more firewood with less waiting between logs using the HyperSplit 33-132 22-Ton Log Splitter. Its high-flow hydraulic system combines a 16 GPM two-stage pump, 3.75-inch cylinder, and automatic-return control valve to deliver a manufacturer-rated cycle time of approximately 5.8 seconds.

Powered by a dependable 6.5 HP Kohler SH265 196cc engine, the splitter operates in both horizontal and vertical positions. Use the horizontal position for routine firewood processing or pivot the beam vertically to split heavier rounds without lifting them onto the cradle. Dual log catchers help support split pieces and improve workflow around the machine.

Key Features & Benefits

• Fast 5.8-Second Cycle Time
  The optimized engine, pump, valve, and cylinder combination reduces the time spent waiting for the wedge to extend and retract.
• 22 Tons of Splitting Force
  Produces strong hydraulic power for processing common hardwood and softwood firewood.

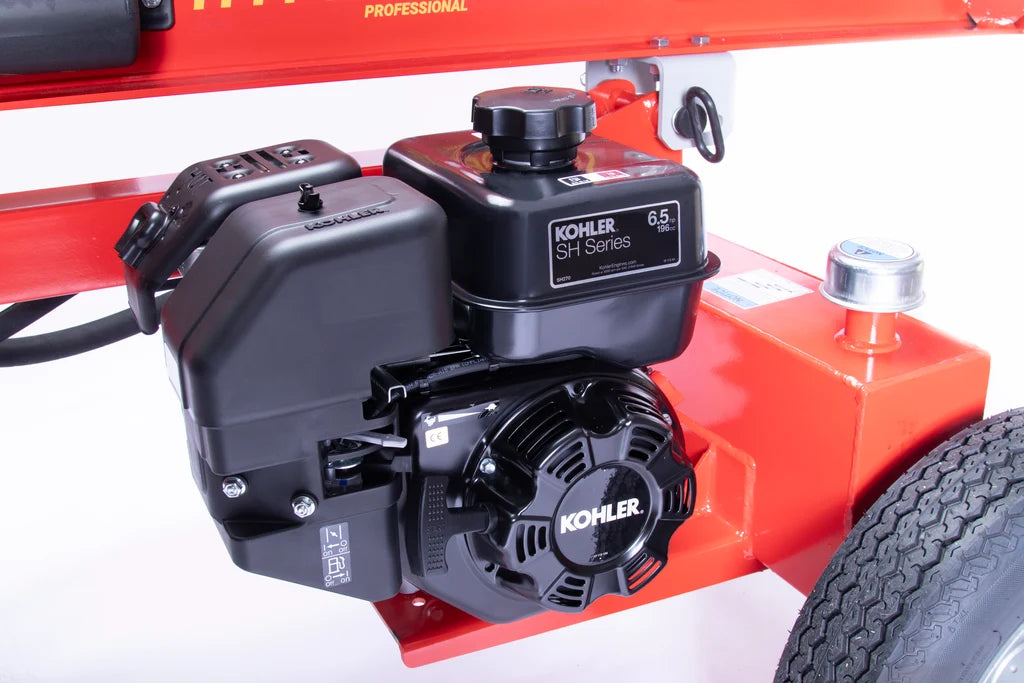

• 6.5 HP Kohler SH265 Engine
  The 196cc recoil-start engine supplies dependable power for the high-flow hydraulic system.
• 16 GPM Two-Stage Hydraulic Pump
  Provides fast movement under lighter loads and automatically shifts for greater pressure when resistance increases.
• Horizontal and Vertical Operation
  Switch between operating positions to accommodate standard logs and heavier rounds that are difficult to lift.
• 22-Inch Log Capacity
  Accepts firewood logs measuring up to 22 inches long.
• 7-Inch Steel Wedge
  Provides a tall splitting surface for dependable wood separation.

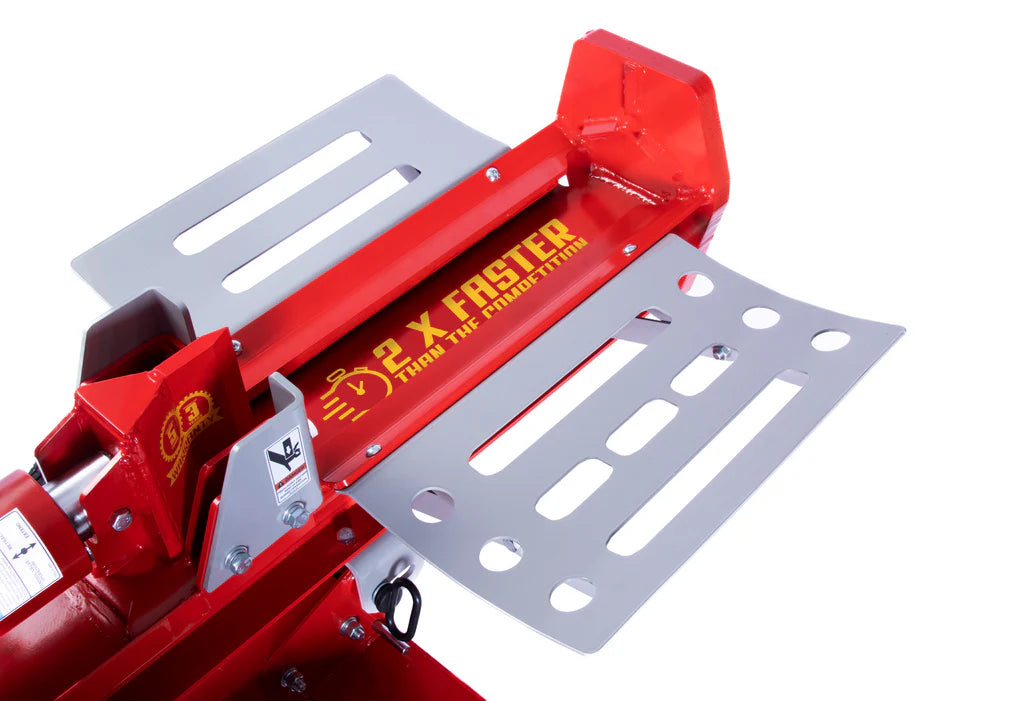

• Dual Log Catchers
  Catchers on both sides of the beam support split pieces and help keep them within easy reach.

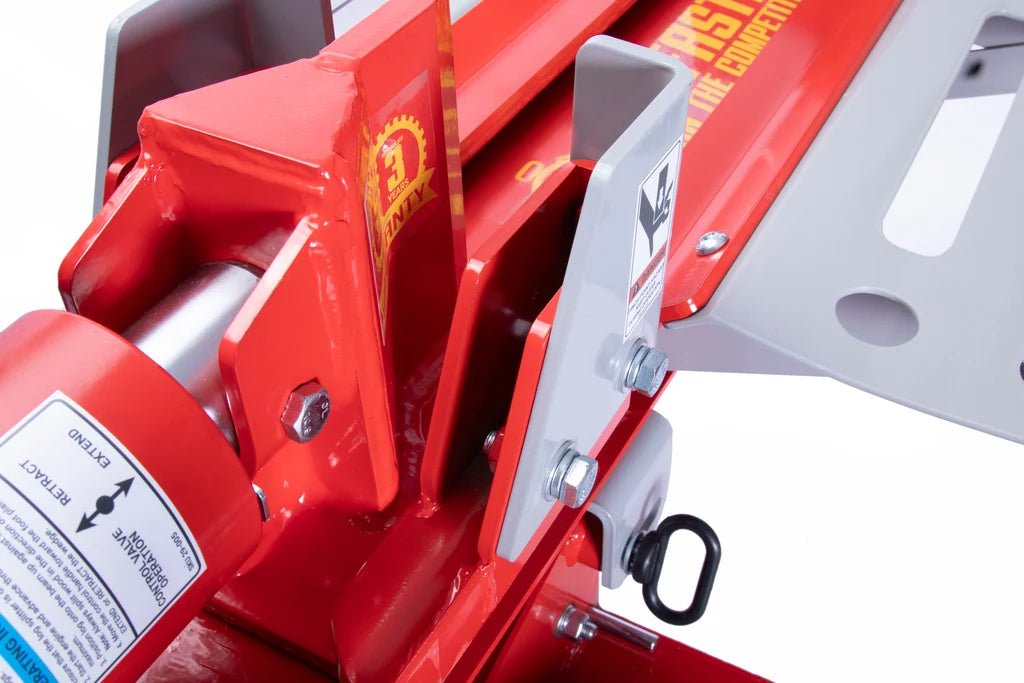

• Reinforced Cradle and Stripper Plates
  Double-thick steel in important wear areas adds durability around the splitting beam.

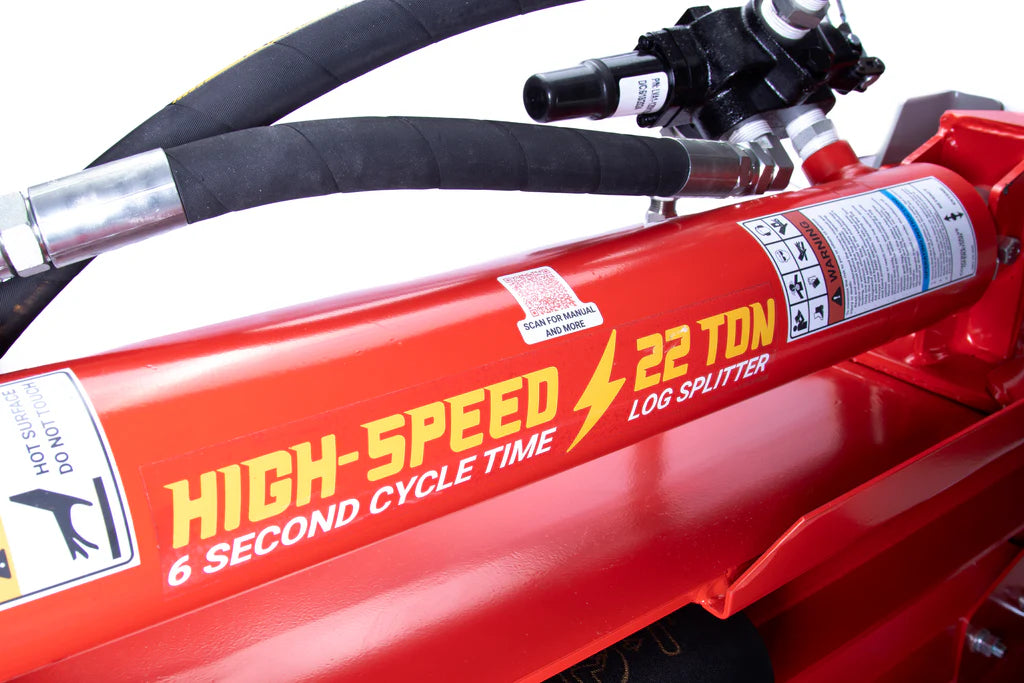

• Double-Sealed Hydraulic Cylinder
  Designed to support longer service life and dependable hydraulic operation.
• Automatic Return Valve
  Returns the wedge after the control lever is released, allowing the operator to prepare the next log.
• Towable Configuration
  Includes 16-inch tires and a 2-inch ball coupler for moving the splitter between compatible work locations.

High-Speed Hydraulic Performance

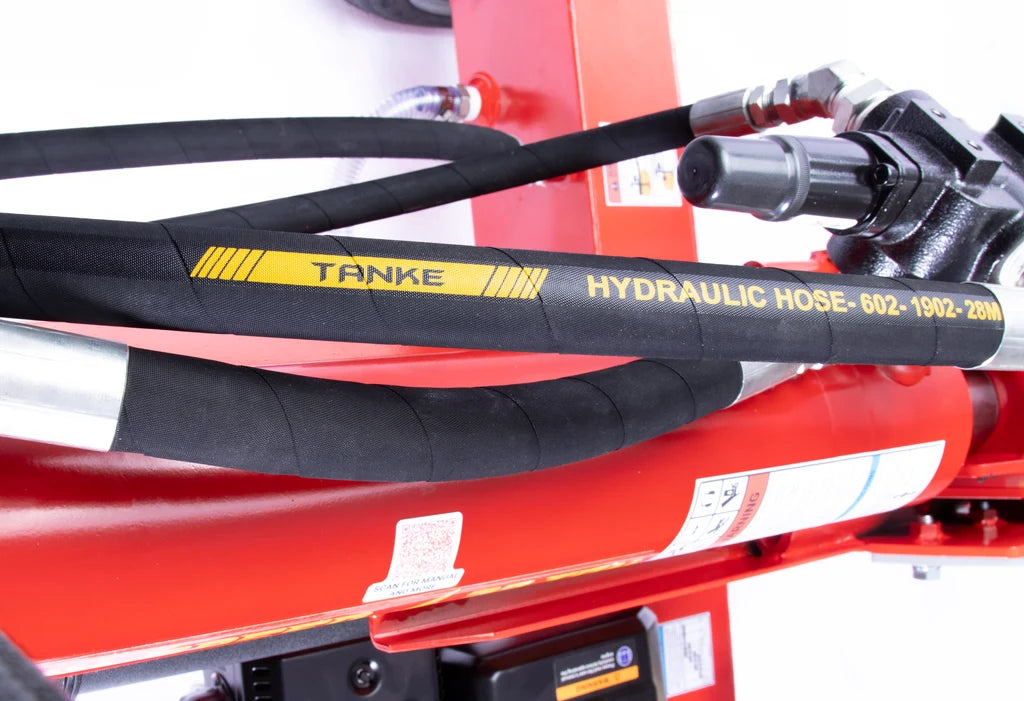

The HyperSplit 33-132 uses a 16 GPM two-stage gear pump, an 8-gallon operating hydraulic capacity, and a 3.75-inch-diameter cylinder rated for pressures up to 4,000 PSI. This combination provides rapid movement during the low-resistance portion of the stroke while preserving the pressure required to work through more difficult wood.

Horizontal and Vertical Splitting

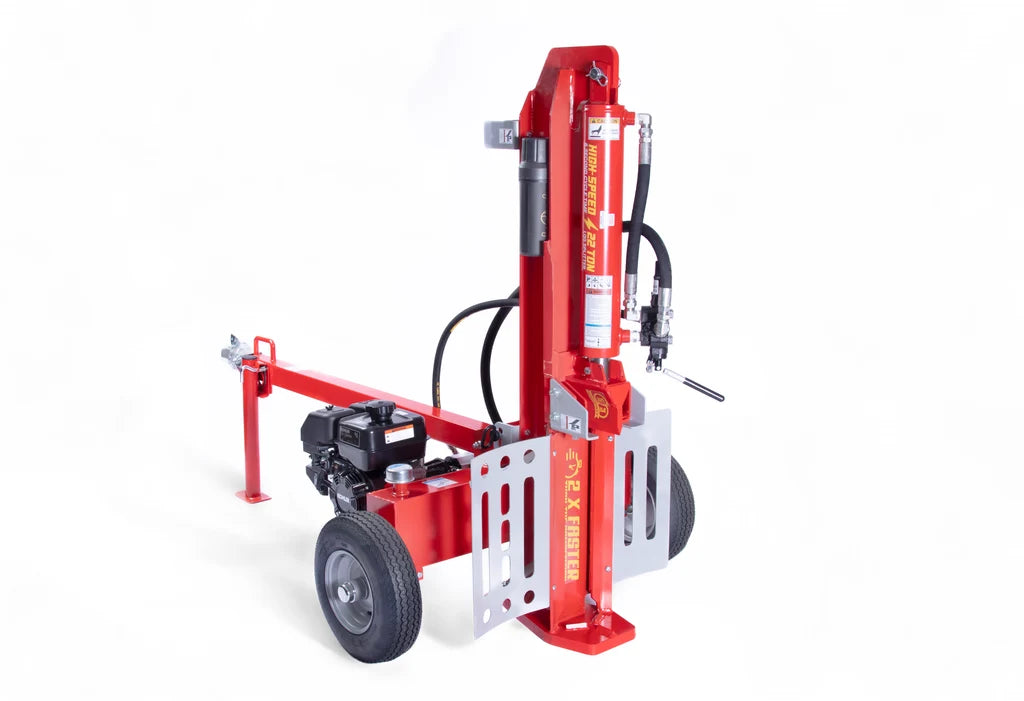

In the horizontal position, logs rest on the beam and dual catchers help support split pieces. For large or heavy rounds, the beam can be placed in the vertical position so the wood can be rolled into place rather than lifted onto the machine.

Always lock the beam securely in the selected operating position before starting work.

Ideal Applications

The HyperSplit 33-132 is well suited for:

• Residential firewood processing
• Home and property maintenance
• Splitting hardwood and softwood
• Processing heavier rounds vertically
• Preparing wood for fireplaces and wood stoves
• Users prioritizing a fast hydraulic cycle
• Rural, farm, and wooded-property cleanup

Quick Specifications

The hydraulic, engine, wedge, log-length, wheel, and hitch specifications follow the February 2025 operator’s manual. Published dimensions and weight come from the current retail specification listing.

Package Contents

• HyperSplit 33-132 log splitter
• Kohler SH265 196cc engine
• 16 GPM hydraulic pump
• Hydraulic cylinder and control valve
• Dual log catchers
• Tow tongue with 2-inch ball coupler
• Two wheel assemblies
• Tongue stand
• Operator’s manual

Some assembly is required. Engine oil and hydraulic fluid are not included and must be added according to the operator and engine manuals before starting the machine.

Residential Warranty

The limited residential warranty covers:

• Hardware components: 5 years from the purchase date
• Hydraulic components: 3 years from the purchase date
• Engine: Covered separately under the engine manufacturer’s warranty

Coverage applies to the original residential purchaser. Commercial users are excluded under the published splitter warranty, and product registration and proof of purchase may be required for a claim.

Important Towing Information

The splitter includes highway-rated tires and a 2-inch ball coupler, but equipment requirements, lighting, licensing, towing capacity, and permitted speeds vary by location. Review applicable state and local regulations before towing and verify that the coupler, safety chains, tires, fasteners, and beam lock are secure.
