Iron and Oak 24 Ton Vertical Horizontal Log Splitter (BHVH2418GX)

$3,699.99
-6% $3,949.99 $3,699.99

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).

USA Made - No Sales Tax (Most States) - Free Shipping!

Iron & Oak BHVH2418GX

This Iron & Oak BHVH2418GX commercial grade log splitter is customizable just the way you like it. Please see the options below and build your wood splitter just how you want it. This log splitter will split firewood in both vertical and horizontal positions.

This BHVH2418GX Iron and oak log splitter is built with top quality parts such as Brand valves and Concentric pumps. This model is powered by a commercial Honda GX160 engine. These motors are commercial rated and provide maximum efficiency, performance and power with minimal noise and emissions. Honda engines have a 3 year commercial grade warranty.

Included with this log splitter: dislodger, fenders, heavy duty log cradles and tow cables.

This log splitter is fully customizable with the following options:

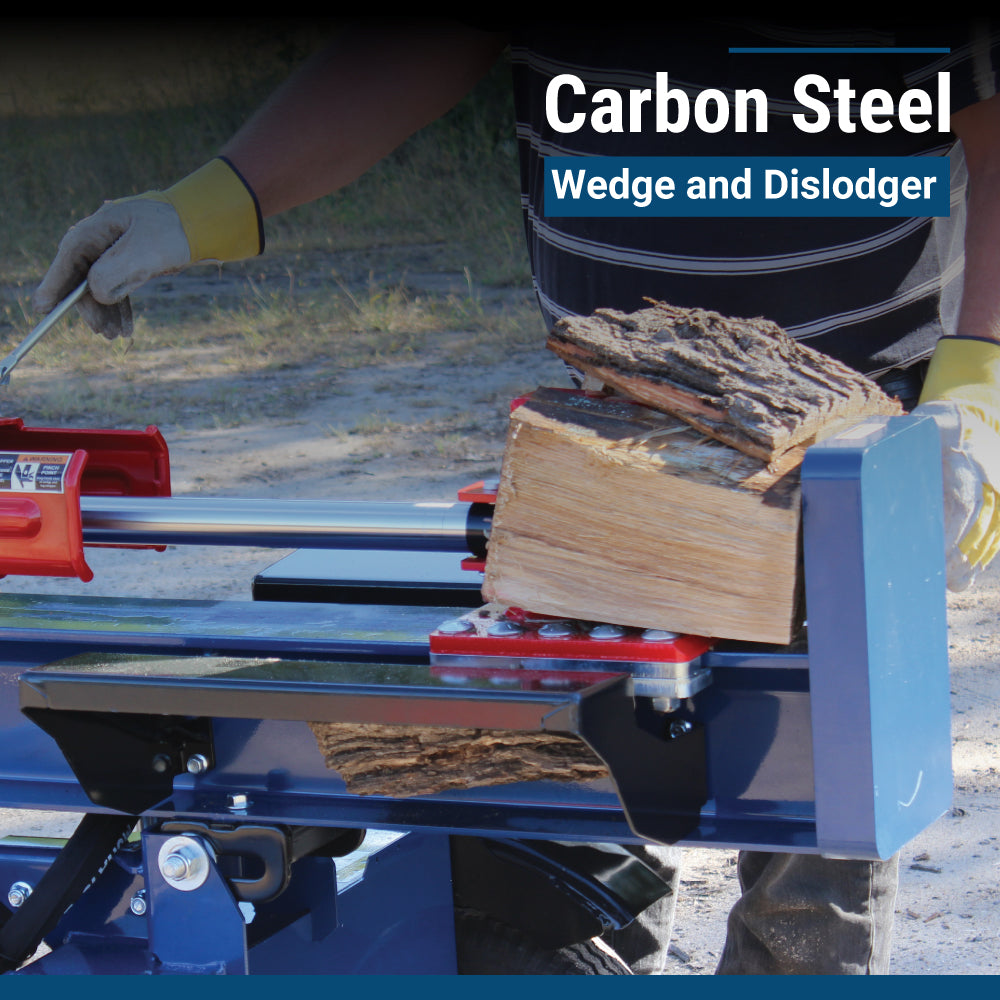

  • Log Dislodger - (Now Included Free) A log dislodger ejects stringy logs that stick on the wedge when it retracts. The log will hit the dislodger and self dislodge so you don't have to pull or hammer off the wood.
  • Engine Guard - Bolts to the beam and protects engine from falling wood.
  • Drainzit Oil Hose Kit - Drainzit oil hoses make changing oil easier and cleaner!  Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.
  • LED Light Kit - Increase visibility and make your log splitter travel safe.
  • Log Splitter Cover - High quality log splitter cover with draw strings to protect your investment from the elements.

  • **Optional Rush Processing - We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays).   Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery.  If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.

Iron & Oak Operations Manual

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option.  Some assembly is required.

Detailed Specifications

Tonnage:
24 Ton - 48,000 lbs
Engine:
Honda GX160 Commercial Engine
Beam:
Heavy Duty 6" Beam
Wedge:
7.5 Inches high
Cylinder Stroke:
24 Inches
Log Opening:
25 Inches
Cycle Time:
13 seconds (approx)
Operating Position:
Horizontal or Vertical
Wheels and Tires:
High-Speed, 4.80 x 4.00 x 8" (bolt-on)
Operating Dimensions:
Length: 92" Width: 48" Height: 34"
Hitch Coupler:
2 Inch locking ball (standard)
Cylinder Size:
4" x 24" Clevis type cylinder welded body 2" rod
Hydraulic Tank:
9 Gallon
System Capacity:
10 Gallons (including tank, cylinder, hoses, filter)
Hydraulic Filter:
Yes - Spin on type, 60 micron filter
Hydraulic Pump:
11 GPM ( 2 Stage pump)
Safety Control Valve:
Detent - Auto return
Weight:
675
Made in USA:
Yes!
Consumer Warranty:
2 Year / 3 Year Engine
Commercial Warranty:
2 Year Limited / 3 Year Engine
Log Cradles / Tables:
Standard
Engine Guard:
Optional

NOTE: Most products require at least some assembly.

Shipping Disclaimer

Due to rising fuel costs and lack of space on shipping trucks the costs in certain areas have been affected. An "out of area" fee may be necessary. If additional funds are required to fulfill your order we will reach out to you after your order is placed and give you options including possible terminal pick up. (Read more about our shipping policy and how freight shipping works.)

CALIFORNIA PROPOSITION 65 WARNING

Some (not all) of the products we carry can potentially expose you to chemicals including Benzene and Carbon Monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harms. If you have any questions you can always contact us.

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
F
Frank S. (Los Angeles, US)

A fine piece of machinery.

Thank you for leaving a review! We're glad to hear that you are satisfied with your Iron and Oak 24 Ton Vertical Horizontal Log Splitter. It's always great to hear positive feedback from our customers. Thanks for choosing our product!

J
James M. (Casey Corner, US)
24-ton

I did a lot of studding on several units and ended up deciding on the 24-ton,I really wanted the 30-ton but they don't ship to Ca because of the emission laws. The instructions are easy .I used a tractor to raise the boom because i didn't have help. After 10-hours the unit developed a knock. I called customer service twice and am still waiting for a call back! I took the pump off and ran the motor with no knock's put the pump back on and no knock .Not sure if the unit is going to blow up or not. Customer service is terrible. Unit works better in the vertical positron then the horizontal .It does struggle with knots. So far i,m learning how to use the unit, I can do larger rounds with being smart. I bought the unit because it's Us made, large hydraulic tank, and heavy boom. So far I think I could have got a better unit for the price, Iron and Oak seem to be in the higher price range .When and if the unit wears out I will up grade the unit with a bigger motor ,pump .and ram.

Hello James,

I am very sorry to hear about some of your troubles. I did a search for any emails or phones calls from you about your order and I am not showing you contacted us at all about your order. Maybe you were having an issue with the manufacture, I am not sure. Also please allow a few days for a returned phone call. At any rate now that we know you are having an issue we will forward your information to Iron & Oak to help get your situation resolved as you are under warranty. Unfortunately your state now has a very strict emissions policy basically banning all small engines now pushing you to go electric. Not may large tonnage splitters on the market that are electric as this time. Thanks for the review, we will be passing along your information to help get your situation resolved.

Thanks, WSD

A
Andy L. (Janesville, US)
A Nice American Made Machine

I purchased this machine because I wanted to keep the money in the United States and I heard this was a great unit. It arrived in a well-made crate and was very easy to put together. I filled the reservoir with 10 gallons of ISO 32 hydraulic fluid, filled the Honda with oil, and pulled the handle 20 times (prime the pump) watching the ram move at about pull 15 as the pump was primed. I then filled the gas and it started on the first pull. I greased both sides of the beam and split my first cord of oak. I am really impressed with the lock mechanisms that holds the beam in the vertical and horizontal position and the crank idler wheel that levels the unit on uneven ground. The hydraulic control feels very durable and the unit punches its way through logs with eaze. The ram looks very robust and the beam is reinforced with welds on the "top" end and under the entire area of wedge travel. I have used many splitters before, but I have never seen one this "overbuilt". I am sure that I will get decades of good use out of this great machine and am happy that it was built in my neighboring state (MN). Wood Splitters direct had the best price and kept me informed on the status of my order as there was a slight delay due to supply issues. I would definitely use them again and recommend them to anyone interested in a log splitter.

R
Robert B. (The Colony, US)
Quality Equipment

The log splitter was straight forward concerning assembly and work instructions provided. It is important to follow the instruction carefully in priming the hydraulics prior to startup. No issues or missing parts discovered. Customer service answered question about using Dextron 3 oil in hotter climates. Thus far I am happy with the purchase.

P
Phil K. (McCall, US)
Happy customer

The word splitter showed up exactly when they said. It's running perfectly and split about 7 cords of very wet stringy wood , some 48 inches in diameter with no issues at all.

A
Alex
Iron and oak 24 ton

Wood splitters direct was great to work with, shipping was super fast. Log plotter came in a crate in perfect condition and exceeds my needs and expectations. I purchased the iron and oak splitter not only for the value in it, but it’s made in the USA. Thank you wood splitters direct and Stacy for the help!
