Iron & Oak Log Dislodger Assembly for 6" Beam Log Splitters (BR021172-14)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Removes Logs Stuck on the Wedge • Protects Hydraulic Components • Required for Certain Older 4-Way Wedge Installations
Help safely remove logs that remain attached to the splitting wedge with the Iron & Oak BR021172-14 Log Dislodger Assembly. Designed for compatible log splitters with a 6-inch beam, the dislodger strips a stuck log from the wedge as the hydraulic cylinder retracts.
In addition to improving workflow, the assembly helps protect the control valve and other hydraulic components from damage that could occur when a stuck log travels too far toward the cylinder and valve area.
Key Features & Benefits
-
Helps Remove Stuck Logs
Strips a log from the splitting wedge as the wedge retracts. -
Protects Hydraulic Components
Helps prevent stuck wood from contacting and damaging the control valve and nearby hydraulic components. -
Designed for 6-Inch Beams
Made for compatible Brave and Iron & Oak log splitters using a 6-inch beam configuration. -
Supports 4-Way Wedge Installation
Iron & Oak splitters manufactured in 2014 or earlier require this dislodger when using the BR021270-KIT 4-way wedge. -
Rugged Replacement Assembly
Designed as a durable replacement component for compatible log splitter models. -
OEM Part Number
Identified by manufacturer part number BR021172-14 for accurate replacement-part lookup.
How the Log Dislodger Works
Stringy, tough, or partially split wood can remain attached to the wedge when the operator begins retracting the cylinder. With the dislodger installed, retracting the wedge fully causes the stationary dislodger to push against the log and separate it from the wedge.
The operator must keep hands and other body parts away from the log, wedge, beam, and dislodger throughout the retraction process.
4-Way Wedge Compatibility
The Iron & Oak BR021270-KIT 4-Way Wedge is designed to install directly on compatible newer splitters. Iron & Oak models manufactured before 2015 require the BR021172-14 Log Dislodger before the 4-way wedge can be used properly.
This dislodger and the 4-way wedge are separate products unless specifically offered together as a kit.
Quick Specifications
| Specification | Details |
|---|---|
| Brand | Iron & Oak |
| Part Number / SKU | BR021172-14 |
| Product Type | Log Dislodger Assembly |
| Compatible Beam Size | 6 in. |
| Primary Function | Removes Logs Stuck on the Splitting Wedge |
| Secondary Function | Helps Protect the Control Valve and Hydraulic Components |
| 4-Way Wedge Application | Required for Compatible Iron & Oak Models Manufactured in 2014 or Earlier |
| Compatible 4-Way Wedge | BR021270-KIT |
| Installation Type | Replacement / Accessory Installation |
| Log Splitter Included | No |
| 4-Way Wedge Included | No |
Package Contents

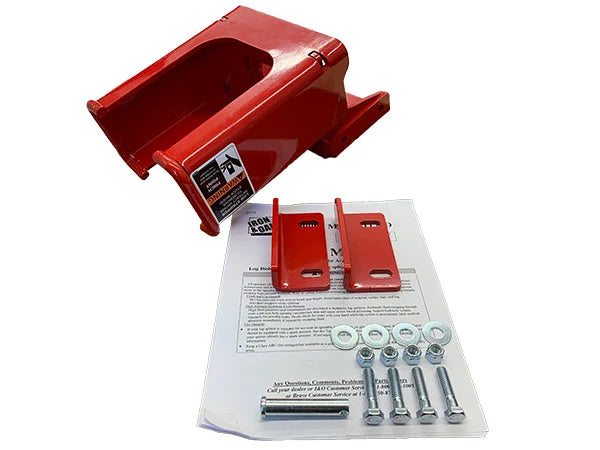

- One Iron & Oak BR021172-14 log dislodger assembly
Important Compatibility Notice
This part is not universal. Before ordering, verify:
- Log splitter brand
- Complete model number
- Serial number or revision
- 6-inch beam configuration
- Cylinder and control-valve orientation
- Existing mounting points
- Compatibility with any installed 4-way wedge
NOTE: Most products require at least some assembly.
