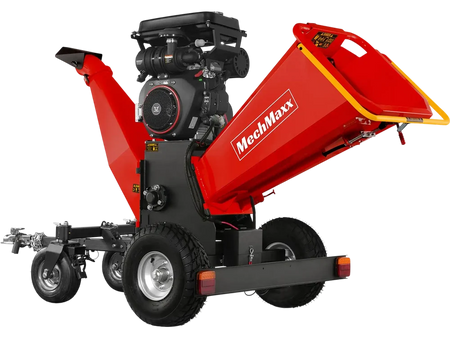

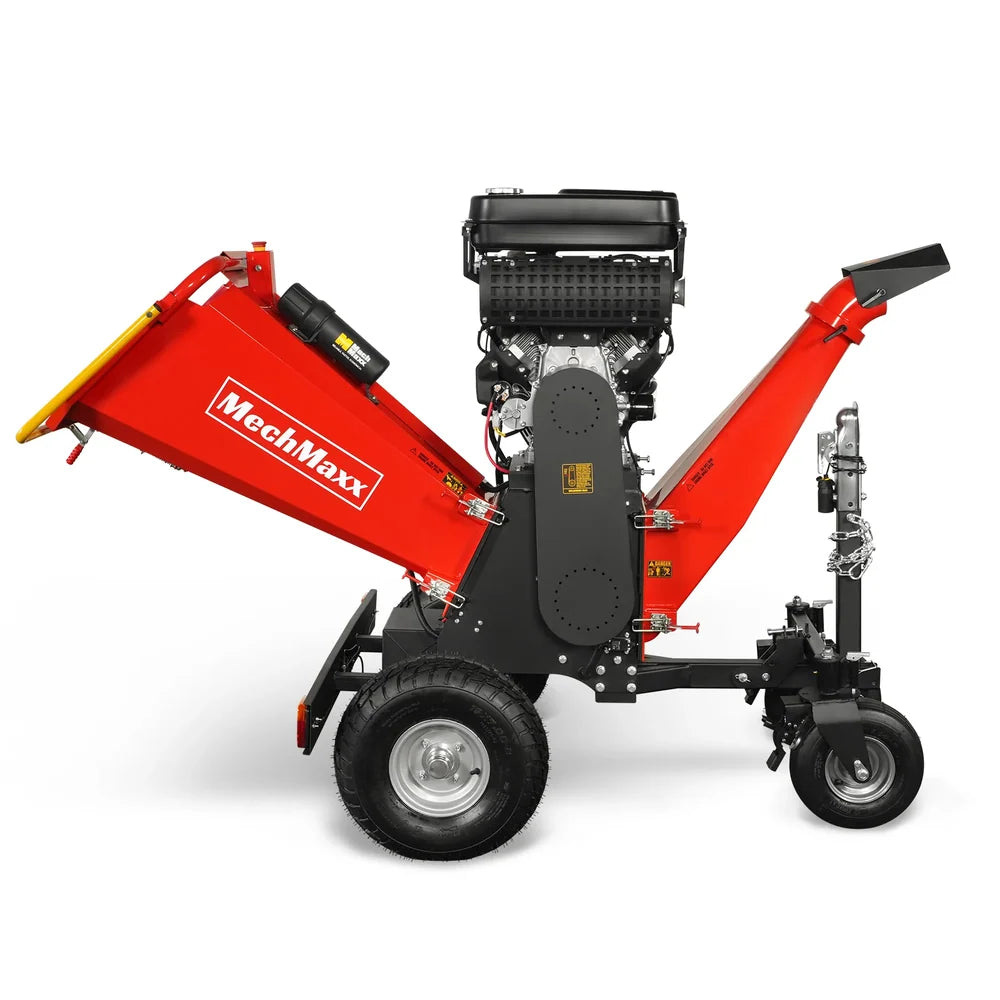

MechMaxx B200 8-Inch 35HP Gas Powered Drum Wood Chipper – ZONSEN Electric Start (110810)

Heavy-Duty 8-Inch Wood Chipper with 35HP ZONSEN Engine, Electric Start & 4-Wheel Design

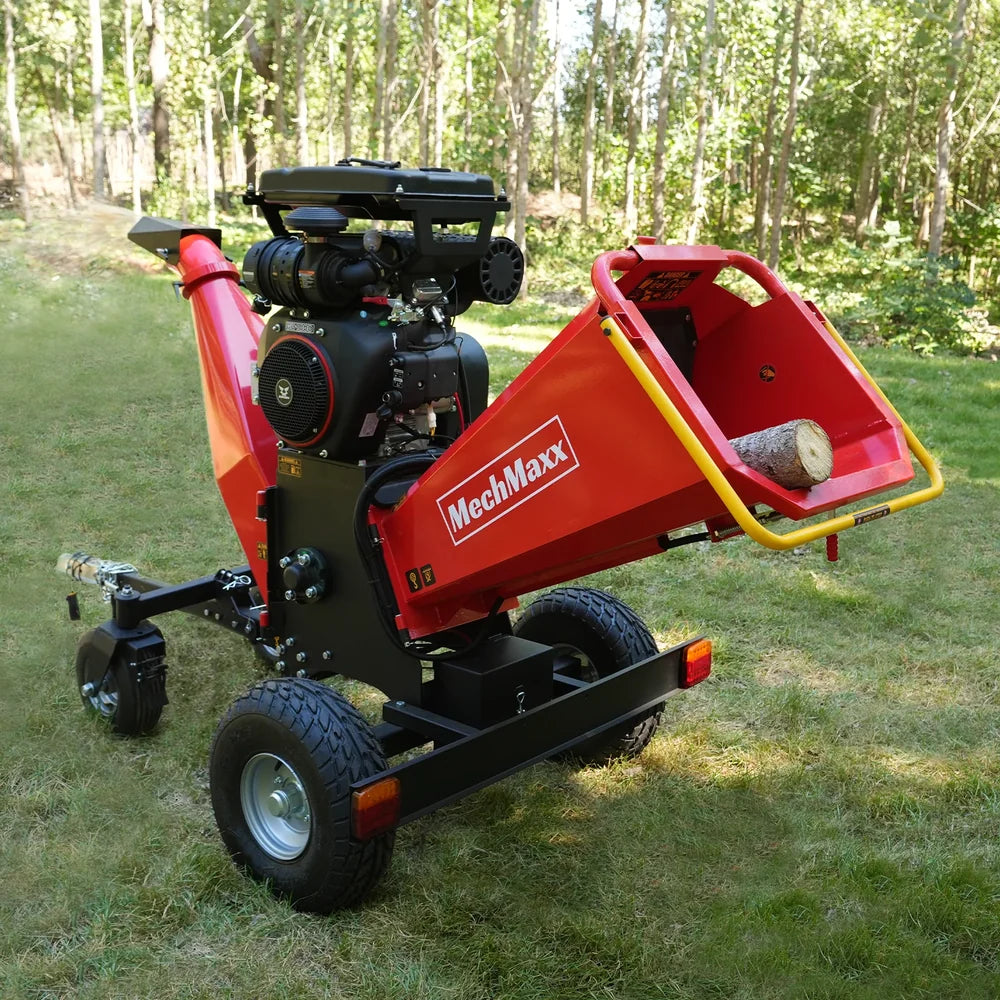

Take on demanding tree cleanup, land clearing, and wood chipping projects with the MechMaxx B200 8-Inch Gas Powered Drum Wood Chipper. Powered by a robust 35 HP, 1000cc ZONSEN GB1000 gasoline engine, this heavy-duty wood chipper is engineered to handle branches and wood material up to 8 inches in diameter.

Designed for professional landscapers, tree care specialists, property owners, and equipment rental businesses, the B200 combines powerful drum-style cutting performance with the convenience of electric starting, a four-wheel chassis, and a 360-degree rotating discharge chute.

Its large cutting drum, reversible steel blades, and centrifugal clutch work together to provide dependable chipping performance, while the emergency stop controls and maintenance safety interlocks add protection during operation and servicing.

Equipped with rear DOT-approved tires, integrated taillights, a 7-pin trailer connector, and a 2-inch tow coupler, the B200 is designed for convenient transportation between jobsites, subject to applicable towing requirements.

Key Features & Benefits

• Powerful 35 HP ZONSEN Gas Engine: Equipped with a 1000cc ZONSEN GB1000 four-stroke OHV engine delivering the power needed for demanding wood chipping applications.

• Up to 8-Inch Chipping Capacity: Designed to process branches and wood material up to 8 inches in diameter, making it ideal for tree trimming, storm cleanup, and land clearing projects.

• Convenient Electric Start: Features electric starting with an included 12V, 45Ah lead-acid battery for easier engine startup.

• Heavy-Duty Drum Cutting System: Features a large 13.8-inch cutting drum designed to provide the rotating momentum needed to process larger branches and woody material.

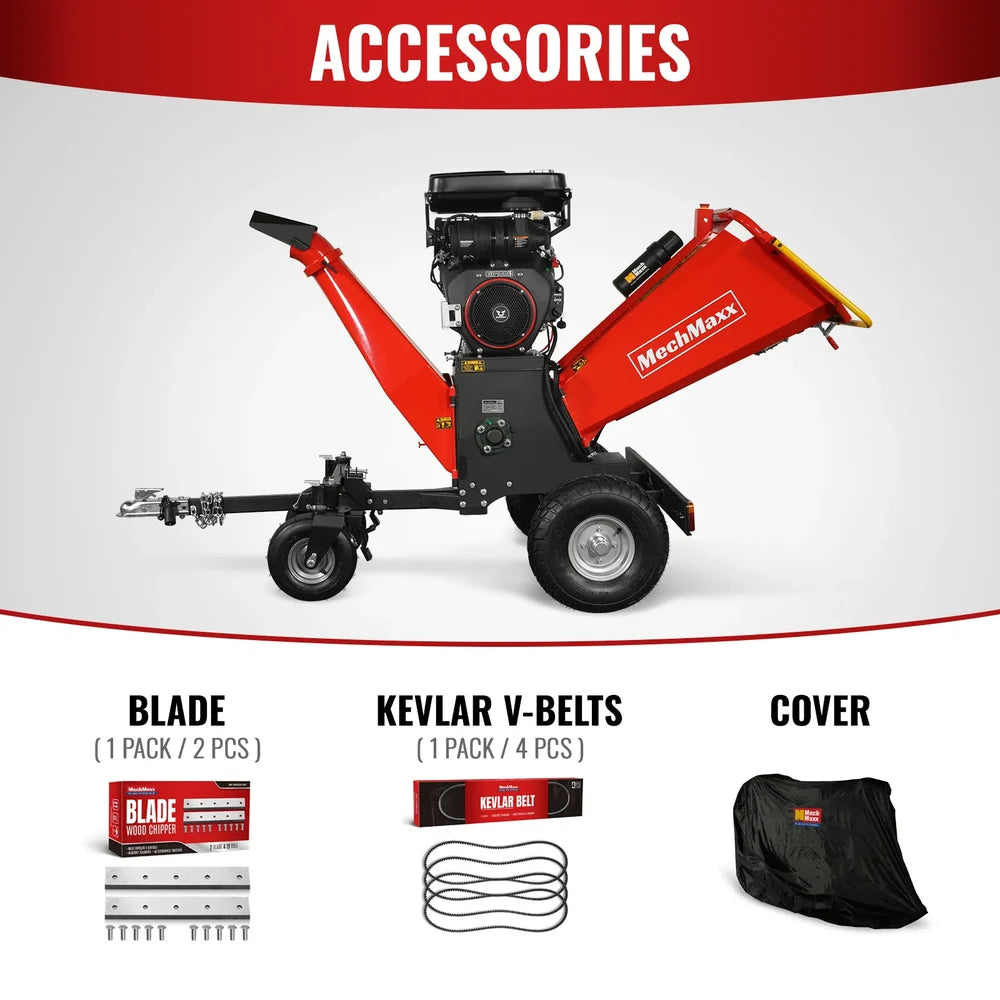

• Reversible Double-Edged Cutting Blades: Two durable, reversible steel blades provide cutting performance and extended usability before replacement is needed.

• 360-Degree Rotating Discharge Chute: Direct wood chips toward a designated collection area, trailer, or chip pile without constantly repositioning the machine.

• Four-Wheel Design: Features two large rear tires and two foldable front support wheels for improved mobility and positioning around the worksite.

• Foldable & Lockable Front Wheels: Front wheels can be lowered for positioning the chipper at the jobsite or folded upward during towing.

• Integrated Taillights & 7-Pin Trailer Connector: Connects to a compatible towing vehicle's electrical system to operate the chipper's trailer brake and turn signal lights.

• 2-Inch Trailer Coupler: Provides convenient connection to compatible towing vehicles for transportation between jobsites.

• 48-Inch Wheelbase: Wide wheel spacing helps provide stability when moving and positioning the machine.

• Dual Emergency Stop Controls: Features an emergency stop button and a press bar near the feeding chute for quick access during operation.

• Safety Interlock System: Opening the feeding or discharge chute activates a shutdown interlock to help protect operators during maintenance.

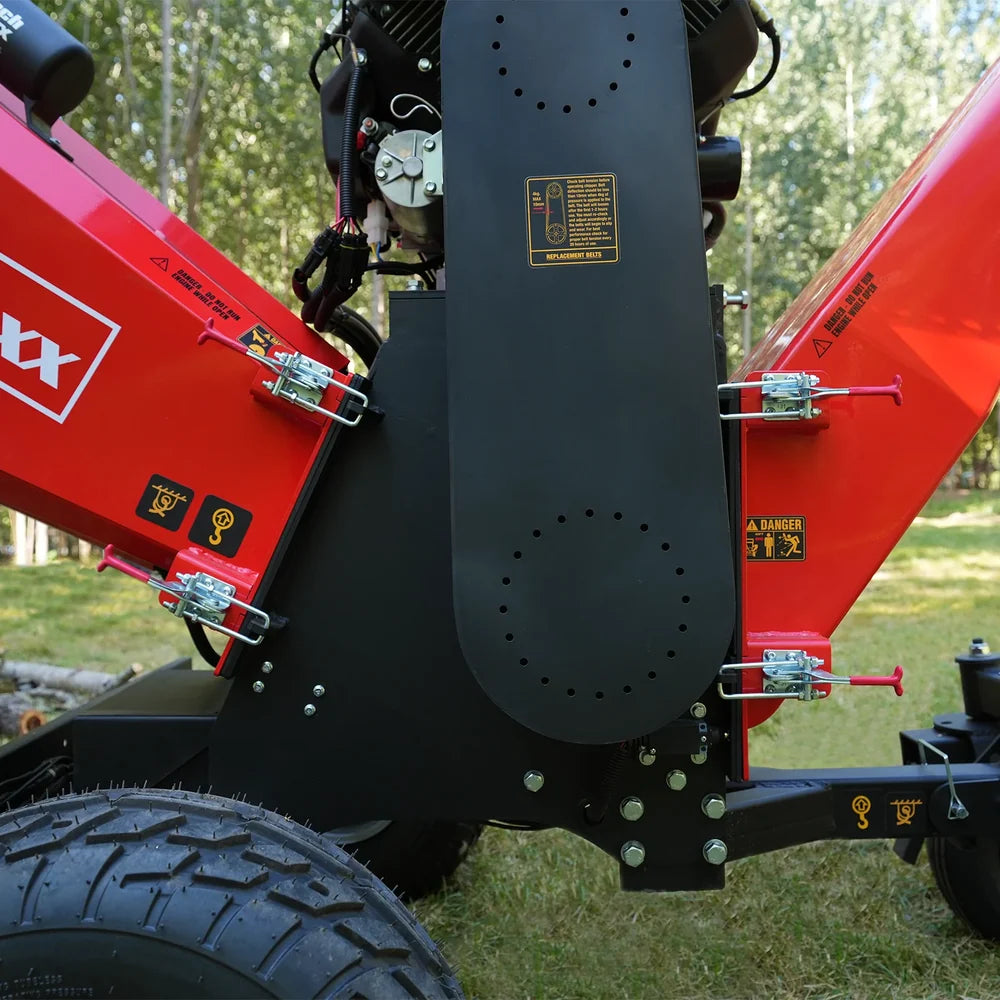

• Easy Maintenance Access: Quick-release latches on the feed and discharge chutes provide convenient access for cleaning, inspection, and blade servicing.

• Heavy-Duty Belt Drive System: Equipped with four Kevlar V-belts and a centrifugal clutch for power transmission from the engine to the cutting system.

• 2-Year Manufacturer's Warranty: Backed by a two-year factory warranty on both the engine and machine, subject to manufacturer's terms.

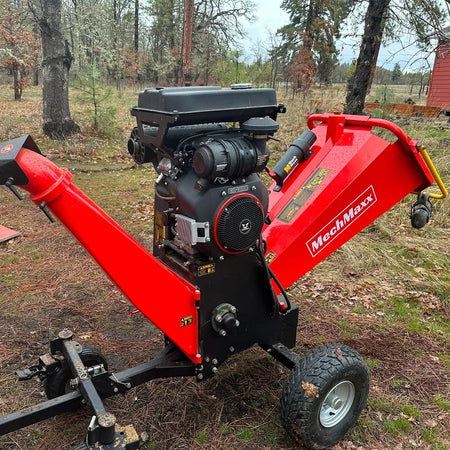

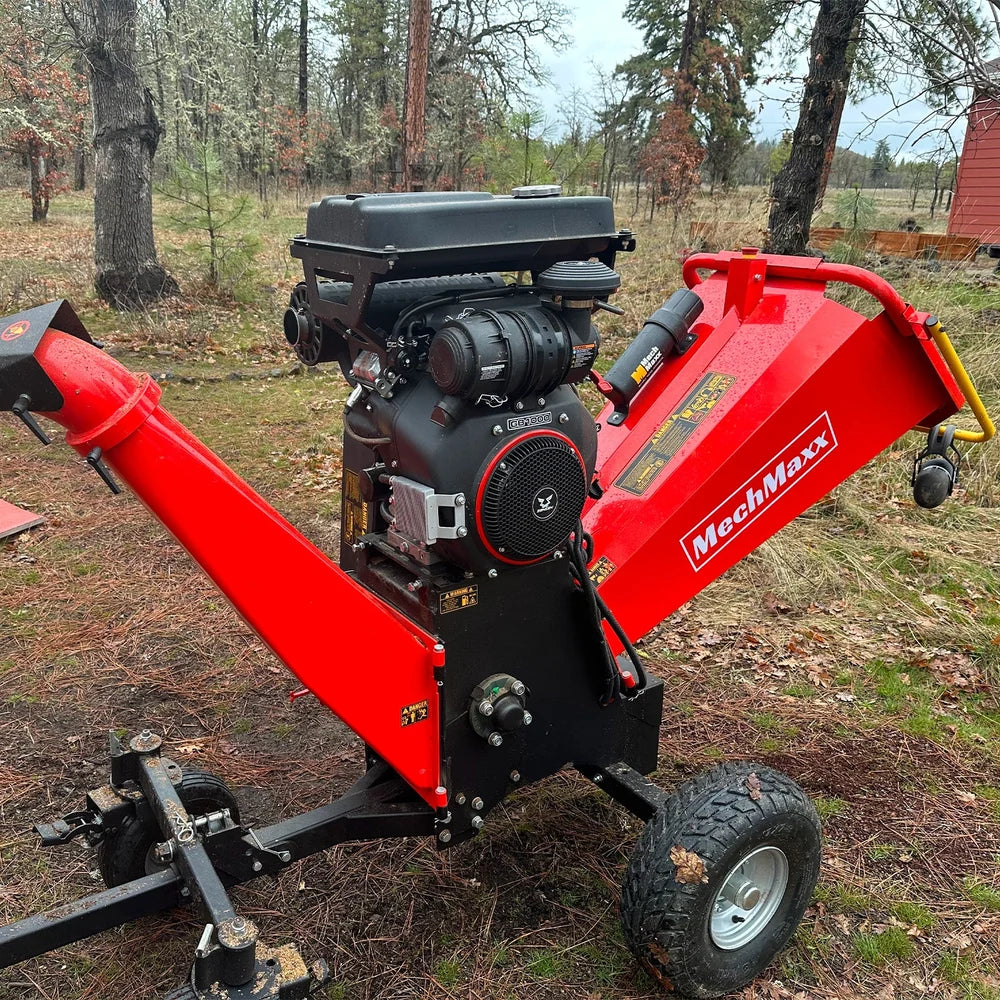

Powerful 35HP ZONSEN Engine with Electric Start

At the heart of the MechMaxx B200 is a ZONSEN GB1000 35 HP gasoline engine, engineered to provide dependable power for heavy-duty wood chipping.

The 1000cc, four-stroke OHV engine features an air-cooled design, electric starting, and a generous 4.76-gallon fuel tank to support extended operation.

The electric start system eliminates the need for repeated manual pull-starting, while the included 12V, 45Ah battery provides convenient engine startup.

Engine Highlights:

• 35 HP ZONSEN GB1000 gasoline engine

• 1000cc engine displacement

• Air-cooled, 4-stroke OHV design

• Electric starting system

• Included 12V, 45Ah lead-acid battery

• 4.76-gallon fuel capacity

• 23.5 kW rated power at 3,600 RPM

• 71.2 Nm maximum net torque at 2,500 RPM

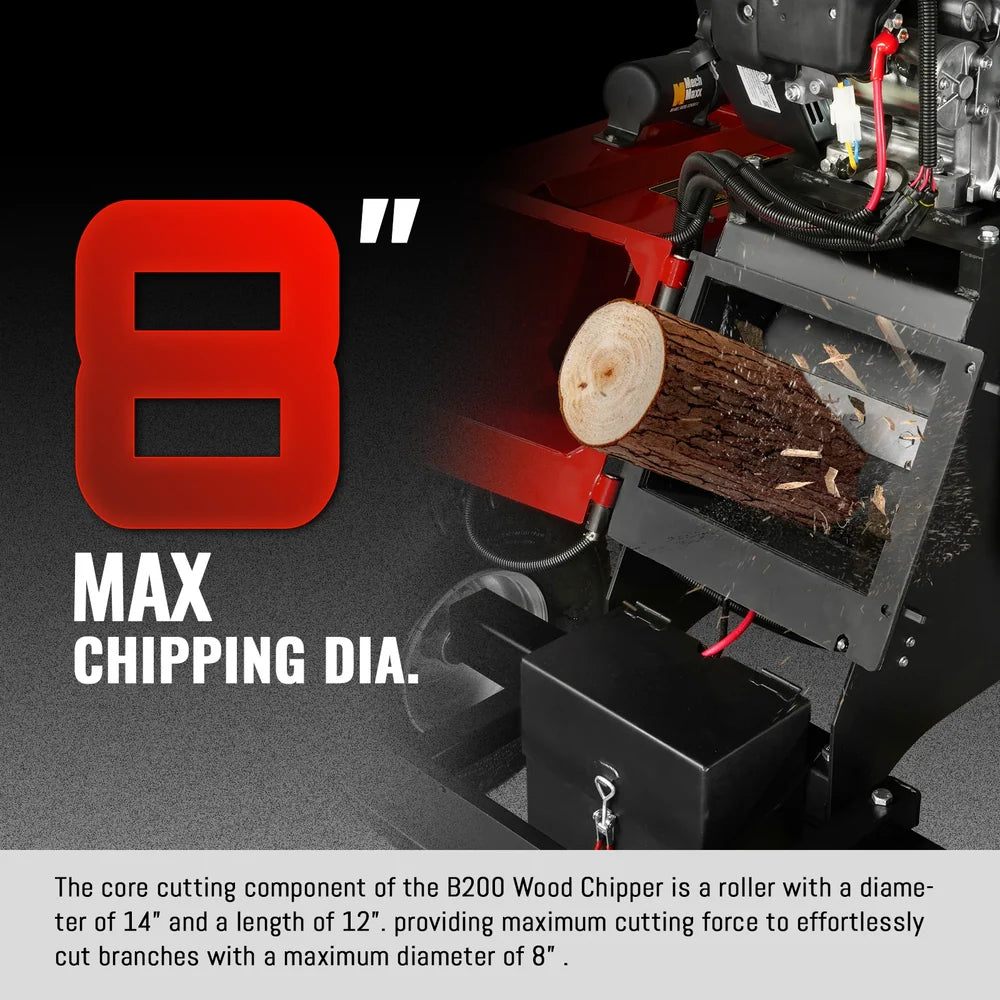

Heavy-Duty 8-Inch Drum Cutting System

The MechMaxx B200 features a robust drum-style cutting system with a published cutting drum diameter of approximately 13.8 inches.

The drum's rotating mass helps maintain cutting momentum when processing branches, limbs, and woody debris.

Two reversible, double-edged steel cutting blades work with a fixed anvil to chip material as it passes through the cutting chamber.

With a maximum rated chipping diameter of 8 inches, the B200 is well suited for demanding residential and professional tree cleanup applications.

The reversible blade design also helps extend usable blade life by allowing the blades to be turned over when one cutting edge becomes worn, provided they remain within the manufacturer's service specifications.

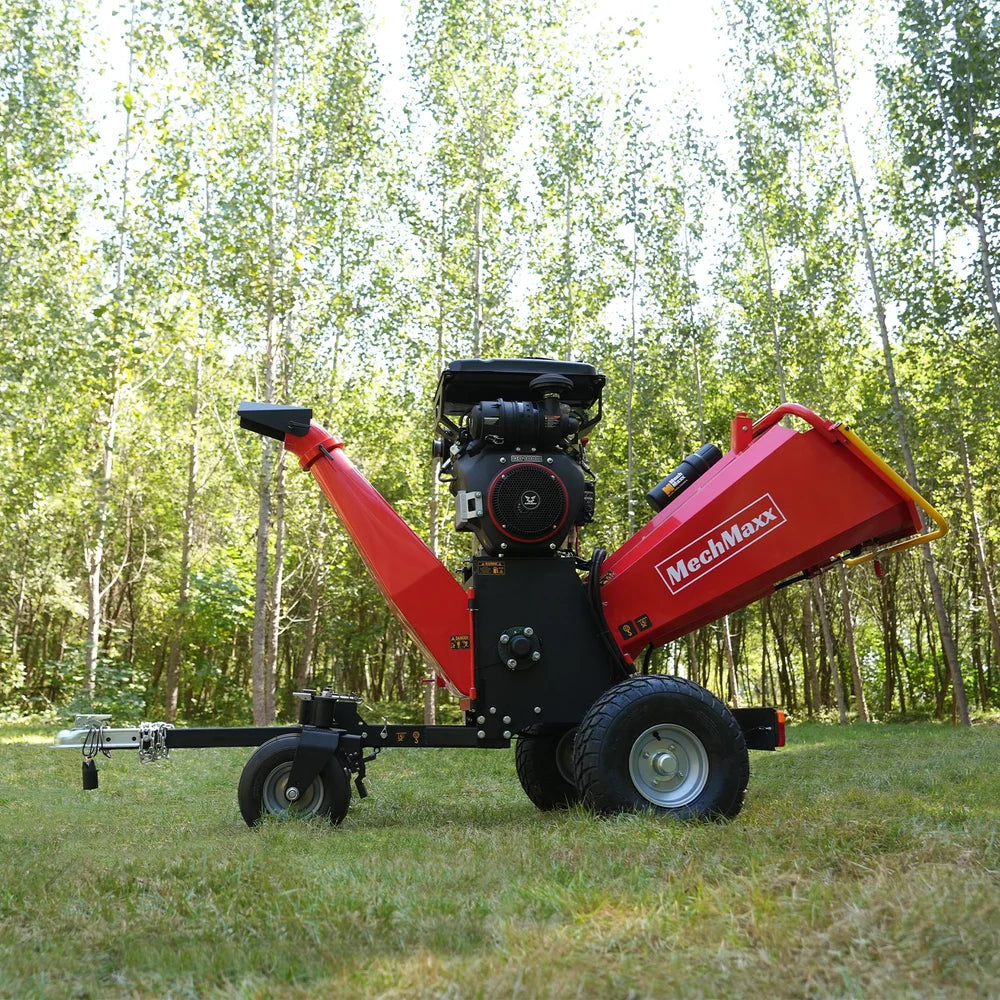

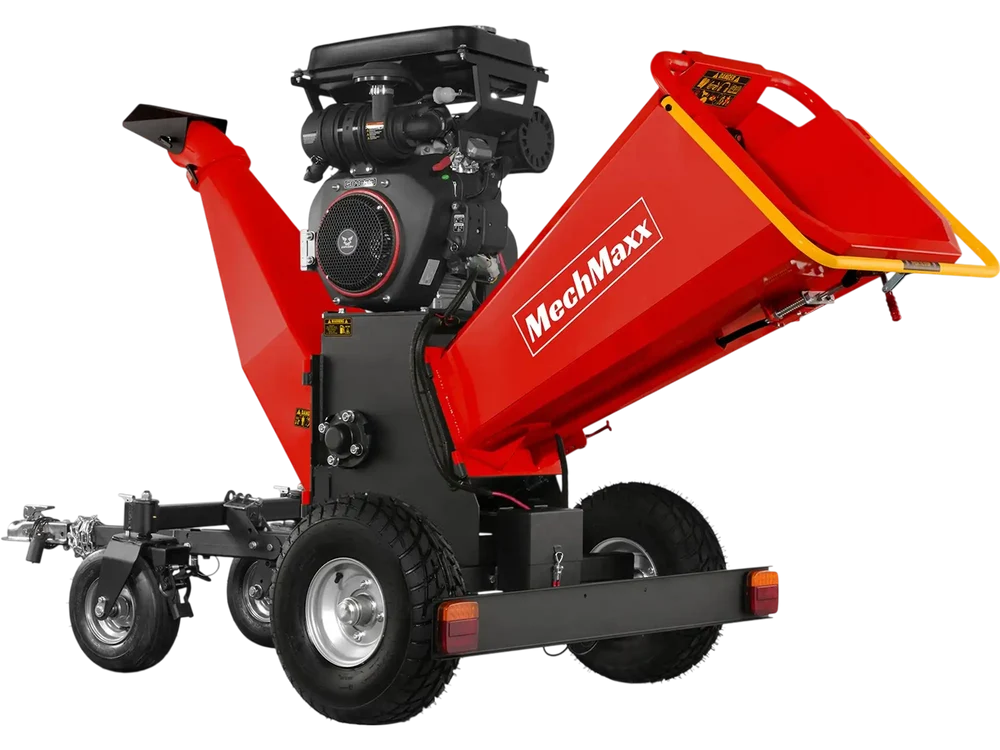

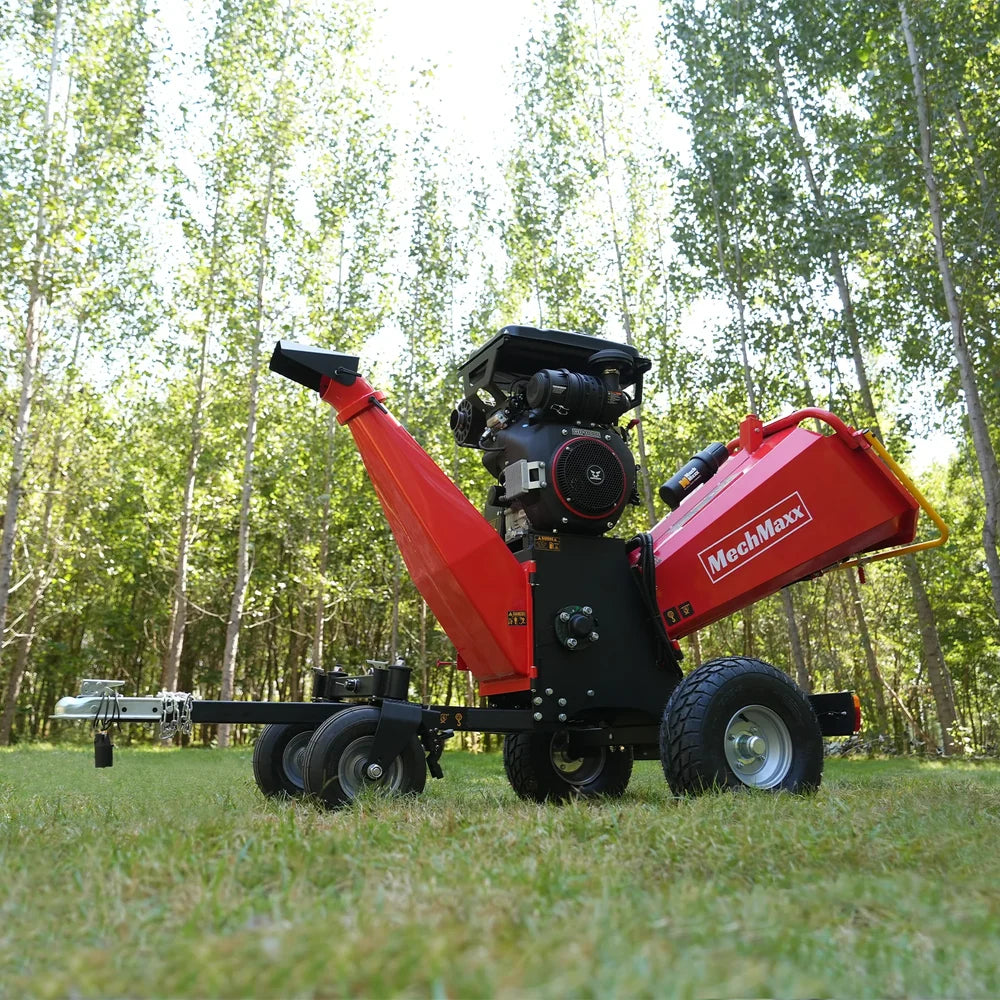

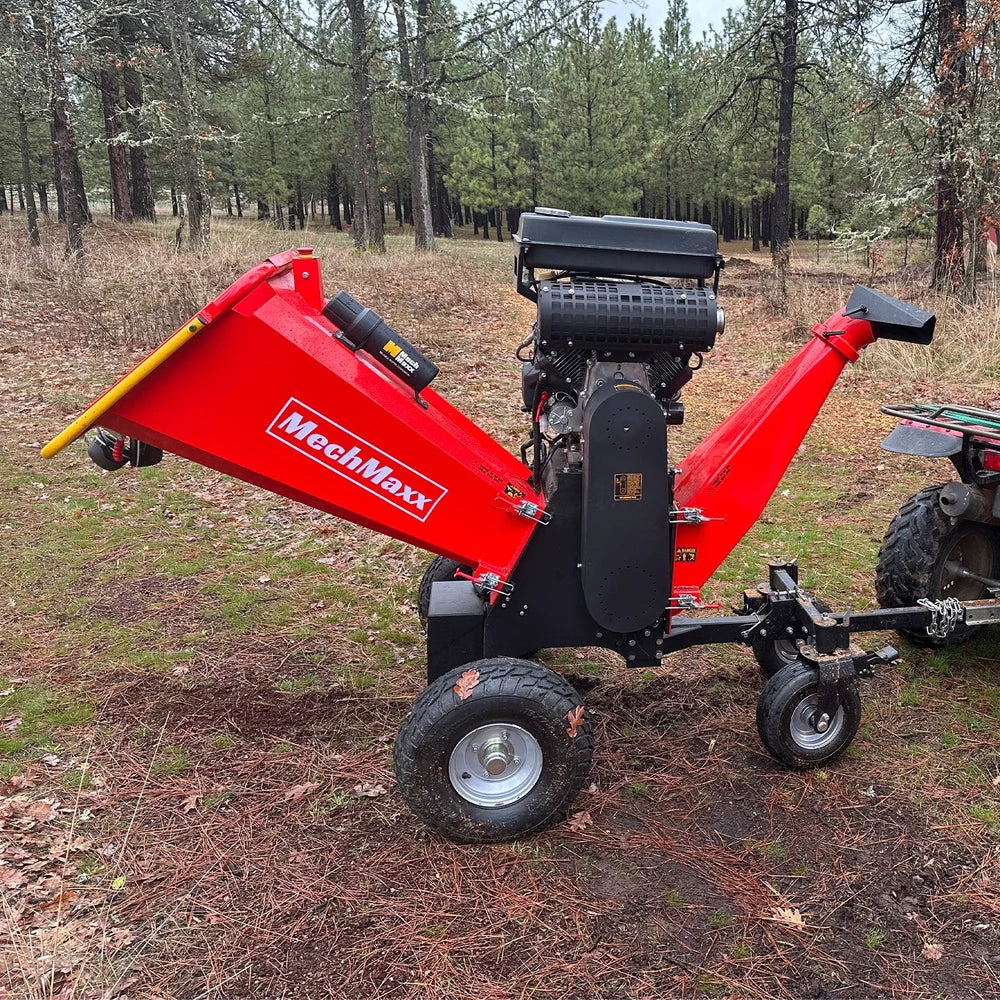

Four-Wheel Design with Towable Convenience

Unlike smaller two-wheel wood chippers, the B200 features a versatile four-wheel configuration designed for mobility and stability.

The two large rear tires provide support during transportation, while the foldable front wheels make positioning the machine around the worksite more convenient.

When towing, the front support wheels fold upward. At the worksite, they can be lowered and locked for easier machine positioning.

Transportation Features:

• 2-inch trailer coupler

• Two 19 x 7.00-8 rear tubeless tires

• Two 13 x 5.00-6 front support tires

• 48-inch wheelbase

• Foldable and lockable front wheels

• Integrated trailer taillights

• 7-pin trailer electrical connector

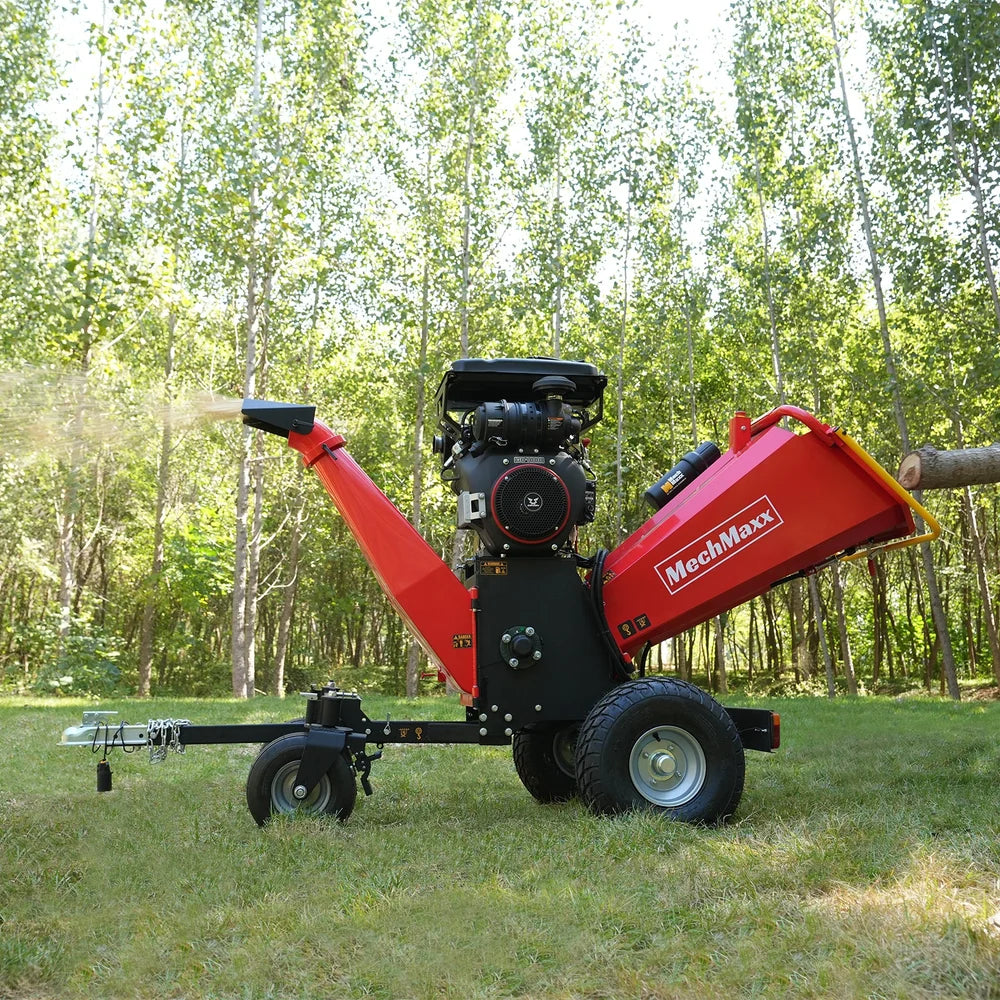

360-Degree Rotating Discharge Chute

The B200 features a fully rotating upper discharge chute that allows operators to direct chipped material where it is needed.

Whether you're creating a mulch pile, filling a collection container, or directing debris away from the work area, the 360-degree discharge adjustment provides flexibility without having to reposition the entire machine.

The discharge chute also features convenient access latches to simplify cleaning and blade maintenance.

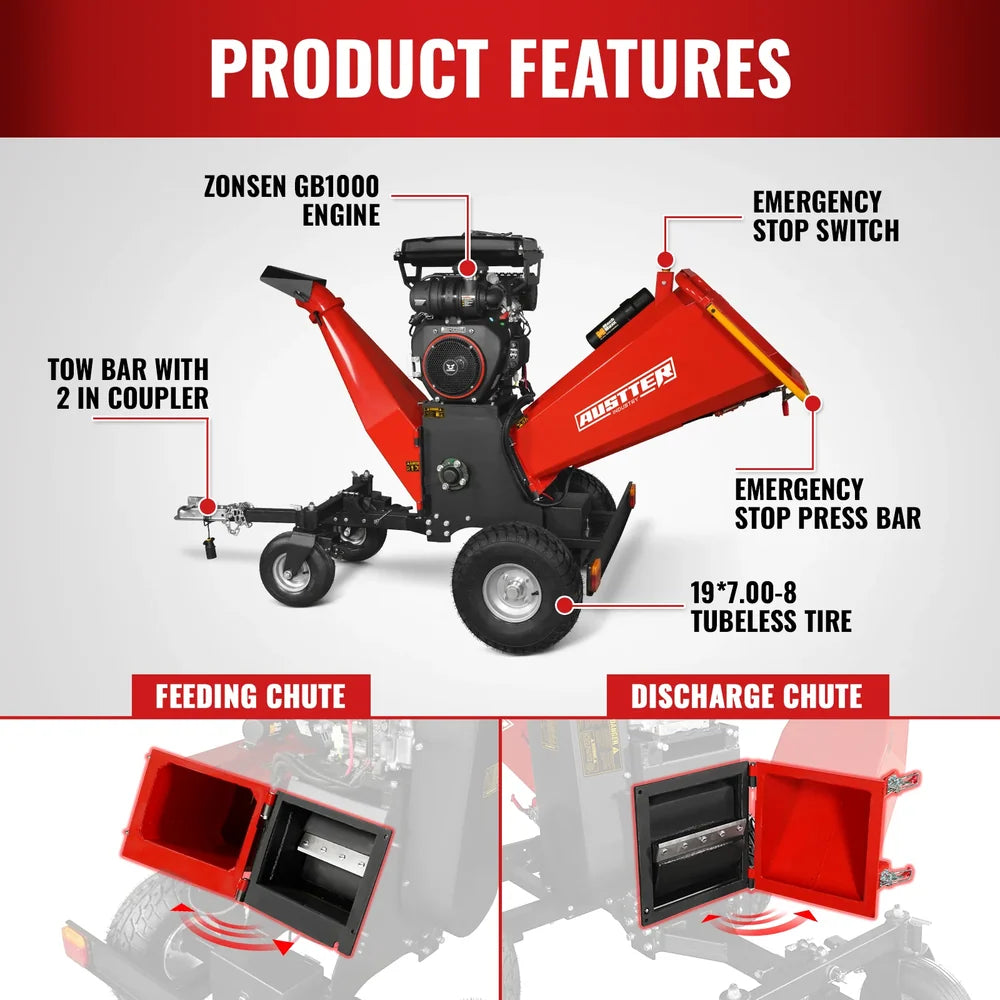

Operator Safety & Easy Maintenance

The MechMaxx B200 is equipped with several features designed to improve operator convenience and provide additional safety during wood chipping operations.

Emergency Stop Button: Located above the feed chute for quick access.

Emergency Stop Press Bar: Located along the lower portion of the feeding chute to provide an additional emergency shutdown control.

Feed Chute Safety Interlock: Designed to shut down the engine when the feed chute is opened.

Discharge Chute Safety Interlock: Designed to shut down the engine when the discharge chute is opened.

Quick-Access Maintenance Panels: Allow convenient access to the cutting chamber for inspection, cleaning, and blade maintenance.

Product Specifications

Ideal Applications

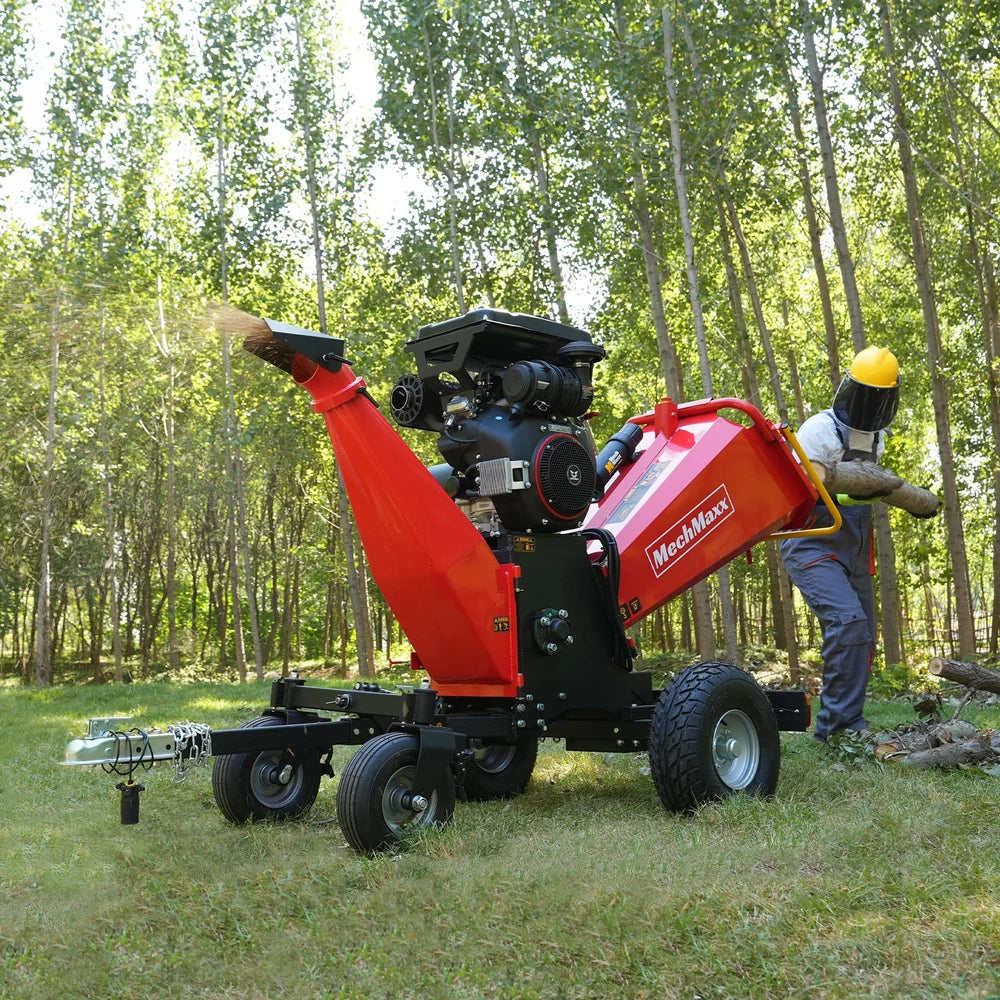

The MechMaxx B200 8-Inch Wood Chipper is designed for a variety of demanding outdoor applications, including:

• Tree trimming and branch disposal

• Residential and commercial property maintenance

• Professional landscaping and tree care

• Storm debris and fallen limb cleanup

• Woodland and acreage management

• Land clearing and vegetation cleanup

• Producing wood chips for landscaping and mulch

• Municipal grounds maintenance

• Equipment rental businesses

Frequently Asked Questions

What is the maximum branch diameter the MechMaxx B200 can handle?

The MechMaxx B200 is rated to chip branches and woody material up to 8 inches in diameter. Actual processing performance depends on wood species, moisture content, branch shape, and material condition.

What engine powers the MechMaxx B200?

The B200 is powered by a ZONSEN GB1000 35 HP gasoline engine with 1000cc displacement. It features a four-stroke OHV design and electric starting.

Does the MechMaxx B200 come with a battery?

Yes. The B200 includes a 12V, 45Ah lead-acid battery for its electric starting system.

Can the MechMaxx B200 be towed?

The B200 includes a 2-inch tow coupler, rear DOT-approved tires, integrated taillights, and a 7-pin electrical connector.

The front support wheels fold upward for towing. Always follow the manufacturer's towing restrictions and verify road-use requirements before traveling on public roads.

Does the B200 have a rotating discharge chute?

Yes. The discharge chute rotates 360 degrees, allowing operators to direct wood chips toward a desired collection or disposal area.

Are the cutting blades replaceable?

Yes. The B200 uses two reversible cutting blades that can be serviced or replaced as needed. Access to the cutting chamber is provided through the maintenance openings on the feeding and discharge chutes.

What safety features are included?

The B200 includes an emergency stop button, an emergency stop press bar, and safety interlocks designed to shut down the engine when the feeding or discharge chute is opened.

What type of gasoline and oil does the B200 use?

The manufacturer recommends clean, fresh, unleaded gasoline and specifies 10W-30 engine oil. Always refer to the engine owner's manual for maintenance schedules and lubrication requirements.

How much does the MechMaxx B200 weigh?

The B200 has a published net weight of approximately 705 pounds and a gross shipping weight of approximately 798 pounds.

What warranty is included?

The MechMaxx B200 includes a manufacturer's two-year warranty for the engine and a two-year warranty for the machine, subject to the manufacturer's warranty terms and exclusions.

Why Choose the MechMaxx B200 8-Inch Wood Chipper?

For property owners and professionals who regularly process large branches and woody debris, the MechMaxx B200 delivers an excellent combination of cutting capacity, engine power, portability, and operator convenience.

Its powerful 35 HP ZONSEN engine, 8-inch drum cutting system, electric start, four-wheel chassis, and rotating discharge chute make it a capable solution for demanding cleanup and wood chipping jobs.

Whether you're maintaining a large property, managing storm debris, or operating a professional tree care business, the MechMaxx B200 8-Inch Drum Wood Chipper is built to help you turn unwanted branches into manageable wood chips.
