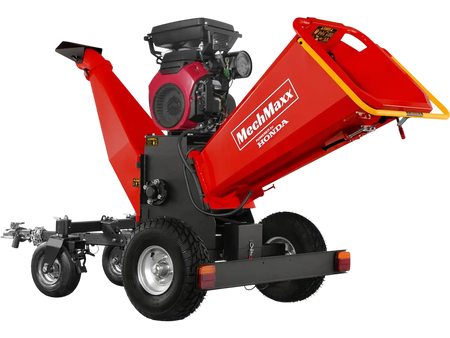

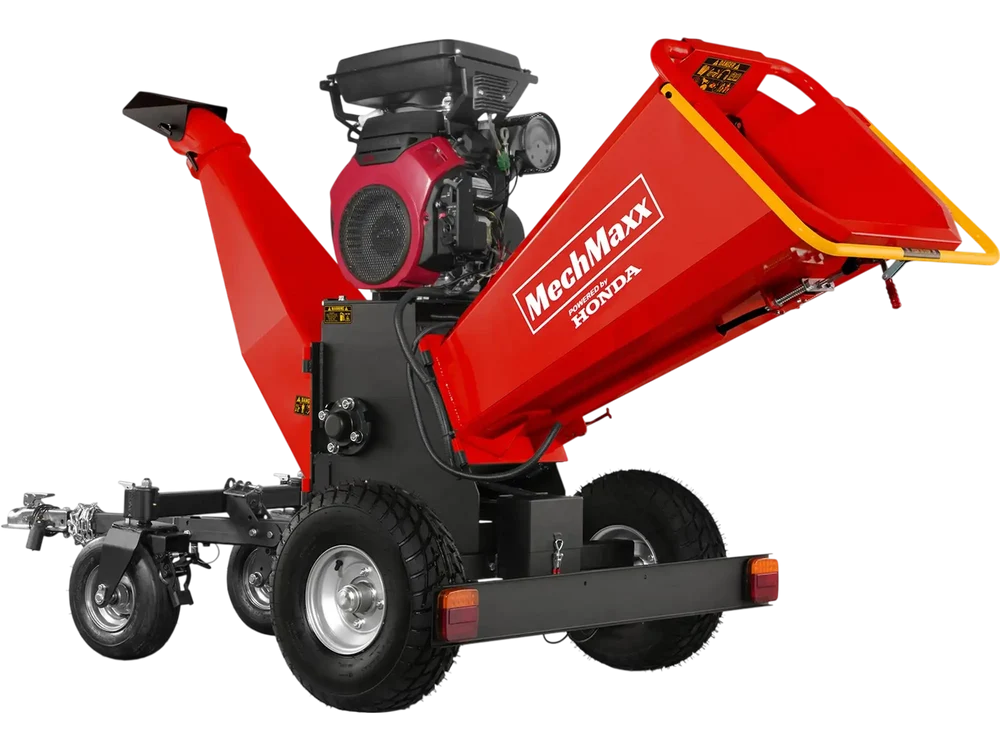

MechMaxx B200 8-Inch 22HP Honda Gas Powered Drum Wood Chipper – Electric Start (110811)

Commercial-Grade 8-Inch Wood Chipper with Honda GX690 Engine, Electric Start & 4-Wheel Design

Take on demanding tree cleanup, land clearing, and wood chipping projects with the MechMaxx B200 8-Inch Gas Powered Drum Wood Chipper. Powered by a dependable Honda GX690 22 HP, 688cc V-Twin gasoline engine, this heavy-duty wood chipper is designed to process branches and woody material up to 8 inches in diameter.

Built for professional landscapers, tree care specialists, property owners, and equipment rental businesses, the B200 combines Honda engine performance with a heavy-duty drum cutting system, electric starting, and a versatile four-wheel design.

Its large 13.8-inch cutting roller, reversible steel blades, and centrifugal clutch provide the cutting power needed for demanding applications. The 360-degree rotating discharge chute allows operators to direct wood chips where needed, while integrated emergency stop controls and maintenance safety interlocks add protection during operation and servicing.

The B200 also features rear DOT-approved tubeless tires, integrated taillights, a 7-pin trailer connector, and a 2-inch tow coupler for convenient transportation between jobsites, subject to applicable towing restrictions.

Whether you're clearing storm debris, maintaining wooded property, or processing large branches, the MechMaxx B200 Honda-powered wood chipper delivers powerful performance in a durable, towable design.

Key Features & Benefits

• Reliable 22 HP Honda GX690 Engine: Powered by a 688cc Honda GX690 V-Twin OHV gasoline engine, delivering dependable performance for demanding wood chipping applications.

• Up to 8-Inch Chipping Capacity: Designed to chip branches and wood material up to 8 inches in diameter, making it ideal for tree trimming, storm cleanup, and property maintenance.

• Convenient Electric Start: Equipped with electric starting and an included 12V, 36Ah lead-acid battery for easy engine startup.

• Heavy-Duty Drum Cutting System: Features a large 13.8-inch cutting roller that generates substantial rotating momentum to help process larger branches and woody material.

• Reversible Double-Edged Cutting Blades: Two durable, reversible steel blades provide effective cutting performance and extended usability before blade replacement is required.

• 360-Degree Rotating Discharge Chute: Easily direct wood chips toward a collection area, trailer, or mulch pile without repositioning the entire chipper.

• Versatile 4-Wheel Design: Features two large rear tires and two foldable front support wheels for improved stability and convenient worksite positioning.

• Foldable & Lockable Front Wheels: Front wheels can be lowered for positioning the chipper or folded upward during towing.

• Integrated Taillights & 7-Pin Trailer Connector: Connects to a compatible towing vehicle's electrical system to synchronize trailer brake and turn signal lights.

• 2-Inch Trailer Coupler: Provides convenient connection to compatible towing equipment for transportation between jobsites.

• 48-Inch Wheelbase: Wide wheel spacing helps provide stability while transporting and positioning the machine.

• Dual Emergency Stop Controls: Includes an emergency stop button and a press bar near the feed chute for quick access in an emergency.

• Safety Interlock System: Designed to shut down the engine when the feeding or discharge chute is opened for maintenance.

• Easy Maintenance Access: Quick-release latches on the feeding and discharge chutes simplify cleaning, blade inspection, and routine maintenance.

• Heavy-Duty Belt Drive: Four Kevlar V-belts and a centrifugal clutch transfer power from the Honda engine to the drum cutting system.

• 2-Year Manufacturer's Warranty: Backed by a two-year manufacturer's warranty on both the engine and machine, subject to warranty terms and conditions.

Powerful Honda GX690 V-Twin Engine with Electric Start

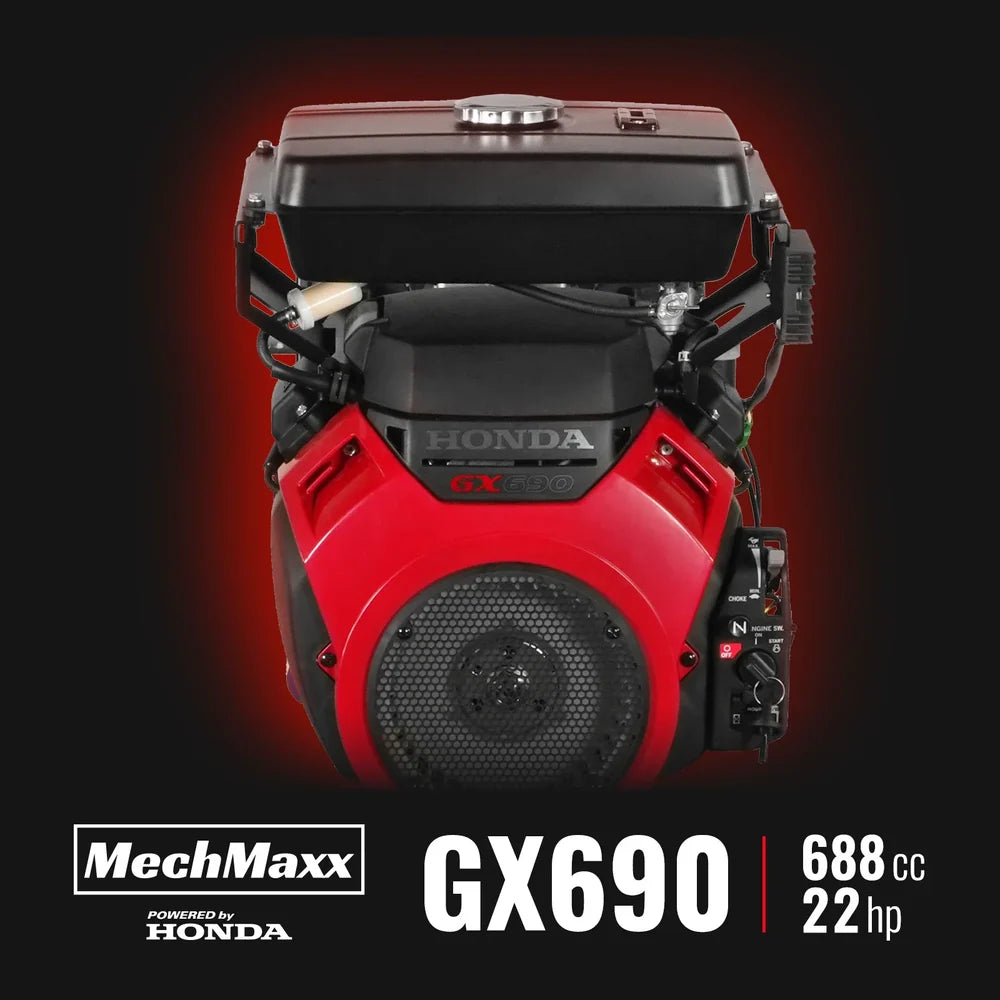

At the heart of the MechMaxx B200 is the Honda GX690 22 HP gasoline engine, a commercial-class V-Twin engine recognized for dependable performance in demanding power equipment applications.

With 688cc of displacement, a four-stroke OHV design, and an air-cooled configuration, the GX690 provides the engine power needed for processing branches and woody debris.

The electric starting system makes starting the chipper easier, eliminating the need for manual pull-starting. An included 12V, 36Ah lead-acid battery powers the starting system.

The engine also features a generous 3.17-gallon fuel tank, allowing extended operation between refueling stops.

Honda GX690 Engine Highlights:

• Honda GX690 commercial-class V-Twin engine

• 22 HP published engine rating

• 688cc engine displacement

• Air-cooled, four-stroke OHV design

• Electric starting system

• Included 12V, 36Ah lead-acid battery

• 3.17-gallon fuel capacity

• 48.3 Nm published maximum net torque at 2,500 RPM

• Designed for demanding commercial and industrial power equipment applications

For operators who value Honda engine technology and long-term serviceability, the Honda-powered B200 provides an attractive alternative to other gas-powered wood chippers.

Heavy-Duty 8-Inch Drum Cutting System

The MechMaxx B200 features a robust drum-style cutting system engineered to handle branches and woody material up to 8 inches in diameter.

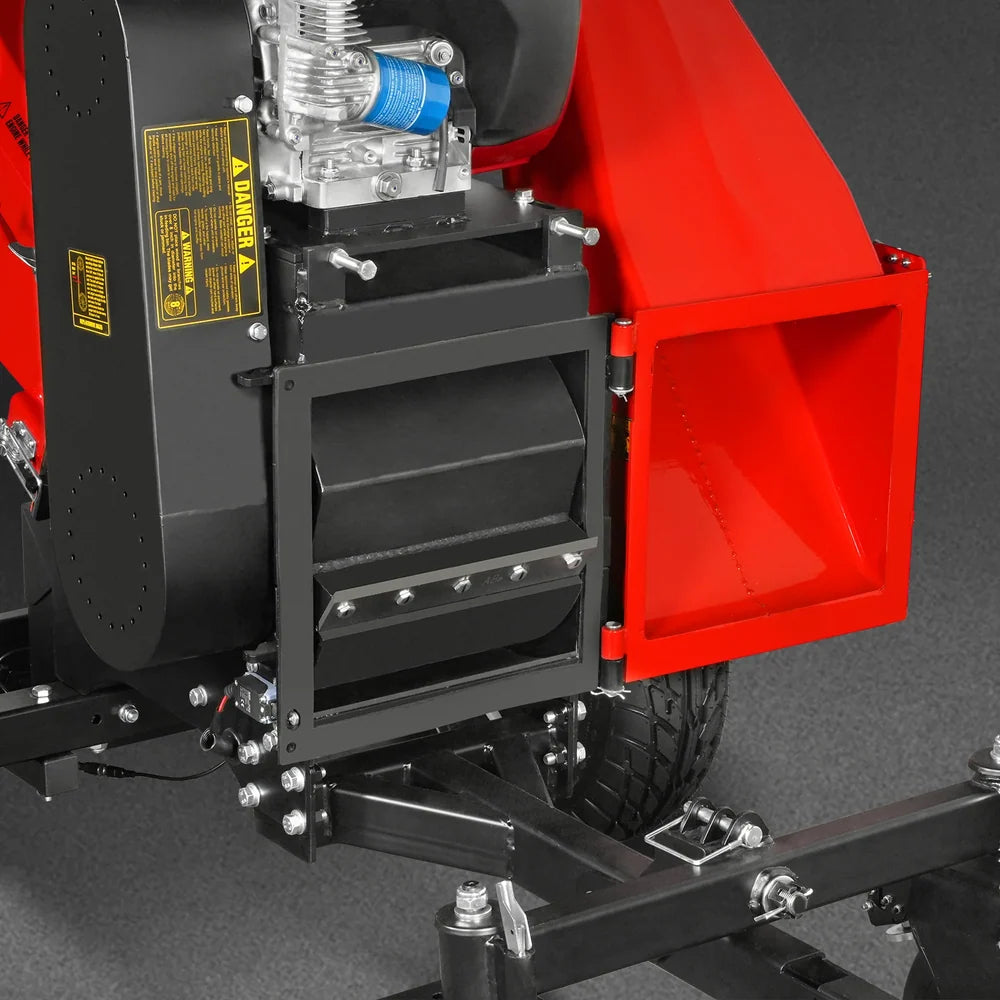

The large cutting roller measures approximately 13.8 inches in diameter and provides rotating momentum to help maintain cutting performance when processing heavier branches.

Two reversible, double-edged steel blades work together with a fixed anvil to chip incoming material into manageable wood chips.

The blades are manufactured from durable A8 (5Cr8MoVSi) steel and are designed to be reversed when one cutting edge becomes worn, helping extend their usable service life.

Cutting System Highlights:

• Maximum rated chipping diameter: 8 inches

• Drum-style cutting system

• 13.8-inch cutting roller

• Two reversible cutting blades

• One fixed anvil

• A8 (5Cr8MoVSi) blade steel

• Centrifugal clutch drive

• Four heavy-duty Kevlar V-belts

Actual chipping performance will vary depending on the type, moisture content, hardness, and shape of the wood being processed.

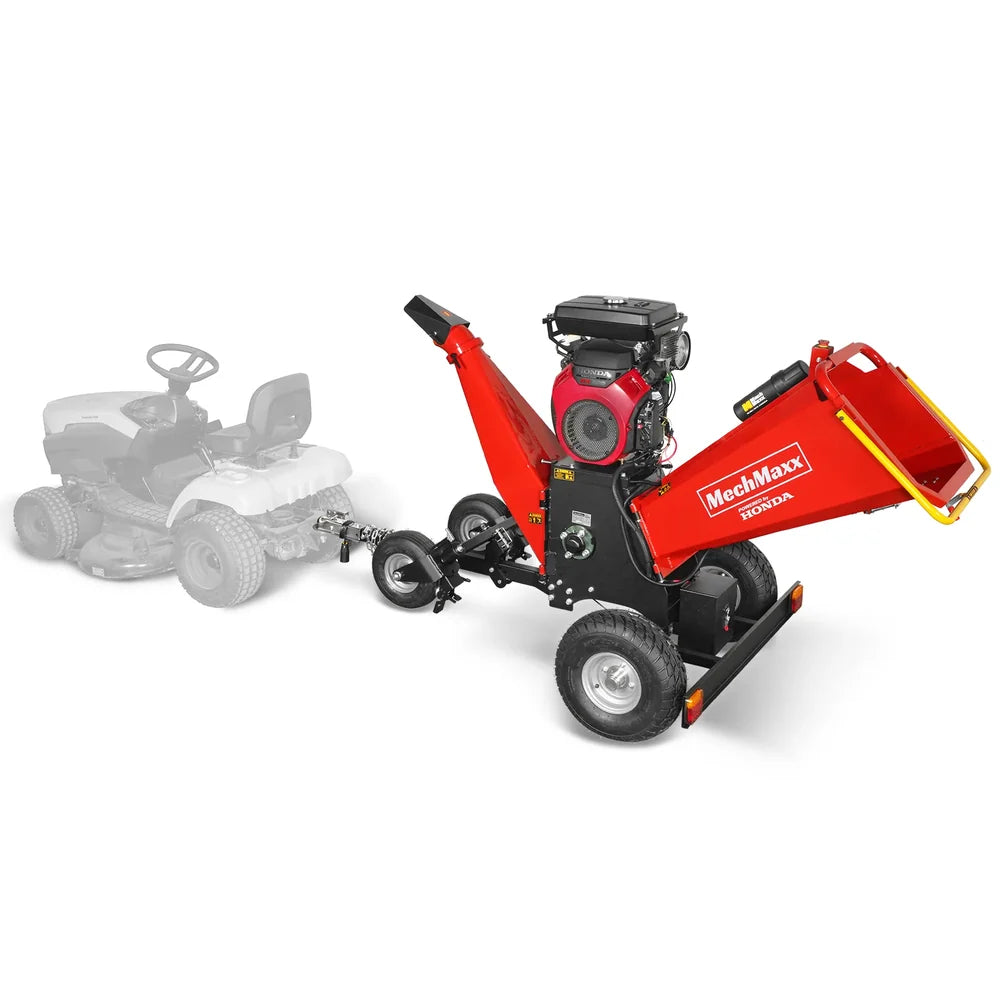

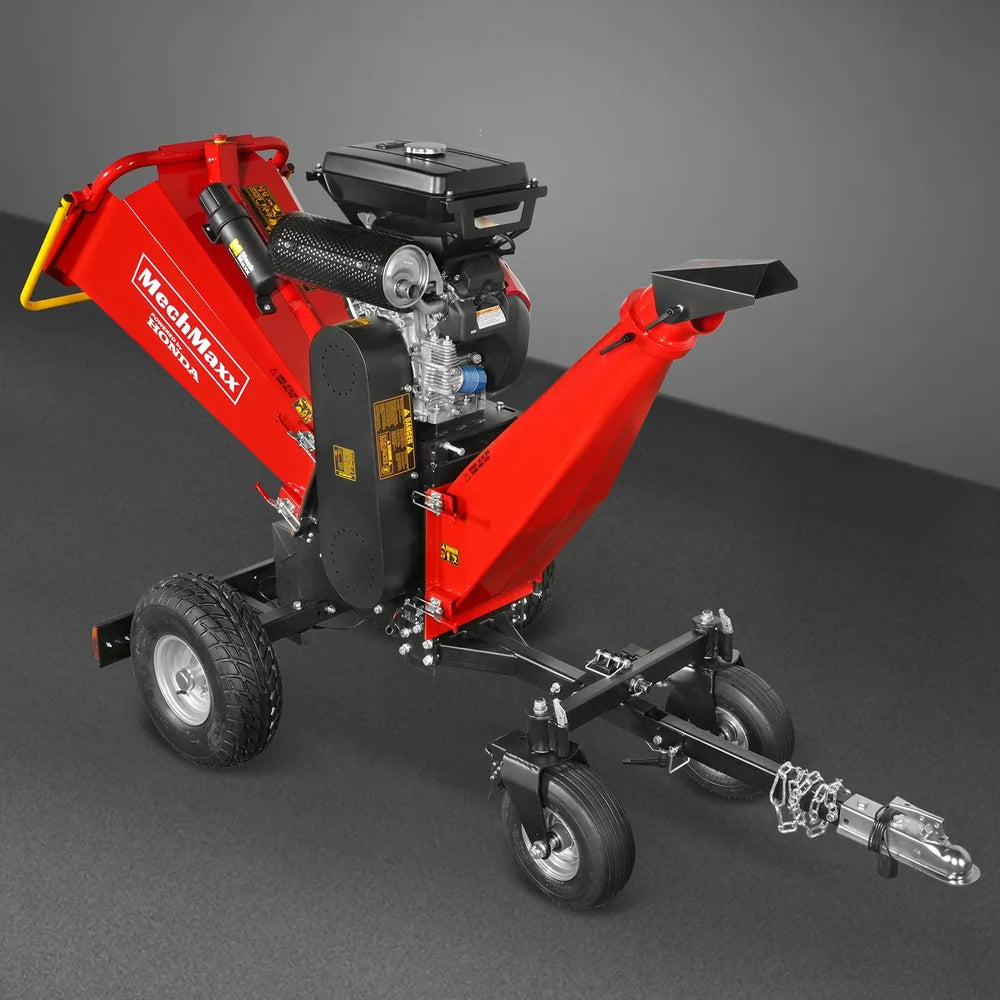

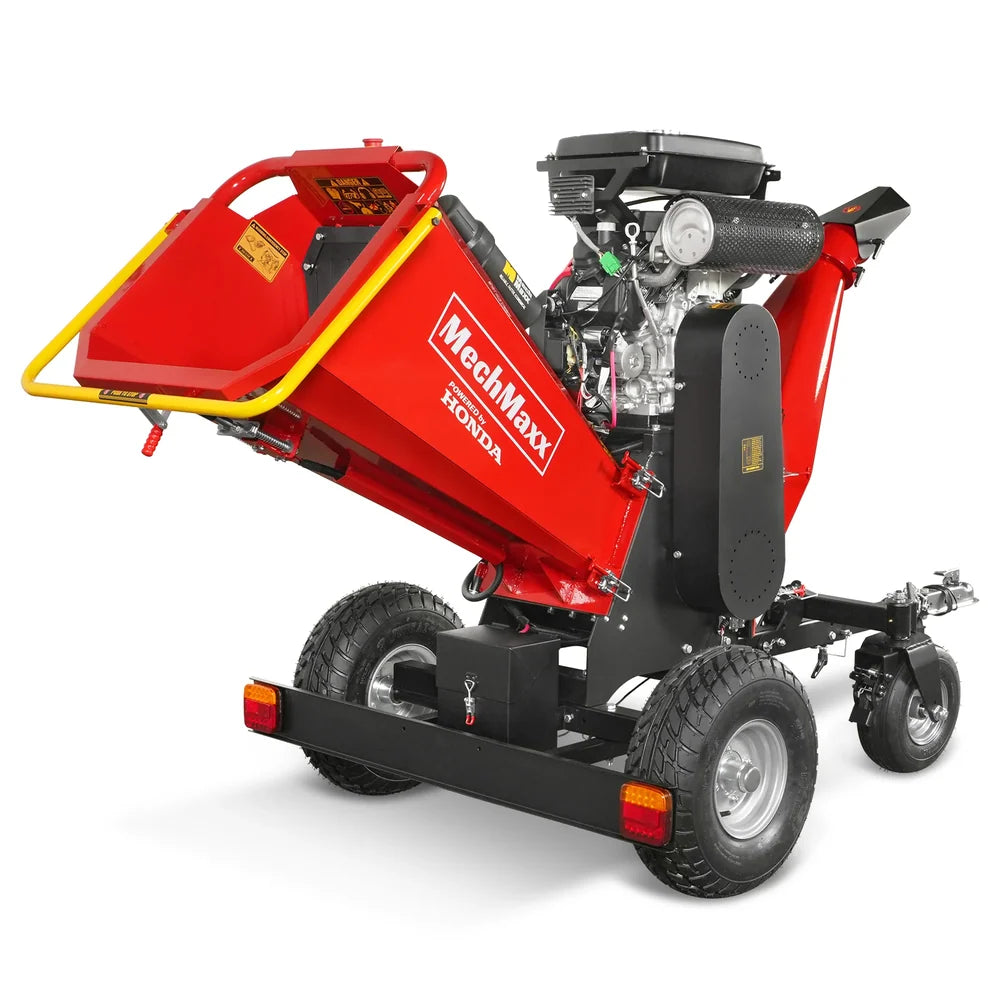

Four-Wheel Design for Convenient Transport & Positioning

The B200 features a versatile four-wheel chassis designed to simplify moving and positioning the machine around the worksite.

Two large rear tubeless tires provide support during towing, while the two front support wheels help make positioning easier when the chipper is disconnected from a towing vehicle.

The front wheels feature a foldable and lockable design. When transporting the machine, the front wheels fold upward. When positioning the chipper at the worksite, they can be lowered and locked as needed.

Transportation Features:

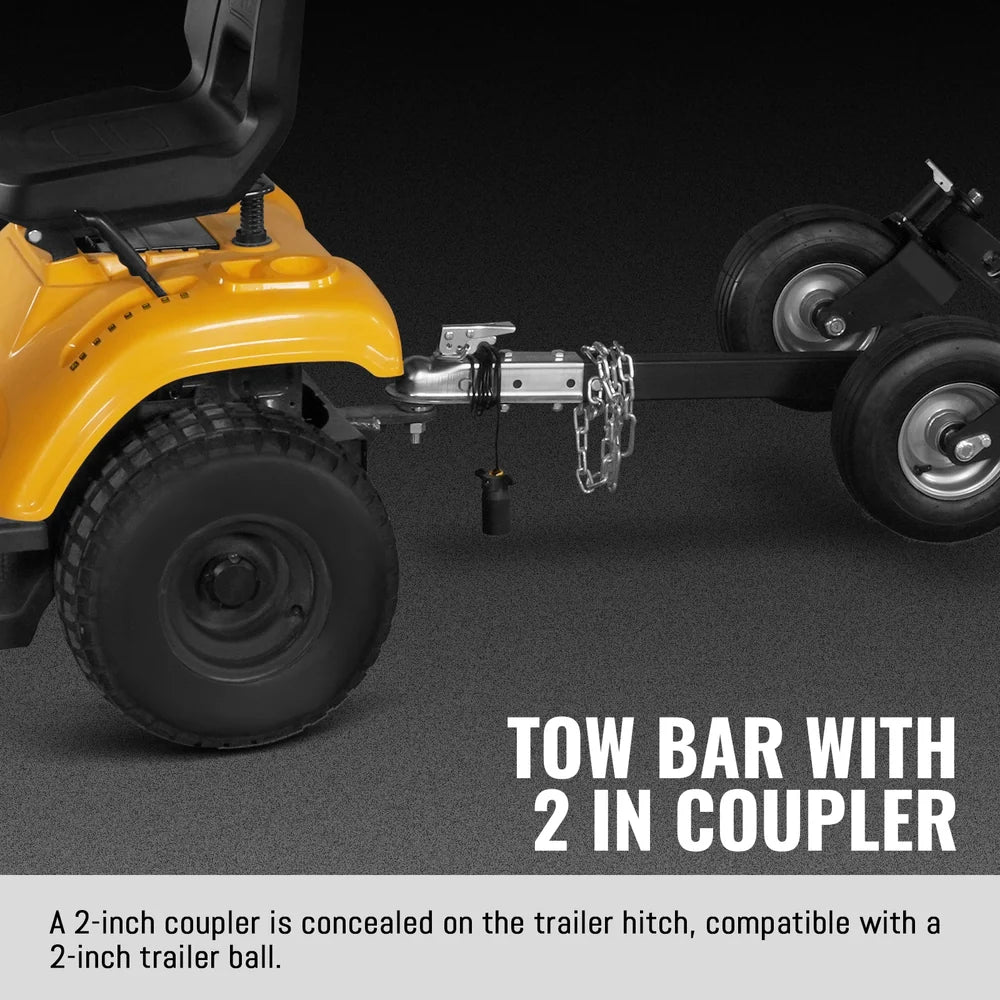

• 2-inch trailer tow coupler

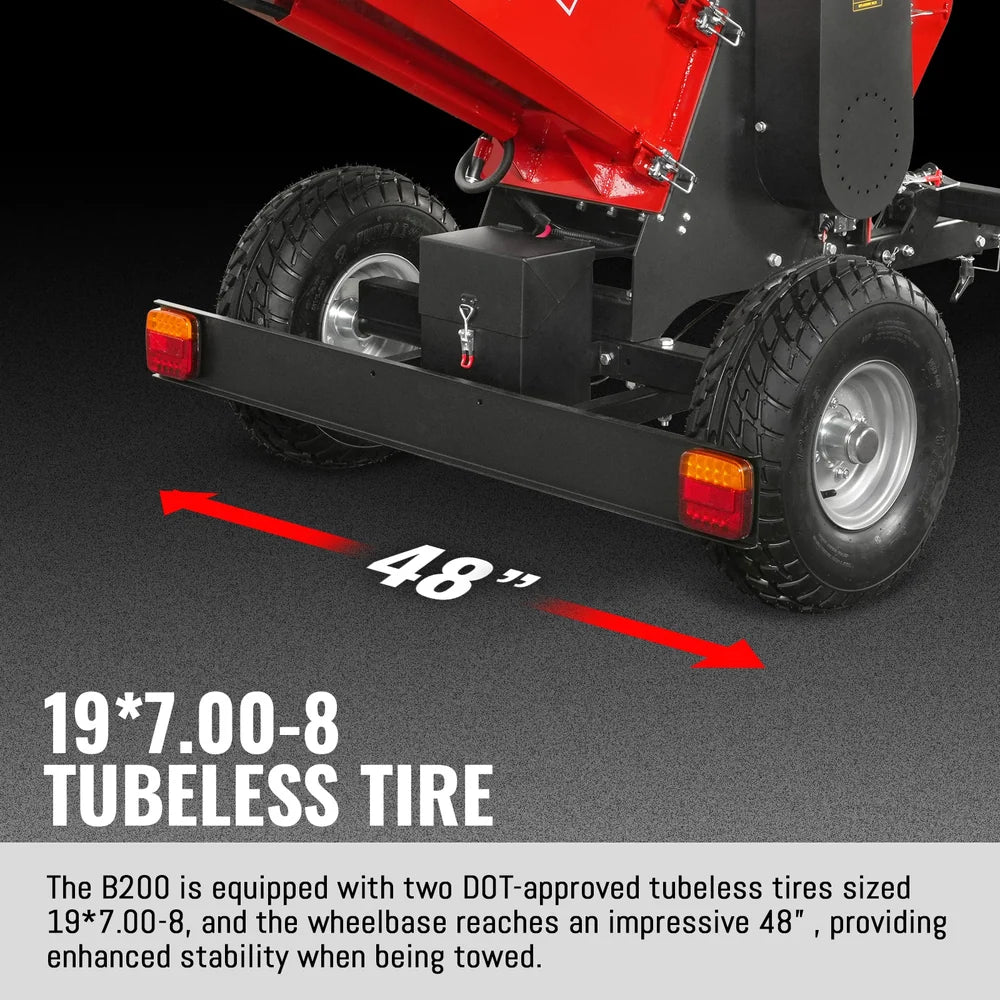

• Two 19 x 7.00-8 rear tubeless tires

• Two 13 x 5.00-6 front support tires

• 48-inch wheelbase

• Foldable and lockable front wheels

• Integrated trailer taillights

• American-style 7-pin trailer electrical connector

The integrated taillights can synchronize with a compatible towing vehicle's brake and turn signal functions when properly connected.

360-Degree Rotating Discharge Chute

The B200 features a 360-degree rotating upper discharge chute that provides flexibility when directing processed wood chips.

Whether you're directing chips toward a designated mulch pile, collection area, or suitable trailer, the rotating chute allows you to change the discharge direction without repositioning the entire machine.

The discharge chute is constructed using a formed and welded design and can be opened for access to the cutting chamber during cleaning and maintenance.

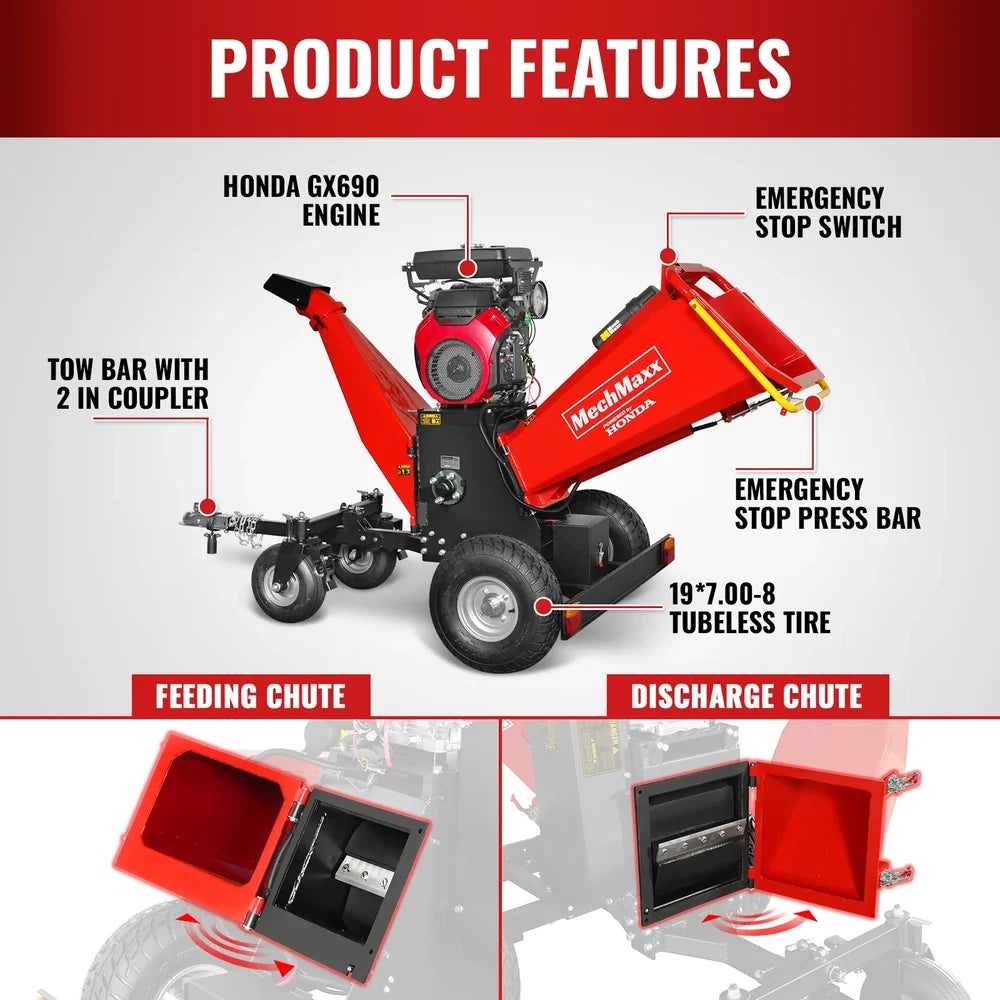

Operator Safety & Convenient Maintenance

The MechMaxx B200 includes several safety and maintenance features designed to improve operator convenience.

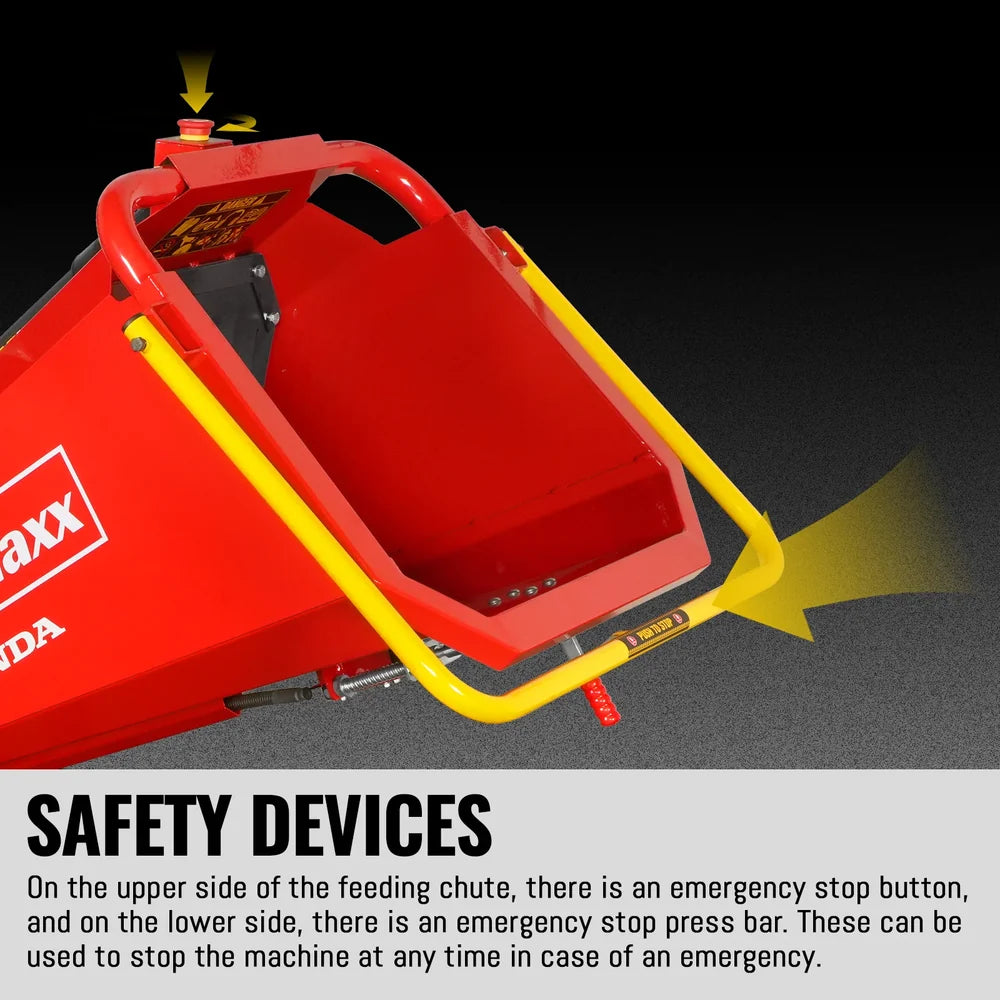

Emergency Stop Button: Positioned above the feeding chute for quick access during operation.

Emergency Stop Press Bar: Located near the lower portion of the feed chute, providing an additional emergency shutdown control.

Feed Chute Safety Interlock: Designed to shut down the engine when the feeding chute is opened.

Discharge Chute Safety Interlock: Designed to shut down the engine when the discharge chute is opened.

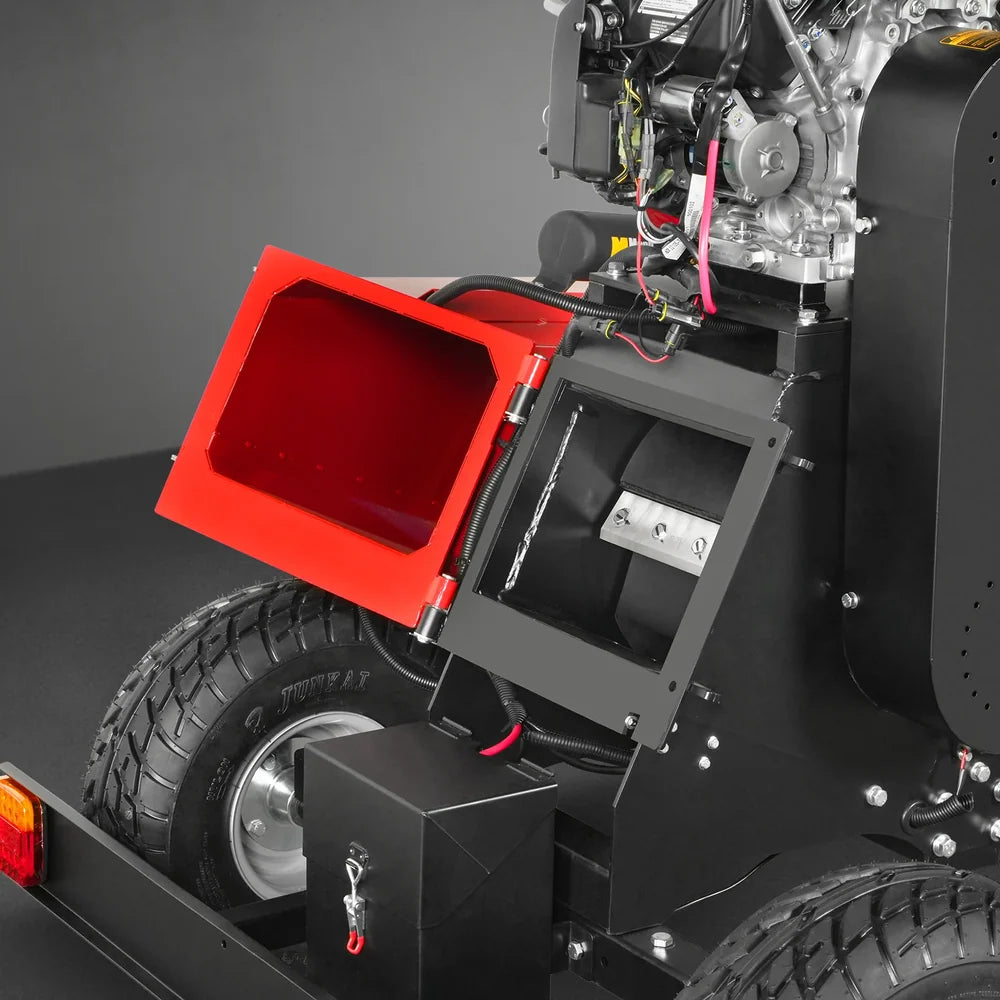

Quick-Access Maintenance Openings: The feeding and discharge chutes feature quick-release latches that simplify access for blade inspection, cleaning, and routine servicing.

Product Specifications

Ideal Applications

The MechMaxx B200 Honda-powered wood chipper is well suited for a variety of outdoor applications, including:

• Professional tree trimming and branch disposal

• Residential and commercial property maintenance

• Landscaping and tree care businesses

• Storm debris and fallen branch cleanup

• Woodland and acreage management

• Land clearing and vegetation cleanup

• Producing wood chips for landscaping and mulch

• Municipal grounds maintenance

• Equipment rental operations

• Large residential properties and farms

Frequently Asked Questions

What is the maximum branch diameter the MechMaxx B200 can handle?

The MechMaxx B200 is rated to chip branches and woody material up to 8 inches in diameter. Actual processing performance depends on wood species, moisture content, branch shape, and material condition.

What engine powers the MechMaxx B200 Honda model?

This version of the B200 is powered by a Honda GX690 22 HP, 688cc V-Twin gasoline engine. It features a four-stroke OHV design and electric starting.

What is the difference between the Honda and ZONSEN versions of the MechMaxx B200?

Both versions feature an 8-inch rated chipping capacity, drum cutting system, rotating discharge chute, four-wheel chassis, and electric starting.

The primary difference is the engine. The Honda-powered B200 uses a 22 HP, 688cc Honda GX690 engine, while the ZONSEN version uses a 35 HP, 1000cc ZONSEN GB1000 engine.

The Honda version may appeal to operators who prefer Honda-powered commercial equipment, while the ZONSEN version offers a higher published horsepower rating.

Does the MechMaxx B200 Honda model include a battery?

Yes. The Honda-powered B200 includes a 12V, 36Ah lead-acid battery for the electric starting system.

Can the MechMaxx B200 be towed behind a vehicle?

The B200 is equipped with a 2-inch tow coupler, rear DOT-approved tubeless tires, integrated taillights, and a 7-pin electrical connector.

The front wheels fold upward during towing. Always verify towing speed limits and local road-use requirements before traveling on public roads.

Does the B200 have a rotating discharge chute?

Yes. The B200 features a 360-degree rotating discharge chute, allowing operators to direct wood chips toward a designated collection or disposal area.

Are the cutting blades replaceable?

Yes. The B200 features two reversible cutting blades that can be serviced or replaced when necessary. The feeding and discharge chutes provide maintenance access to the cutting chamber.

What safety features are included?

The B200 includes an emergency stop button, an emergency stop press bar, and safety interlocks designed to shut down the engine when the feeding or discharge chute is opened.

What type of fuel and engine oil does the Honda B200 use?

The manufacturer specifies clean, fresh, unleaded gasoline and recommends 10W-30 engine oil. Refer to the Honda GX690 owner's manual for complete engine maintenance and lubrication requirements.

How much does the MechMaxx B200 Honda wood chipper weigh?

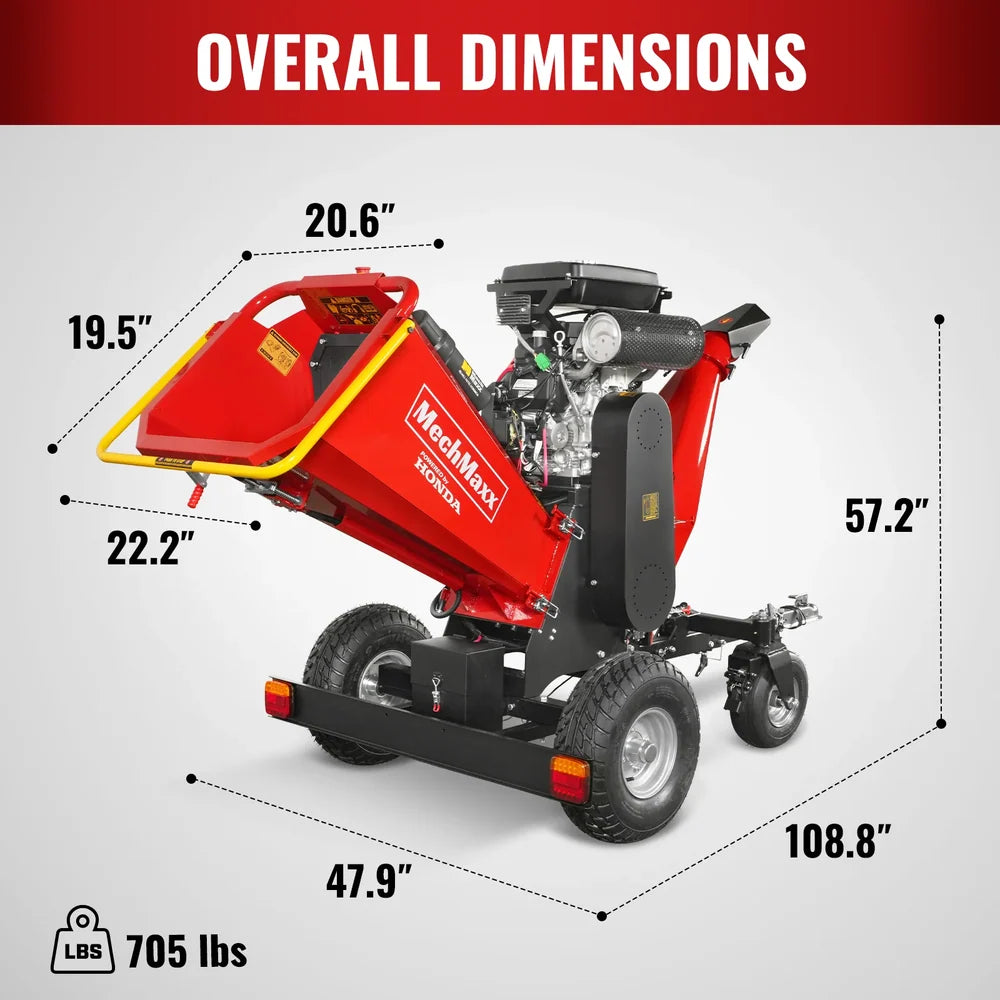

The Honda-powered B200 has a published net weight of approximately 705 pounds and a gross shipping weight of approximately 780 pounds.

What warranty comes with the MechMaxx B200 Honda wood chipper?

The MechMaxx B200 includes a two-year manufacturer's warranty on the engine and a two-year warranty on the machine, subject to the manufacturer's applicable terms and exclusions.

Why Choose the MechMaxx B200 Honda 8-Inch Wood Chipper?

For property owners and professionals who need a reliable, heavy-duty solution for large branches and woody debris, the MechMaxx B200 Honda 8-Inch Wood Chipper delivers a combination of cutting capacity, portability, and operator convenience.

Powered by the Honda GX690 V-Twin gasoline engine, the B200 provides the performance needed for demanding outdoor cleanup projects.

Its 8-inch rated cutting capacity, electric start, heavy-duty drum cutting system, four-wheel chassis, and 360-degree rotating discharge chute make it a versatile choice for tree care professionals, landscapers, equipment rental businesses, and large-property owners.
