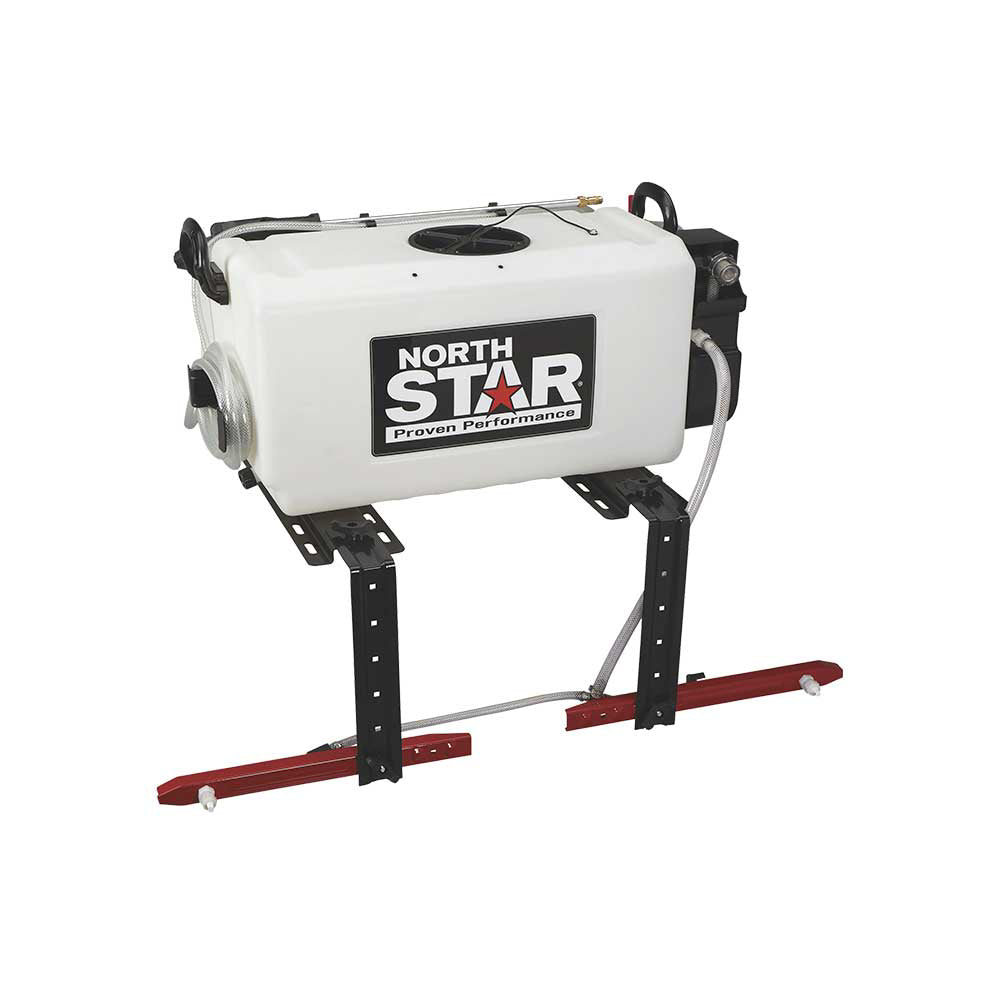

NorthStar® ATV Broadcast and Spot Sprayer with 2-Nozzle Boom— 26-Gallon Capacity, 2.2 GPM (99909)

Regular price $329.99
Regular price -6% $349.99 Sale price $329.99

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us.

Free Shipping and Tax Free Most States!

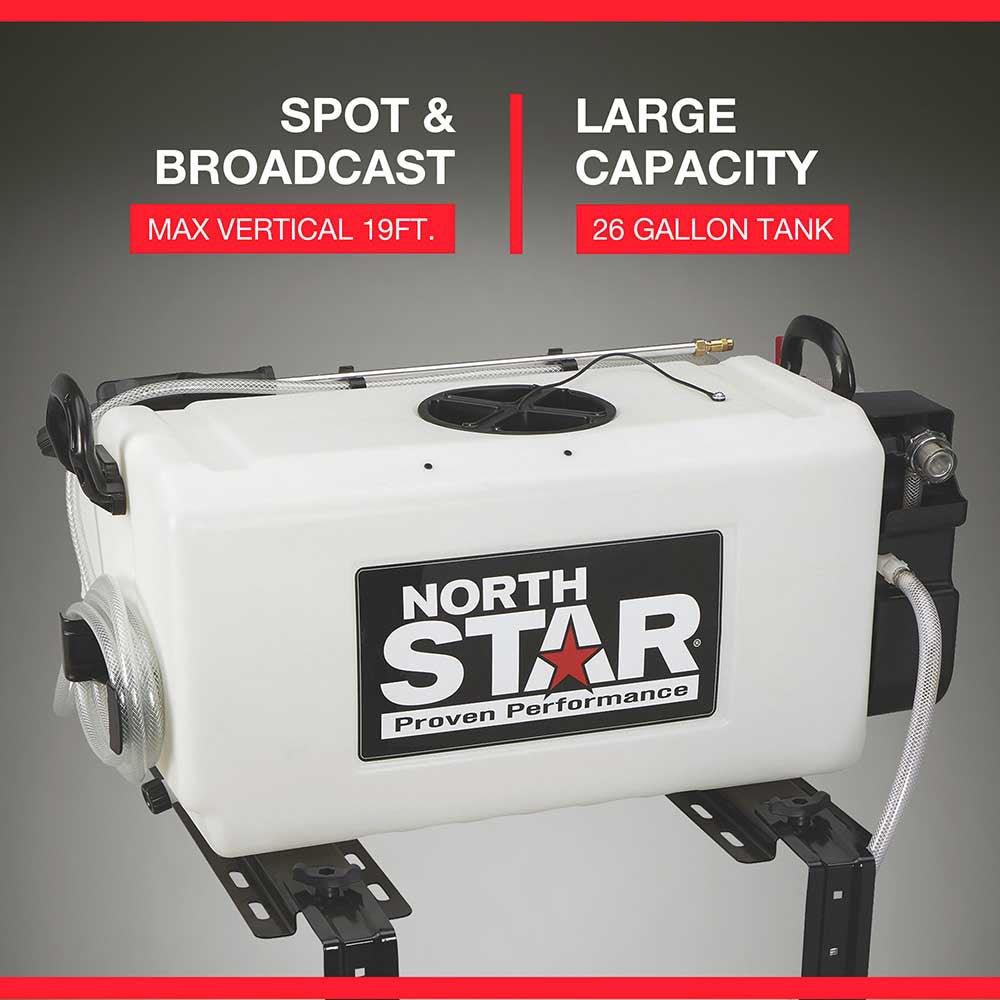

This NorthStar broadcast and spot sprayer with 2-nozzle boom is a dependable spot and 2-nozzle broadcast system. The included spray gun delivers a maximum vertical spray height of 19 feet and maximum horizontal spray distance of 30 feet.

A 2.2 GPM NorthStar NSQ Series on-demand pump generates 70 PSI and impressive flow rates for high-volume delivery that takes care of applications fast and effortlessly. The extra-thick walled tank holds up to 26 gallons. Attaches to an ATV.

  • 12V, 2.2 GPM NorthStar® NSQ Series® on-demand pump generates 70 PSI
  • 100% continuous duty oversized electric pump motor — no down time waiting for the motor to cool
  • Patented DXS-3™ pump valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm has superior reliability and chemical resistance
  • Regulator, pressure gauge and deluxe trigger spray gun for fine tuning of spray pressure
  • 2-nozzle boom sprays a 6.7ft. pattern swath with selective left/right control
  • Spray gun delivers a 19ft. max. vertical spray height; 30ft. max. horizontal spray distance
  • Adjustable stream-to-cone brass nozzle and 15 feet of hose
  • 8ft. wire harness with battery clamps easily connects and disconnects from your battery
  • In-line switch allows you to turn the pump on and off from the driver's seat
  • In-line fuse helps protect the system
  • Exclusive, extra-thick walled polymer tank design offers superior crack, leak and chemical resistance
  • Bottom-mount tank drain offers quick and easy draining and rinsing of tank
  • Bypass flow returns to tank to keep chemicals well-mixed
  • Pump and sprayer components are compatible for use with Roundup® brand agricultural herbicides
  • 15ft. x 3/8in. clear reinforced poly vinyl chloride hose makes monitoring chemical flow simple
  • Handles make sprayer easy to transport
  • Hose wrap and spray gun mounting location make storage easy
  • Suction strainer with clear bowl is easy to remove for cleaning
  • Gallon markers are molded into the tank for easy one-glance level checks
  • Pump automatically turns off when maximum pressure is reached for enhanced durability and efficiency
  • Large 7 1/2in. diameter tank lid for easy filling

99909 NorthStar Manual

Detailed Specifications

Item / Brand:
99909 NorthStar®
NorthStar Quick Connect
Ship Weight:
49 lbs.
Tank Size:
26 Gal
2.2 Gal
70 PSI
Spray Height:
19 ft
Broadcast Width:
6.7 ft
Horizontal Spray Dist:
Spray Pattern:
Cone, Stream
Spray Gun Type:
Spot, Broadcast
Tow Behind Cart Incl:
Hose Length:
180 in
35.5 x 18 x 15
