NorthStar® Tow-Behind Trailer Boom Broadcast and Spot Sprayer — 21-Gallon, 2.2 GPM (282780)

Regular price $349.99
Regular price -13% $399.99 Sale price $349.99

Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us.

Free Shipping!

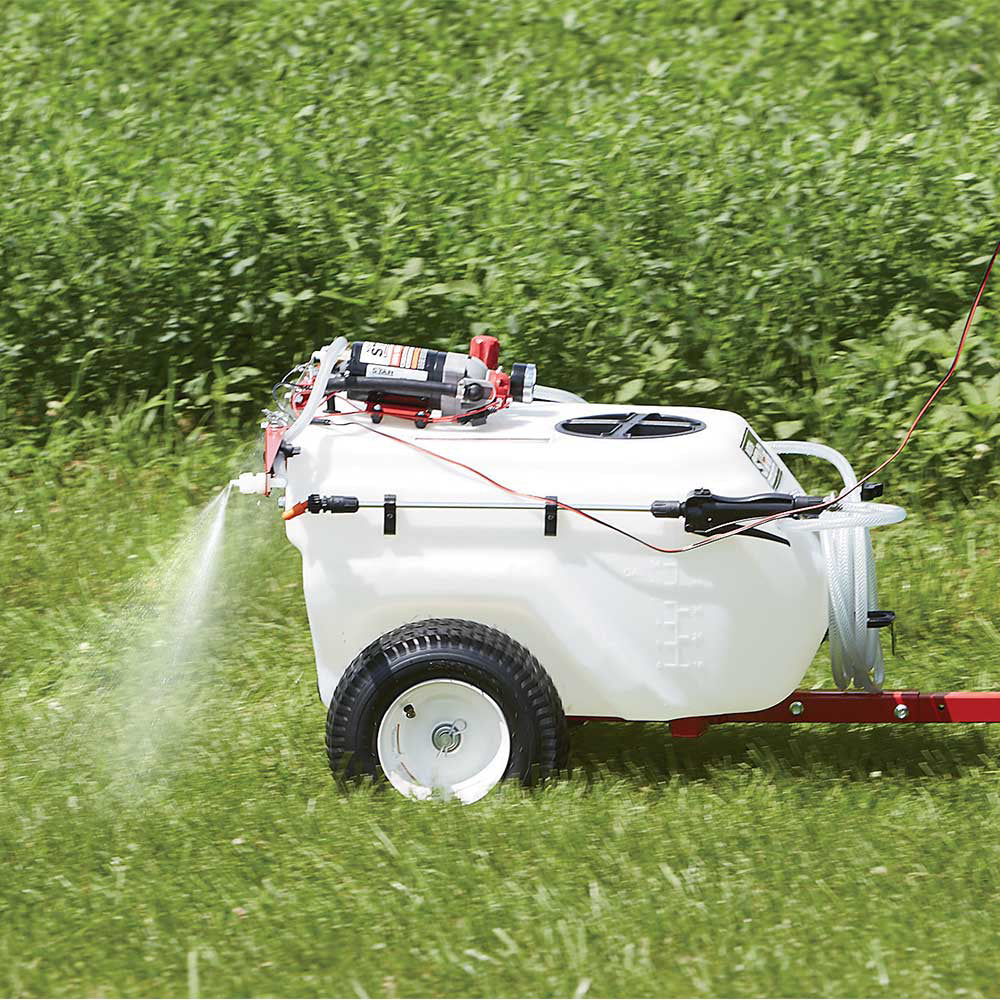

The versatile, high-end NorthStar tow-behind trailer boom broadcast and spot sprayer gives you the ability to do both precision and wide-coverage spraying. Equipped with a commercial-grade NorthStar NSQ Series pump, it provides easier priming, exceptional durability, and superior resistance to harsh environments and corrosive chemicals.

The completely redesigned oversized tank is secured to a heavy-duty 100% steel cart that handles the roughest terrain. A retractable tow bar, foldable boom arms, and removable axle and wheels allow for ultra-compact storage. Gallon marks are molded into the tank for easy fluid-level monitoring. Tow behind your ATV or lawn/garden tractor.

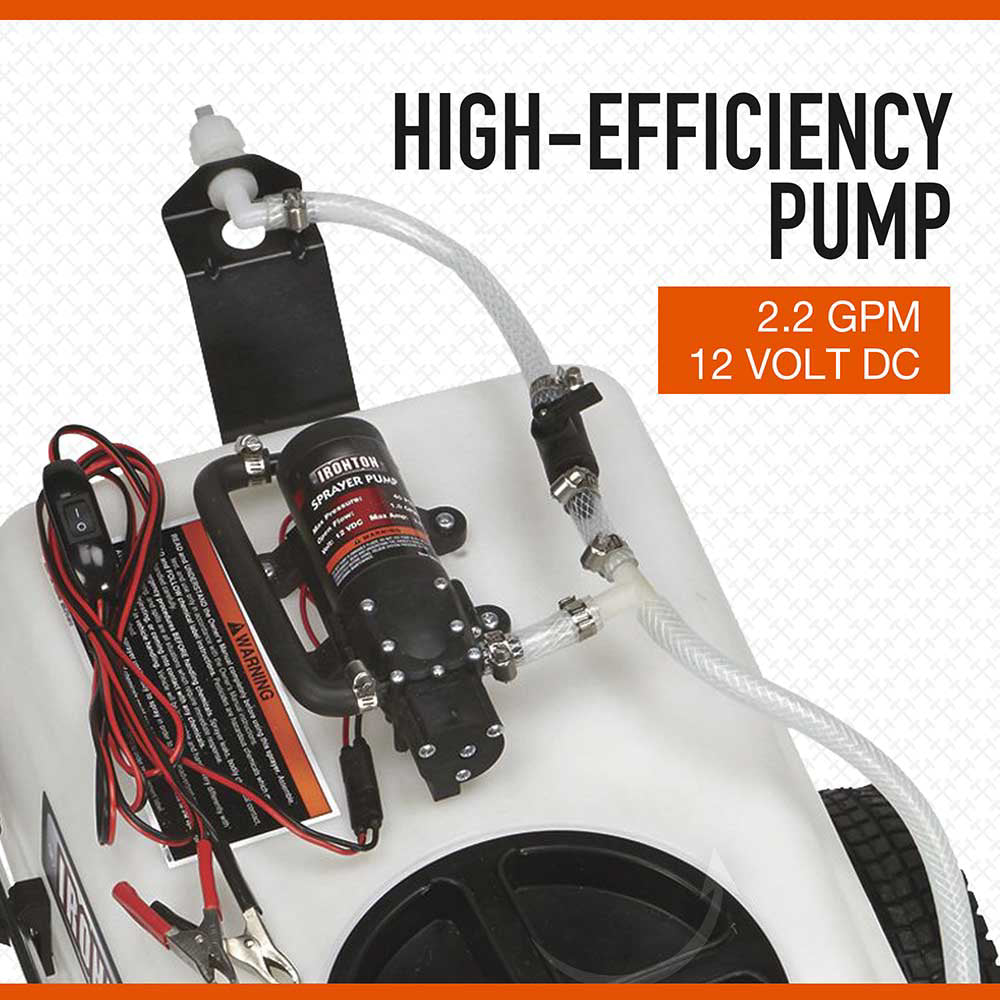

  • 12V 2.2 GPM open flow NorthStar NSQ Series on-demand pump provides faster priming and longer life; 70 PSI max.
  • 100% continuous-duty rating
  • Santoprene™ diaphragm and Viton® valves for superior reliability and chemical resistance

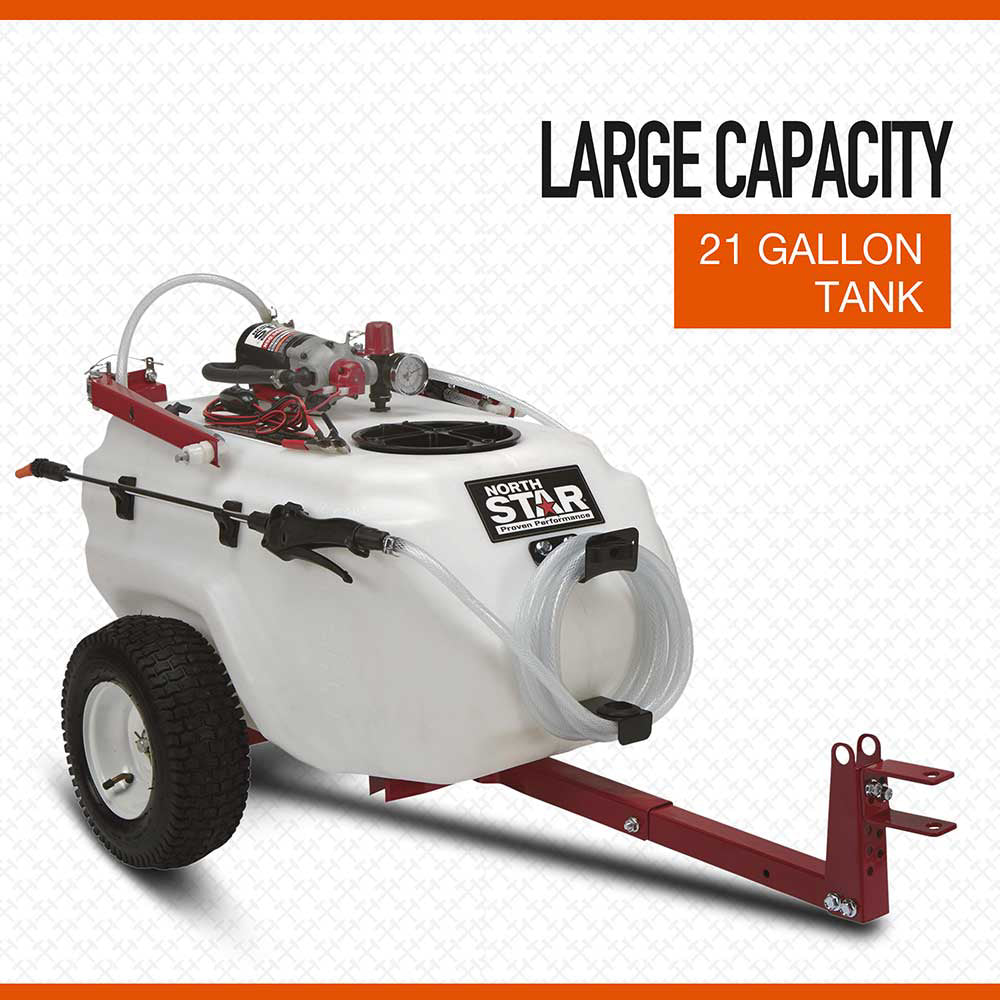

  • Large-capacity proprietary tank design features extra-thick walls that are UV-resistant and compatible with virtually all pesticides
  • Boom delivers 120in. overall spray width, 80in. effective spray width
  • Spring-loaded, breakaway boom arms fold away for compact storage
  • Left and right boom nozzle control valves
  • Control system pressure and fluid agitation with regulator and pressure gauge
  • Compatible with Roundup® agricultural brand herbicides
  • Spot spray gun nozzle adjusts from cone to stream; shoots 19ft. vertically and 30ft. horizontally
  • 15-ft. clear PVC hose makes monitoring chemical flow simple
  • Rugged powder-coated steel cart with large 12in. pneumatic wheels

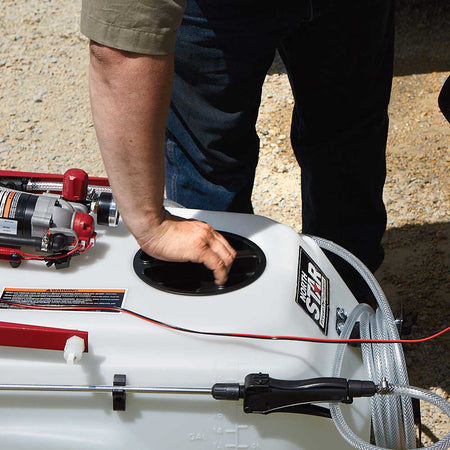

  • 7 1/2in. diameter tank lid for easy fills
  • Easy empty tank with bottom drain
  • Includes pressure gauge and remote switch with battery clamps
  • Attaches to ATV or garden tractor



282780 Manual

Detailed Specifications

Item / Brand:
282785 NorthStar®
Pump:
NorthStar NSQ Series
Ship Weight:
53 lbs.
Tank Size:
21 Gal
Flow:
2.2 Gal
Pressure:
70 PSI
Spray Height:
19 ft
Broadcast Width:
6.6 ft
Horizontal Spray Dist:
30 ft
Spray Pattern:
Cone, Stream
Spray Gun Type:
Spot, Broadcast
Tow Behind Cart Incl:
Yes
Hose Length:
180 in
Dimensions:
48 x 42 x 25
