NorthStar 60BS 16-Gallon ATV Spot & Broadcast Sprayer – 12V, 2.2 GPM, 70 PSI

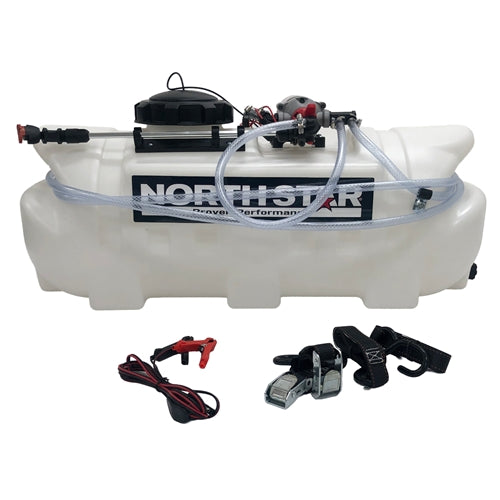

The NorthStar 60BS 16-Gallon ATV Spot and Broadcast Sprayer is designed for both wide-coverage spraying and precise spot treatment around lawns, food plots, gardens, fence lines, driveways, farms, and rural properties. Built for ATV mounting, this sprayer includes a 16-gallon chemical-resistant tank, NorthStar NSQ Series pump, adjustable spray gun, single-nozzle broadcast system, 15-foot PVC hose, remote switch, and tie-down straps.
Powered by a 12V NorthStar NSQ Series on-demand pump, this ATV sprayer delivers up to 2.2 GPM open flow and 70 PSI, giving you dependable performance for herbicide, pesticide, and liquid treatment applications. The included spray gun adjusts from cone spray to stream for precise spot spraying, while the broadcast system provides a 14-foot spray swath for covering larger areas more efficiently.
The exclusive 16-gallon tank features extra-thick walls and superior chemical resistance, making it suitable for compatible agricultural herbicides, including Roundup®, when used according to label directions.
Key Features & Benefits
✔ Spot and Broadcast Spraying
Use the spray gun for precise spot spraying or switch to the broadcast system for wider coverage.
✔ 16-Gallon Tank Capacity
Provides a practical balance of capacity and maneuverability for ATV-mounted spraying.
✔ 12V NorthStar NSQ Series Pump
Delivers 2.2 GPM open flow and up to 70 PSI for reliable spraying performance.
✔ On-Demand Pump Operation
Pump activates as needed for efficient operation and controlled spraying.
✔ Durable Honeywell MICRO SWITCH™
Pump includes a durable and efficient Honeywell MICRO SWITCH™ for dependable performance.
✔ Chemical-Resistant Tank
Exclusive 16-gallon tank design features extra-thick walls and strong chemical resistance.
✔ Adjustable Spray Gun Nozzle
Spray gun adjusts from cone spray to stream for targeted spraying or longer reach.
✔ Strong Spray Reach
Provides up to 30 feet of horizontal spray reach and up to 19 feet of vertical spray reach.
✔ 14-Ft. Broadcast Spray Swath
Single-nozzle broadcast system provides wider coverage for lawns, food plots, pastures, and larger areas.
✔ Valve Control for Easy Switching
Valve control allows quick switching between spot spraying and broadcast spraying.
✔ Remote Switch Included
Remote switch allows convenient pump activation from the ATV.
✔ Tie-Down Straps Included
Helps secure the sprayer to your ATV during use and transport.
✔ Approved for Roundup® Agricultural Herbicide
Designed for use with compatible agricultural herbicides, including Roundup®, when used according to label directions.
Best Applications
The NorthStar 60BS 16-Gallon ATV Spot and Broadcast Sprayer is ideal for:
- Spot spraying weeds
- Broadcast spraying larger areas
- Food plots
- Lawns
- Gardens
- Fence lines
- Driveways
- Pastures
- Small farms
- Rural property maintenance
- Agricultural herbicide application
- ATV-mounted spraying
- Targeted pest or vegetation control
Always follow chemical label directions and safety guidelines when using herbicides, pesticides, or other liquid treatments.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | NorthStar |
| Model | 60BS |
| Product Type | ATV Spot and Broadcast Sprayer |
| Tank Capacity | 16 Gallons / 60 Litres |
| Pump Type | NorthStar NSQ Series On-Demand Pump |
| Power Type | 12 Volt |
| Open Flow | 2.2 GPM / 8.3 LPM |
| Maximum Pressure | 70 PSI / 4.8 Bar |
| Spray Gun | Adjustable Nozzle |
| Spray Pattern | Cone to Stream |
| Horizontal Spray Reach | Up to 30 ft. / 9.1 m |
| Vertical Spray Reach | Up to 19 ft. / 5.7 m |
| Broadcast Spray Swath | 14 ft. / 4.2 m |
| Broadcast System | Single-Nozzle Broadcast System |
| Hose | 15 ft. PVC Hose |
| Remote Switch | Included |
| Tie-Down Straps | Included |
| Tank Design | Extra-Thick Walls / Chemical Resistant |
| Approved Herbicide Use | Roundup® Agricultural Herbicide |
| Optional Accessory | Agitation Kit Sold Separately |
| SKU | 60BS |
Package Contents
- NorthStar 16-Gallon ATV Sprayer Tank
- NorthStar NSQ Series 12V Pump
- Spray Gun with Adjustable Nozzle
- Single-Nozzle Broadcast System
- 15 ft. PVC Hose
- Remote Switch
- Tie-Down Straps
Recommended Use
The NorthStar 60BS is a great choice for property owners, gardeners, farmers, food plot managers, and landowners who need a compact ATV-mounted sprayer with both spot and broadcast spraying capability. With its 16-gallon tank, 2.2 GPM pump, 70 PSI output, adjustable spray gun, and 14-foot broadcast swath, this sprayer is built for efficient weed control, lawn treatment, food plot spraying, and general property maintenance.
Optional Accessory
An optional agitation kit is available separately for applications where tank agitation is needed.
