NorTrac® Dump Trailer Power Unit with 12V DC Motor — For Single-Acting Cylinder, 5.3 Gal. Reservoir (53464)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
2 HP Hydraulic Power Unit • 12V DC • Ideal for Dump Trailers & Tipper Applications

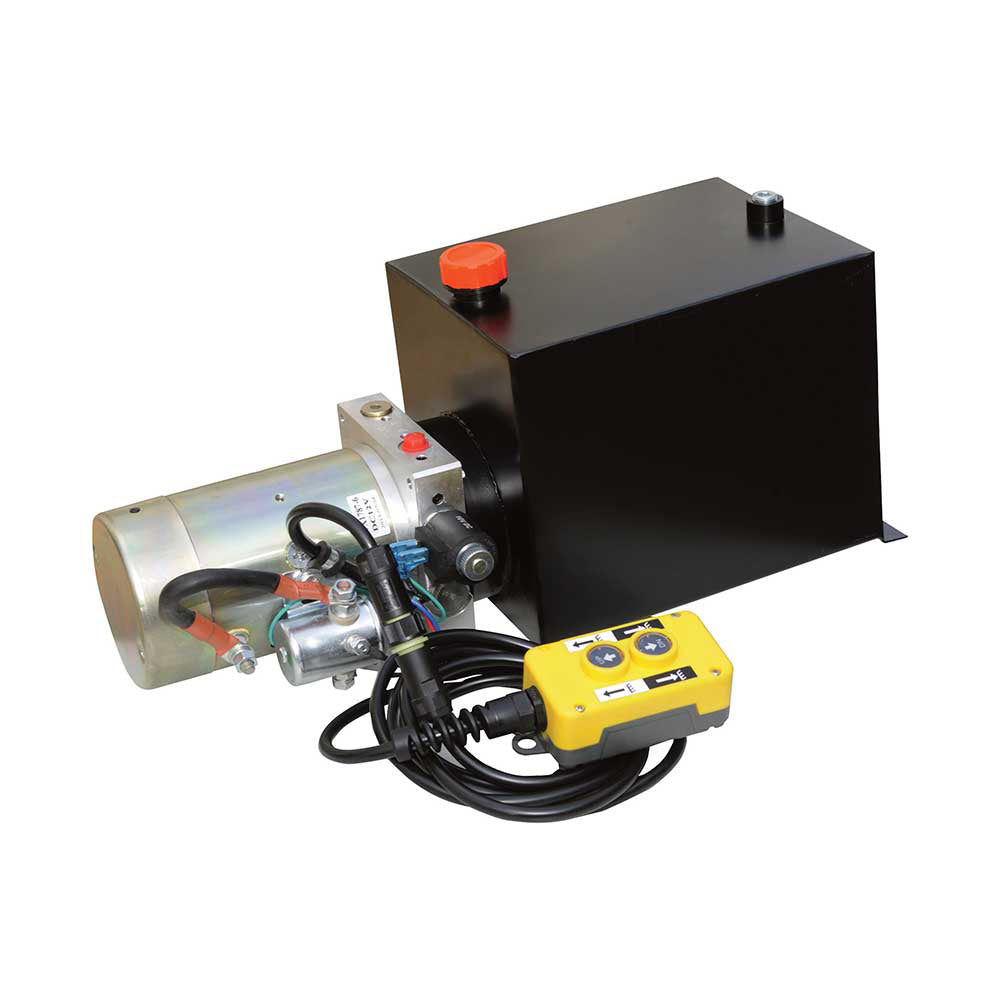

The NorTrac 53464 Dump Trailer Power Unit is a compact, heavy-duty hydraulic power solution built for dump trailers, dump trucks, and tipper applications. Equipped with a 12V DC motor and 5.3-gallon reservoir, this unit is designed to deliver dependable hydraulic performance for power-up / power-down circuits with load holding on both ports.
With a 2 HP motor, pressure-balanced pump, and electric pendant control, this power unit provides smooth, reliable operation for demanding trailer and hydraulic lift applications.
Key Features & Benefits
-
Heavy-Duty 12V DC Motor
Powerful 2 HP motor delivers the strength needed for hydraulic lifting applications. -
Power-Up / Power-Down Operation
Designed for double-acting cylinder circuits with load holding on both A and B ports. -
Ideal for Dump Trailer & Tipper Applications
Great fit for dump trailers, dump trucks, and similar hydraulic power setups. -
Pressure-Balanced Pump
Helps provide smoother, more consistent hydraulic performance. -
Electric Pendant Control
Easy-to-use wired control pendant for convenient operation. -
5.3-Gallon Reservoir
Large hydraulic fluid capacity supports dependable operation and extended use. -
Compact, Durable Design
Built for heavy-duty service while maintaining a compact footprint for installation.
Quick Specs
| Specification | Details |
|---|---|
| Item Number | 53464 |
| Brand | NorTrac |
| Motor | 12V DC / 2 HP |
| Application | Dump Trailer / Dump Truck / Tipper |
| Cylinder Type | Double-Acting |
| Reservoir Capacity | 5.3 Gal. |
| Max Flow Rate | 1.5 GPM |
| Max PSI | 2,600 |
| Max RPM | 3,000 |
| Displacement | 2.1cc |
| Port Outlet Size | 9/16 in. |
| Control Type | Electric Pendant |
| Ship Weight | 43 lbs. |
| Warranty | 1-Year Limited |
Ideal For
- Dump trailers
- Dump trucks
- Tipper trailers
- Hydraulic lift systems
- Replacement hydraulic power units
What’s Included
- NorTrac Dump Trailer Power Unit
- Electric Pendant Control
NOTE: Most products require at least some assembly.
