Ramsplitter 30 Ton 30" Opening Upside Down Skid Steer Log Splitter Attachment (SSUD30-32)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Free Shipping! Please allow 1-3 weeks lead time.

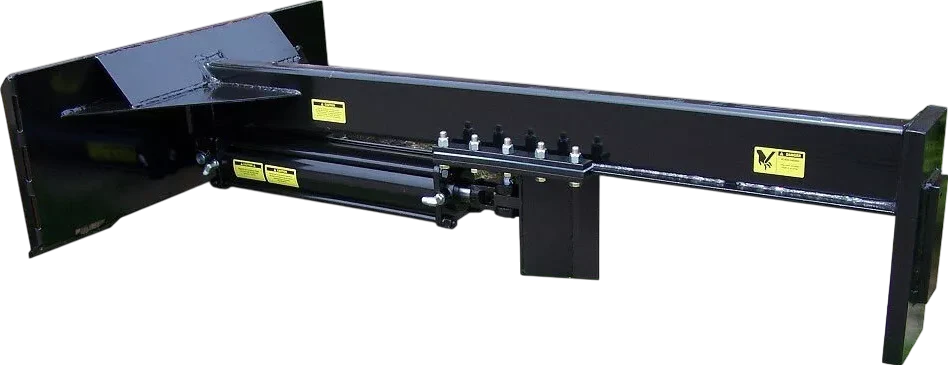

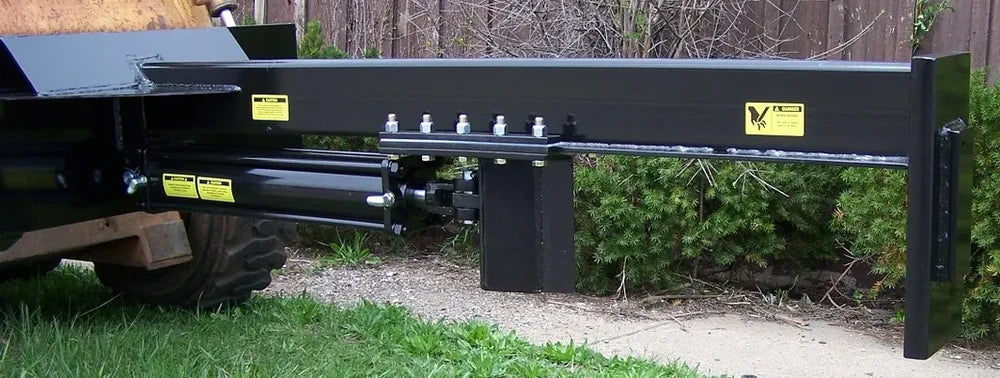

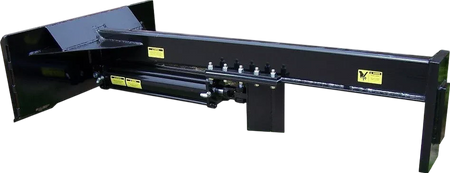

Ramsplitter SSUD30-32 Skid Steer Log Splitter
Unmatched Power & Versatility
The Ramsplitter SSUD30-32 delivers a commanding 30-ton ram force and a 30-inch stroke, capable of handling logs up to 31 inches long and 40 inches in diameter (depending on wood type). Its 10-inch hardened steel wedge ensures precise, consistent splitting.
Heavy-Duty Frame with Universal Compatibility
Built on a rugged tube steel beam, the SSUD30-32 is engineered for extreme conditions. The universal skid steer mounting plate provides broad compatibility, ensuring quick and secure attachment to most skid steer models.
Compact Yet Capable Design
Despite its powerful output, this splitter is designed for practical transport and storage. Measuring 92" (L) x 48" (W) x 20" (H) and weighing 625 lbs, it offers a compact footprint. An integrated log cradle adds efficiency during operation, while its durable construction ensures years of reliable use.
Reliable Hydraulic System
Equipped with wire hydraulic hoses, quick-connect couplers, and a welded 5" x 30" cylinder with a 2" rod, the SSUD30-32's hydraulic system delivers consistent performance and power for demanding applications.
Built to Endure
Supported by a 1-year parts warranty, the Ramsplitter SSUD30-32 is ideal for commercial logging, land clearing, or large-scale firewood production. It combines brute strength with dependable engineering—making tough jobs easier, faster, and more efficient.
Please note: You can customize this log splitter:
You have two options:
- 4 Way Wedge - Split logs into 4 pieces. This 4 way wedge bolts on the slide of the beam. If ordered, you get both the single head wedge and the 4 way wedge. 4 way wedge will reduce opening size by 3".
Questions? Feel free to contact us at 888-706-2434.
Some assembly is required. Images may slightly differ from actual product if there are upgrades or slight changes made. If you have a Case 1840 please inform us at the time of order as this has a different mount.
SSUD30-32 Log Splitter – Detailed Specifications
| Attribute | Specification |
|---|---|
| Tonnage | 30 Ton (60,000 lbs) |
| Cylinder | 5" x 30" |
| Opening Size | 31 Inch Opening Length |
| Beam | 6 x 3 Tubular Design |
| Wedge | Single 10" High |
| 4-Way Wedge | Optional |
| Color | Black Only (Safety Paint) |
| Mounting Plate | Universal System (2 quick attach lock handles) |
| Weight | 625 lbs |
| Length | 92 Inches |
| Hoses & Connectors | Included – Flat Face Disconnects |
| Warranty | 1 Year |
| Made in USA | Yes |
NOTE: Most products require at least some assembly.
