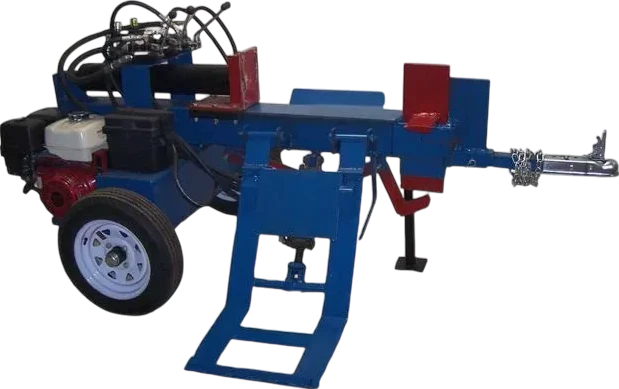

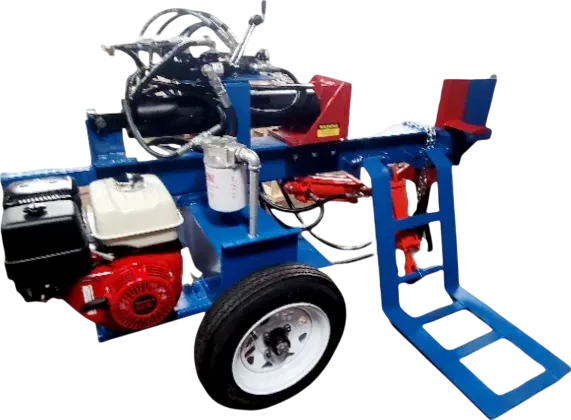

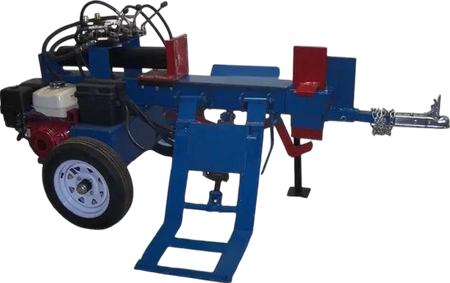

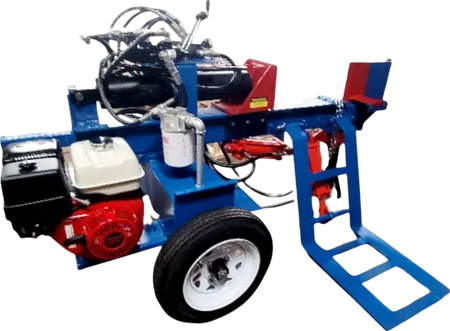

Ramsplitter H34 Log Splitter – 34 Ton, 13 HP Honda
High-Performance, Commercial-Grade Log Splitter for Firewood, Logging, and Forestry Applications.
🔧 Product Overview
The Ramsplitter H34 Horizontal Wood Splitter delivers professional-grade performance with a powerful 13 HP Honda GX390 engine and 34-ton hydraulic ram. Designed for heavy-duty firewood splitting, logging operations, and forestry work, this machine effortlessly handles large, dense logs with precision and power. Whether you're managing a commercial firewood business or prepping for the winter season, the H34 gets the job done faster and with less fatigue.
✅ Key Features
-
34 Tons of Splitting Force – Crushes hardwood logs up to 25" long and 40" in diameter
-

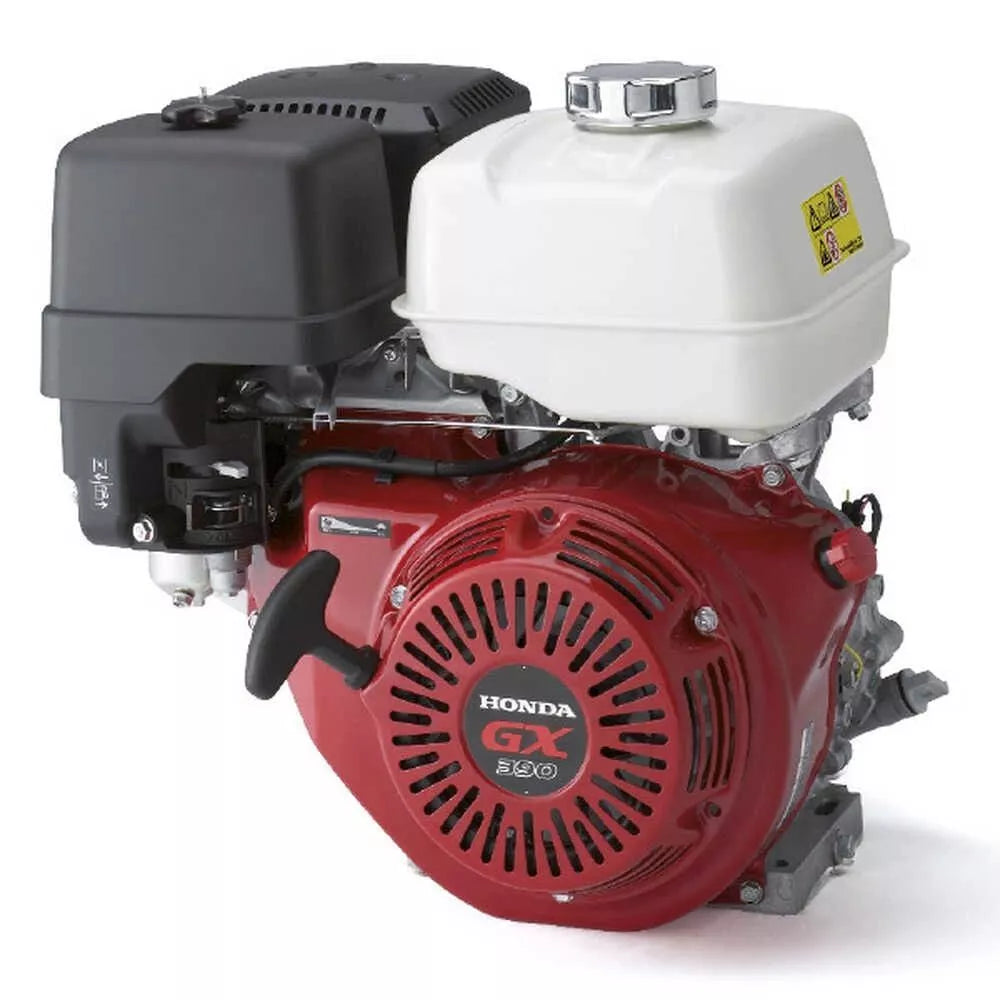

Reliable Honda GX390 Engine – Legendary 13 HP performance, trusted for commercial use
-
Heavy-Duty Hydraulic System – Features a 24″ stroke, 22 GPM pump, and 15-gallon hydraulic tank
-
Ergonomic Design – 32" working height, easy log loading, and quick 14-second cycle time
- Log lift capacity - 500lbs makes handling large logs easier and safer.
-
Tow-Ready – Comes with a 2" ball hitch, 12″ wheels, and 65 MPH towing capacity
-

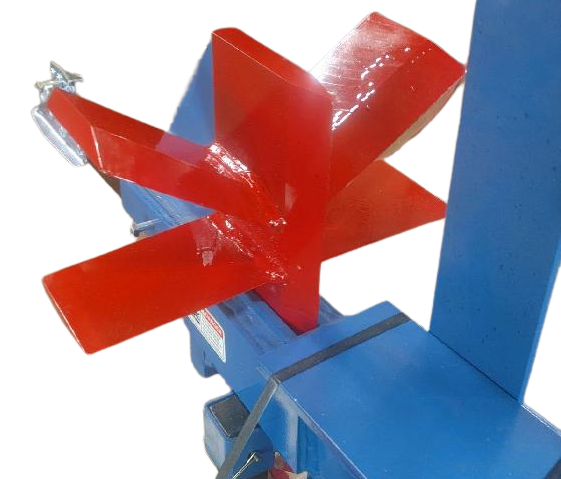

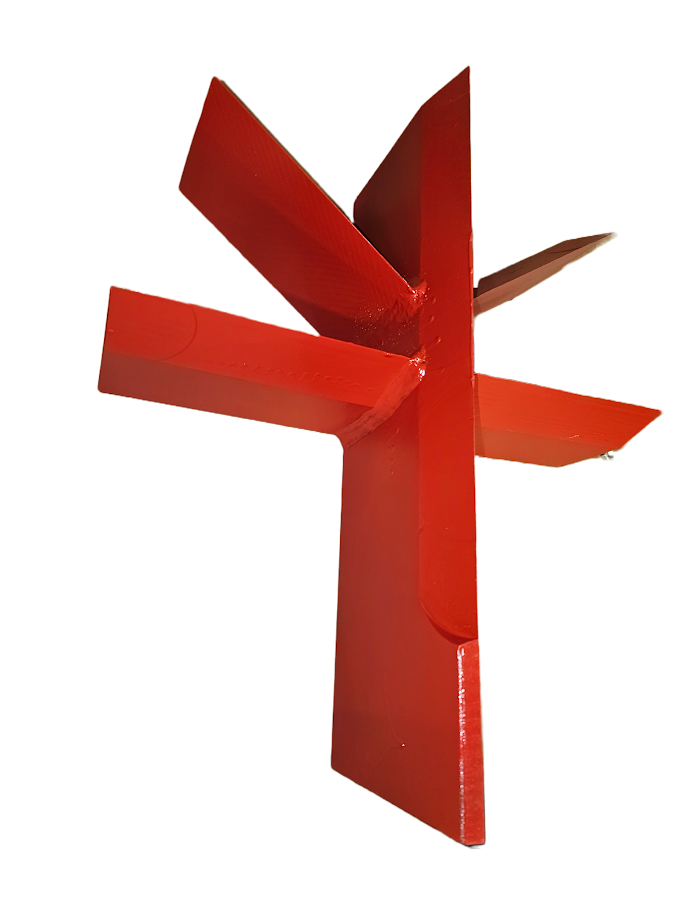

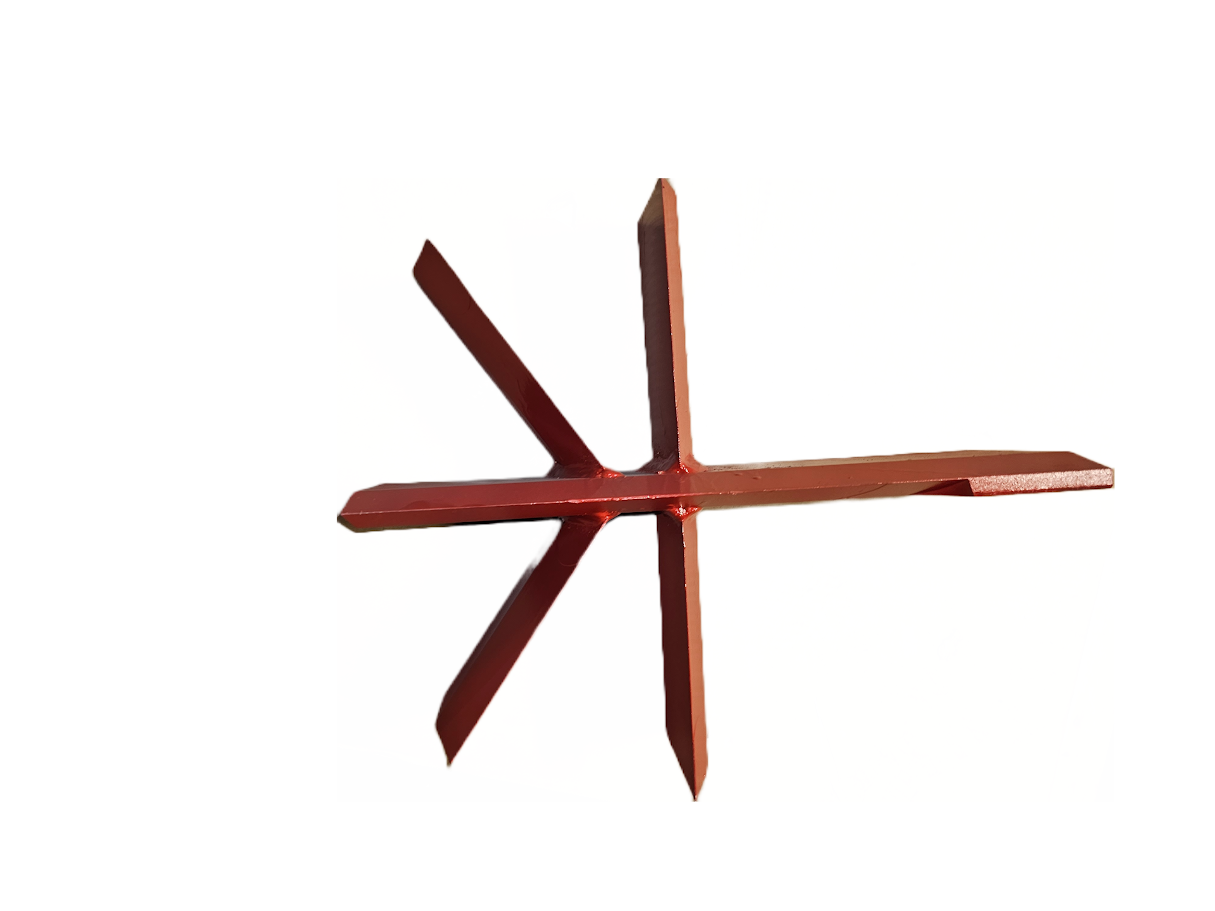

4-Way Wedge Included - Optional 6-Way Wedge – Upgrade for faster splitting of large quantities of wood
🛠️ What’s Included
-
Ramsplitter H34 Horizontal Log Splitter
-
13 HP Honda GX390UT1QAA2 Recoil Start Engine
-
Pre-installed hydraulic system with auto-return valve
-
User manual and warranty documentation
- 4-Way Wedge that is removable (6-way wedge also available during checkout)
🪵 Built for Tough Jobs
-
Commercial-grade construction: built in the USA for long-term durability
-
Engineered for performance: handles hardwood, knotty logs, and oversized rounds
-
Quick setup: easy hitch and go for mobile jobs or remote locations
-
Low-maintenance design: dependable Honda engine and heavy-duty hydraulics
| Attribute | Detail |
|---|---|
| Splitting Force | 34 Ton (68,000 lbs) |
| Engine | Honda GX390 (13 HP, 389cc, Recoil Start) |
| Stroke Length | 24″ |
| Cycle Time | Approx. 14 Seconds |
| Max Log Length | 25″ |
| Max Log Diameter | 40″ |
| Wedge Height | 12″ Hardened Steel (Single) |
| Wedge / Optional | Hydraulic Powered Single 12" Wedge & 4-Way Wedge / Optional 6-Way Wedge |
| Working Height | 32″ |
| Beam Type | Heavy-Duty Tube Steel |
| Hydraulic Pump | 22 GPM Two-Stage |
| Hydraulic Fluid | ATF / 32 Weight |
| Reservoir Capacity | 15 Gallons |
| Tires | 12″ Wheels |
| Tow Hitch | 2" Ball Coupler |
| Tow Speed | Up to 65 MPH |
| Weight | 1,000 lbs |
| Assembled Dimensions | 96″ L x 52″ W x 48″ H |
| Warranty | 3-Year Limited Warranty |
⚠️ Important Notes
-
Not for sale in California
-
Ships in 1–2 weeks via freight (free shipping)
-
Residential liftgate delivery available during checkout
- H34-3 User Manual
NOTE: Most products require at least some assembly.
