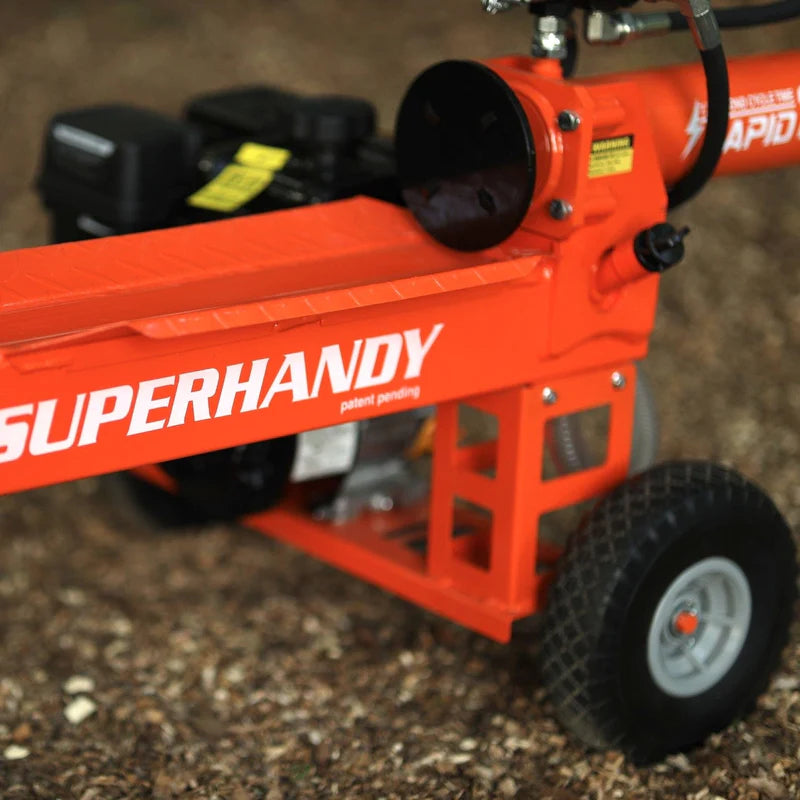

SuperHandy Portable 20 Ton 7HP Gas Powered Log Splitter (GUO077)

Compact Design. Serious 20-Ton Splitting Power.

Get the power of a full-size hydraulic log splitter in a compact, portable design with the SuperHandy GUO077 20 Ton Gas Log Splitter. Engineered for homeowners, firewood enthusiasts, and rural property owners, this powerful horizontal log splitter combines a dependable 7HP, 209cc AlphaWorks gas engine with a high-performance hydraulic system to make firewood processing faster and easier.

Delivering up to 20 tons of splitting force and an impressive 7.5-second cycle time, the GUO077 is built to handle demanding firewood splitting tasks without the size and weight of larger traditional log splitters.

Equipped with an 11 GPM two-stage Bucher hydraulic pump, automatic-return control valve, and heavy-duty steel splitting beam, this versatile machine provides efficient, consistent splitting performance.

Its compact footprint, 10-inch transport wheels, and approximately 132 lb weight make it easy to position near your woodpile, around your property, or in your storage area.

Whether you're preparing firewood for winter, maintaining a cabin, or splitting logs around your property, the SuperHandy GUO077 delivers an excellent combination of power, speed, and portability.

Key Features & Benefits

• Powerful 20-Ton Splitting Force: Delivers up to 40,000 lbs of rated splitting force to handle seasoned firewood and challenging logs.

• Reliable 7HP / 209cc AlphaWorks Gas Engine: Provides dependable outdoor power without requiring access to an electrical outlet.

• Fast 7.5-Second Cycle Time: Rapid hydraulic operation helps reduce time between splits and improve firewood processing efficiency.

• 11 GPM Two-Stage Bucher Hydraulic Pump: Provides efficient hydraulic power delivery for consistent splitting performance.

• Automatic-Return Control Valve: Detent-style valve automatically retracts the hydraulic ram after a splitting stroke, reducing repetitive operation.

• Handles Logs Up to 20 Inches Long: Ideal for common firewood lengths, with a rated maximum log diameter of 16 inches.

• Heavy-Duty Horizontal Splitting Beam: Provides a sturdy platform for positioning logs and completing controlled splitting operations.

• Compact 132 lb Design: Offers impressive power in a more portable package than many full-size gas log splitters.

• Large 10-Inch Transport Wheels: Convenient wheels and integrated handle make repositioning the splitter around your property easier.

• 3.5-Inch Hydraulic Cylinder: Durable hydraulic cylinder with a 16-inch stroke provides dependable splitting action.

• Manual Recoil Start: Traditional pull-start engine operation eliminates the need for a starting battery.

• Low-Oil Engine Shutoff: Helps protect the engine if the oil level becomes too low.

• Off-Grid Convenience: Gas-powered operation makes it a practical choice for cabins, rural properties, and locations without electrical power.

Built for Fast, Efficient Firewood Splitting

20 Tons of Hydraulic Splitting Force

Don't let stubborn logs slow you down. The SuperHandy GUO077 delivers up to 20 tons of rated hydraulic splitting force, providing the power needed to process firewood for home heating, fireplaces, fire pits, and wood stoves.

Its sturdy horizontal beam supports logs during the splitting process, while the hydraulic ram pushes the wood against the splitting wedge for effective splitting performance.

Fast 8-Second Cycle Time

Speed matters when you have a large pile of firewood waiting to be processed.

With an approximate 8-second cycle time, the GUO077 helps minimize downtime between splitting cycles, allowing you to work more efficiently than with slower hydraulic log splitters.

The convenient auto-return valve automatically retracts the ram after a splitting stroke, helping streamline repetitive firewood processing.

High-Performance Two-Stage Hydraulic System

The GUO077 features an 11 GPM two-stage Bucher hydraulic gear pump that delivers power to the splitting cylinder.

Reliable 7HP AlphaWorks Engine

Powered by a robust 209cc, 4-stroke AlphaWorks gasoline engine, the SuperHandy GUO077 offers dependable power for outdoor splitting jobs.

The engine features manual recoil starting, an approximately 0.74-gallon fuel tank, and low-oil shutoff protection.

Unlike electric log splitters, the GUO077 doesn't require extension cords or access to an electrical outlet, making it well suited for rural properties, woodlots, and remote work areas.

Compact and Portable Design

One of the GUO077's biggest advantages is its compact footprint.

Weighing approximately 132 lbs and equipped with 10-inch transport wheels, this machine is designed to be moved manually around your property.

The portable design makes it easier to reposition near your woodpile or move into storage when the job is finished.

Important: This log splitter is intended for manual transportation only and is not designed to be towed behind a vehicle.

Ideal Applications

• Home Firewood Processing: Prepare firewood for wood stoves, fireplaces, and outdoor fire pits.

• Seasonal Wood Splitting: Process logs efficiently before winter heating season.

• Cabins & Off-Grid Properties: Enjoy gas-powered splitting capability where electricity may not be available.

• Acreage & Rural Properties: Handle regular firewood splitting around larger residential properties.

• Small Woodpiles & Personal Firewood Supplies: Get dependable splitting performance without purchasing a larger commercial machine.

• Property Maintenance: Process suitable fallen or cut logs into manageable firewood.

Technical Specifications

What's Included

• SuperHandy GUO077 20 Ton Gas Log Splitter

• 7HP AlphaWorks Gas Engine

• Hydraulic Pump and Cylinder Assembly

• Horizontal Splitting Beam and Wedge

• Hydraulic Control Valve

• 10-Inch Transport Wheels

• Handle and Support Components

• Assembly Hardware

• GUO077 User Manual

Important: Assembly is required. Engine oil, gasoline, and hydraulic fluid must be added before the first use. Refer to the operator's manual for fluid capacities, assembly, startup, and safety instructions.

Frequently Asked Questions (FAQs)

Q: How much splitting power does the SuperHandy GUO077 produce?

The SuperHandy GUO077 delivers up to 20 tons of rated hydraulic splitting force, making it suitable for processing firewood and splitting logs up to the manufacturer's rated dimensions. Actual splitting performance depends on wood species, moisture content, grain, and knots.

Q: What size logs can the GUO077 split?

The manufacturer's manual lists a maximum log length of 20.5 inches and maximum log diameter of 16 inches. The manufacturer markets the machine for logs up to 20 inches long. For best results, use appropriately sized logs with reasonably straight cuts.

Q: How fast is the SuperHandy GUO077?

The GUO077 features an approximate 7.5-8 second hydraulic cycle time, allowing efficient processing of firewood. Its automatic-return valve helps reduce the need to manually retract the hydraulic ram after each splitting stroke.

Q: Does the GUO077 split logs horizontally and vertically?

No. The GUO077 is a horizontal-only log splitter. Its compact horizontal beam design provides a stable platform for splitting logs and helps keep the machine lightweight and portable.

Q: What type of hydraulic fluid does the GUO077 use?

The manufacturer's operator's manual specifies AW32 or AW46 hydraulic fluid, with a hydraulic reservoir capacity of approximately 2.1 gallons. Check the current manual supplied with your machine before filling. Hydraulic fluid must be added before initial operation.

Q: What type of gasoline and engine oil does this log splitter require?

The GUO077 operates on 87-octane unleaded gasoline, with ethanol-free fuel preferred. The manufacturer recommends SAE 10W-30 engine oil for general operation. Because the engine is a 4-stroke design, gasoline and engine oil are added separately.

Q: Is the SuperHandy GUO077 easy to move?

Yes. The GUO077 weighs approximately 132 lbs and features 10-inch transport wheels and a handle for manual movement. Its compact design makes it more portable than many larger traditional gas log splitters.

Q: Can the SuperHandy GUO077 be towed behind an ATV or lawn tractor?

No. The GUO077 is not designed for towing behind a vehicle. Its wheels and handle are intended strictly for manual movement around a work site. Towing modifications may damage the unit and void the manufacturer's warranty.

Q: Does the SuperHandy GUO077 have an automatic-return valve?

Yes. The GUO077 features a detent-style hydraulic control valve with automatic return. After the splitting stroke, the ram can automatically retract, helping improve efficiency during repeated splitting operations.

Q: Does the GUO077 require assembly?

Yes. Assembly is required before use, including installation of the necessary structural and hydraulic components. Follow the manufacturer's instructions carefully, add the required fluids, and inspect the hydraulic connections before starting.

Q: What warranty comes with the SuperHandy GUO077?

The GUO077 is advertised with a 1-year limited warranty, subject to the manufacturer's terms and exclusions. Contact the manufacturer for warranty claims and service requirements.

Why Choose the SuperHandy GUO077?

The SuperHandy GUO077 20 Ton Gas Log Splitter is an excellent solution for homeowners who want serious hydraulic splitting power without the expense, weight, and storage requirements of a larger traditional log splitter.

Combining a 7HP AlphaWorks gas engine, 20 tons of splitting force, fast 7.5-second cycle time, two-stage hydraulic pump, and automatic-return valve, this compact machine delivers impressive performance for everyday firewood processing.

Its convenient 10-inch wheels and portable design make it easy to position around your property, while gas-powered operation provides the freedom to work where electrical outlets aren't available.

Split more firewood with less effort using the SuperHandy GUO077 20 Ton Portable Gas Log Splitter.
