TITAN 3.25" Barrel Contractor X Series Post Driver w/ Honda GX35 (PGD3200X)

3-1/8" Maximum Post Capacity • Honda GX35 4-Stroke Engine • 1,850 BPM • Commercial-Duty Design • 45 lbs.

Take the work out of installing fence posts, ground rods, rebar, and other driven materials with the Titan PGD3200X Commercial Gas-Powered Post Driver. Designed for professional and frequent-use applications, this powerful self-contained driver combines a Honda GX35 35cc 4-stroke engine with a heavy-duty impact system producing up to 1,850 beats per minute.

The PGD3200X accepts posts up to 3-1/8 inches in diameter without an adapter sleeve, while an included 2-1/2-inch adapter sleeve helps properly center smaller posts. At 45 lbs., the machine remains portable enough for one-person operation while providing the additional weight and durability desired for commercial post-driving work.

Key Features & Benefits

• Commercial-Duty Post Driver
  Designed for professional fencing, construction, agricultural, property maintenance, and other frequent-use applications.

• Honda GX35 Engine
  Powered by a dependable 35cc Honda GX35 4-stroke gasoline engine producing 1.3 HP.

• 1,850 Beats Per Minute
  Rapid impact action drives compatible posts efficiently with significantly less manual effort.

• Drives Posts up to 3-1/8" Diameter
  Large driving barrel accepts compatible posts up to 3-1/8 inches without an adapter sleeve.

• 3-1/4" Barrel Diameter
  Heavy-duty barrel provides the capacity needed for larger fence posts and other demanding applications.

• 2-1/2" Adapter Sleeve Included
  Helps properly center and guide smaller posts inside the barrel.

• 100% Self-Contained
  Requires no air compressor, hydraulic power pack, hoses, cords, or external power source.

• One-Person Operation
  A single operator can carry the driver along the fence line and move directly from one post location to the next.

• Recoil Starting
  Simple pull-start system keeps operation straightforward in remote locations.

• Trigger Throttle Control
  Allows convenient control of engine speed and impact operation from the handle.

• Comfort-Grip Handles
  Provides secure handling and better operator control during post installation.

• Internal Damping Springs
  Designed to reduce vibration transferred to the operator.

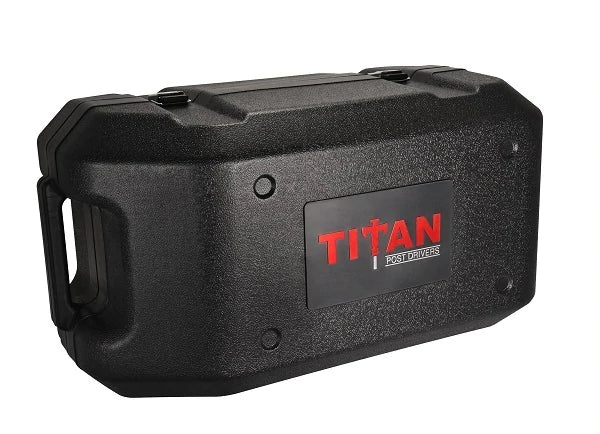

• Protective Carrying Case Included
  Rugged case provides convenient transportation and storage between jobs.

• Service Supplies Included
  Comes with extra oil and a service tool kit for routine maintenance.

• Assembled & Serviced in the USA
  The PGD3200X is assembled and serviced in the United States.

Built for Professional Post Installation

The PGD3200X is designed for users who need more than an occasional homeowner post driver. Its commercial configuration combines a 45-lb. driving head with Honda power and up to 1,850 impacts per minute.

Compared with a traditional manual post driver, the powered impact system can drive compatible posts in approximately half the time while substantially reducing repetitive manual lifting and striking.

Honda GX35 4-Stroke Power

At the heart of the PGD3200X is the Honda GX35, a compact commercial-grade four-stroke engine.

Unlike a two-stroke engine, there is no need to mix gasoline and oil. Simply use the proper unleaded gasoline and maintain the engine oil separately according to the manufacturer's instructions.

Engine Specifications

Large 3-1/8" Post Capacity

The PGD3200X accepts compatible posts up to 3-1/8 inches in diameter without a sleeve, giving contractors greater flexibility when moving between different post-driving jobs.

The included 2-1/2-inch adapter sleeve helps keep smaller posts properly centered inside the barrel for more effective impact transfer.

The machine is well suited for driving:

• Steel fence posts
• T-posts
• Ground rods
• Rebar
• Composite posts
• Fiberglass rods
• Stakes
• Sign posts
• Other compatible driven materials

Actual driving performance will vary depending on the post material, post diameter, soil conditions, and desired installation depth.

Self-Contained & Jobsite Ready

There is no need to haul a compressor or hydraulic power unit around the property. The PGD3200X contains its own gasoline engine and impact mechanism, giving contractors a highly portable solution for jobs where accessibility matters.

This eliminates the need for:

• Air compressors
• Pneumatic hoses
• Hydraulic power packs
• Hydraulic hoses
• Electrical cords
• Portable generators

This self-contained configuration can be especially valuable on long fence lines, farms, ranches, construction sites, and remote properties.

Designed to Reduce Operator Fatigue

The PGD3200X incorporates comfort-grip handles and internal damping springs to help reduce vibration during use.

At 45 lbs. dry weight, it has enough mass to support aggressive post driving while remaining portable enough for one-person operation.

Optional Handle Configurations

For applications where additional operating reach or control is desired, the PGD3200X is compatible with optional handle accessories, including:

• Optional top handle with secondary throttle control
• Optional lower handle extension with secondary throttle control

These accessories are sold separately unless specifically stated with the order.

Ideal Applications

The Titan PGD3200X is well suited for:

• Professional fencing contractors
• Farms and ranches
• Agricultural fencing
• Construction sites
• Property maintenance crews
• Ground rod installation
• T-post installation
• Rebar installation
• Sign installation
• Composite and fiberglass posts
• Commercial landscaping
• Large-property fence projects

Quick Specifications

Package Contents

The Titan PGD3200X includes:

• PGD3200X commercial gas-powered post driver
• Honda GX35 engine
• 2-1/2" adapter sleeve
• Rugged protective carrying case
• Extra oil
• Service tool kit

Optional top and lower handle accessories are not included unless specifically added to the order.
