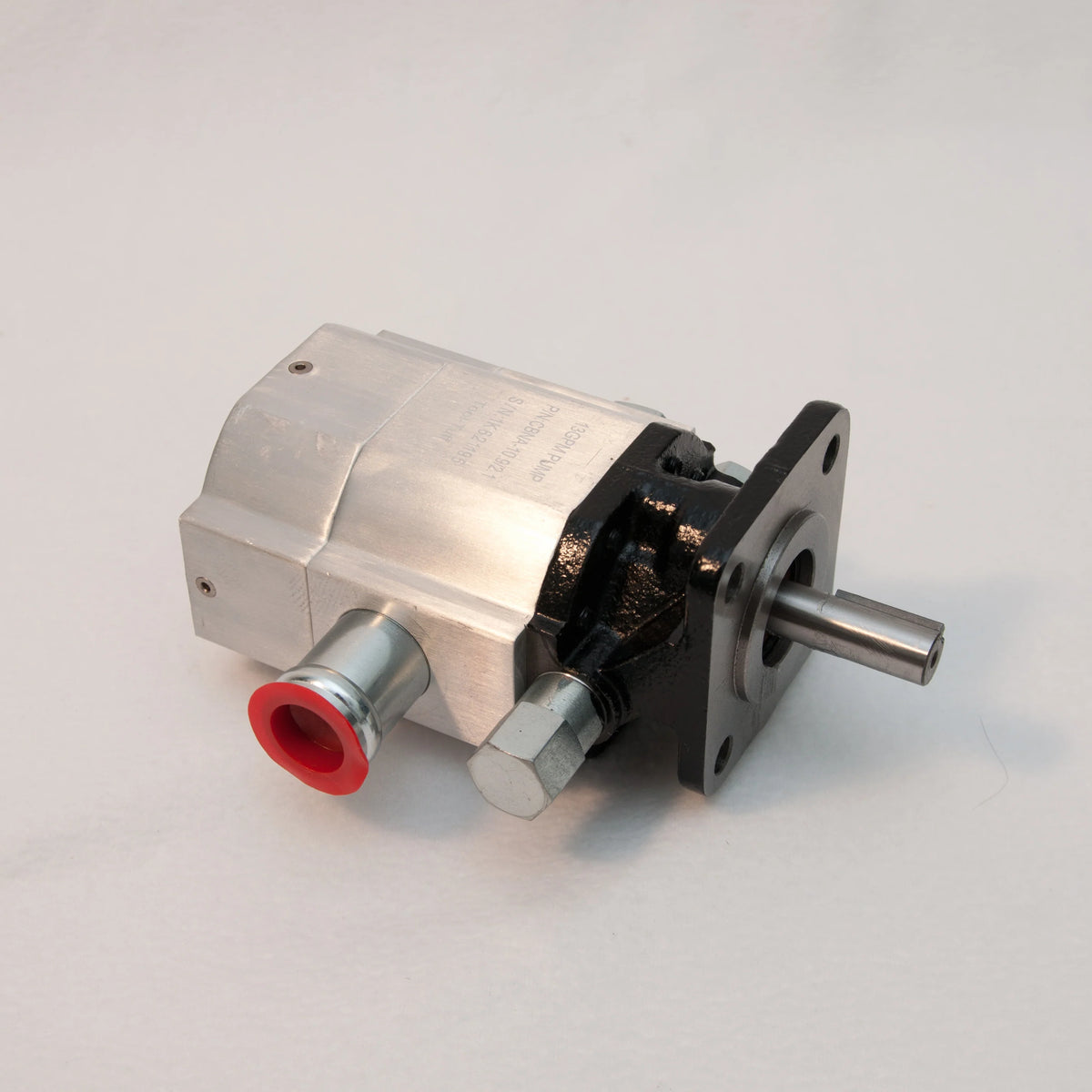

Aftermarket Replacement for DHT 100158 • 13 GPM • 2-Stage Design • 1/2" Keyed Shaft • Fits DHT 22-Ton 100171 & 27-Ton 100408

Restore hydraulic performance on your discontinued Dirty Hand Tools (DHT) log splitter with this 13 GPM, 2-stage aftermarket hydraulic pump. This pump is being offered as a replacement for the original DHT part number 100158, used on the 22-Ton model 100171 and 27-Ton model 100408 log splitters.

The original DHT parts documentation identifies both the 22- and 27-ton models as using 100158 – Pump, 2 Stage, 13 GPM, along with a 1/2" bore L090 pump-side jaw coupler.

This replacement pump features a 13 GPM two-stage design, 1/2" keyed drive shaft, 1" suction inlet, and 1/2" NPT pressure outlet—making it an excellent choice for bringing a compatible DHT splitter back into service.

Key Features & Benefits

• Aftermarket Replacement for DHT 100158
  Intended to replace the original 13 GPM two-stage hydraulic pump used on select Dirty Hand Tools log splitters.
• Fits DHT 22-Ton Model 100171
  The original DHT service manual identifies model 100171 as using the 100158 13 GPM pump.
• Fits DHT 27-Ton Model 100408
  DHT documentation also specifies the same 100158 pump for the 27-ton 100408 splitter.
• 13 GPM Two-Stage Pump
  Two-stage operation provides high flow during low-load cylinder travel and transitions to the high-pressure stage when greater splitting force is required.
• Faster Log Splitter Cycle Performance
  Two-stage hydraulic pumps are designed to provide faster cylinder movement while still allowing higher hydraulic pressure with a relatively small gasoline engine.
• 1/2" Keyed Drive Shaft
  Features a 1/2" diameter shaft with a standard square keyway for connection to a compatible pump-side jaw coupler.
• Compatible with the Original DHT Coupling Arrangement
  DHT documentation identifies the original pump-side coupling as part 100397, L090 with a 1/2" bore.
• 1" Suction Inlet
  Designed for a 1" diameter suction connection from the hydraulic reservoir.
• 1/2" NPT Pressure Outlet
  Uses a common 1/2" NPT pressure-side connection.
• Up to 4,000 PSI Published Pump Rating
  Heavy-duty hydraulic construction for compatible log splitter systems operating within the pump and splitter manufacturer's pressure limits.

Replaces Dirty Hand Tools Part Number

DHT 100158 – Pump, 2 Stage, 13 GPM

The original Dirty Hand Tools parts manual lists pump 100158 in the pump and engine assembly for both:

DHT used a common engine/pump assembly for these two splitter models, with a Kohler SH265 engine and the 13 GPM two-stage pump.

Two-Stage Pump Performance

A two-stage hydraulic pump is particularly well suited to log splitters because it automatically provides two operating ranges.

During relatively easy portions of the cylinder stroke, the pump provides higher hydraulic flow for faster movement. As resistance increases during splitting, the pump transitions to its lower-flow, higher-pressure stage.

This allows a log splitter to combine:

• Faster cylinder travel
• Higher available splitting pressure
• Efficient use of a small gasoline engine
• Good overall cycle performance

The replacement pump is rated at 13 GPM at a maximum operating speed of 3,600 RPM.

Quick Specifications

The replacement pump specifications above are published for the 13 GPM GP-CBN-130 two-stage pump.

Original DHT Pump & Coupler Configuration

The DHT service documentation identifies the following components in the original 22- and 27-ton pump assembly:

• 100158 – 13 GPM, 2-stage hydraulic pump
• 100397 – L090 jaw coupler, 1/2" bore, pump side
• 100124 – L090 jaw spider
• 100398 – L090 jaw coupler, 3/4" bore, engine side
• 100016 – Pump mount, 92mm bolt circle

If your couplers or spider are worn, they should be inspected and replaced while the pump is removed.  You can get the replacement LO90 “Lovejoy” Style 3-Jaw Coupler Combo here if needed.

Pump Rotation

When viewing the pump shaft and mounting surface, the pump shaft rotates clockwise.

The driving engine therefore needs to rotate in the corresponding opposite direction when viewed toward its output shaft so that the assembled pump rotates correctly.

Always verify rotation before operating the hydraulic system. Running a hydraulic gear pump in the wrong direction can prevent proper oil flow and may damage the pump.

Package Contents

• 1 × 13 GPM two-stage aftermarket hydraulic pump

Important Compatibility Information

This is an aftermarket replacement pump and is not manufactured by Dirty Hand Tools.  This listing is specifically intended for replacement of DHT part number 100158 on the following Dirty Hand Tools splitters:

• 22 Ton – Model 100171
• 27 Ton – Model 100408

Before ordering, verify the model number of your splitter and compare your existing pump configuration. DHT produced multiple splitter sizes that used different hydraulic pumps.

For example, the DHT parts manual identifies the 28- and 35-ton models as using a different 17.5 GPM pump, part number 100479, rather than the 100158 pump used on the 22- and 27-ton machines.

This replacement should not be ordered for a DHT splitter simply because the machine looks similar. Verify the splitter model and original pump part number before purchase.
