2 Inch Banjo Dewatering Pump Honda GX160 (200PH-5-160.BAN)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
Flat Rate Shipping
This Banjo transfer pump 200PH-5-160.BAN is powered by a proven commercial grade Honda GX160 engine. This unit is also available with an optional electric start (200PH-5-160E.BAN)
For all technical specifications including operations manual please see the following links:
Banjo Chemical Resistance Chart

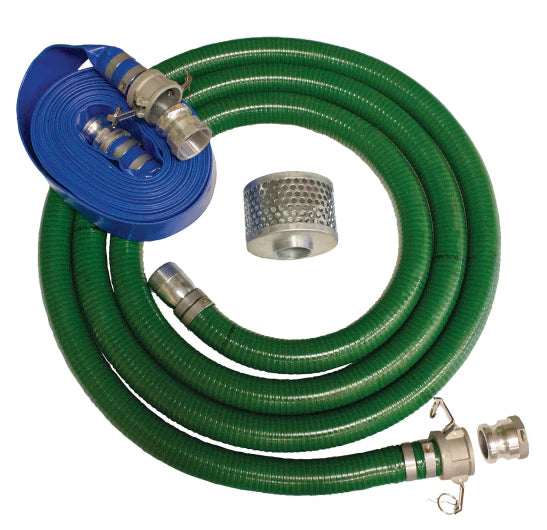

Need a hose hose kit? See our optional 2" Hose Kit w/ Quick Connect Couplers (BRHK2). Kit is discounted when you purchase the pump at the same time.
190 GPM • 2" NPT Ports • Honda GX160 163cc Engine • Self-Priming • Replaces 205PH-5-160
Move water and compatible liquids quickly with the Banjo 200PH-5-160 Transfer Pump. Powered by the proven Honda GX160 163cc engine, this portable 2-inch pump delivers up to 190 gallons per minute and combines high-strength polypropylene construction with a high-performance 5-vane impeller.
The self-priming, V-shaped pump body is designed for quick priming, while the EPDM mechanical seal provides dependable service in compatible liquid-transfer applications. At only 50 lbs. dry weight, the 200PH-5-160 combines substantial transfer capacity with a portable design suitable for agricultural, irrigation, dewatering, and general liquid-transfer work.
Key Features & Benefits
-
Up to 190 GPM Flow
High-capacity transfer performance helps move large volumes of liquid quickly. -
Honda GX160 Engine
Powered by a dependable 163cc Honda GX160 commercial engine with recoil starting. -
2" Suction & Discharge Ports
Features 2-inch NPT suction and discharge connections for high-volume applications. -
Self-Priming Design
The V-shaped polypropylene pump body is designed for fast, convenient priming. -
5-Vane Polypropylene Impeller
High-performance impeller design helps provide strong flow while maintaining corrosion resistance. -
Corrosion-Resistant Polypropylene Construction
High-strength polypropylene construction makes the pump well suited for demanding transfer applications involving compatible liquids. -
EPDM Mechanical Seal
Built with an EPDM mechanical seal for durability and reliable service. -
Lightweight & Portable
At approximately 50 lbs. dry weight, the unit can be transported between jobs without the bulk of a permanently mounted pumping system.
Powered by Honda GX160
The 200PH-5-160 uses Honda's GX160 163cc engine, providing a dependable power source for demanding transfer applications.
The recoil-start configuration keeps the pump simple and self-contained, making it useful in remote locations where electrical power may not be available.
High-Capacity 2" Transfer Pump
With a published maximum discharge capacity of 190 GPM, the 200PH-5-160 is designed for jobs where moving a substantial amount of liquid quickly is important.
Both the suction and discharge ports are 2-inch NPT, allowing the pump to be incorporated into compatible 2-inch hose and piping systems.
Self-Priming V-Shaped Pump Body
The pump features a self-priming V-shaped body designed to help speed the priming process. This makes setup easier when moving the pump between different transfer locations.
As with any self-priming centrifugal pump, the pump housing should be properly primed before initial operation according to the manufacturer's instructions.
Ideal Applications
The Banjo 200PH-5-160 is well suited for applications such as:
- Agricultural liquid transfer
- Irrigation
- Water transfer
- Tank-to-tank transfer
- Dewatering
- Farm and ranch applications
- Lawn and landscape irrigation
- General-purpose liquid transfer
- Mobile pumping applications
For chemicals or non-water liquids, always verify compatibility with polypropylene, EPDM, and all other wetted components before use.
Quick Specifications
| Specification | Details |
|---|---|
| Brand | Banjo |
| Model / MPN | 200PH-5-160 |
| SKU | 200PH-5-160.BAN |
| Product Type | Transfer Pump |
| Maximum Discharge Capacity | 190 GPM |
| Suction Port | 2" NPT |
| Discharge Port | 2" NPT |
| Engine Brand | Honda |
| Engine Model | GX160 |
| Engine Displacement | 163cc |
| Starting System | Recoil |
| Pump Construction | Polypropylene |
| Impeller | 5-Vane Polypropylene |
| Mechanical Seal | EPDM |
| Self-Priming | Yes |
| Dry Weight | 50 lbs. |
Replaces Banjo 205PH-5-160
The 200PH-5-160 is the current replacement for the previous Banjo 205PH-5-160 model. GNE's catalog identifies the older 205PH-5-160 listing as replaced by the 200PH-5-160, and current dealer listings likewise identify the 200PH-5-160 as its replacement.
Customers searching for either model number can therefore use:
- Current Model: 200PH-5-160
- Previous Model: 205PH-5-160
Package Contents
- 1 × Banjo 200PH-5-160 transfer pump
- Honda GX160 engine installed
NOTE: Most products require at least some assembly.
