30 Ton Upside Down Skid Steer Log Splitter Attachment 4 Way Wedge (SSUD30-4)

30 Tons of Force • 4-Way Wedge Included • Split Large Logs Without Leaving the Cab

Take the hard work out of processing oversized rounds with the RAM SPLITTER SSUD30-4 Upside Down Skid Steer Log Splitter. Designed to mount upside down on your skid steer, this heavy-duty attachment lets you pick up and split logs directly from the ground without lifting them by hand or leaving the operator’s seat.

With 30 tons of ram force, a rugged 6" × 3" tubular steel beam, and an included 4-way wedge made from 4140 hardened steel, the SSUD30-4 is built for serious firewood production, land clearing, storm cleanup, and other demanding wood-processing applications.

The upside-down design allows the skid steer to do the lifting and positioning, making it especially useful for large, heavy rounds that are difficult or unsafe to handle manually.

For added convenience, this unit also includes hydraulic hoses and standard flat-face quick disconnects for easier hookup to compatible skid steers.

Key Features & Benefits

• 30 Tons of Splitting Force
  Delivers approximately 60,000 lbs. of ram force for demanding log-splitting applications.

• Upside Down Skid Steer Design
  Bring the splitter directly to the log and process heavy rounds while they remain on the ground.

• 4-Way Wedge Included (Permanent)
  Heavy-duty 4140 hardened steel 4-way wedge splits compatible logs into four pieces in a single pass to help increase productivity.

• 24.5" Standard Opening
  Provides plenty of working room for common firewood lengths and large rounds.

• Heavy-Duty Tubular Steel Beam
  Constructed with a 6" × 3" tubular beam with 3/8" wall thickness for strength and durability.

• 5" × 24" Hydraulic Cylinder
  Heavy-duty cylinder delivers dependable splitting force in demanding applications.

• Universal Skid Steer Mount
  Equipped with a universal skid steer mounting plate for compatibility with common quick-attach systems.

• Dual Quick-Attach Handles
  Includes 2 quick-attach handles for secure attachment to the host machine.

• Hoses & Flat-Face Disconnects Included
  Hydraulic hoses and standard flat-face quick couplers are included for added convenience.

• Made in the USA
  Built for rugged use and long-term performance.

• Durable Black Safety Finish
  Protective painted finish helps guard the steel structure against outdoor exposure.

Split Large Logs Without Lifting

One of the biggest advantages of the SSUD30-4 is its upside-down configuration.

Instead of lifting a heavy round onto a conventional splitter, simply position the skid steer over the log, lower the splitter into place, and let the hydraulic system do the work.

This can help reduce:

• Manual lifting
• Repetitive bending
• Log handling
• Operator fatigue
• Time spent repositioning large rounds

It is especially useful for oversized hardwood rounds, storm-damaged trees, land clearing, and large firewood operations.

4-Way Wedge for Faster Firewood Production

The included permanent 4-way wedge is manufactured from 4140 hardened steel for demanding splitting applications.

Rather than making a single two-way split, the wedge can divide compatible logs into four pieces during one stroke, helping reduce the number of passes needed to produce firewood-sized pieces.

This can be particularly useful when processing:

• Straight-grained hardwood
• Large rounds
• Firewood for wood stoves
• High-volume firewood piles

Knotted or irregular logs may still require repositioning or additional passes.

Heavy-Duty 30-Ton Hydraulic System

The SSUD30-4 uses a 5" × 24" hydraulic cylinder to deliver its published 30-ton splitting force.

Because the attachment operates from the skid steer’s hydraulic system, there is no separate:

• Gas engine
• Hydraulic pump
• Fuel tank
• Standalone hydraulic reservoir

Cycle speed will depend on the hydraulic flow supplied by the host machine.

Optional 30" Opening Upgrade

Need additional clearance for longer logs?

An optional 30" opening configuration (SSUD30-32-4) uses a 5" × 30" hydraulic cylinder, increasing the opening by approximately 6 inches.

This upgrade is ideal for operators who routinely process longer wood.

Ideal Applications

The RAM SSUD30-4 is well suited for:

• Firewood businesses
• Farms and ranches
• Large rural properties
• Tree-service operations
• Storm cleanup
• Land clearing
• Property maintenance
• Large hardwood rounds
• Skid steer owners
• High-volume firewood processing

Quick Specifications

Package Contents

• RAM SSUD30-4 upside-down skid steer log splitter
• 4-way 4140 hardened steel wedge
• Universal skid steer mounting plate
• Hydraulic hoses
• Standard flat-face quick disconnects

Skid steer is sold separately.

Important Hydraulic Compatibility

Before ordering, verify that your skid steer’s hydraulic system is compatible with the splitter.

Check:

• Hydraulic flow
• Hydraulic pressure
• Supply and return connections
• Flat-face coupler compatibility
• Machine lift capacity
• Attachment weight
• Operating stability

Cycle time will vary depending on the hydraulic output of the host machine.

Frequently Asked Questions

How much splitting force does the SSUD30-4 produce?
The splitter is rated at 30 tons, or approximately 60,000 lbs. of ram force.

Does it include the 4-way wedge?
Yes. The SSUD30-4 includes a 4-way wedge made from 4140 hardened steel.

What is the standard log opening?
The standard configuration provides a 24.5" opening.

Is a larger opening available?
Yes. An optional 5" × 30" cylinder increases the opening by approximately 6 inches.

Does it include hydraulic hoses?
Yes. Hydraulic hoses and standard flat-face quick disconnects are included.

Does the splitter have its own hydraulic pump?
No. It operates from the skid steer’s hydraulic system.

Will it fit any skid steer?
The unit uses a universal skid steer mounting plate, but hydraulic compatibility and machine capacity should always be verified before ordering.

Is it made in the USA?
Yes. The SSUD30-4 is made in the USA.

Important Note

If you have a Case 1840, please let us know at the time of order, as this unit requires a different mount.

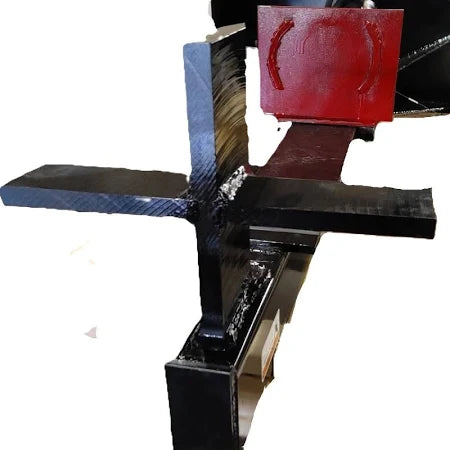

Pictures shows model SSUD30-6 with a 6-Way Wedge.  This listing comes with a 4-way only NOT 6-way.  Splitter is identical besides the 4-way vs 6-way.
