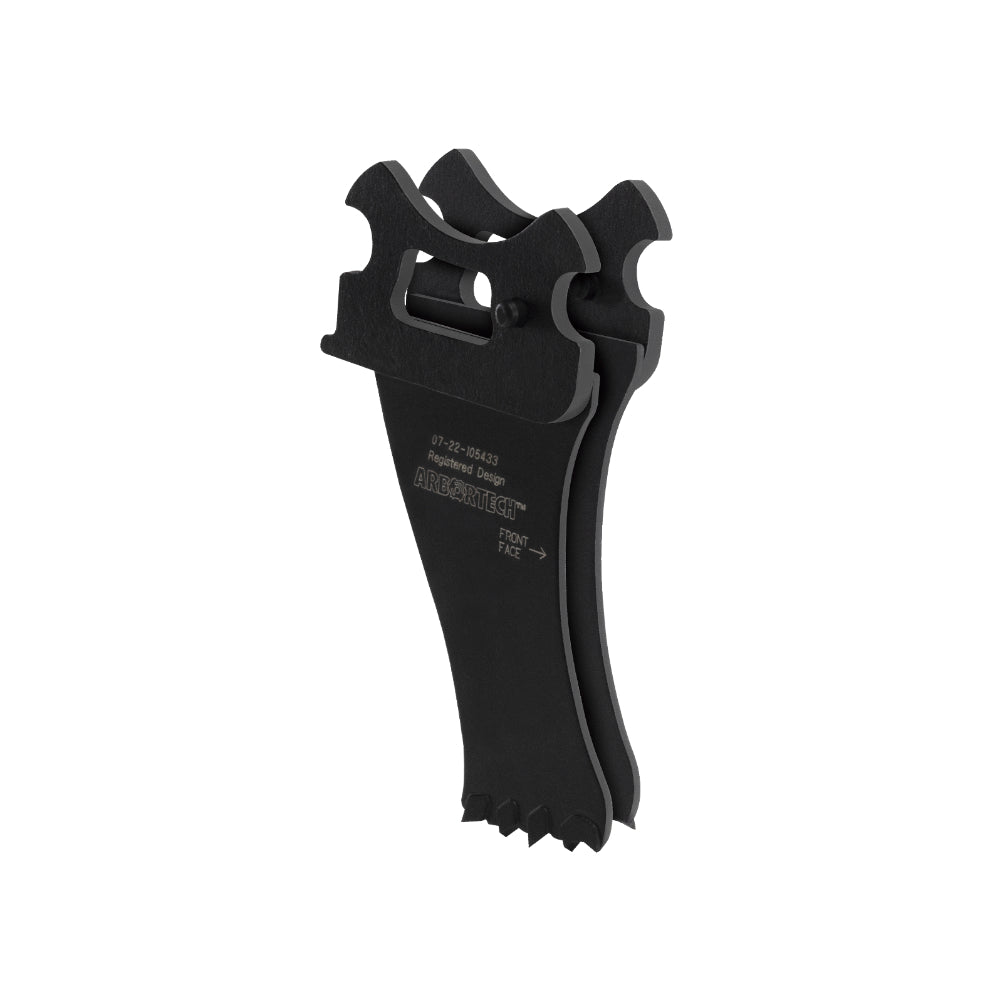

Arbortech 200X Quick-Switch Head Joint Blade Set (GWG311658)
Call a log splitter expert at (888) 706-2434 or send us an email. Alternatively, you can chat with us (bottom-right corner).
3" Cutting Depth • 1/8" Cutting Width • Two-Blade Set • Fits AS200X and BA200X
Precisely remove mortar from short or vertical masonry joints with the Arbortech 200X Quick-Switch Head Joint Blade Set. Designed for detailed tuckpointing and masonry-restoration work, this narrow blade set produces an approximately 1/8-inch-wide cut while reaching depths up to 3 inches.
The matched two-blade set is made specifically for the Arbortech AS200X and BA200X ALLSAW models. Its narrow cutting profile makes it particularly useful for head joints, vertical mortar lines, and shorter joints where a wider general-purpose blade would remove unnecessary material.
Key Features & Benefits
-
Designed for Precision Tuckpointing
Removes mortar from narrow masonry joints while helping preserve the surrounding brick. -
Ideal for Head and Vertical Joints
Purpose-built for short or vertical mortar joints that require a narrow, controlled cut. -
3" Maximum Cutting Depth
Reaches up to 75mm deep for compatible mortar-removal and restoration applications. -
Narrow 1/8" Cutting Width
Produces an approximately 3mm-wide cut for precise joint preparation. -
Quick-Switch Blade Design
Works with the blade-changing system used on compatible 200X ALLSAW tools. -
Matched Two-Blade Set
Includes both blades needed for the ALLSAW’s twin reciprocating cutting action. -
Compatible with Corded and Cordless Models
Fits both the corded AS200X and cordless BA200X ALLSAW.
Ideal Applications
The Arbortech 200X Head Joint Blades are well suited for:
- Precision tuckpointing
- Removing mortar from vertical joints
- Cleaning short masonry joints
- Brick-wall restoration
- Preparing joints for repointing
- Repairing damaged mortar
- Historic masonry renovation
- Detailed brickwork maintenance
The blades are intended for mortar-joint removal rather than general-purpose cutting through complete brick sections.
Tool Compatibility
These blades are compatible with:
- Arbortech ALLSAW AS200X
- Arbortech ALLSAW BA200X
They are not listed for use with older AS160, AS170, or AS175 ALLSAW models, which use a different head-joint blade configuration.
Quick Specifications
| Specification | Details |
|---|---|
| Brand | Arbortech |
| Product | 200X Quick-Switch Head Joint Blade Set |
| SKU | GWG311658 |
| Manufacturer Part Number | BLB.FG.7000 |
| Equipment Type | ALLSAW Blade Kit |
| Primary Application | Tuckpointing and Mortar Removal |
| Maximum Cutting Depth | 3 in. / 75mm |
| Cutting Width | 1/8 in. / 3mm |
| Blade Quantity | 2 |
| Compatible Tools | Arbortech AS200X and BA200X |
| Published Dimensions | 7.28 in. L × 6.5 in. W × 0.59 in. H |
| Published Weight | 0.65 lbs. |
The product dimensions, weight, SKU, and part number follow the distributor specifications; Arbortech confirms the cutting dimensions, blade quantity, and tool compatibility.
Package Contents
- Two Arbortech 200X Quick-Switch Head Joint Blades
The ALLSAW power tool, battery, charger, dust-extraction equipment, and additional blade styles are not included.
